1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

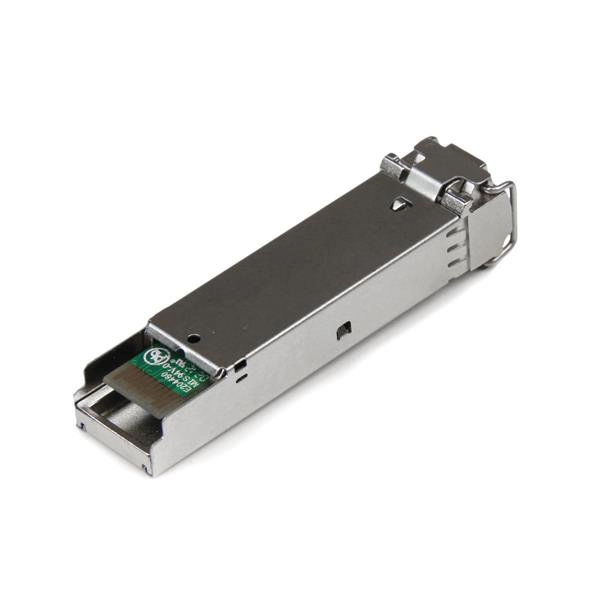

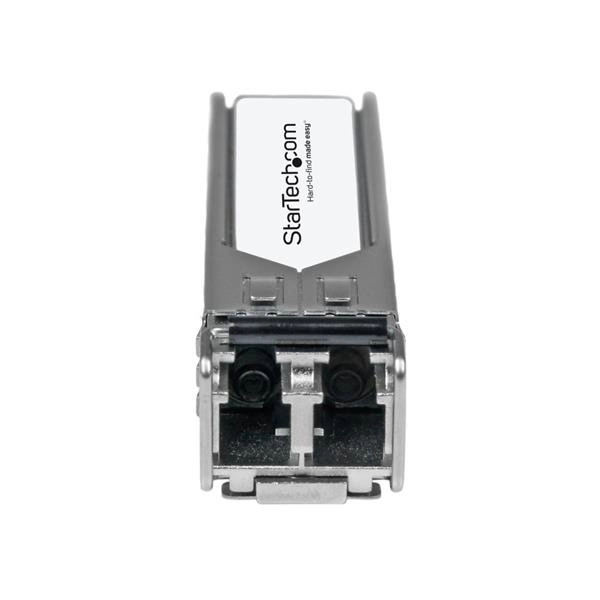

The EG3D0000086-ST is a Citrix EG3D0000086 compatible fiber transceiver module that has been designed, programmed and tested to work with Citrix brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).  Technical Specifications:

Wavelength: 850nm

Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 550 m (1804 ft)

MTBF: 629, 953, 711 hours

Power Consumption: Low power consumption

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% CITRIX EG3D0000086 COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Citrix switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-SX
- 1Gbps

Specification

Product
Product id	666192
Brand	StarTech.com
Partnr	EG3D0000086-ST
EAN/UPC code	065030885690
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
SFP transceiver standard	SX
Maximum transfer distance	550 m
Wavelength	850 nm
Fiber ethernet cabling technology	1000BASE-SX
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	629953711 uur
Brand compatibility	Citrix
Compatible products	EG3D0000086
Certification	CE, FCC, UR
Weight & dimensions
Width	56.6 mm
Depth	13.7 mm
Height	12.5 mm
Weight	16 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Quantity per master (outer) case	1 stuk(s)
