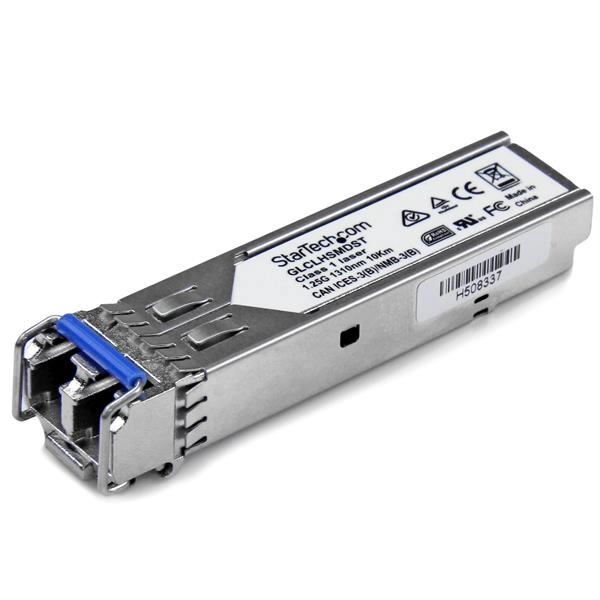

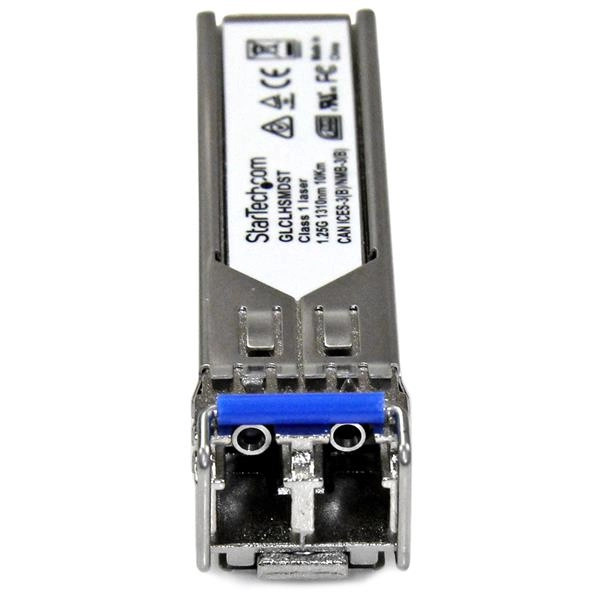

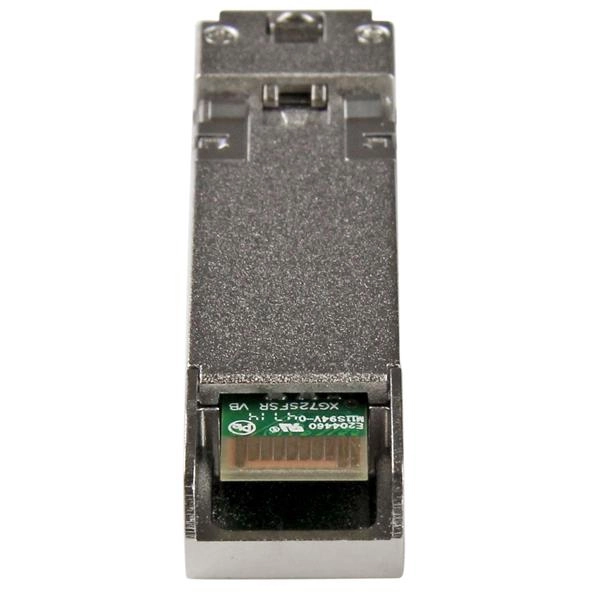

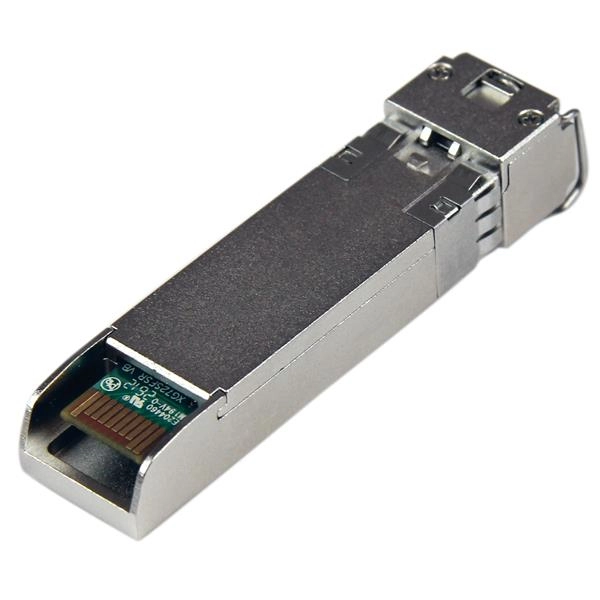

Gigabit Fiber SFP Transceiver Module - Cisco GLC-LH-SMD Compatible - SM/MM LC - 10km / 550m - 1000Base-LX/LH - Single mode/ multi-mode Mini-GBIC with Lifetime Warranty



StarTech.com
In stock
€ 47,80
€ 57,83 incl 21% VAT
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

Wavelength: 1310 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Single Mode / Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 200, 000 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% compatibility with Cisco GLC-LH-SMD guaranteed
- StarTech. com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards

Specification

Product
Product id 538970
Brand StarTech.com
Partnr GLCLHSMDST
EAN/UPC code 065030864268
Warranty (months) Lifetime
Network
SFP transceiver type Fiber optic
Technical details
Auto MDI/MDI-X Y
Sustainability certificates RoHS
Packaging data
Number of products included 1 stuk(s)
Package width 92 mm
Package depth 118 mm
Package height 32 mm
Package weight 95 g
Performance
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported Y
Multi-mode fiber (MMF) supported Y
Fiber optic connector LC
SFP transceiver standard LH, LX
Maximum transfer distance 10000 m
Wavelength 1310 nm
Networking standards IEEE 802.3z
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Fiber ports quantity 1
Features
Product colour Silver
Housing material Aluminium
Hot-swap Y
Mean time between failures (MTBF) 200000 uur
Brand compatibility Cisco
Compatible products GLC-LH-SMD
Certification CE, FCC, UL, REACH
Power
Power consumption (typical) 1 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95 procent
Weight & dimensions
Width 12 mm
Depth 58 mm
Height 8 mm
Weight 18 g
