Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

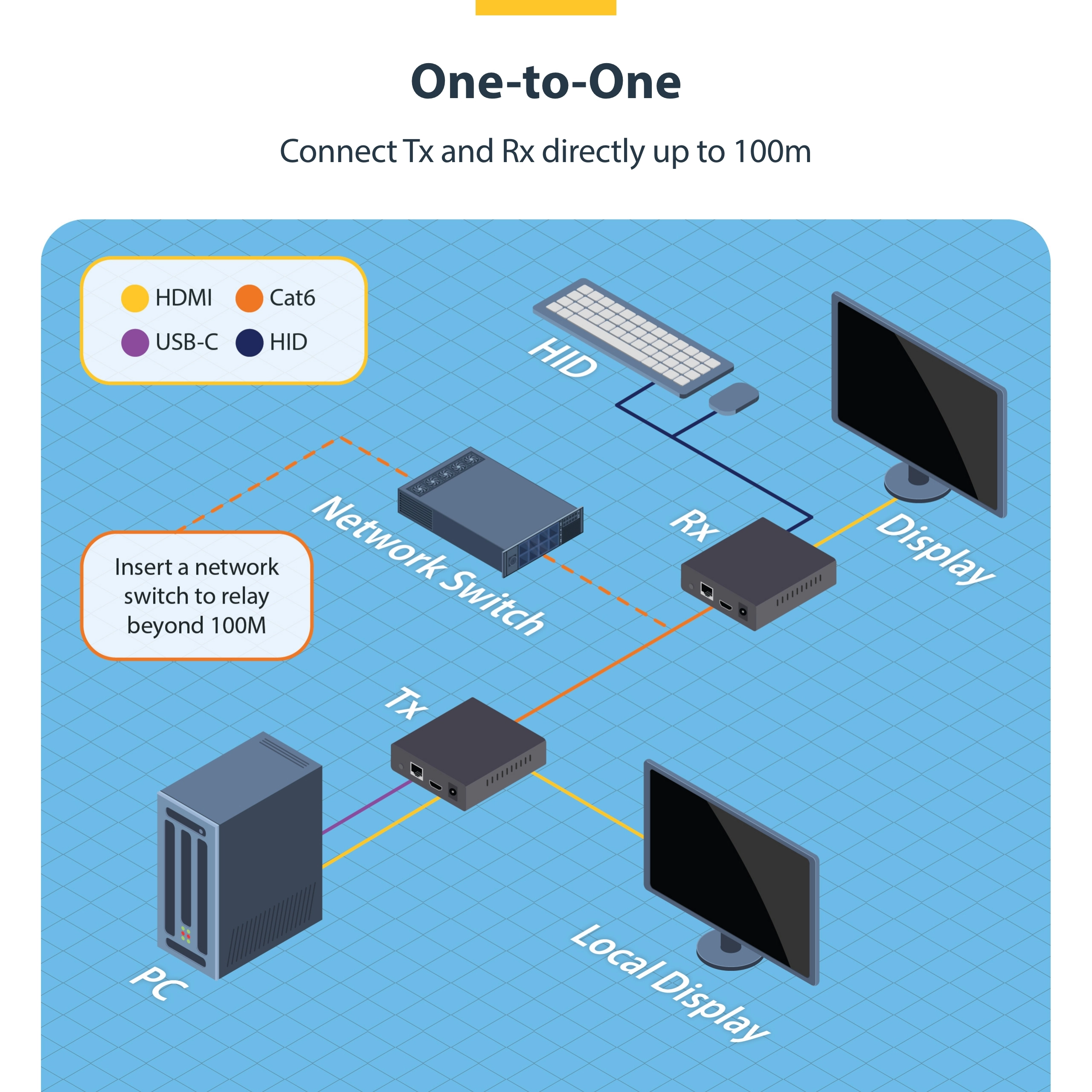

Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.

Professional-Grade Design

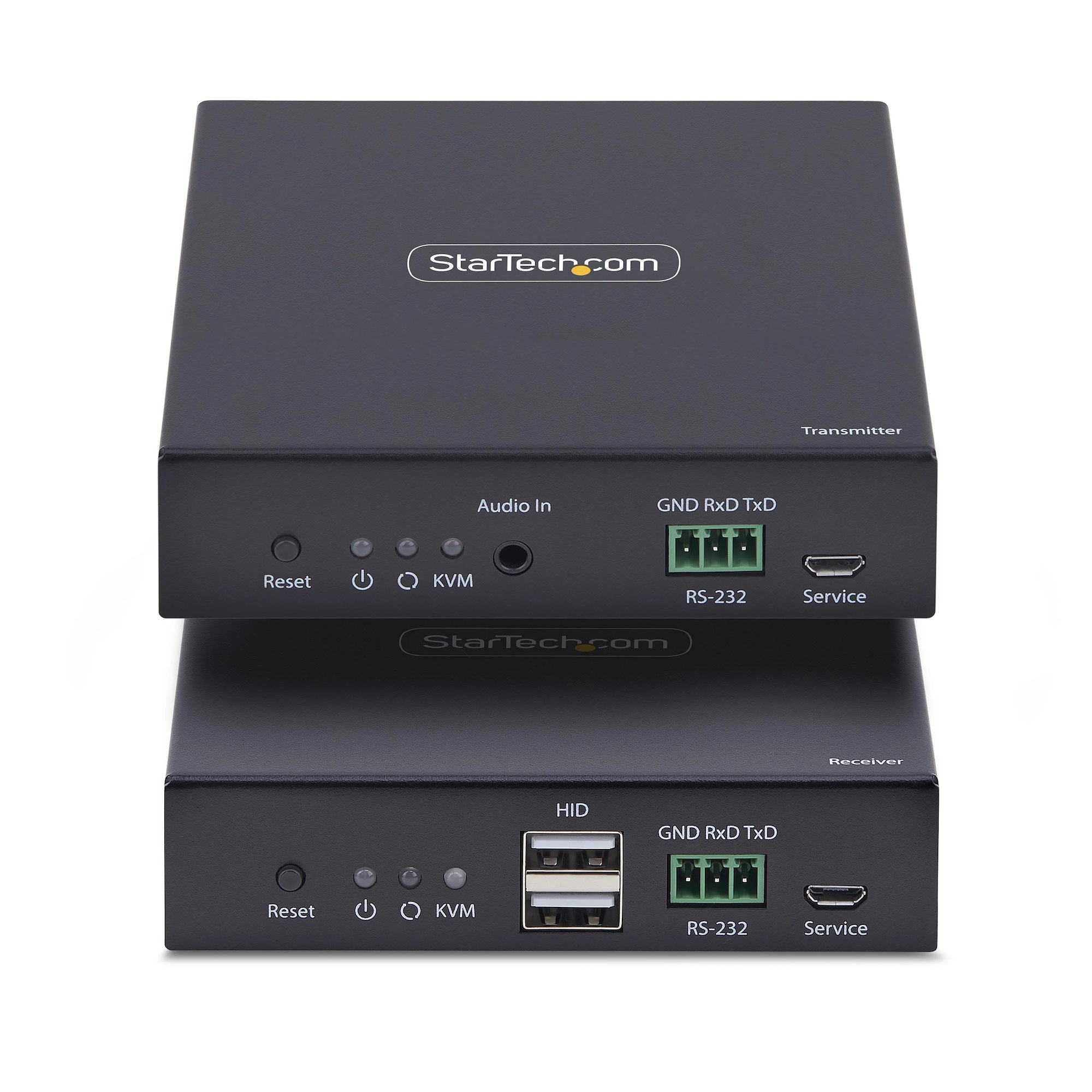

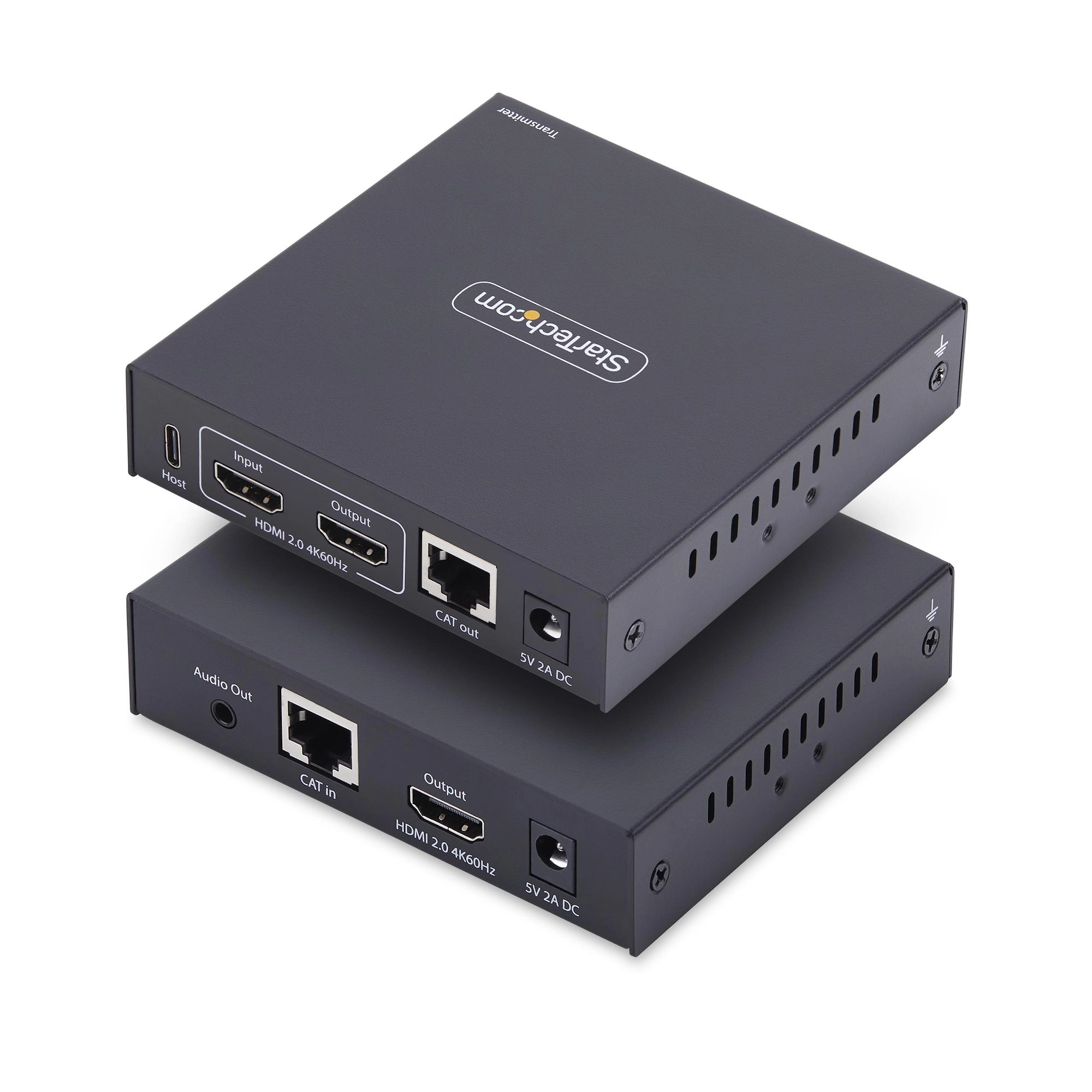

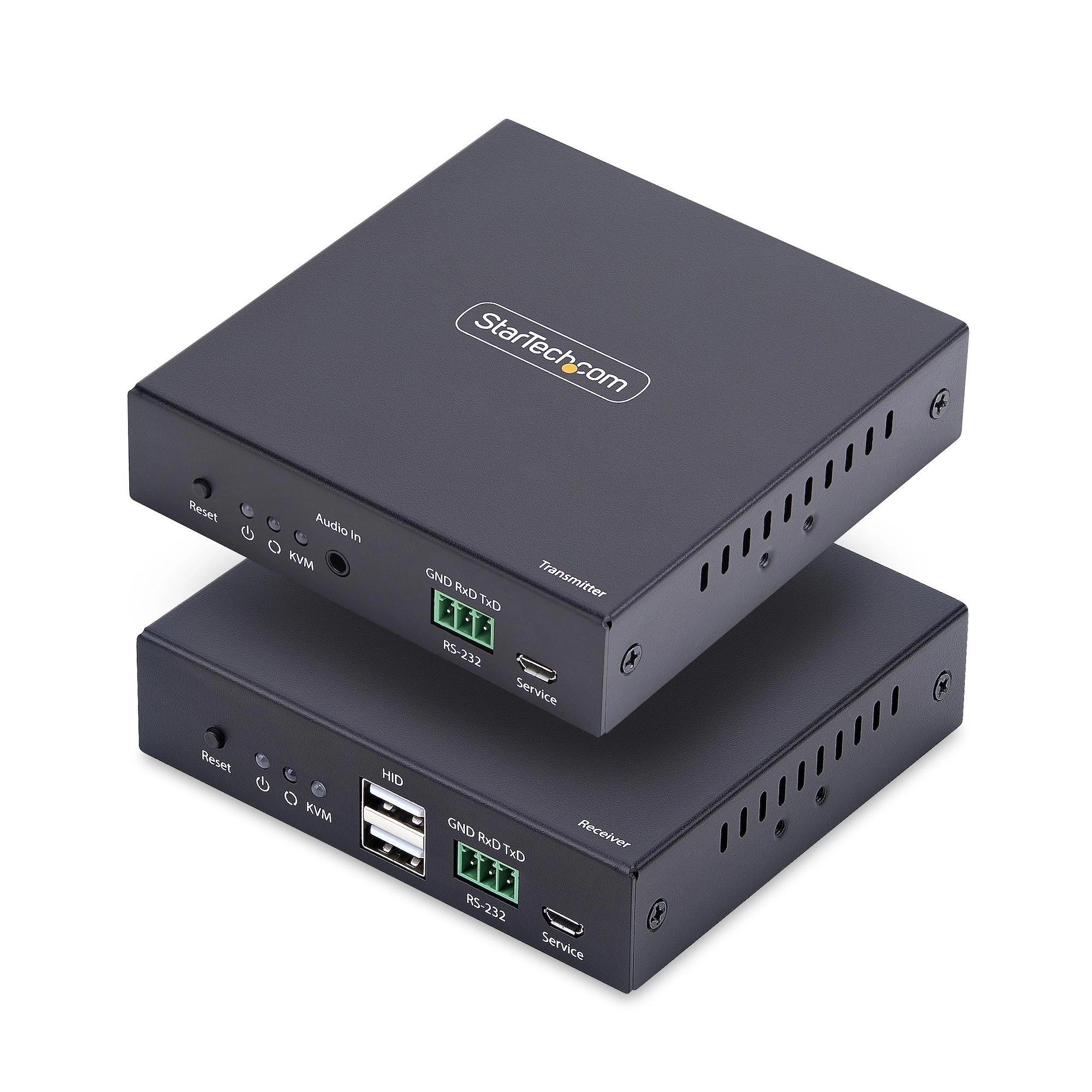

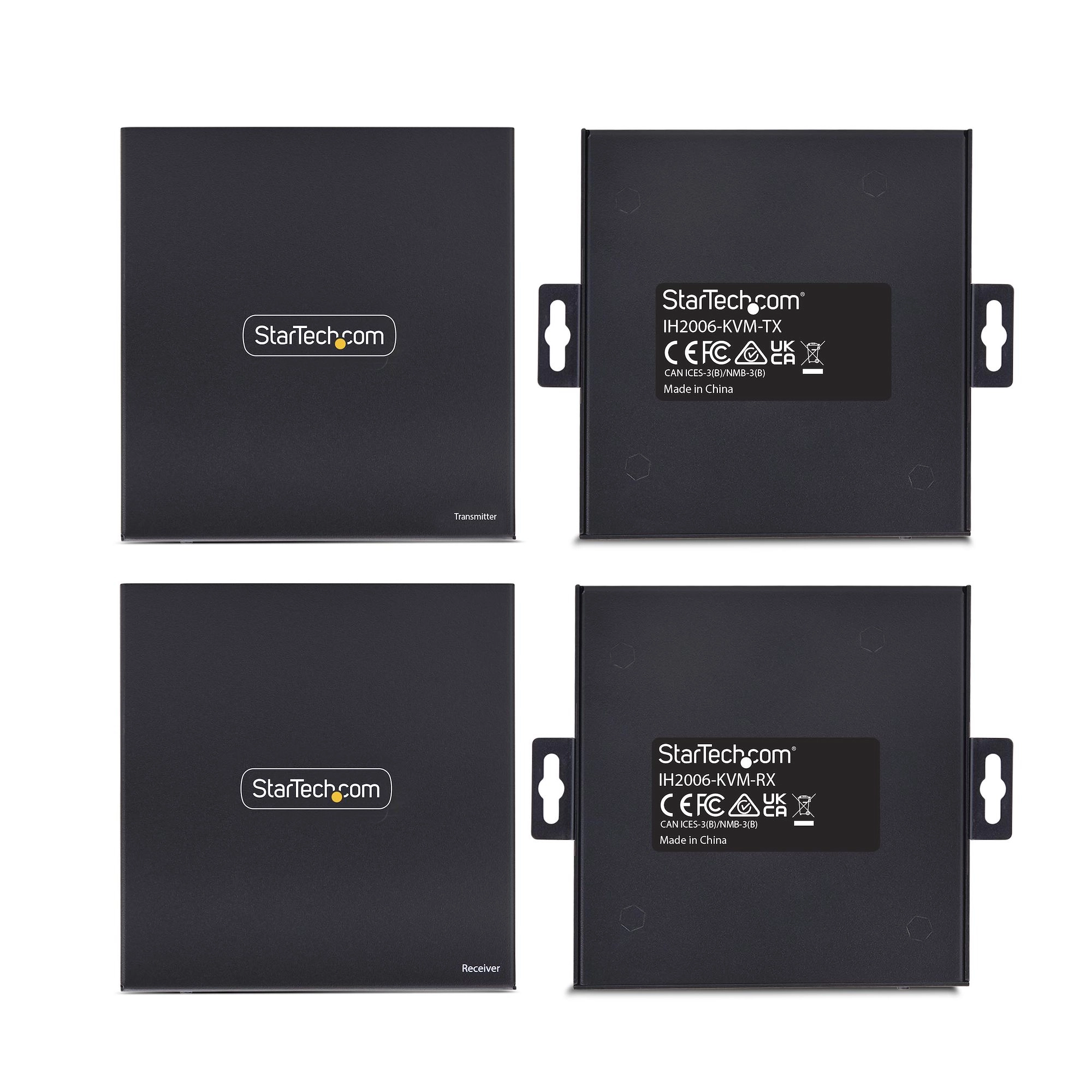

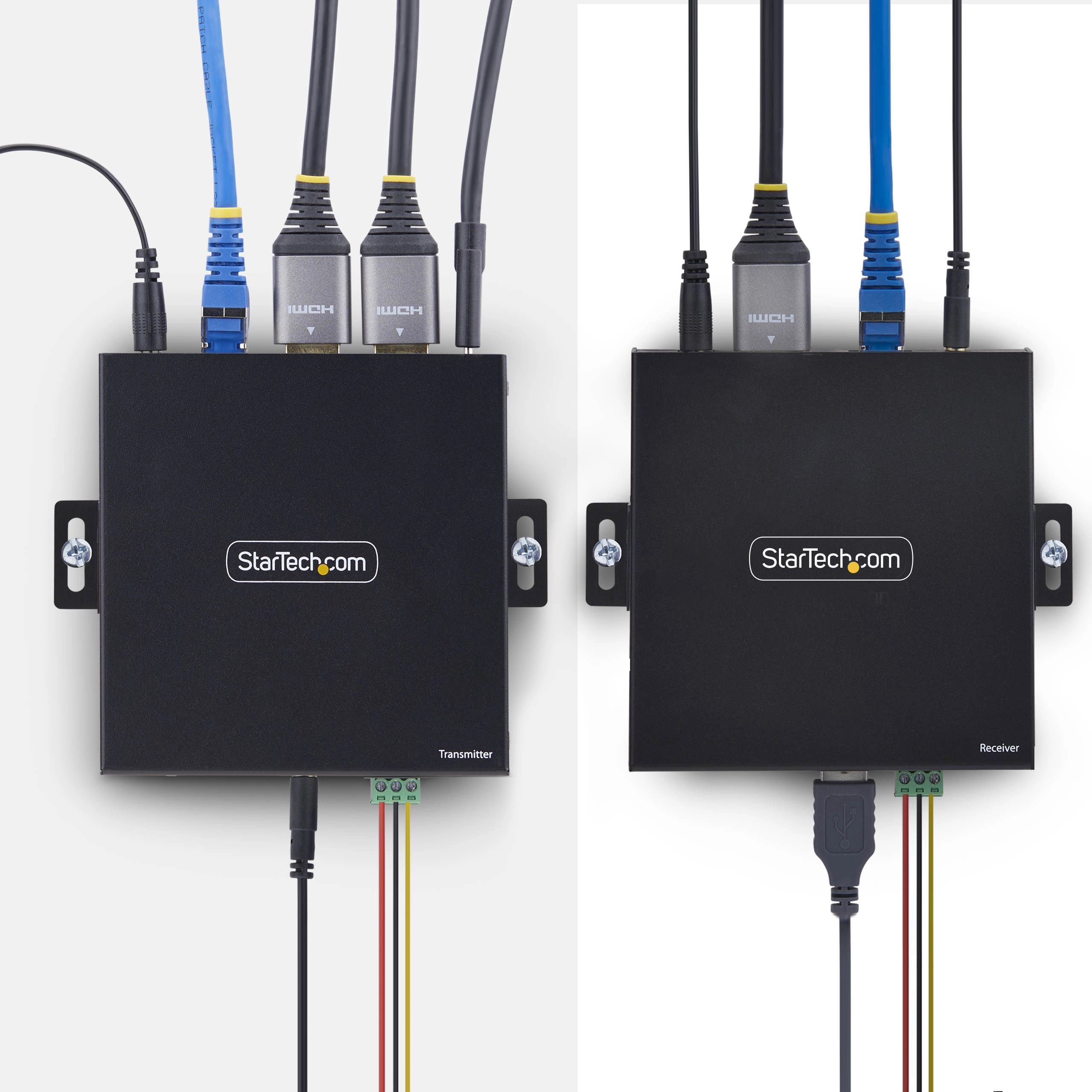

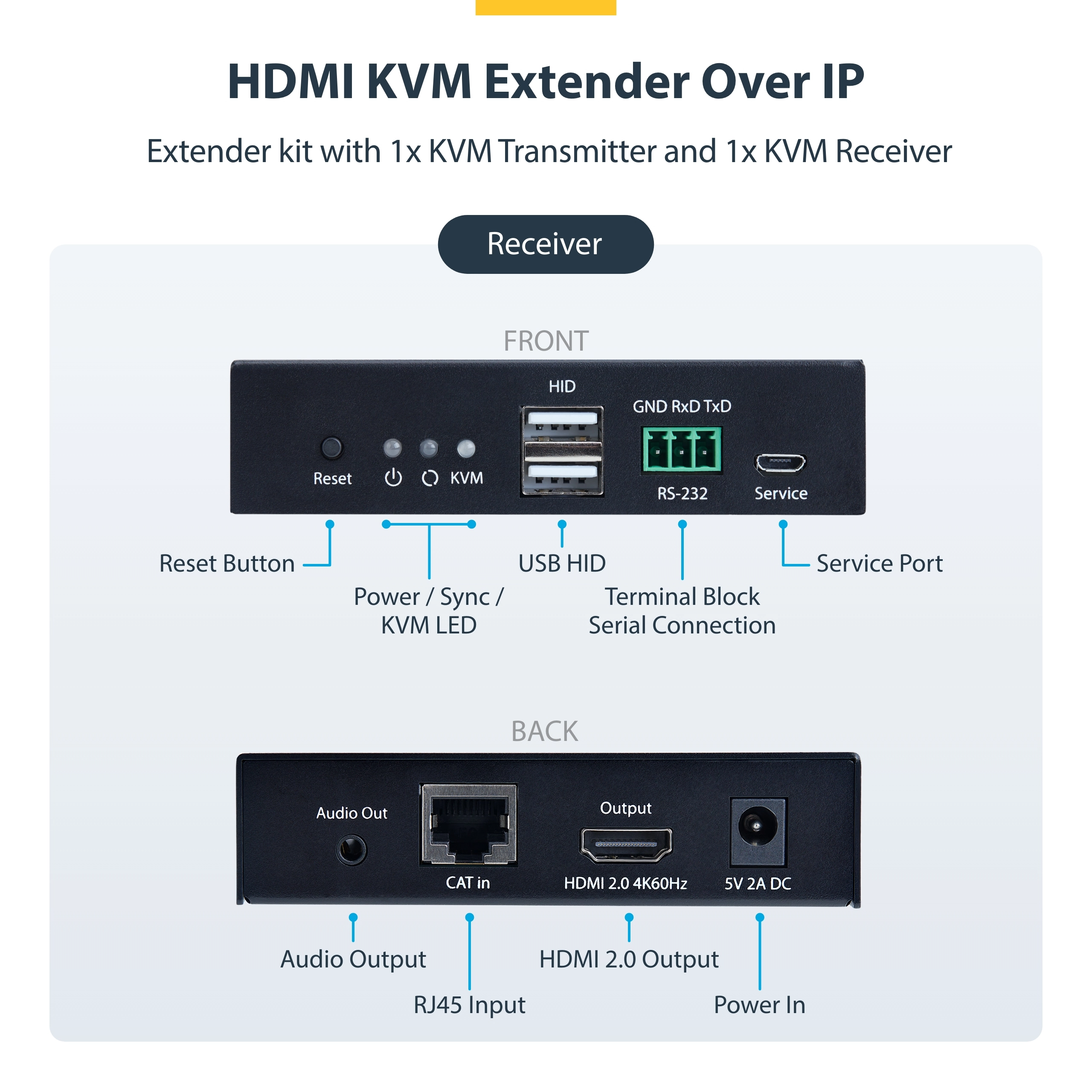

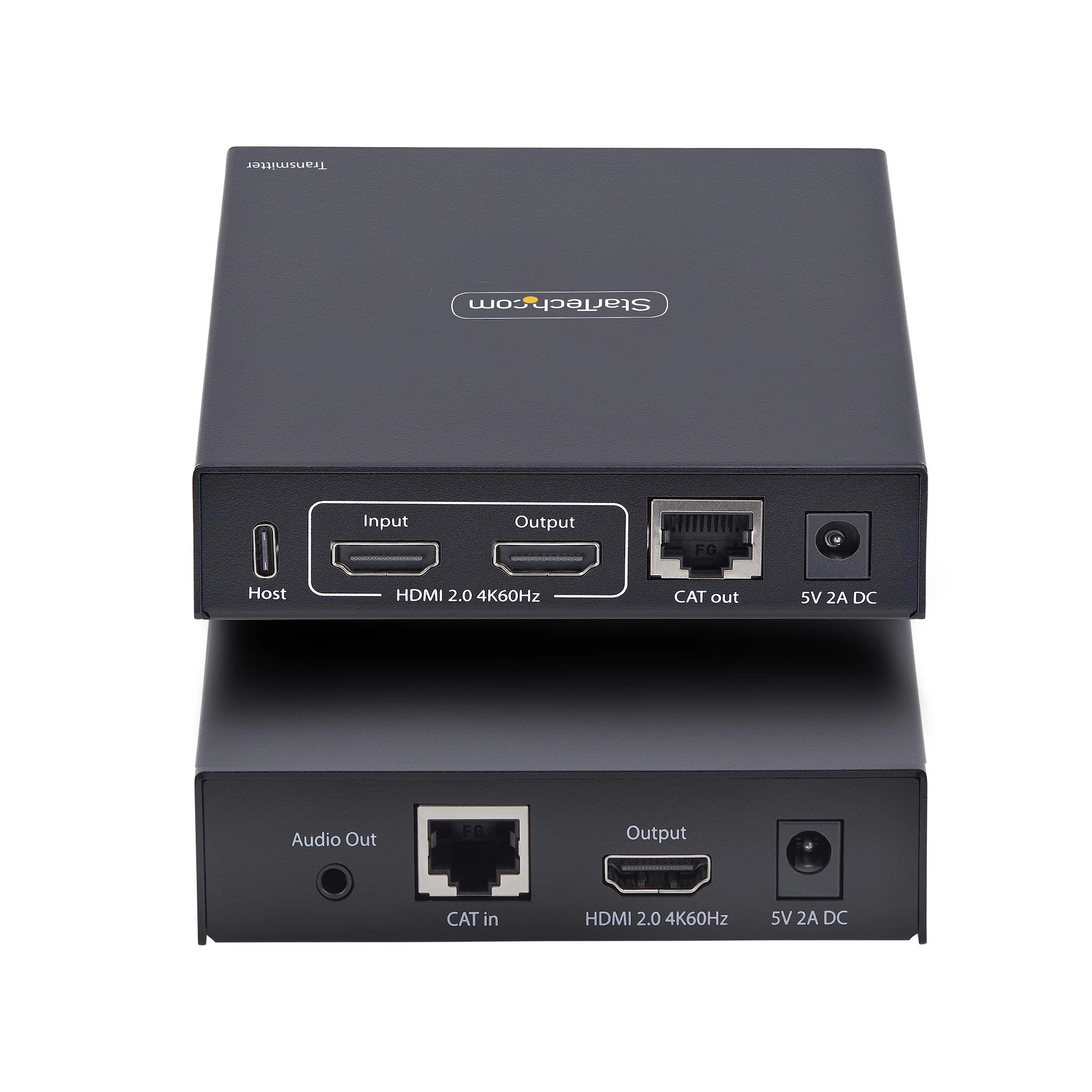

Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

The StarTech. com Advantage

Specification

Product
Product id	993746
Brand	StarTech.com
Partnr	IH2006-KVM-EXTENDER
EAN/UPC code	065030911511
Warranty (months)	2-Year Warranty
Features
Type	Transmitter & Receiver
Connectivity technology	Wired
Cable types supported	Cat6
Rack mounting	N
Maximum digital resolution	3840 x 2160 Pixels
On Screen Display (OSD)	N
Maximum refresh rate	60 Hz
Product colour	Black
USB 2.0 ports quantity	1
LED indicators	Y
Mean time between failures (MTBF)	10000 uur

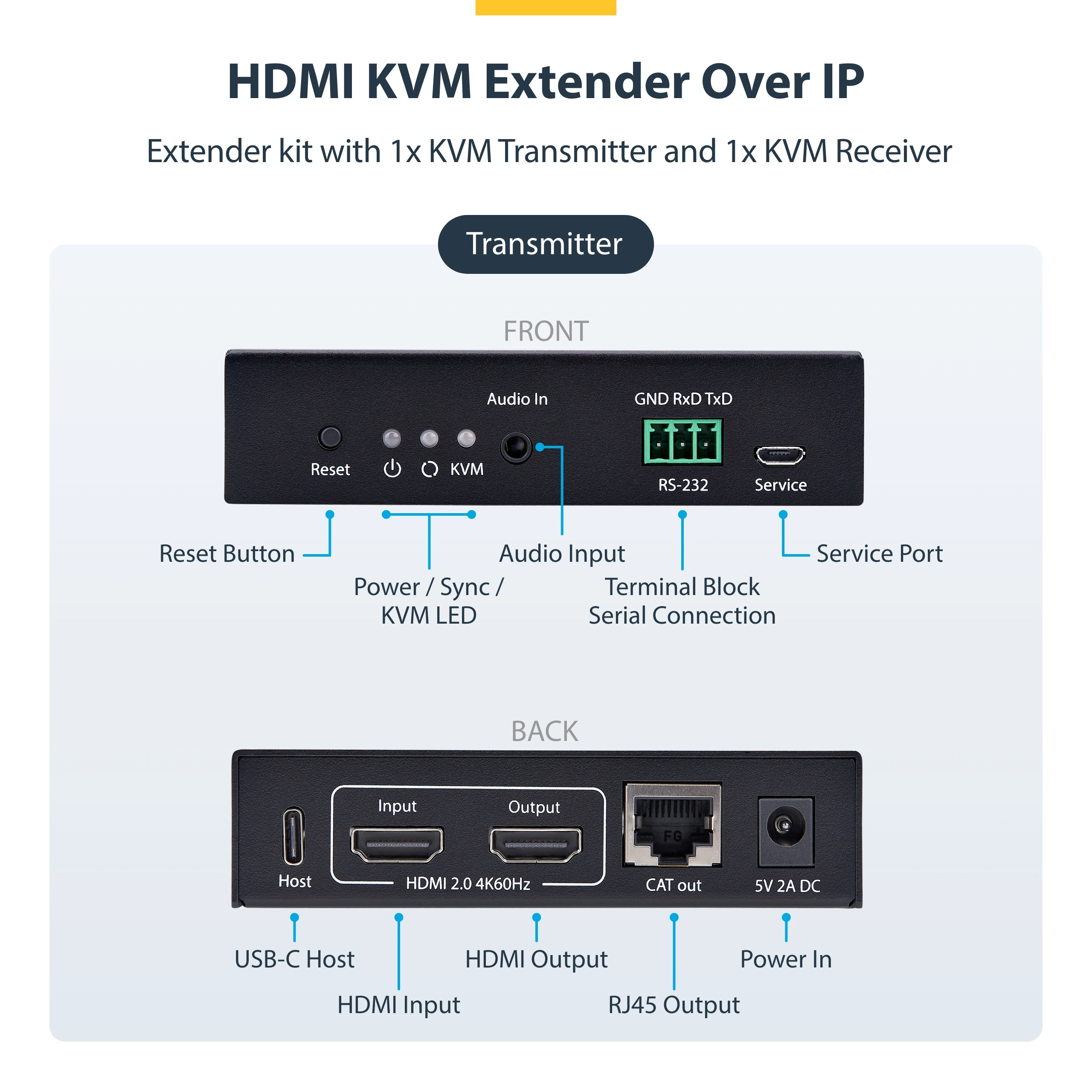

Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Y
Transmitter local video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Transmitter Micro-USB ports quantity	1
Receiver
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver Micro-USB ports quantity	1
Receiver USB Type-A ports quantity	2
Power
Power plug type	Type M
AC input voltage	100 - 240 V
Input current	0.3 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (transmitter) (max)	10 W
Power consumption (receiver) (max)	10 W
DC-in jack	Y
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90 procent
Ports & interfaces
USB port type	USB Type-C
RS-232 ports	2
HDMI version	2.0
PC Audio in	Y
PC Audio out	Y

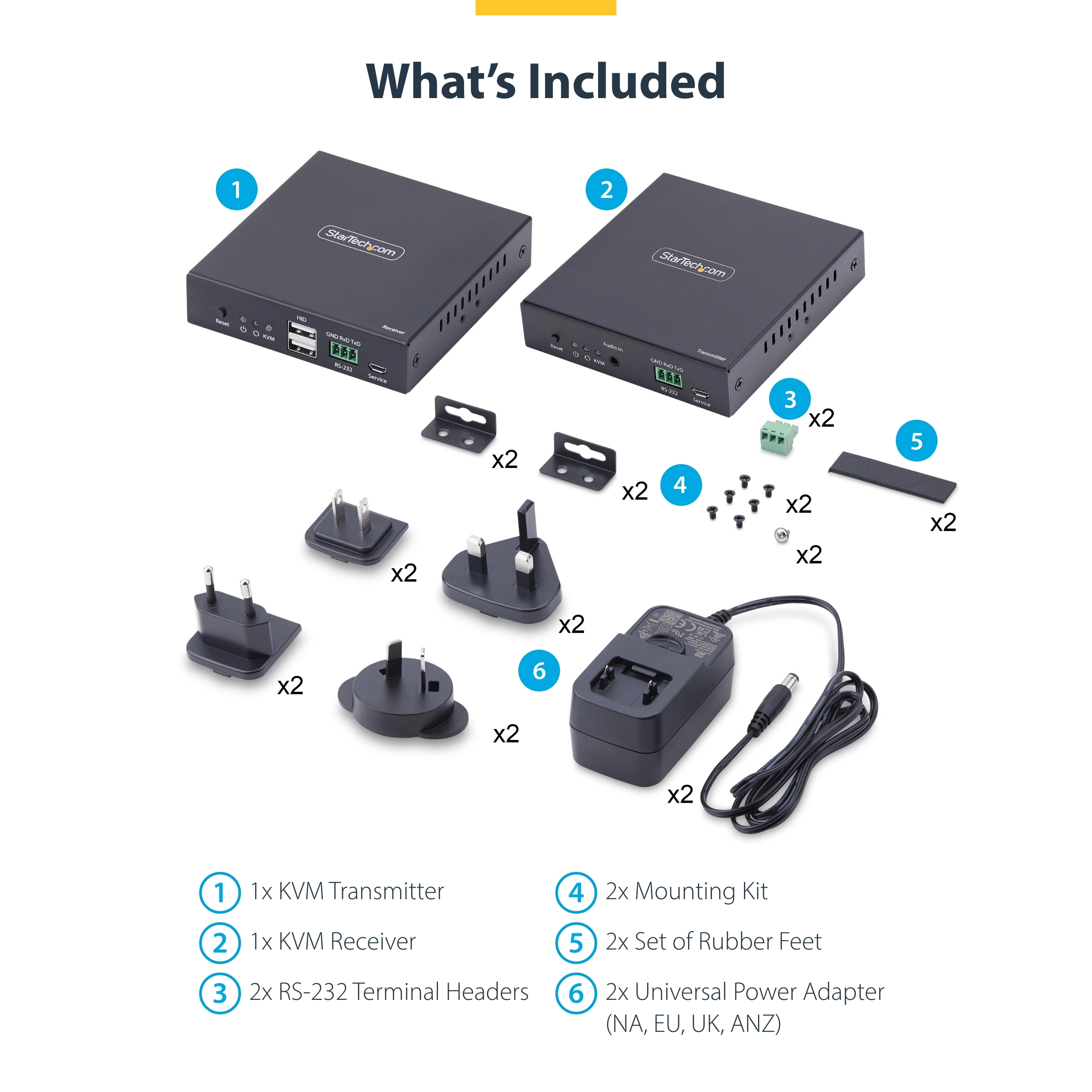

Packaging content
AC adapter included	Y
Mounting bracket(s) included	Y
Included power plug types	ANZ, EU, NA, UK
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Packaging data
Package width	240 mm
Package depth	176 mm
Package height	80 mm
Package weight	1100 g
Logistics data
Master (outer) case width	380 mm
Master (outer) case length	270 mm
Master (outer) case height	420 mm
Quantity per master (outer) case	10 stuk(s)
