Use this receiver unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Receiver enables remote computer access over an existing TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.

Professional-Grade Design

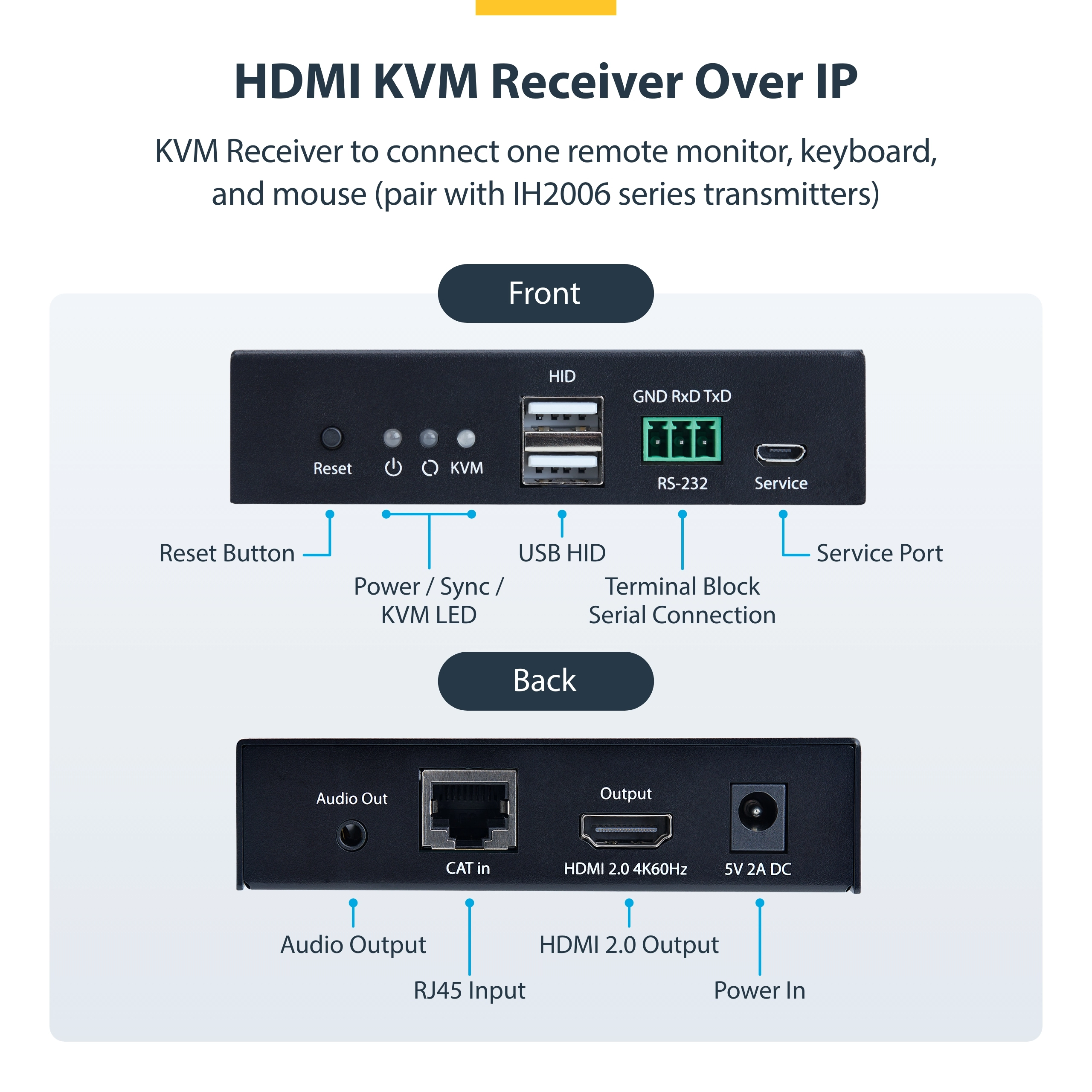

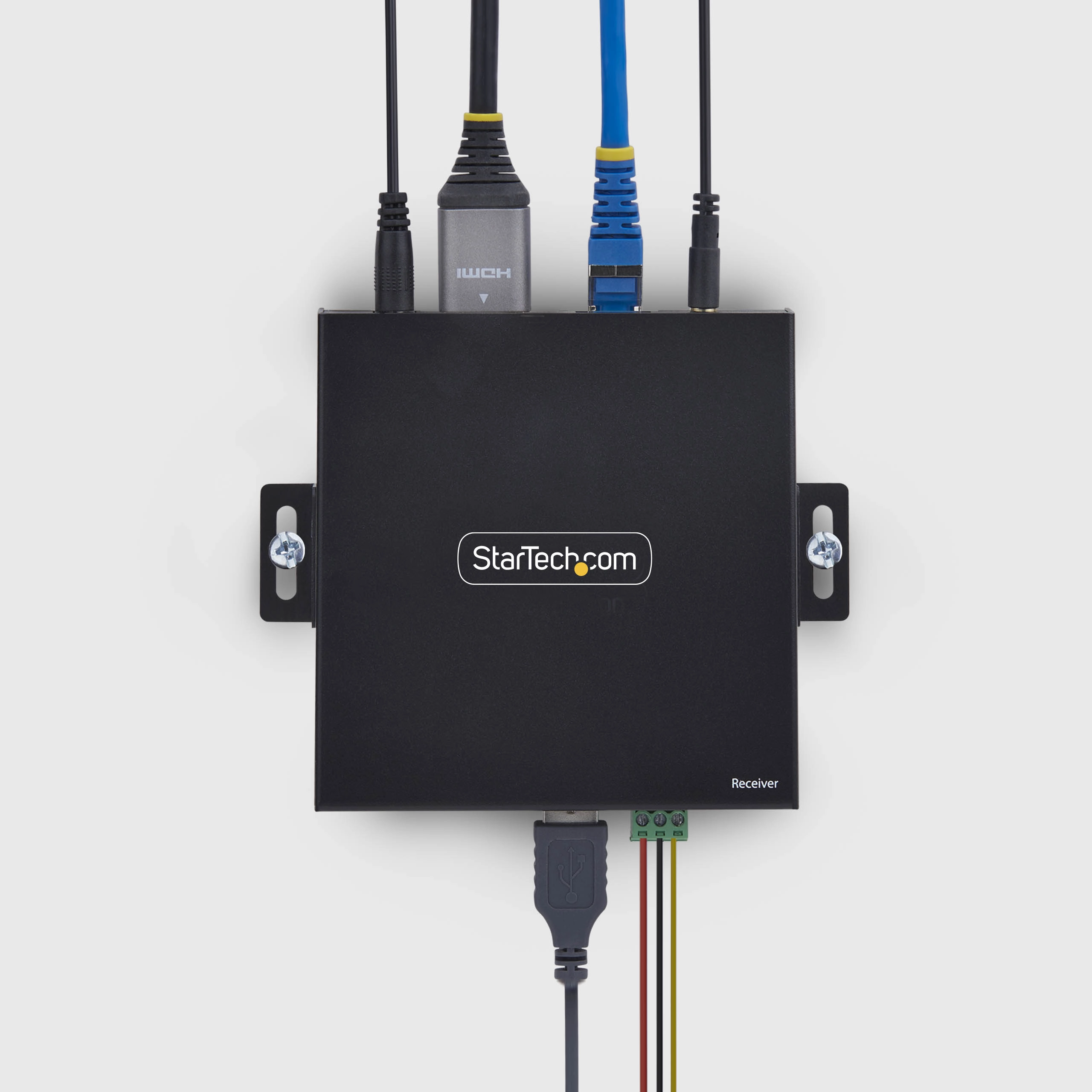

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

The StarTech. com Advantage

Specification

Product
Product id	993792
Brand	StarTech.com
Partnr	IH2006-KVM-RX
EAN/UPC code	065030912679
Warranty (months)	2 Years
Features
Type	Receiver
Connectivity technology	Wired
Rack mounting	N
Maximum digital resolution	3840 x 2160 Pixels
On Screen Display (OSD)	N
Maximum refresh rate	60 Hz
Product colour	Black
Material	Metal
LED indicators	Y
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Receiver Micro-USB ports quantity	1
Receiver USB Type-A ports quantity	2
Power
Power plug type	Type M
AC input voltage	100 - 240 V
Input current	0.3 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (receiver) (max)	10 W
DC-in jack	Y
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90 procent
Ports & interfaces
RS-232 ports	1
HDMI version	2.0
PC Audio out	Y

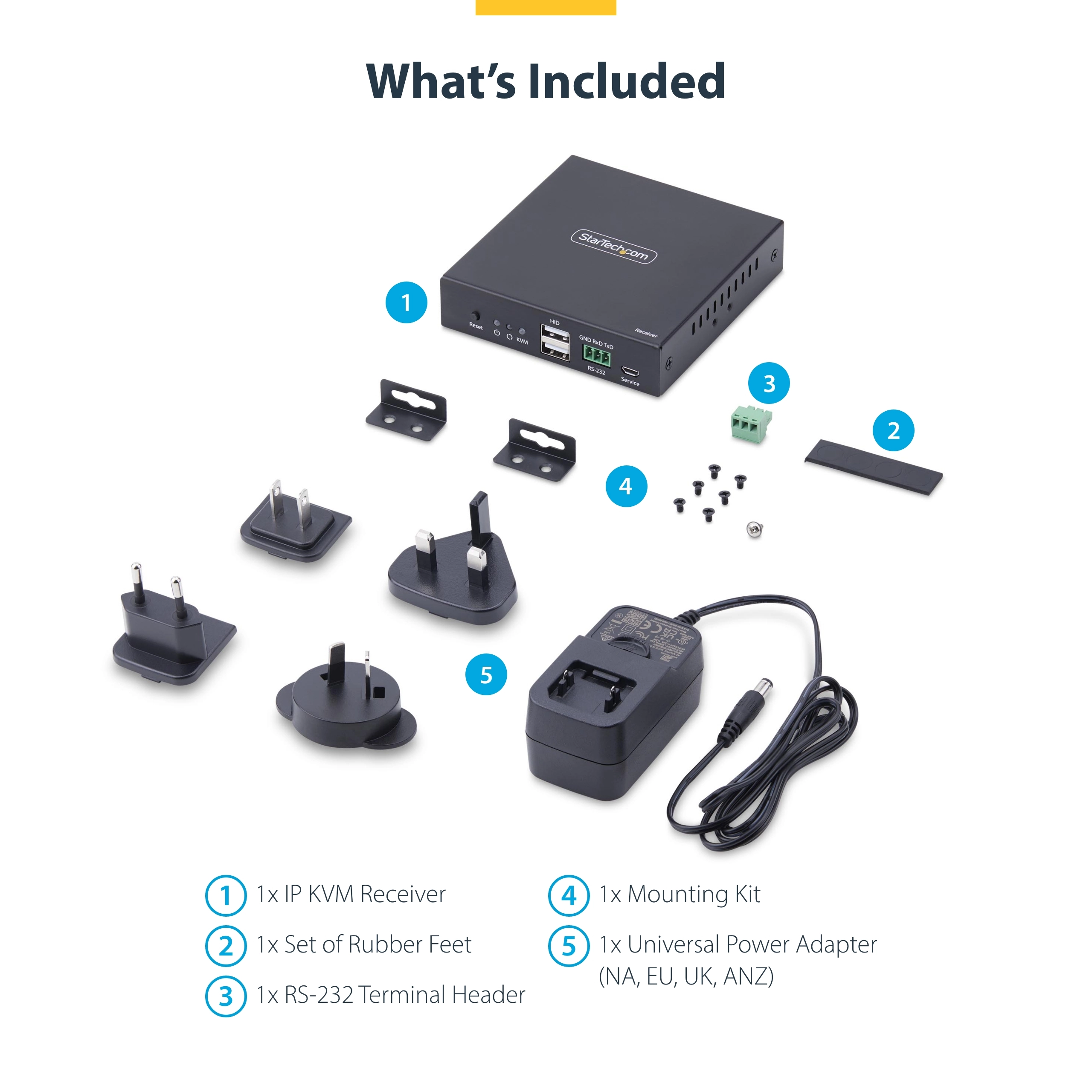

Packaging content
AC adapter included	Y
Cables included	No
Mounting bracket(s) included	Y
Included power plug types	ANZ, EU, NA, UK
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Packaging data
Package width	199 mm
Package depth	149 mm
Package height	80 mm
Package weight	500 g
Logistics data
Master (outer) case width	425 mm
Master (outer) case length	315 mm
Master (outer) case height	420 mm
Quantity per master (outer) case	20 stuk(s)
