Use this Transmitter unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Transmitter enables remote access to computers over a TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible receiver. Designed as a replacement unit, it ensures continued performance, security, and uptime by protecting systems from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software, making setup quick and hassle-free. It is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Designed to seamlessly integrate with existing IH2006 Series Receivers, this transmitter offers a hassle-free replacement option, keeping your AV infrastructure running smoothly and maximizing uptime.

Professional-Grade Design

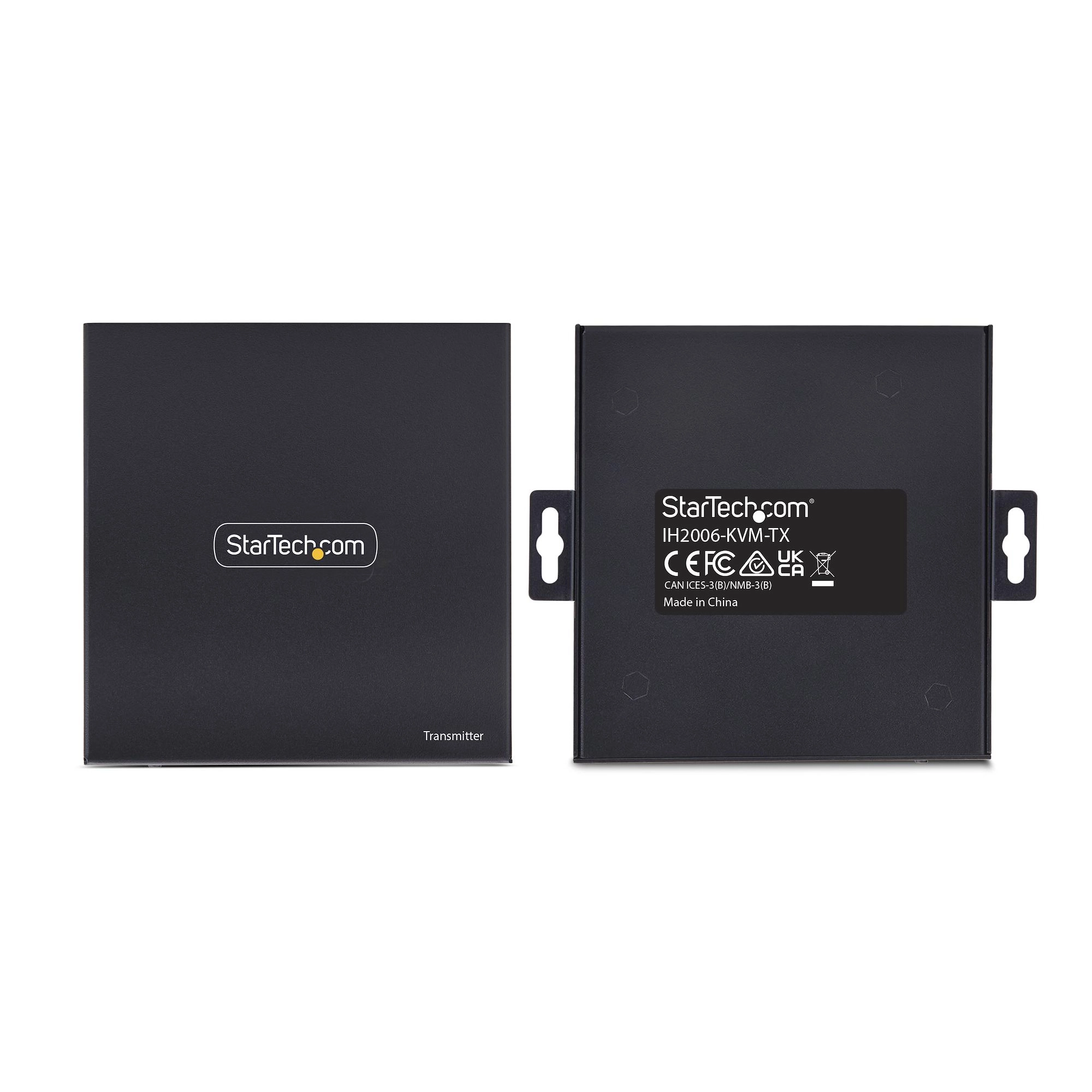

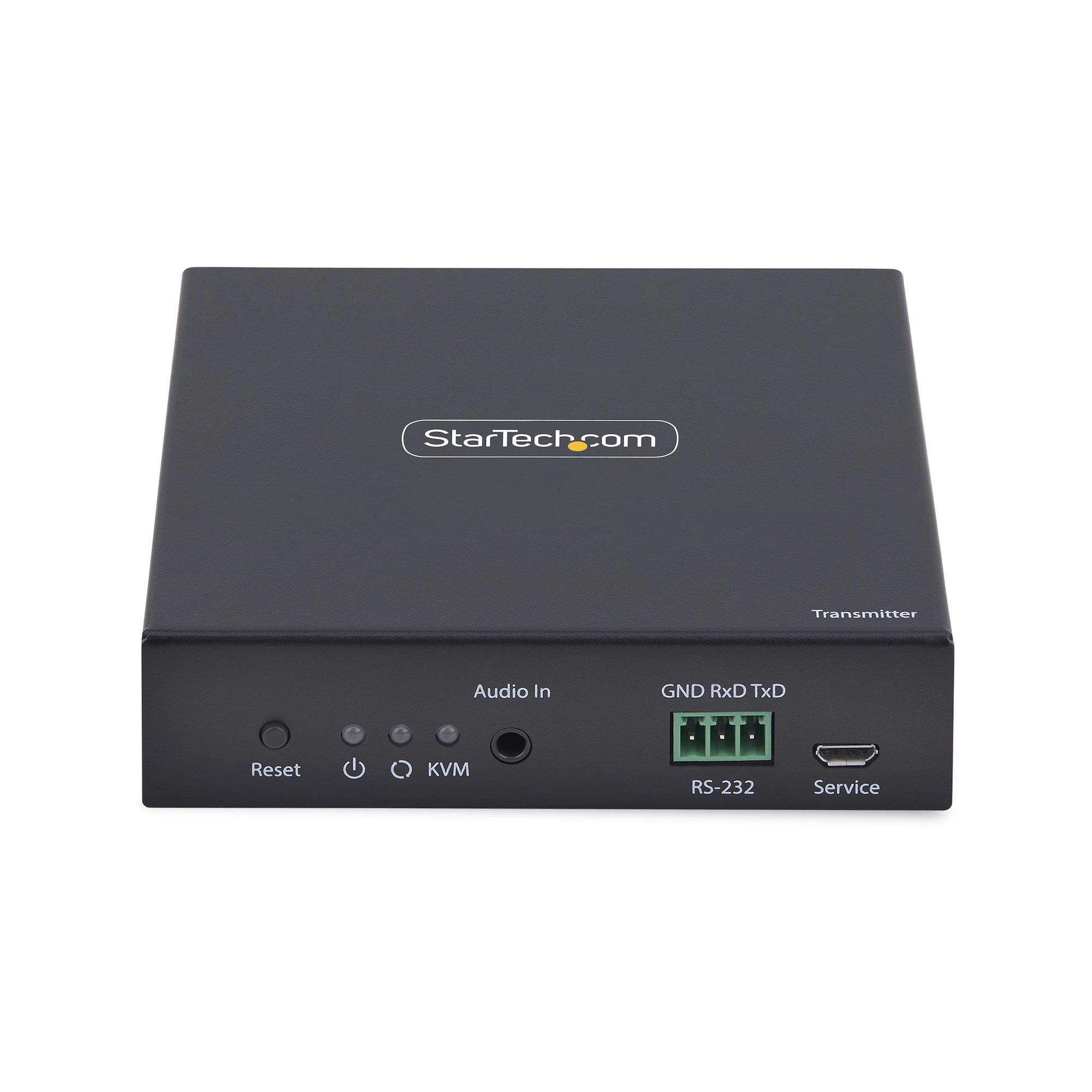

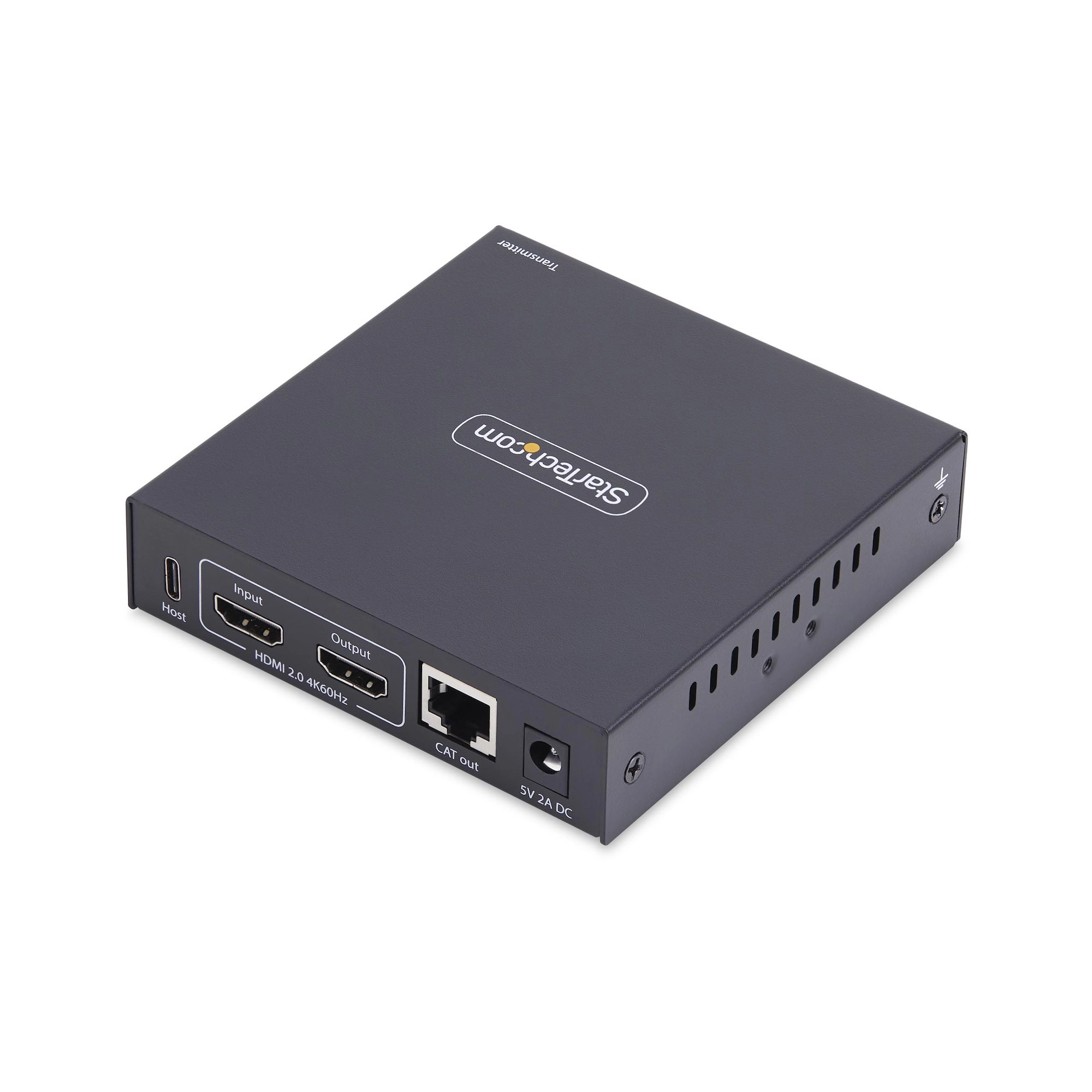

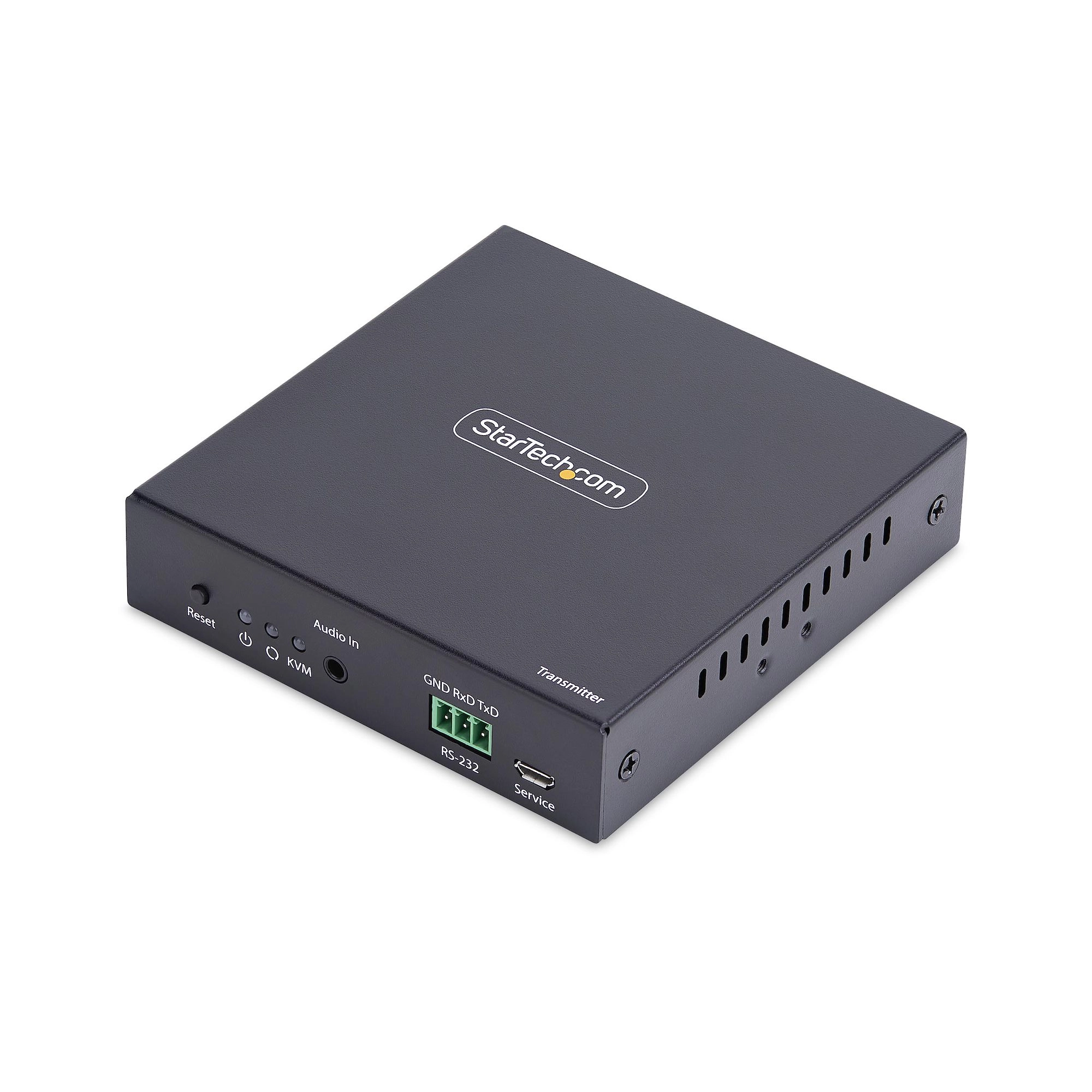

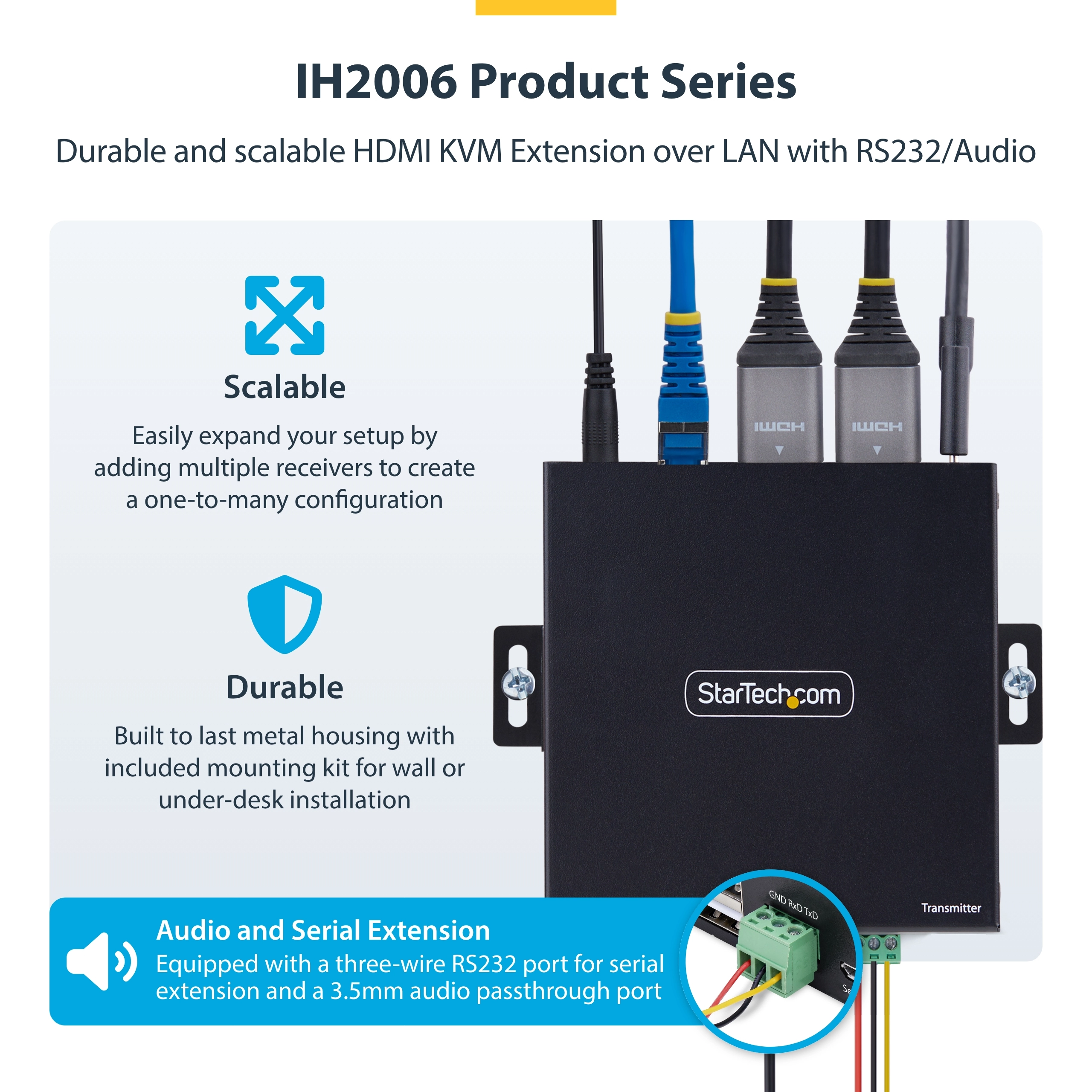

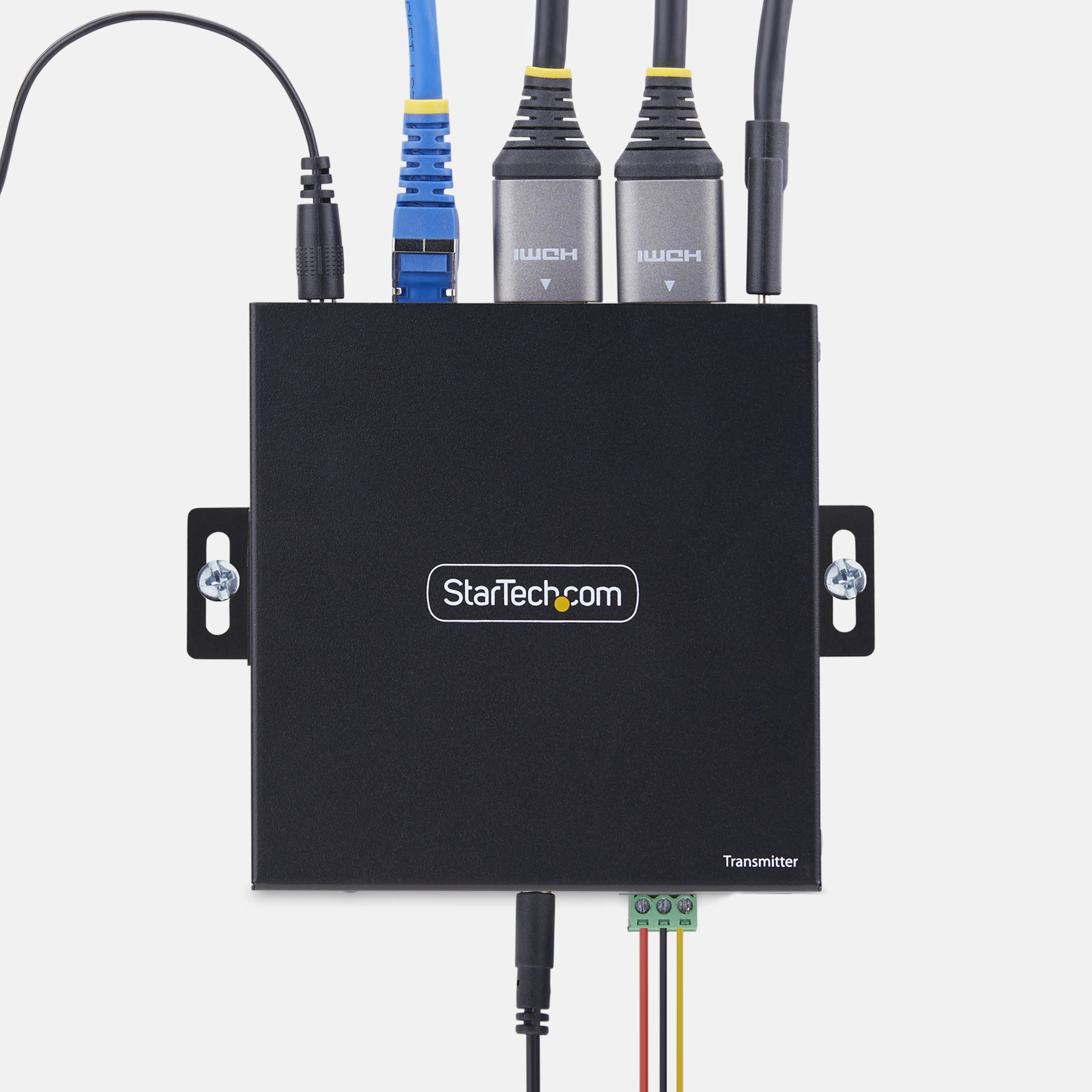

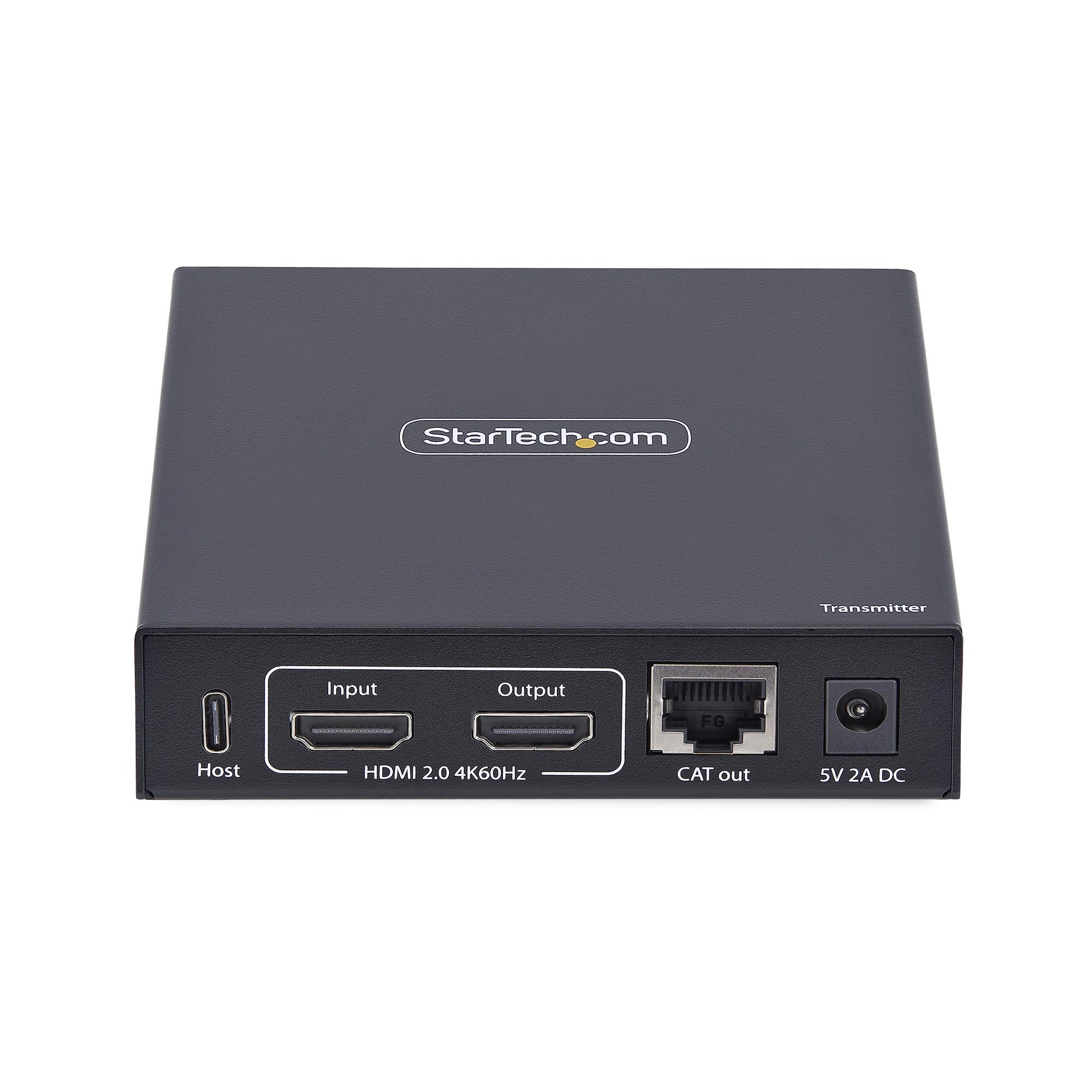

The transmitter features a durable metal housing with mounting kit for wall or under-desk installation, along with rubber feet for desktop stability. A local HDMI output allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable seamless serial and audio extension.

The StarTech. com Advantage

Specification

Product
Product id	993779
Brand	StarTech.com
Partnr	IH2006-KVM-TX
EAN/UPC code	065030912693
Warranty (months)	2 Years
Features
Type	Transmitter
Connectivity technology	Wired
Rack mounting	N
Maximum digital resolution	3840 x 2160 Pixels
Maximum refresh rate	60 Hz
Product colour	Black
Material	Metal
USB 2.0 ports quantity	1
LED indicators	Y

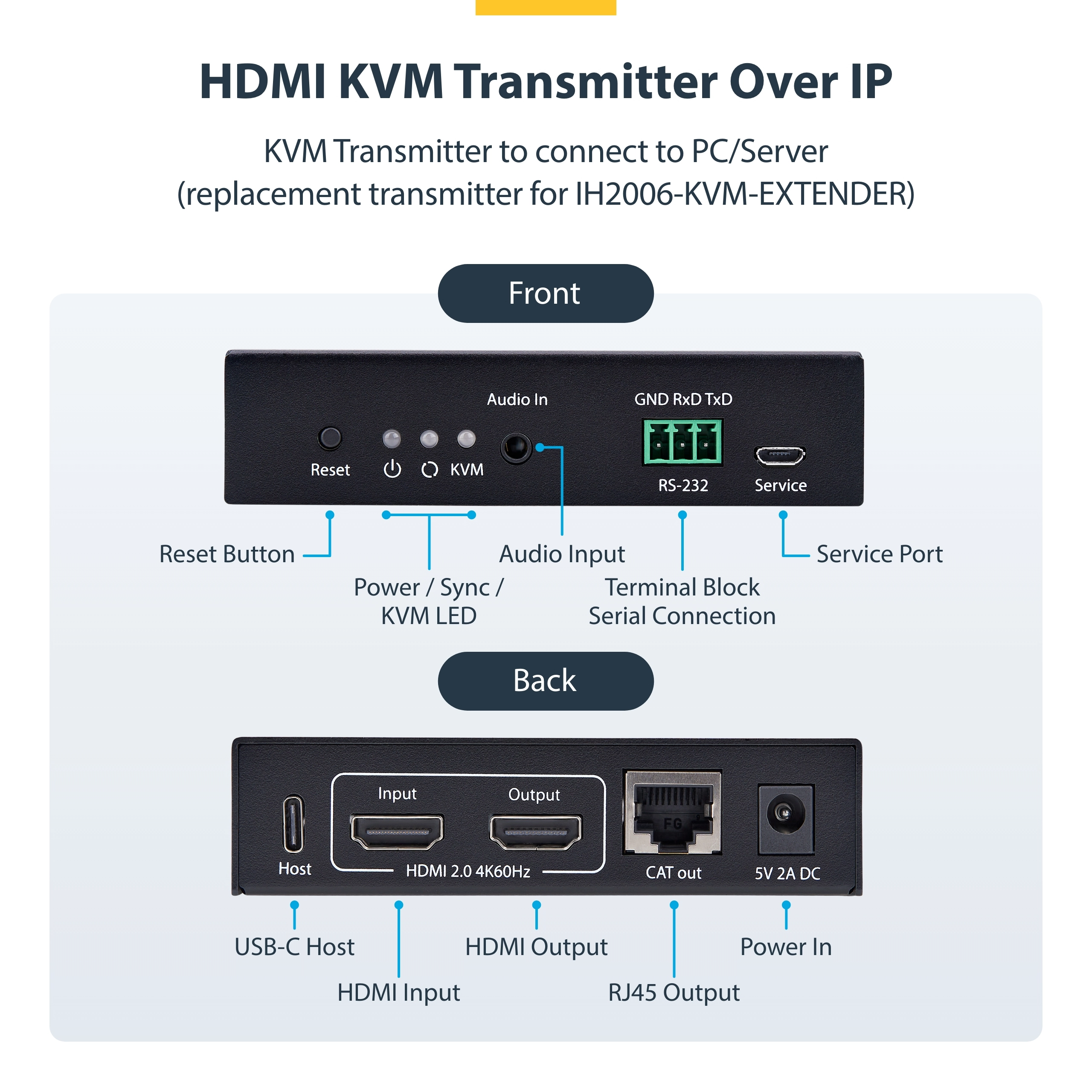

Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Y
Transmitter local video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Transmitter Micro-USB ports quantity	1
Power
Power plug type	Type M
AC input voltage	100 - 240 V
Input current	0.3 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (receiver) (max)	10 W
DC-in jack	Y
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 90 procent
Ports & interfaces
USB port type	USB Type-C
RS-232 ports	1
HDMI version	2.0
PC Audio in	Y

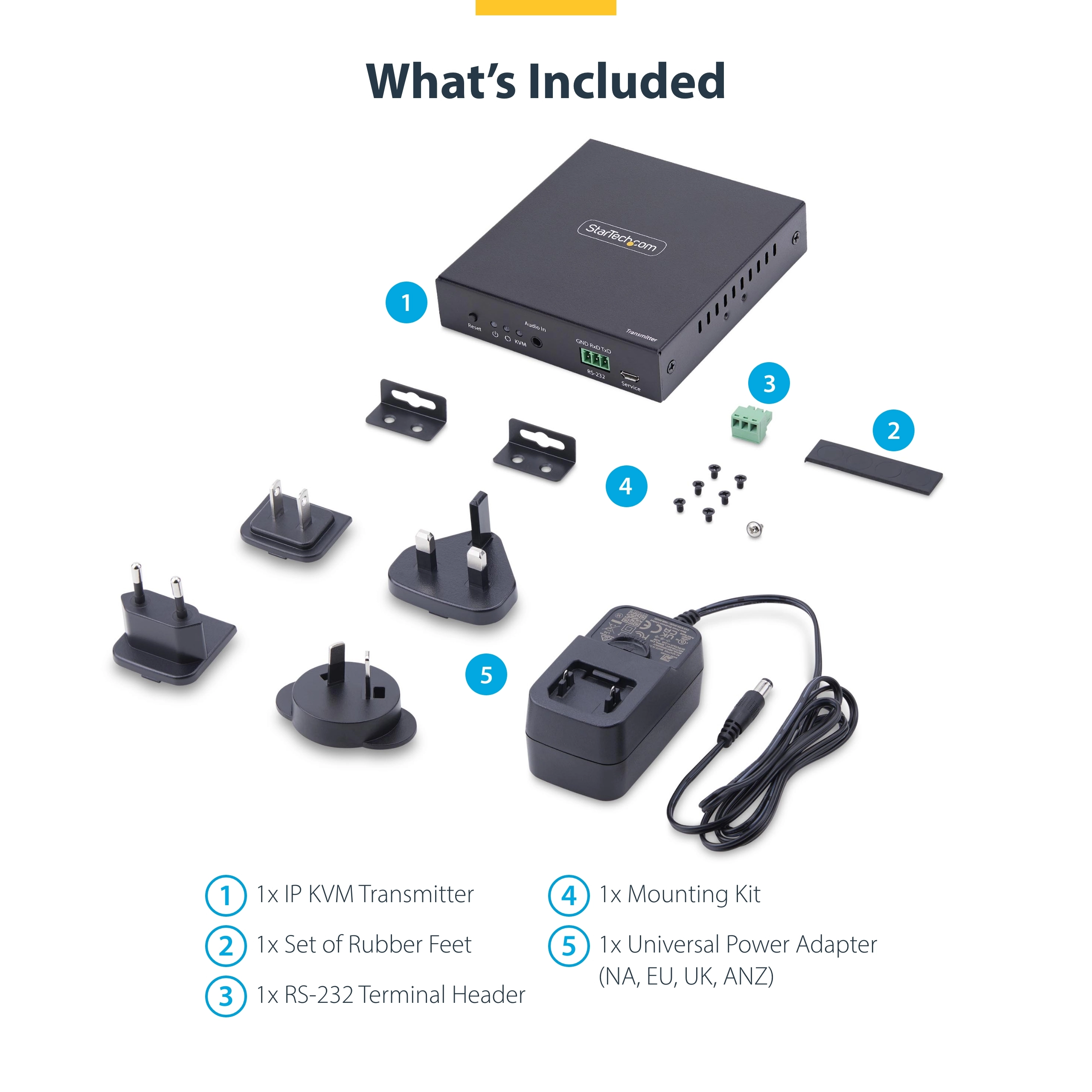

Packaging content
AC adapter included	Y
Cables included	No
Mounting bracket(s) included	Y
Included power plug types	ANZ, EU, NA, UK
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Packaging data
Package width	199 mm
Package depth	149 mm
Package height	80 mm
Package weight	500 g
Logistics data
Master (outer) case width	425 mm
Master (outer) case length	315 mm
Master (outer) case height	420 mm
Quantity per master (outer) case	20 stuk(s)
