Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.

Flexible, High-Speed Copper-to-Fiber Conversion

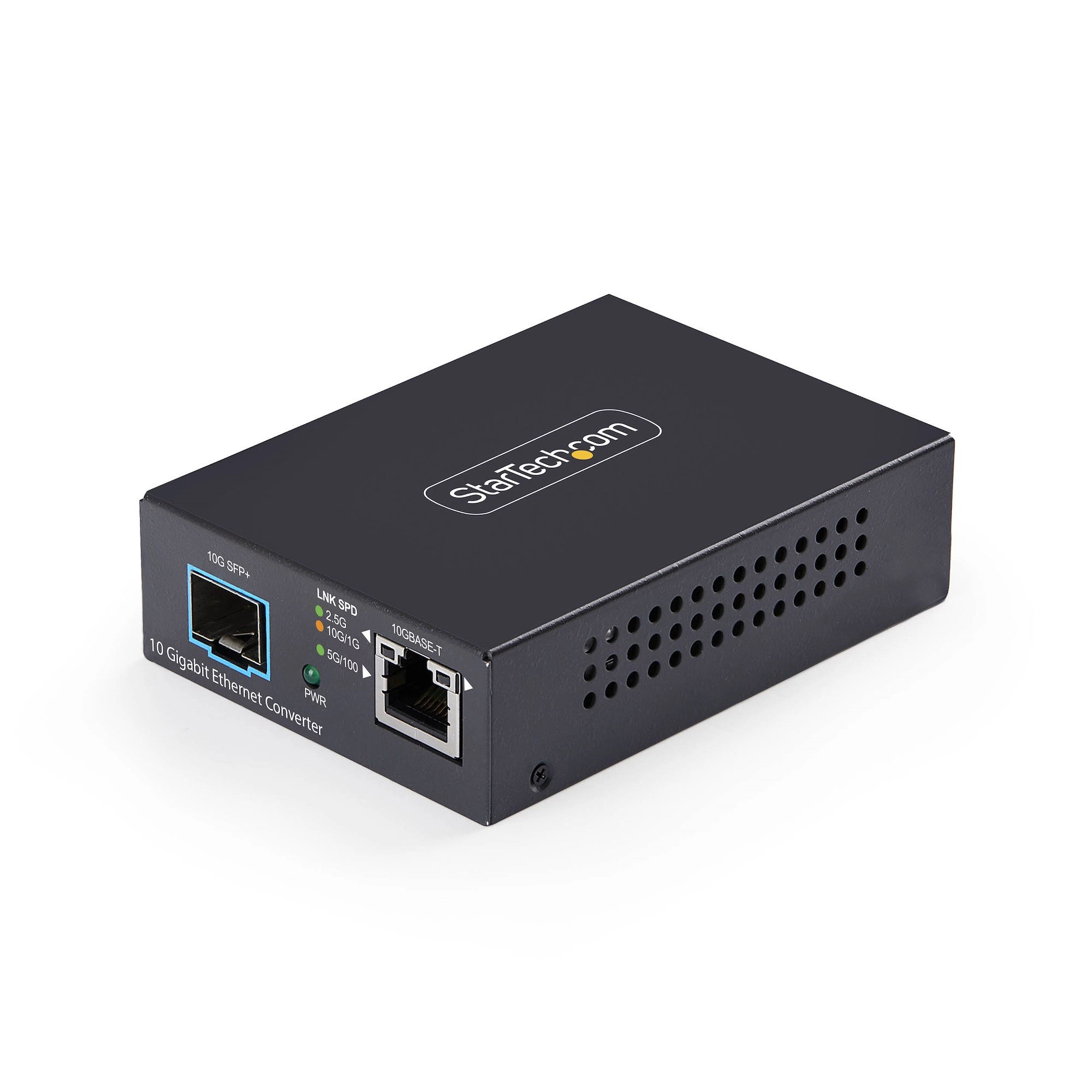

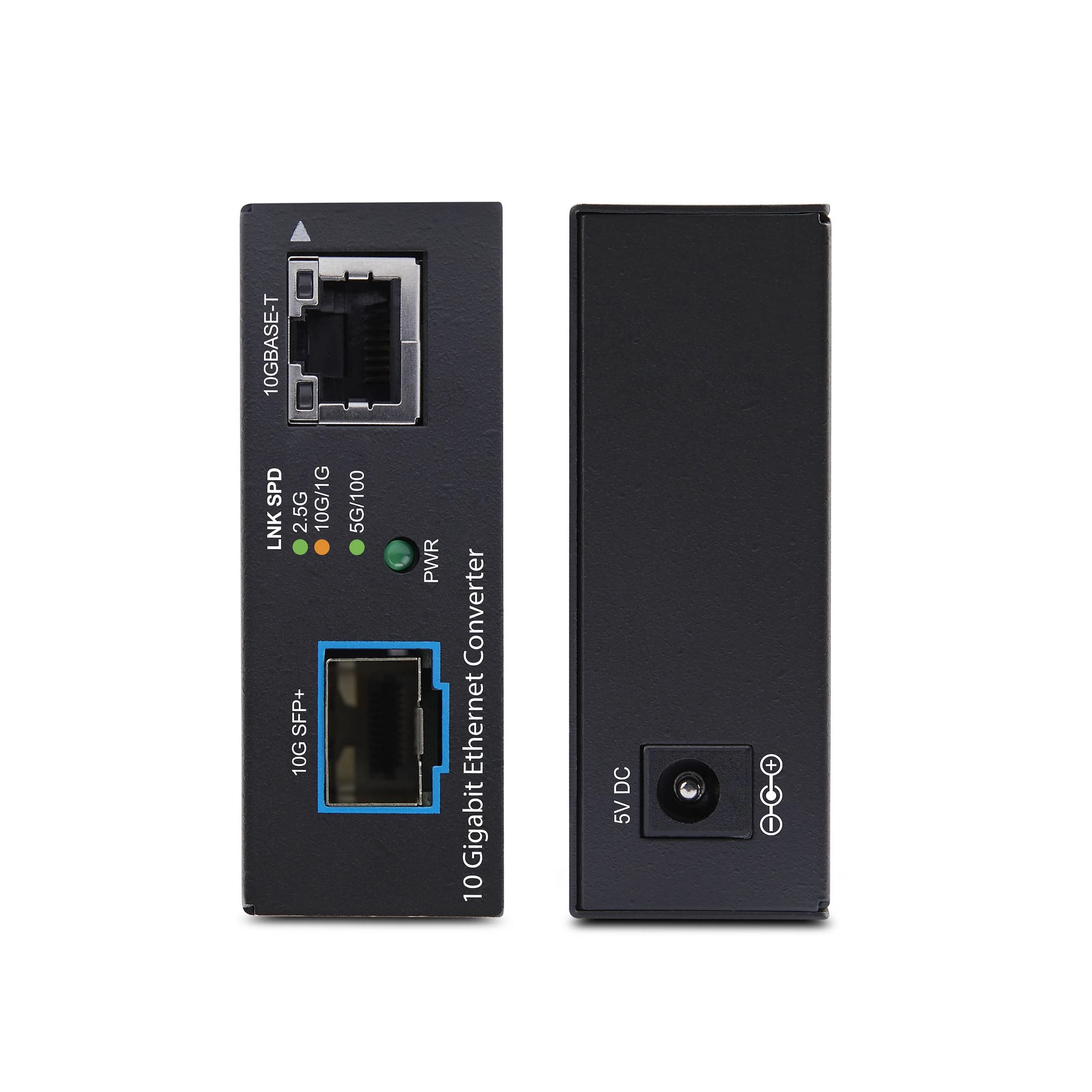

This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.

Versatile Mounting and Deployment

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.

Optimized for Mixed-Speed Networks

Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.

Efficient, Compact Design

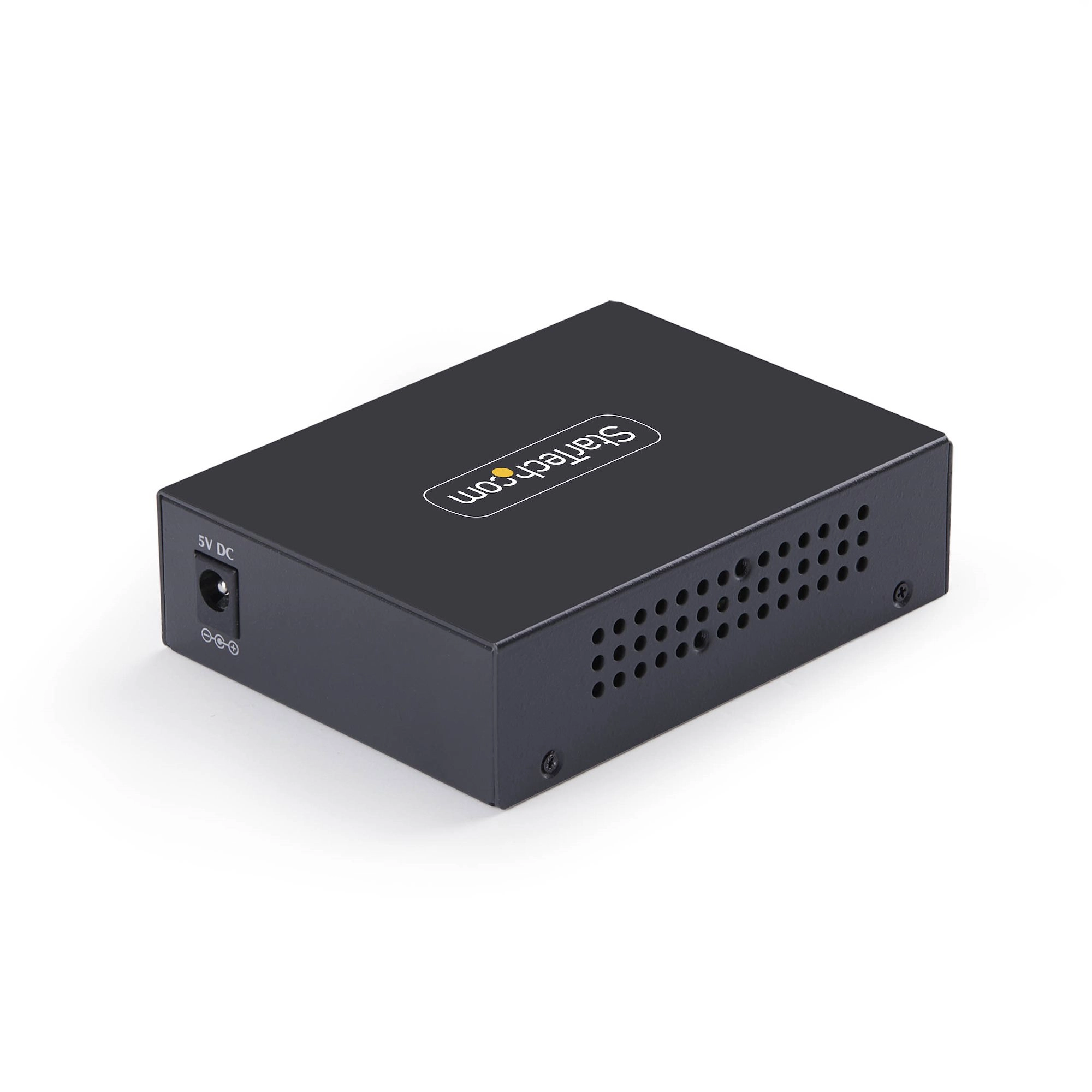

With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.

Specification

Product
Product id	1009998
Brand	StarTech.com
Partnr	MCM10G6SSFP
EAN/UPC code	065030917094
Warranty (months)	2 Years
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Network
Maximum data transfer rate	10000 Mbit/s
Converter input interface	10GBase-T
Converter output interface	10GBase-X
Networking standards	IEEE 802.3
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	100, 1000, 2500, 5000, 10000 Mbit/s
Jumbo frames support	Y
Jumbo frames	16000
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Duplex system	Full
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SFP+
DC-in jack	Y
Performance
Fiber mode structure	Multi-mode, Single-mode
Design
Internal	N
Housing material	Metal
Product colour	Black
LED indicators	Link, Power
Power
Input voltage	100 - 240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	3.75 W
External power adapter	Y
Management features
Plug and Play	Y
Packaging data
Package width	70 mm
Package depth	94 mm
Package height	26 mm
Package weight	500 g
Weight & dimensions
Width	94 mm
Depth	70 mm
Height	26 mm
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent
Packaging content
AC adapter included	Y
User guide	Y
Logistics data
Master (outer) case width	133 mm
Master (outer) case length	281 mm
Master (outer) case height	66 mm
Quantity per master (outer) case	20 stuk(s)
