Connect a Gigabit copper network to a Gigabit fiber network using an SFP+ transceiver of your choice.

High-Speed Copper-to-Fiber Conversion

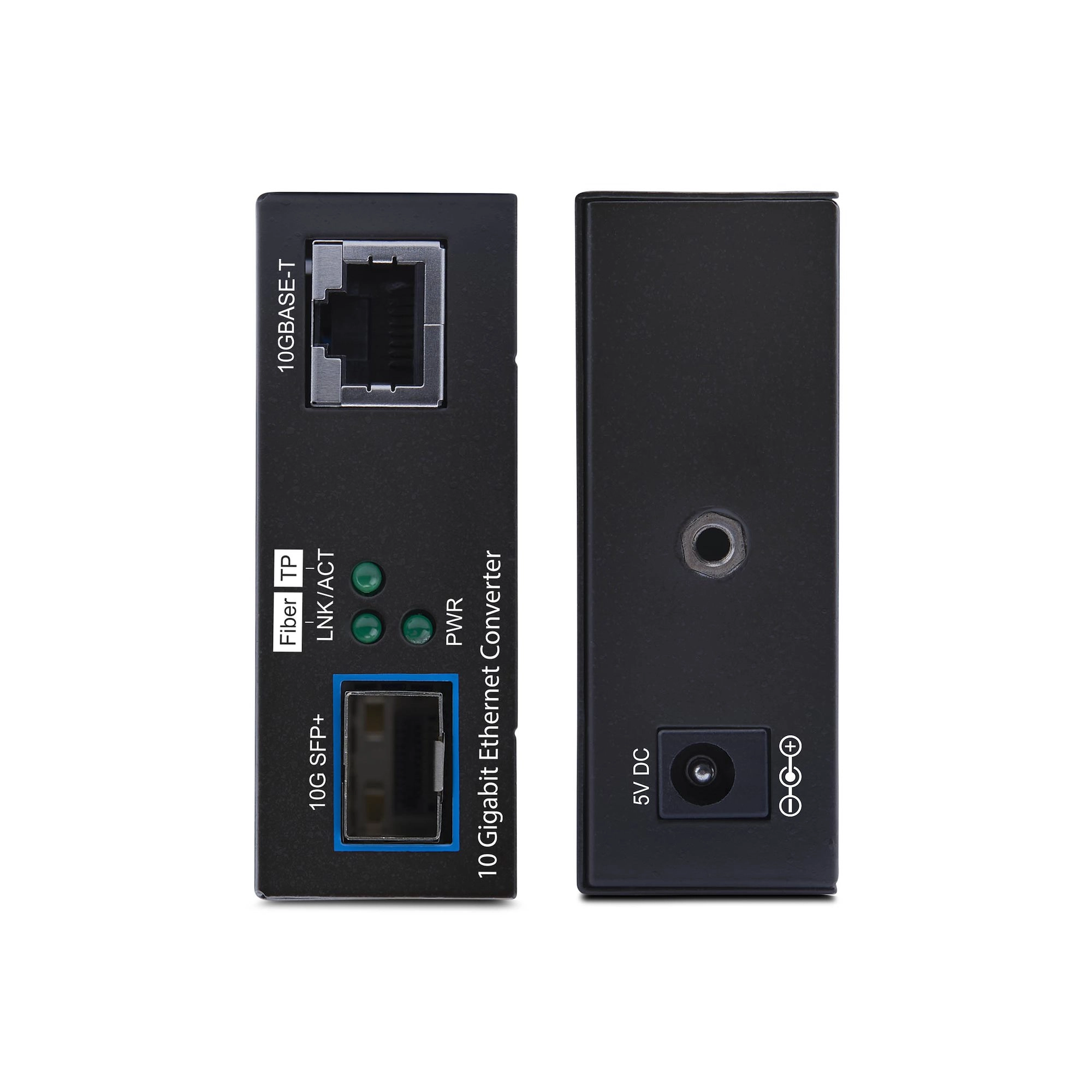

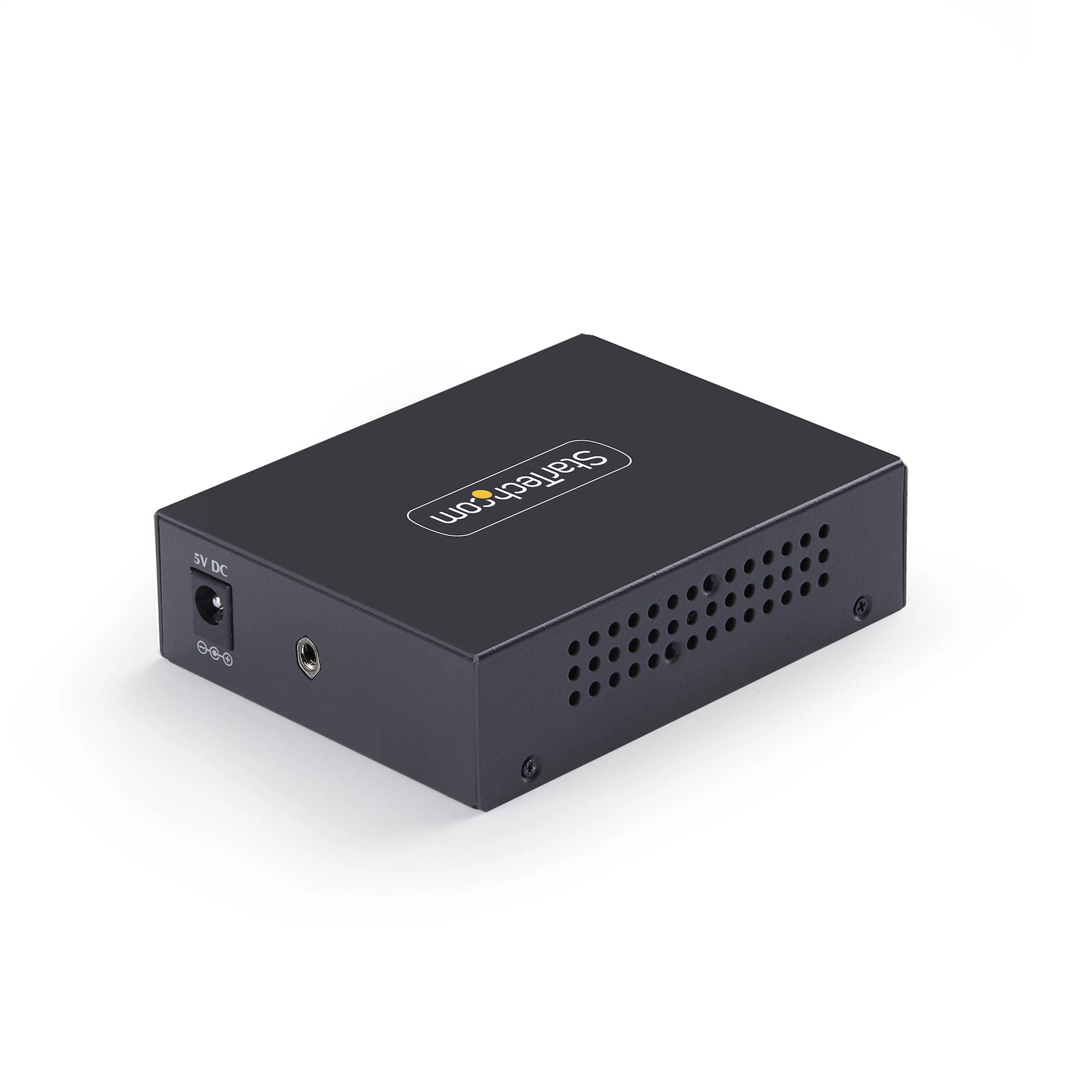

This compact 10G media converter enables seamless copper-to-fiber connectivity for high-speed network upgrades and extended reach. Featuring an open SFP+ slot, it converts 10GBASE-T (RJ-45) to 10G fiber and supports multi-mode or single-mode transceivers (e. g. , 10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.

Versatile Mounting and Deployment

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.

Optimized for 10Gbps Networks

Built for 10G speeds, the converter supports 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across 10G links.

Efficient, Compact Design

With low 5.3W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.

Specification

Product
Product id	1010001
Brand	StarTech.com
Partnr	MCM10GSFP2
EAN/UPC code	065030916844
Warranty (months)	2 Years
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Network
Maximum data transfer rate	10000 Mbit/s
Converter input interface	10GBase-T
Converter output interface	10GBase-X
Networking standards	IEEE 802.3
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	100, 1000, 2500, 5000, 10000 Mbit/s
Jumbo frames support	Y
Jumbo frames	16000
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Duplex system	Full
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
DC-in jack	Y
Performance
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 uur
Design
Internal	N
Product colour	Black
LED indicators	Activity, Link, Power
Power
Input voltage	100 - 240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
External power adapter	Y
Management features
Plug and Play	Y
Packaging data
Package width	95 mm
Package depth	149 mm
Package height	92 mm
Package weight	398 g
Weight & dimensions
Width	93.5 mm
Depth	70 mm
Height	26 mm
Weight	216 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent
Packaging content
AC adapter included	Y
User guide	Y
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	490 mm
Master (outer) case height	330 mm
Quantity per master (outer) case	40 stuk(s)
