Route Ultra Slim Cat6a cables through high density installations for optimal flexibility and airflow

Connect reliably to a 10Gbps network using this ultra slim Cat6a Ethernet cable, ideal for high-density network installations.

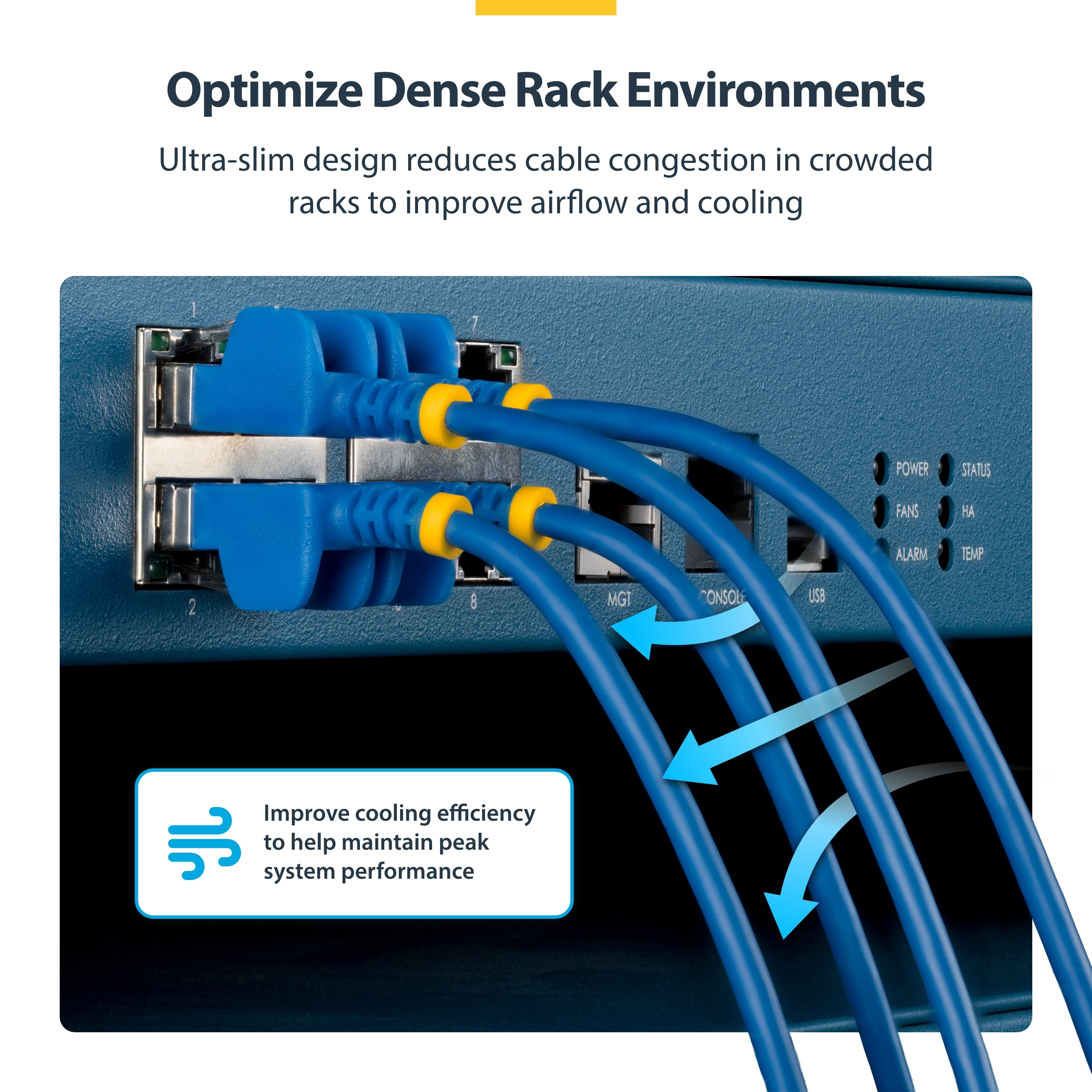

Improved Airflow

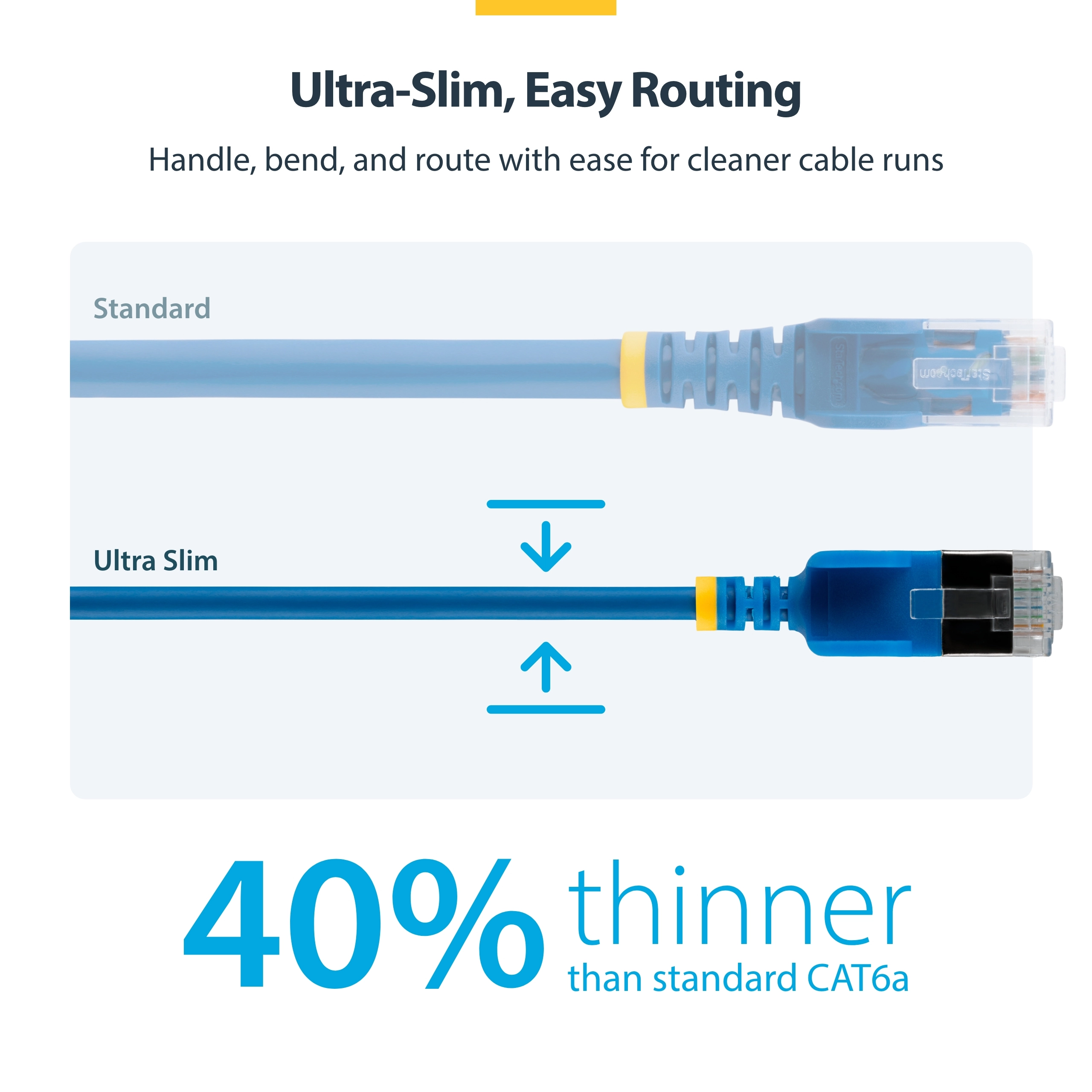

The Ultra Slim Cat6a Patch Cord is 40% thinner than standard Cat6a Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. It is also more flexible for easier cable routing in crowded network racks and patch panels.

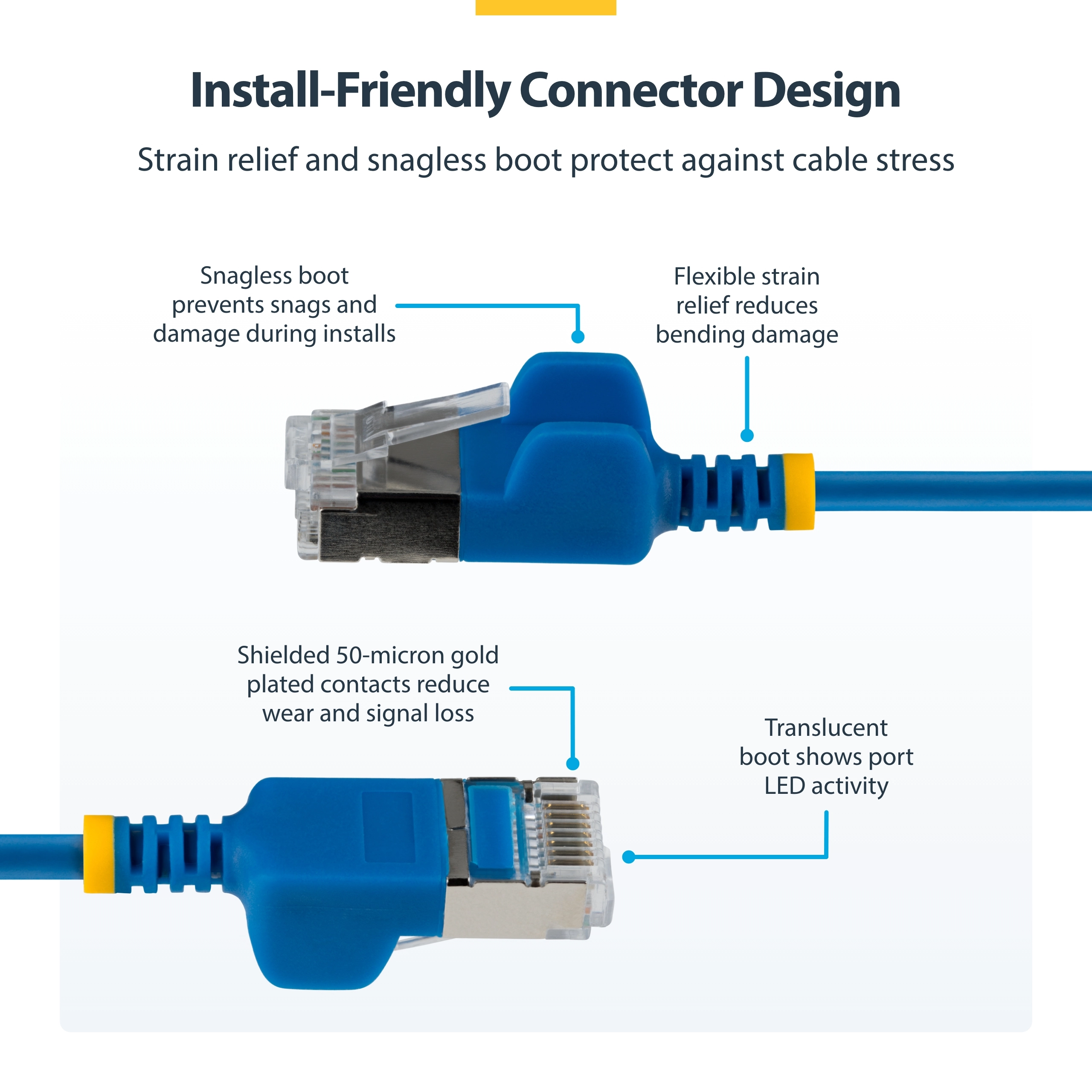

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.

Durable Construction

The Ultra Slim Cat6a Cable features 50-micron gold-plated RJ45 contacts for precise mating and minimal signal loss. Its 4-pair Unshielded Foiled Twisted Pair (U/FTP) design with 34 AWG pure bare copper conductors ensures low resistance and reliable throughput, using pair-level foil shielding to suppress EMI and crosstalk. The flexible TPE jacket provides durability and easy handling for everyday installations. Note: This cable is not rated for PoE applications.

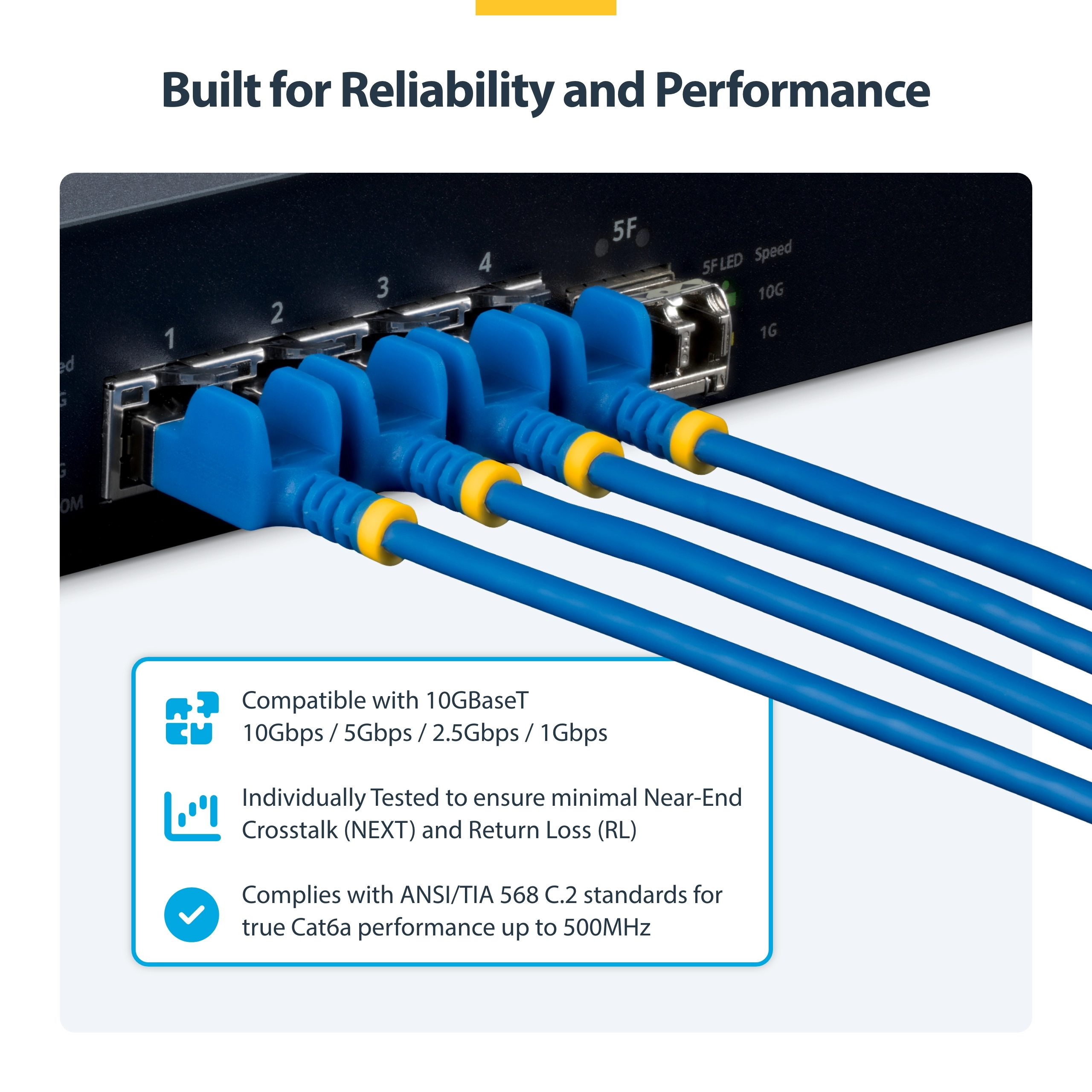

Tested for Reliability

Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA 568 C.2-1 requirements for guaranteed Cat6a performance, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). It delivers dependable 10 Gigabit Ethernet performance for switches, routers, and other high-speed network devices.

Specification

Product
Product id	1023575
Brand	StarTech.com
Partnr	N6APATSTP34BLS50CM
EAN/UPC code	065030917667
Warranty (months)	Lifetime
Technical details
Cabling technology	10GBase-T
Product colour	Blue
Certificates
Compliance certificates	RoHS, CE
Features
Cable length	0.5 m
Cable standard	Cat6a
Cable shielding	U/FTP (STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Jacket material	Thermoplastic Elastomer (TPE)
Connector 2 gender	Male connector
Connector 1 form factor	Straight
Connector 1 gender	Male connector
Cable shape	Round
Connector 2 form factor	Straight
Conductor type	Stranded
Conductor material	Copper
Ethernet interface type	Fast Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
AWG wire size	34
Data transfer rate	10000 Mbit/s
Frequency	500 MHz
Snagless cable boot	Y
Plug and Play	Y
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Outer diameter	3.7 mm
Weight	10 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	200 mm
Package depth	140 mm
Package height	16 mm
Package weight	18 g
Logistics data
Master (outer) case width	460 mm
Master (outer) case length	300 mm
Master (outer) case height	200 mm
Quantity per master (outer) case	200 stuk(s)
