Install Erika Violet OM4 fiber cables for easy identification and streamlined cable management

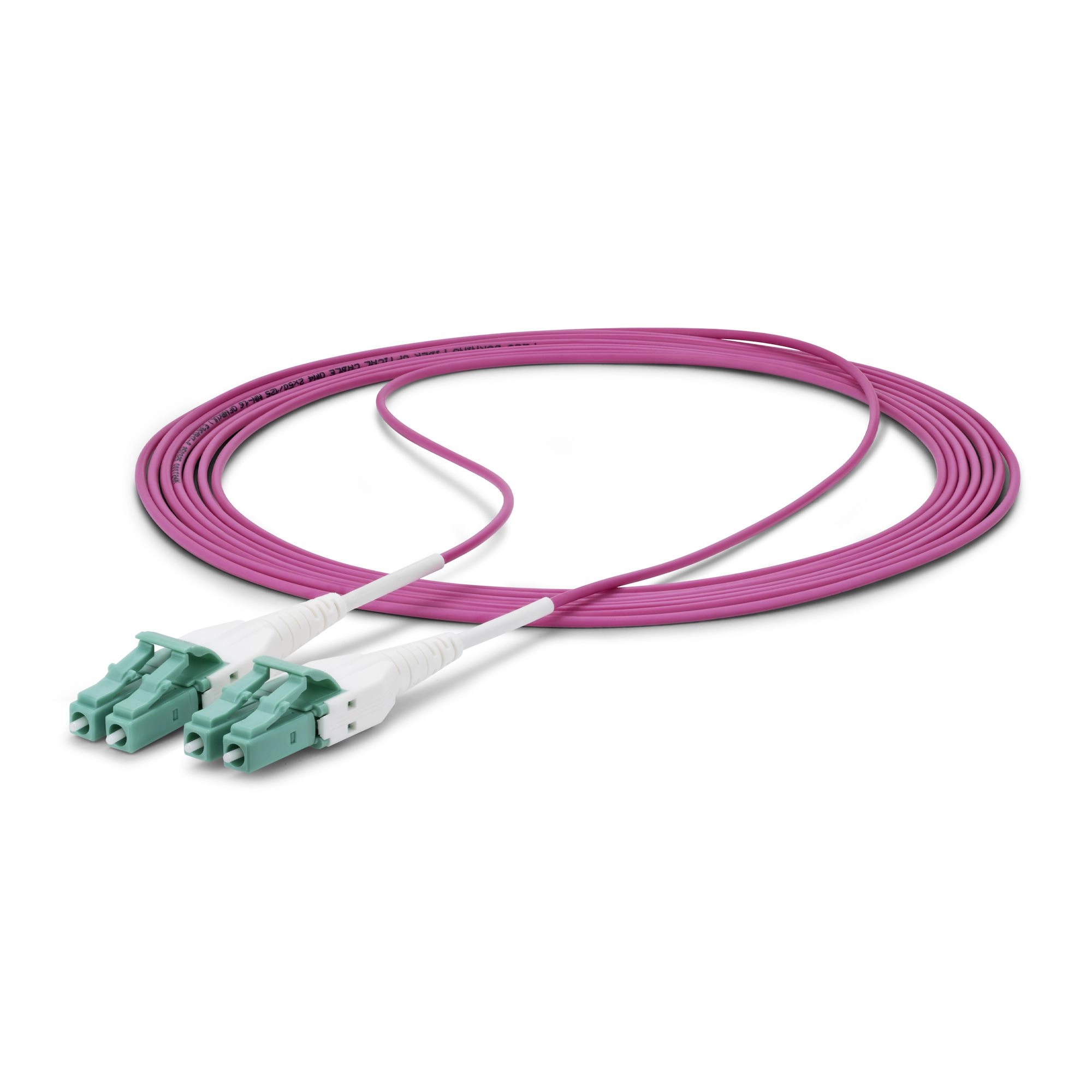

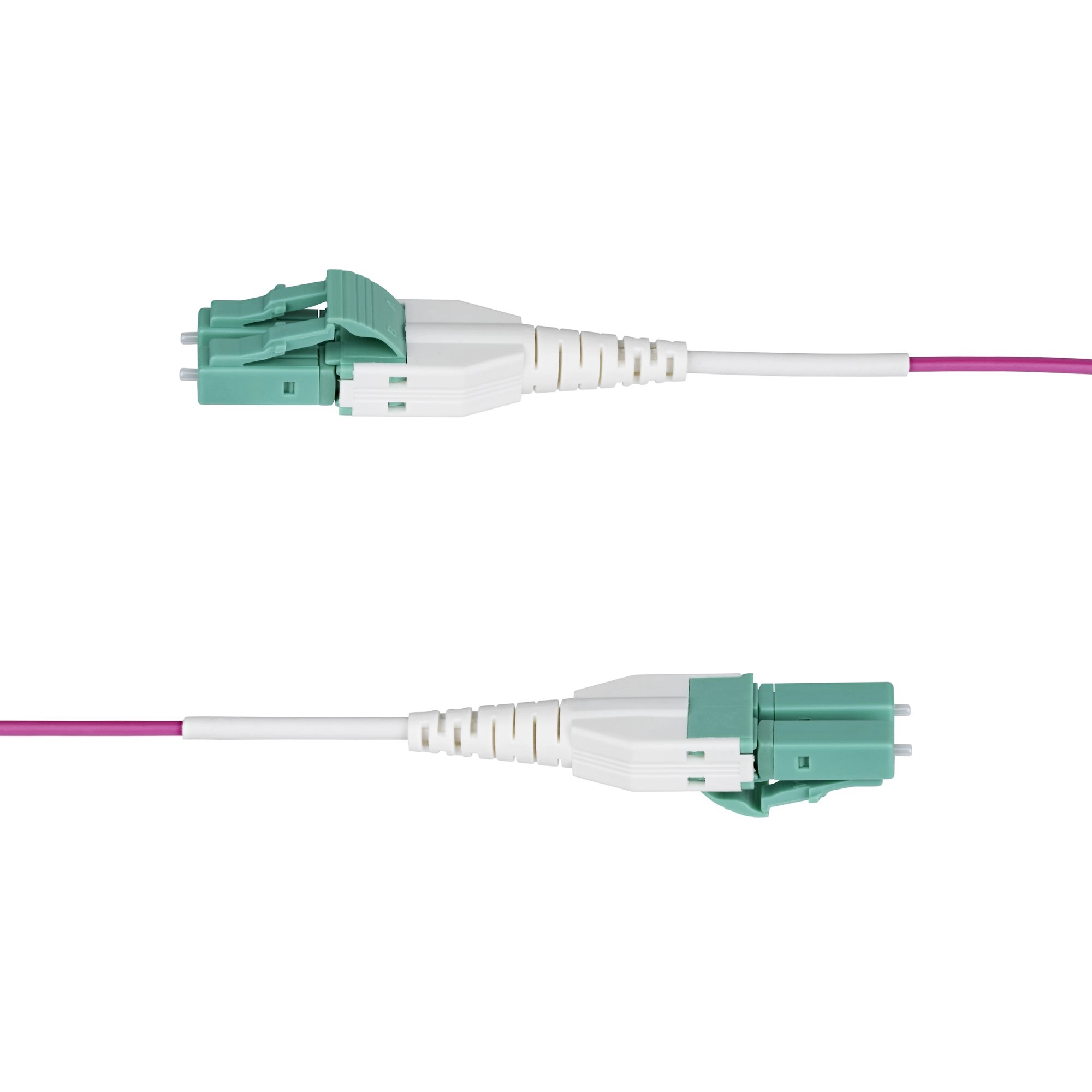

This OM4 LC to LC Multimode Duplex Fiber Optic Patch cable delivers reliable connectivity across 40 and 100 Gigabit networks. The TIA-standard Erika Violet jacket clearly distinguishes OM4 from Aqua OM3/OM4 cabling, eliminating guesswork in critical network setups. The compact uniboot connector design enables easy insertion and removal in high-density installations.

Engineered for Optimal Performance

Built with laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules maintain accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.

OFNR Riser Rated

Housed in an OFNR (Optical Fiber Nonconductive Riser) flame-retardant jacket, this Riser-rated OM4 fiber cable is engineered to minimize vertical flame propagation between building floors. It enables safer cable installations in riser spaces and vertical shafts within commercial buildings, supporting compliance with fire codes in multi-story structures and other regulated environments.

Wide Compatibility

This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, facilitating reliable data transmission in legacy fiber environments.

StarTech. com fiber cables undergo rigorous testing to confirm operation within strict optical insertion loss limits, guaranteeing compatibility and 100% reliability.

The StarTech. com Advantage

Specification

Product
Product id	996061
Brand	StarTech.com
Partnr	OM4RLCLC50M
EAN/UPC code	065030920834
Warranty (months)	Lifetime
Features
Cable length	50 m
Cable type	OFNR
Fibre optic type	OM4
Connector 1	LC
Connector 2	LC
Cable shape	Round
Connector 1 gender	Male connector
Full duplex	Y
Connector 2 gender	Male connector
Core diameter	50 µm
Connector polish type	PC
Product colour	Violet
Cladding diameter	125 µm
Fiber mode structure	Multi-mode
Wavelengths supported	850, 1300 nm
Data transfer rate	100 Gbit/s
Jacket material	Polyvinyl chloride (PVC)
Certificates
Compliance certificates	RoHS, CE
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging data
Quantity per pack	1 stuk(s)
Package width	350 mm
Package depth	330 mm
Package height	25 mm
Package weight	337.5 g
Weight & dimensions
Cable diameter	1.6 mm
Weight	337.5 g
Bending radius	7.5 mm
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	420 mm
Master (outer) case height	270 mm
Quantity per master (outer) case	32 stuk(s)
