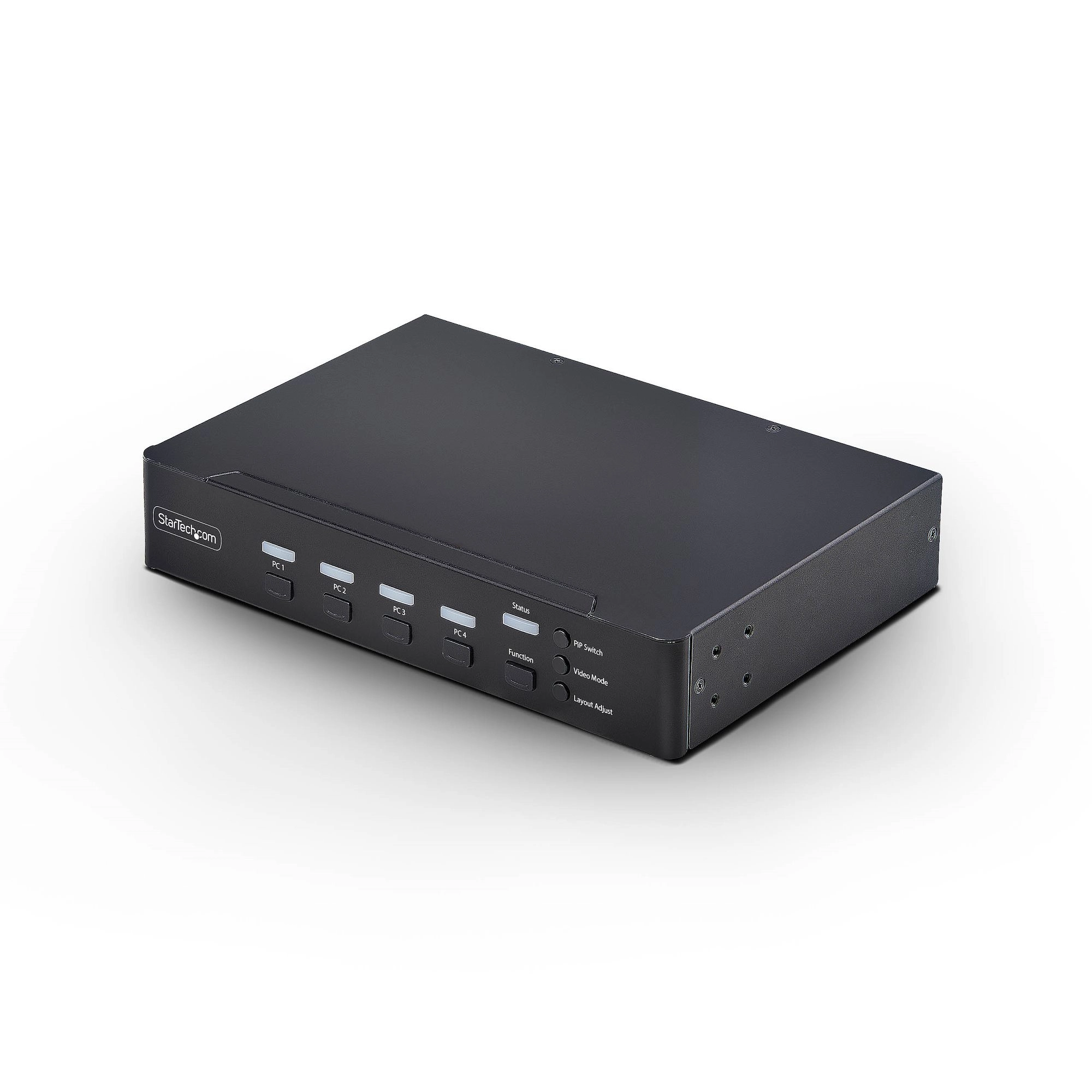

Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support

Streamline complex workflows by managing up to four DisplayPort computers from a single keyboard, mouse, and display. With support for true 4K 60 Hz (4:4:4) resolution, this multiview KVM delivers crisp text and precise visuals across Windows, macOS, and Linux workstations.

Multiview Monitoring

Maintain full awareness and react faster by viewing multiple systems at once. Flexible display modes including Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (PbP) let you monitor and compare the four sources.

Instant Switching With Continuous Video

Move seamlessly between systems using mouse roaming with zero latency and no screen blackout. Continuous video output keeps every system visible at all times, eliminating delays caused by switching or waiting for auto-scan cycles, reducing disruption in control rooms, industrial environments, and other time-sensitive operations.

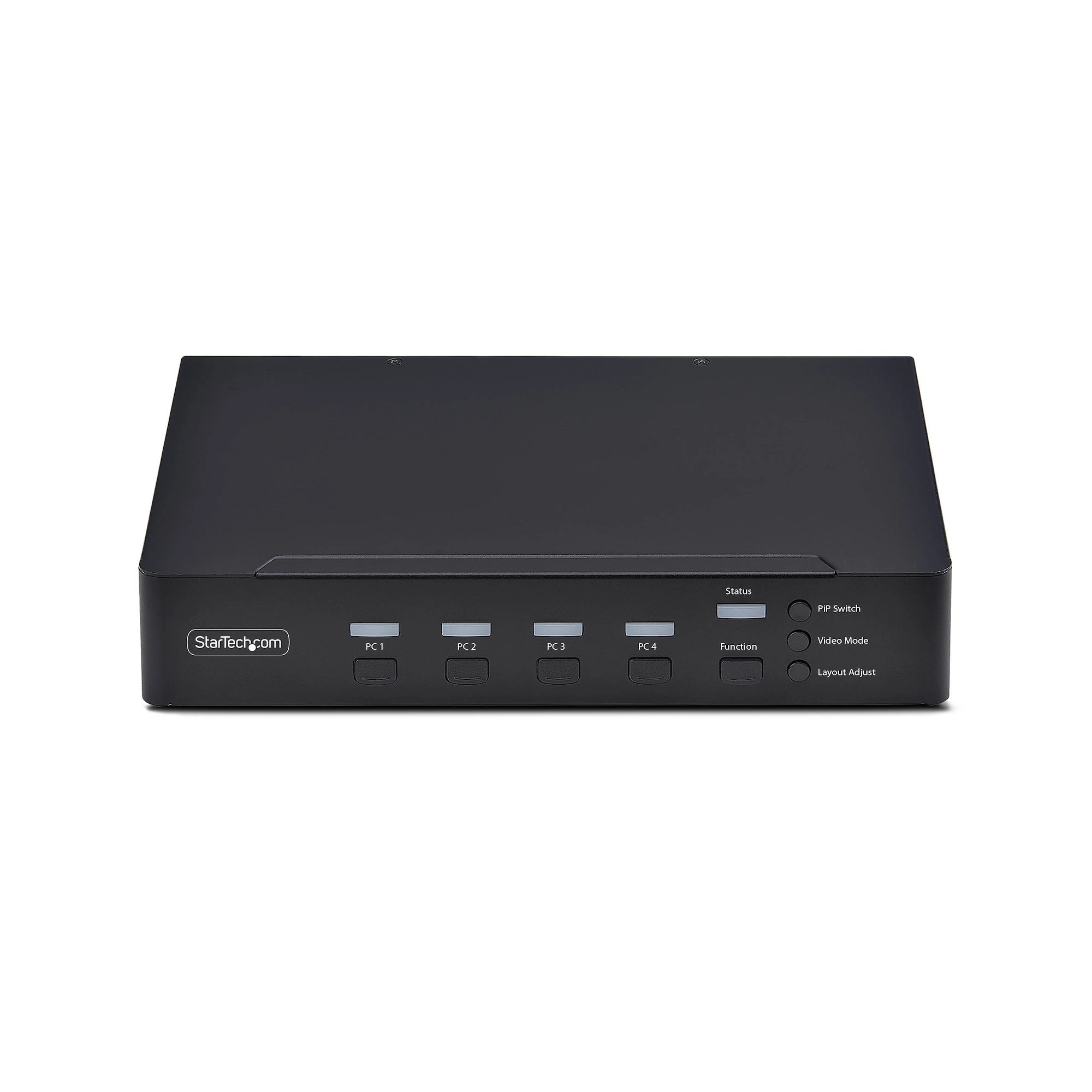

Switch Your Way

Adapt the KVM to your environment with multiple switching methods. Use front-panel buttons, keyboard hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C to support hands-on use, remote management, or automated workflows.

Built-In Dual Display Output

Mirror the KVM output to two displays simultaneously using DisplayPort and HDMI. Use a local desktop monitor for hands-on control while displaying the same view on a larger wall-mounted TV for monitoring or team visibility. This dual console output improves visibility, collaboration, and redundancy without requiring external splitters or additional hardware.

Specification

Product
Product id	1016163
Brand	StarTech.com
Partnr	P4AD122M-KVM-SWITCH
EAN/UPC code	065030908481
Warranty (months)	2 Years

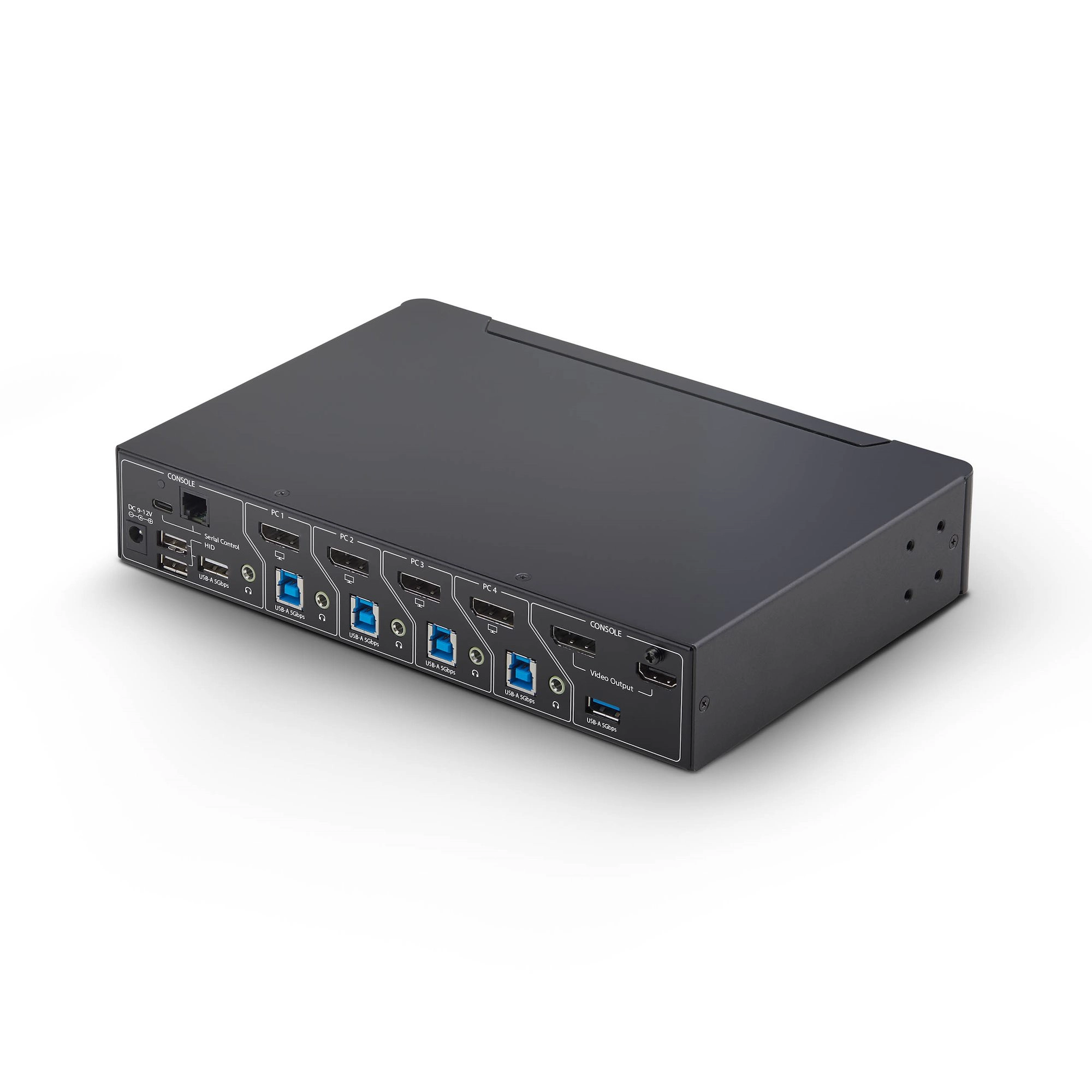

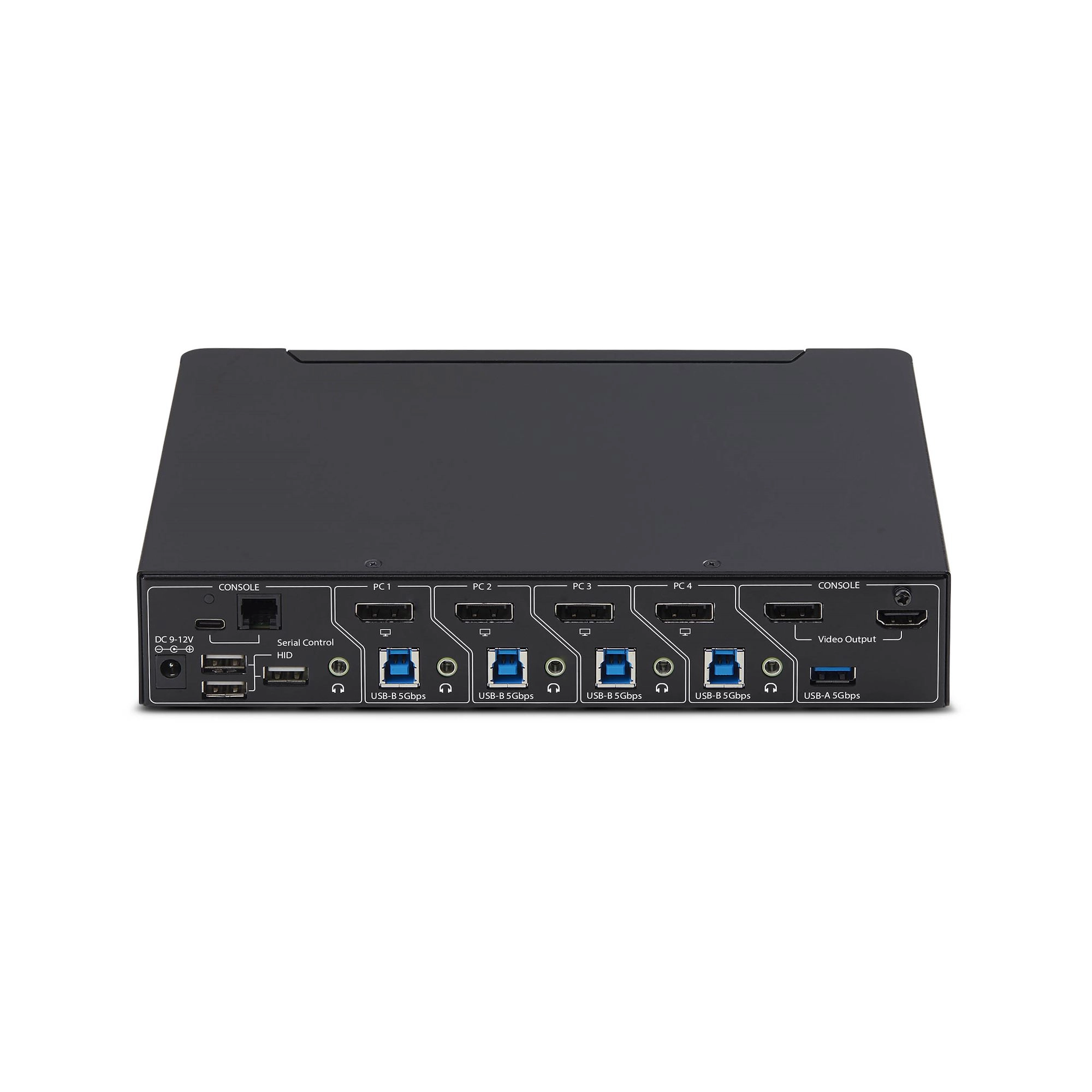

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	4
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console ports	DisplayPort, USB A, USB C
Console USB ports quantity	4
USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	1
Console DisplayPorts ports quantity	1
Console HDMI ports quantity	1
Audio connections	Y
Headphone outputs	5
DC-in jack	Y
RJ-11 ports quantity	1
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 Pixels
Daisy chain	N
Design
Rack mounting	N
Product colour	Black
Housing material	Steel, Aluminium
LED indicators	Y
Push button	Y
Hot keys	Y
Mean time between failures (MTBF)	130000 uur
Display
Built-in display	N
On Screen Display (OSD)	N
Power
Power source	DC
Input voltage	100 - 240 V
Input current	1 A
Output voltage	12 V
Output current	3 A
Compatible power plug types	EU, UK, US, AU
External power adapter	Y
Power consumption (typical)	36 W
Sustainability
Compliance certificates	Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
Packaging data
Package width	365 mm
Package depth	235 mm
Package height	75 mm
Package weight	195 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	130 mm
Depth	220 mm
Height	40 mm
Weight	1050 g
Packaging content
Manual	Y
Rubber feet	Y
Logistics data
Master (outer) case width	495 mm
Master (outer) case length	385 mm
Master (outer) case height	265 mm
Quantity per master (outer) case	6 stuk(s)
Other features
IP control	N
