PCI Express to Firewire Adapter | FireWire 400 | Texas Instruments TSB82AA2

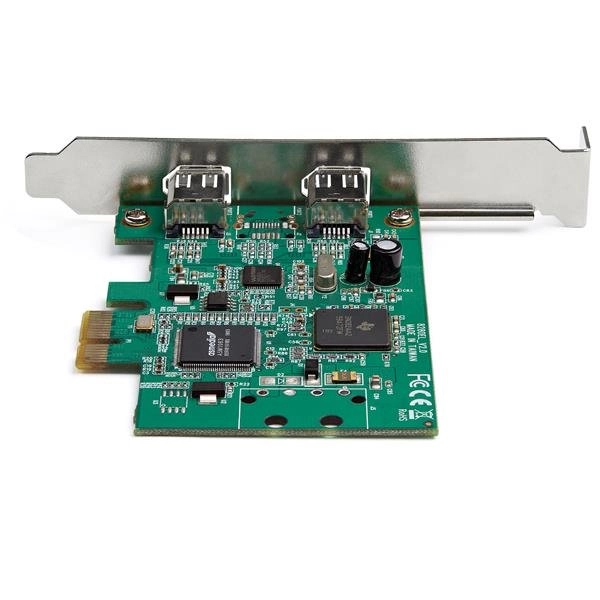

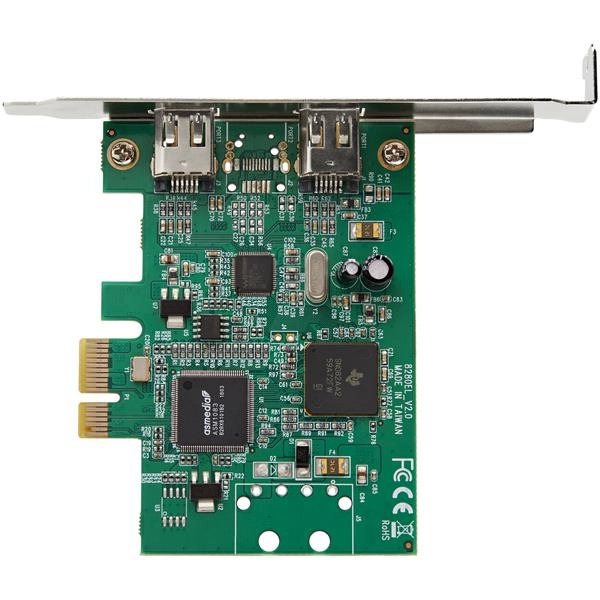

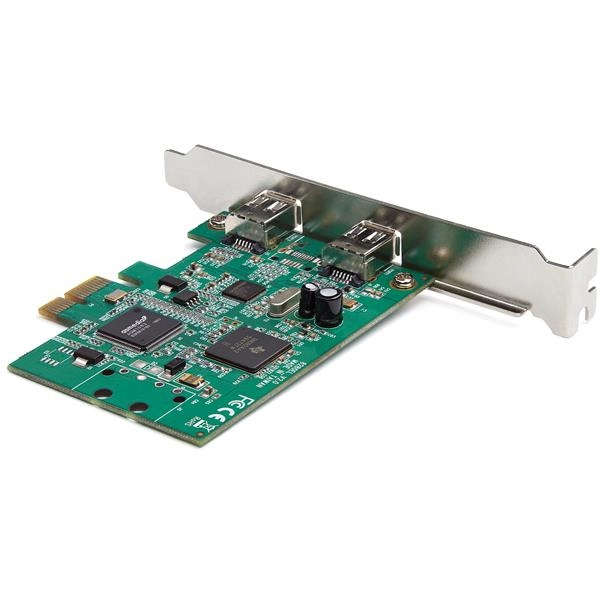

The PEX1394A2V 2-Port PCI Express FireWire Card lets you add two FireWire 400 ports to your desktop PC. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Future Proof

Add FireWire to the latest computers with PCI Express slots. Keep using your legacy devices that would not otherwise be compatible with new computers. This allows you to connect IEEE 1394A FireWire devices such as digital cameras, external hard drives, DV camcorders, printers and more

Wide Compatibility

For broad compatibility, the PCIE firewire adapter is natively supported in Windows with no additional drivers required. The 2 port PCI Express 1394a Firewire Card comes equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. PCI Express to Firewire adapter is also compatible with macOS 10.10 through 10.13.

The Choice of IT Pros Since 1985

StarTech. com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech. com Technical Advisors have broad product expertise and work directly with our StarTech. com Engineers to provide support for our customers both pre and post-sales.

PEX1394A2V2 is backed by a StarTech. com 2-year warranty and free, lifetime technical support.

The StarTech. com Advantage

- Built with a TI 1394 OHCI Compliant Host Controller
- Includes low profile/half-height installation bracket

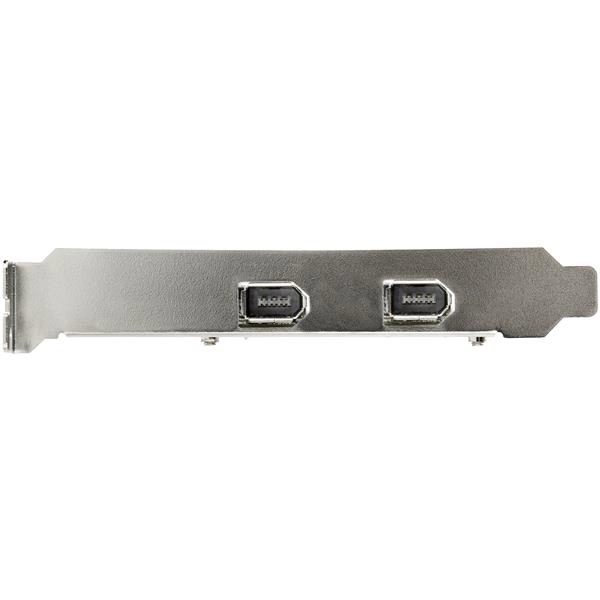

- Two 6-pin FireWire 400 ports, each with transfer rates up to 400Mbps

Specification

Product
Product id	671505
Brand	StarTech.com
Partnr	PEX1394A2V2
EAN/UPC code	065030887755
Warranty (months)	Lifetime
Technical details
Sustainability certificates	RoHS
Ports & interfaces
Host interface	PCI Express
Output interface	IEEE 1394/Firewire
FireWire 400 ports quantity	2
Design
Internal	Y
Product colour	Green
Certification	CE, FCC, REACH
Features
Data transfer rate (max)	0.4 Gbit/s
Plug and Play	Y
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Packaging data
Quantity	1
Mounting brackets included	Y
Quick installation guide	Y
Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	117 g
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Width	68 mm
Depth	89 mm
Height	17.8 mm
Weight	49 g
Logistics data
Master (outer) case width	685 mm
Master (outer) case length	345 mm
Master (outer) case height	306 mm
Quantity per master (outer) case	75 stuk(s)
