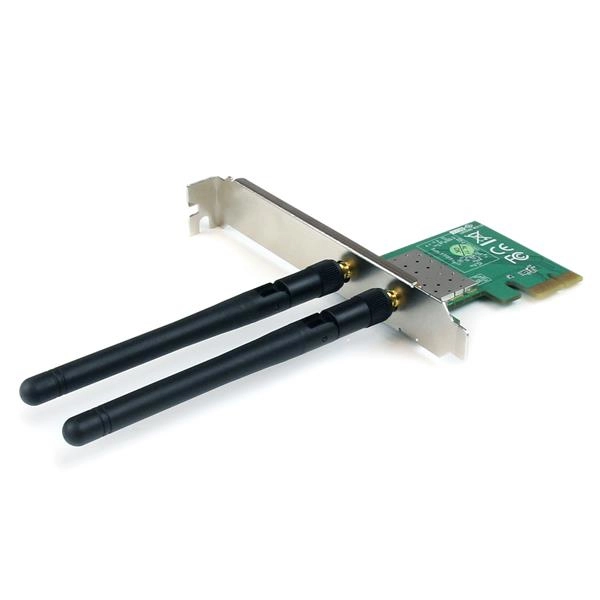

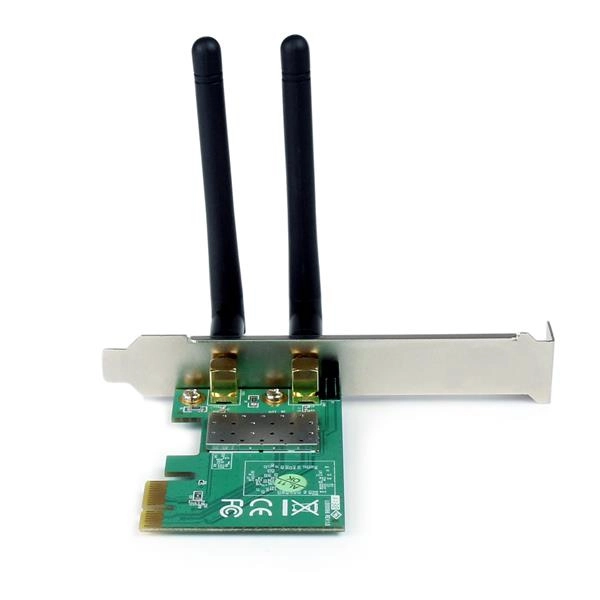

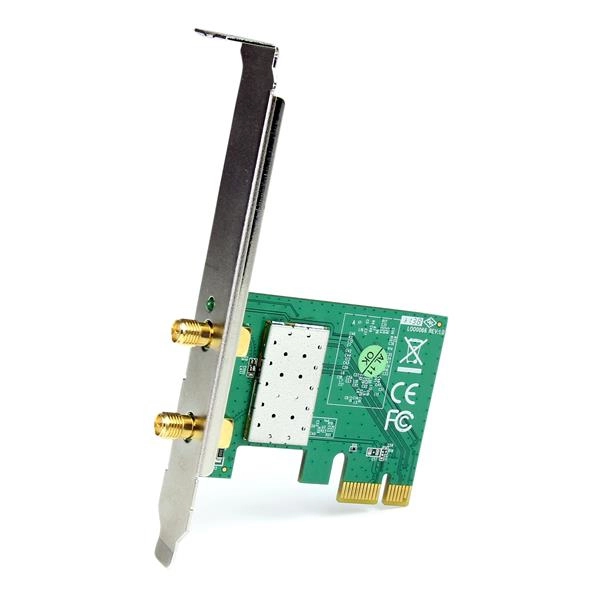

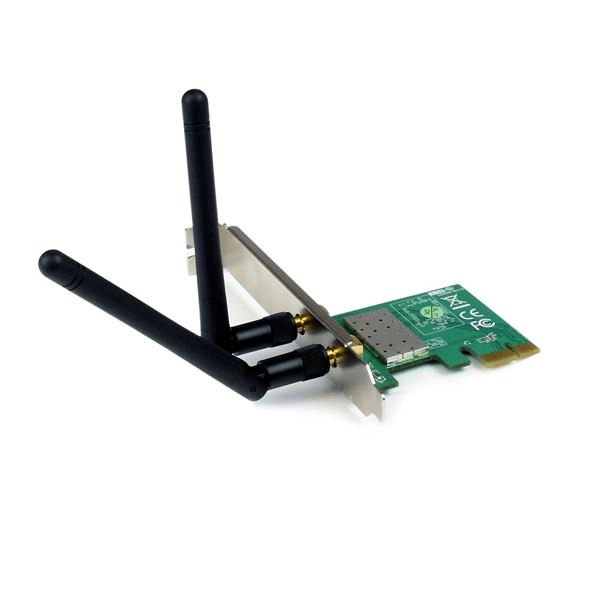

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

This easy-to-install PCI Express 2.0 card is backed by StarTech. com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech. com Advantage
- PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
- Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience
- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer

Specification

Product
Product id	394643
Brand	StarTech.com
Partnr	PEX300WN2X2
EAN/UPC code	065030844482
Warranty (months)	2 Years
Wireless LAN features
Wi-Fi standards	Wi-Fi 4 (802.11n)
Technical details
Compliance certificates	RoHS
Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN
Network
Maximum data transfer rate	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Y
Wi-Fi band	Single-band (2.4 GHz)
Frequency range	2.4 - 2.484 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	300 Mbit/s
Modulation	CCK, DBPSK, DQPSK, DSSS, OFDM
Security algorithms	AES, TKIP, WEP, WPA, WPA2-PSK
Full duplex	Y
Supported network protocols	CSMA/CA
Design
Internal	Y
Antenna	Y
Antenna design	External
Antenna connector type	RP-SMA
Chipset	Ralink - RT5392
LED indicators	Activity, Link
Certification	CE, FCC, REACH, TAA
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent

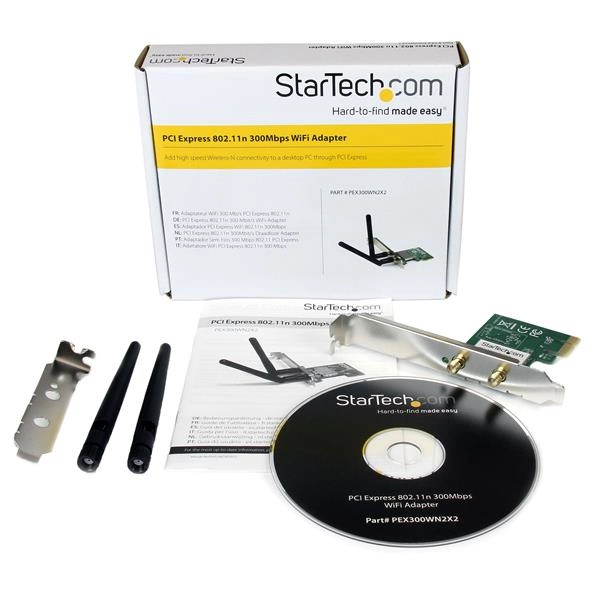

Packaging content
Mounting brackets included	Y
Manual	Y
Packaging data
Drivers included	Y
Low-profile bracket	Y
Package width	140 mm
Package depth	165 mm
Package height	35 mm
Package weight	158 g
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Y
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2
Weight & dimensions
Width	49 mm
Depth	75 mm
Height	18 mm
Weight	38 g
Other features
Gain	2.2 dBi
Antennas quantity	2
Quantity per pack	1 stuk(s)
Bandwidth note	20/40 MHz
Channel bandwidth	40 MHz
