40 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

100% Dell EMC Compatible. Guaranteed.

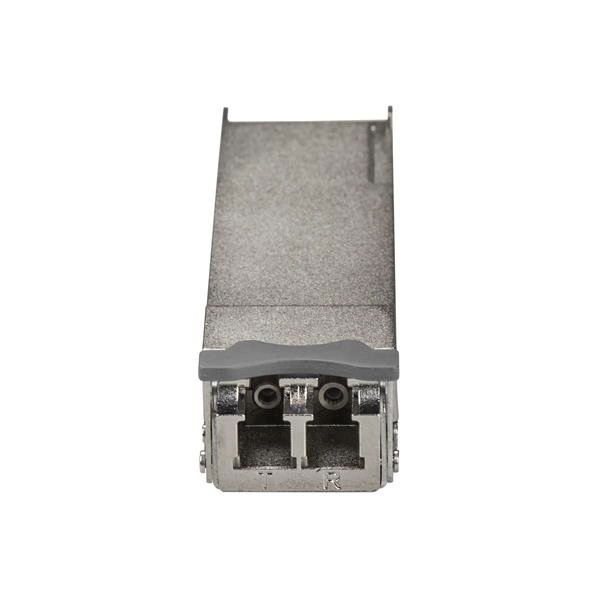

The QSFP40GER4ES is a Dell EMC QSFP-40G-ER4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand compatible switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-ER4Q compliant networks, with a maximum distance of up to 40 km (24.8 mi).

Technical Specifications:

• Wavelength: 1311nm

• Maximum Data Transfer Rate: 40 Gbps

• Type: Single Mode

• Connection Type: LC

• Maximum Transfer Distance: 40 km (24.8 mi)

• MTBF: 8, 596, 956 hours

• Power Consumption: < 1.6W

• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a StarTech. com Lifetime Warranty and Free Lifetime Multilinugal Technical Support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the dependability and reliability you need to ensure consistent network performance.

The StarTech. com Advantage

- 100% Dell EMC 3CSFP91 COMPATIBLE: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-ER4
- 40 Gbps

Specification

Product
Product id	666210
Brand	StarTech.com
Partnr	QSFP40GER4ES
EAN/UPC code	065030884280
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	120 mm
Package depth	205 mm
Package height	350 mm
Package weight	60 g
Performance
Maximum data transfer rate	40000 Mbit/s
Interface type	QSFP+
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	MPO
Maximum transfer distance	40000 m
Wavelength	1311 nm
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	8596956 uur
Brand compatibility	Dell
Compatible products	QSFP-40G-ER4
Certification	CE, FCC, UL, REACH
Power
Power consumption (typical)	1.6 W
Weight & dimensions
Width	58.4 mm
Depth	13.9 mm
Height	12.6 mm
Weight	40 g
Logistics data
Master (outer) case width	120 mm
Master (outer) case length	205 mm
Master (outer) case height	350 mm
Quantity per master (outer) case	168 stuk(s)
