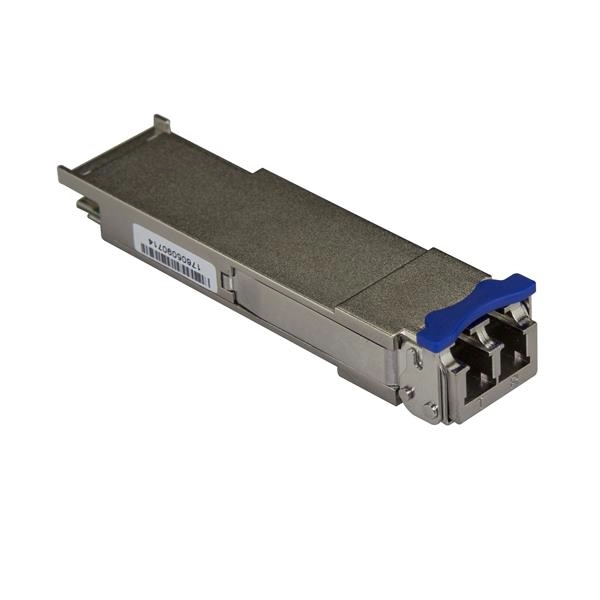

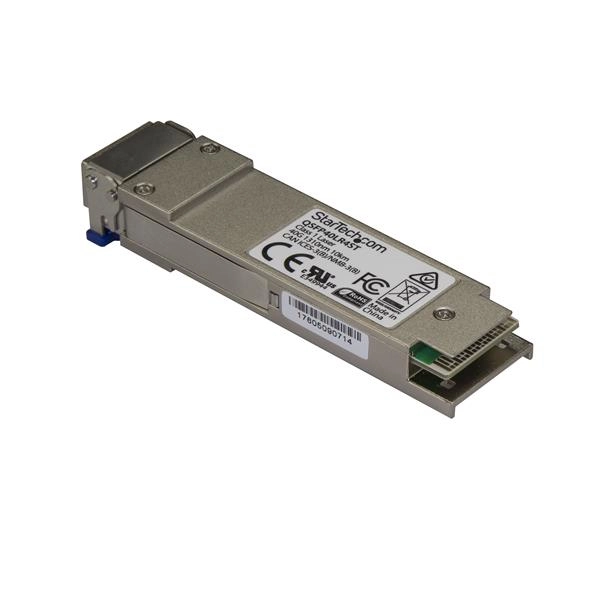

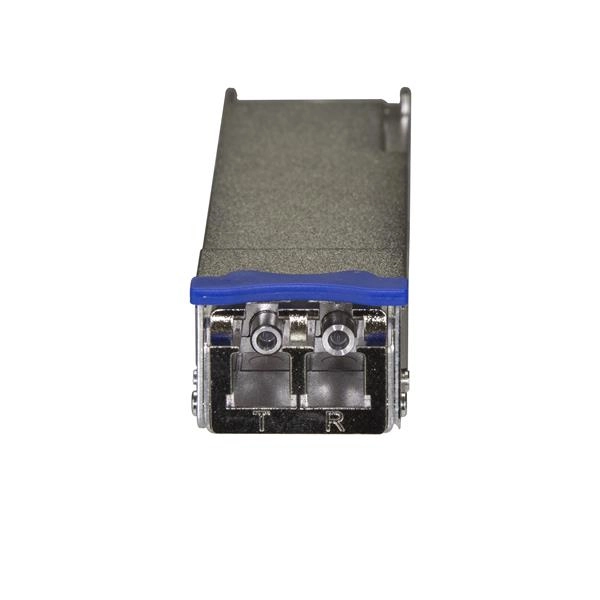

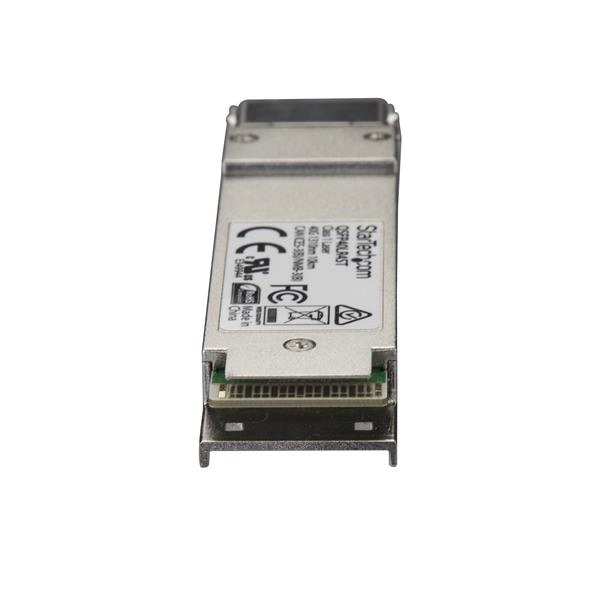

MSA Compliant 40GBase-LR4 QSFP+ - 40G QSFP+ Fiber Transceiver Module with LC Connector - Single-mode QSFP+ - Lifetime Warranty - 10 km/6.2 mi - 1270nm-1330nm - DDM/DOM - Fiber Transceiver



StarTech.com
Not in stock
€ 1.397,92
€ 1.691,48 incl 21% VAT
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1270nm to 1330nm

Maximum Data Transfer Rate: 40 Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

MTBF: 1, 489, 426 hours

Power Consumption: Less than 2.5 Watts

DDM: Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4
- 40Gbps

Specification

Product
Product id 581047
Brand StarTech.com
Partnr QSFP40LR4ST
EAN/UPC code 065030873345
Warranty (months) Lifetime
Network
SFP transceiver type Fiber optic
Technical details
Sustainability certificates RoHS
Packaging data
Number of products included 1 stuk(s)
Package width 92 mm
Package depth 117 mm
Package height 32 mm
Package weight 76 g
Performance
Maximum data transfer rate 40000 Mbit/s
Interface type QSFP+
Single-mode fiber (SMF) supported Y
Multi-mode fiber (MMF) supported N
Fiber optic connector LC
SFP transceiver standard LR4
Maximum transfer distance 10000 m
Tx wavelength (min) 1270 nm
Tx wavelength (max) 1330 nm
Networking standards IEEE 802.3ba
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Features
Product colour Silver
Housing material Aluminium
Hot-Plug support Y
Mean time between failures (MTBF) 1489426 uur
Certification CE, FCC, UR, REACH
Power
Power consumption (typical) 2.5 W
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95 procent
Weight & dimensions
Width 18.4 mm
Depth 72 mm
Height 13 mm
Weight 40 g
Logistics data
Master (outer) case width 250 mm
Master (outer) case length 300 mm
Master (outer) case height 200 mm
Quantity per master (outer) case 36 stuk(s)
