1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included

Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.

Dual Rail Design

The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.

High Definition LCD Monitor

The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.

Digital & Analog Support

Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.

Simple Setup

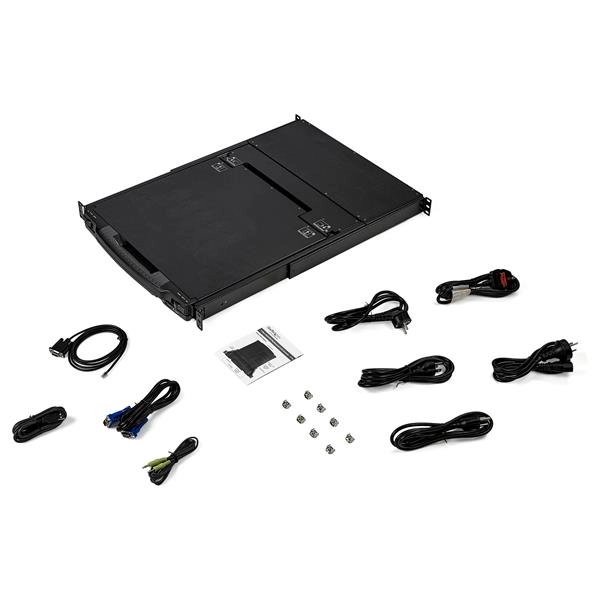

This KVM console comes with everything you need to set up:

✔ 1 Audio Cable✔ 1 Set of KVM Cables (USB/VGA)✔ 2 Rear Mounting Brackets✔ M5 Cage Nuts and Screws

Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.

StarTech. com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.

The StarTech. com Advantage

- Flexible Design: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use
- High Definition: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E. g. IP camera monitoring
- Versatile Interfaces: 17.3" Active Matrix TFT 16:9 widescreen

Specification

Product
Product id	631161
Brand	StarTech.com
Partnr	RKCOND17HD
EAN/UPC code	065030872515
Warranty (months)	2 Years
Display
Display diagonal	17.3 inch
Display resolution	1920 x 1080 Pixels
Display	TFT LCD
Display number of colours	262144 colours
Response time	8 ms
Display type	LCD
Aspect ratio	16:9
Pixel pitch	0.199 x 0.199 mm
On Screen Display (OSD)	N
Viewing angle, vertical	120 °
Viewing angle, horizontal	140 °
Contrast ratio (typical)	650:1
Display brightness	250 cd/m²
Supported resolutions	1024x576 1152x648 1280x720 1366x76 1600x900 1920x1080
Technical details
Material	Steel
LED indicators	Y
Rack mounting	Y
Mean time between failures (MTBF)	44230 uur
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Sustainability certificates	RoHS
Rack capacity	1U
Ports & interfaces
3.5 mm (1/8-inch) out	Y
3.5 mm (1/8-inch) in	Y
DVI connector type	DVI-D
DVI output ports	1
DVI input ports	1
Video port type	DVI/VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-B ports quantity	1
USB 2.0 Type-A ports quantity	2
Keyboard
Hot keys	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	19.4 W
AC adapter input voltage	100 - 240 V
Input current	1 A
Certificates
Certification	CE, FCC, UL, REACH
Weight & dimensions
Width	480 mm
Height	44 mm
Depth	727 mm
Weight	12000 g
Mounting depth (min)	649.8 mm
Mounting depth (max)	1000 mm
Packaging data
Package weight	18900 g
Package width	567 mm
Package depth	813 mm
Package height	109 mm
Packaging content
Cables included	Audio (3.5mm), KVM
Screws included	Y
Number of screws	8
Mounting brackets included	Y
Number of cage nuts	8
Cage nuts included	Y
Included power plug types	ANZ, EU, JP, NA, UK
Quick installation guide	Y
Logistics data
Master (outer) case width	670 mm
Master (outer) case length	830 mm
Master (outer) case height	140 mm
Quantity per master (outer) case	1 stuk(s)
