Control your server or KVM switch from a centralized LCD KVM drawer

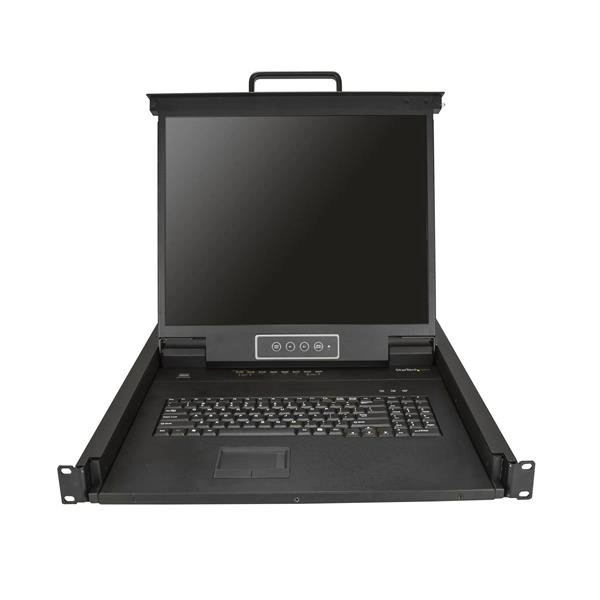

This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

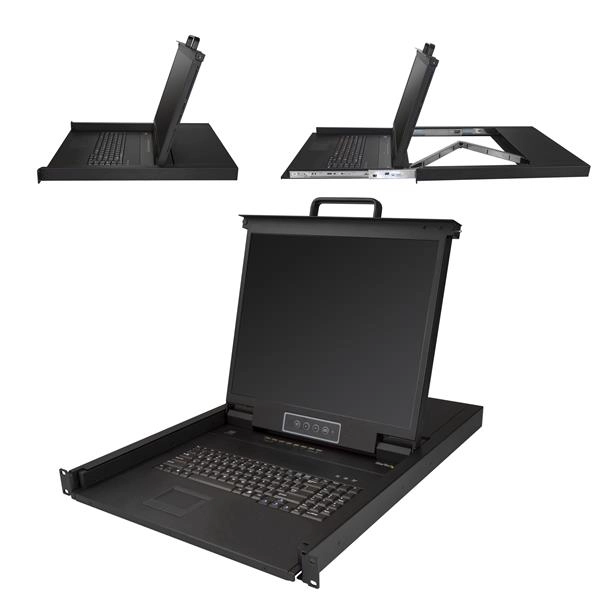

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

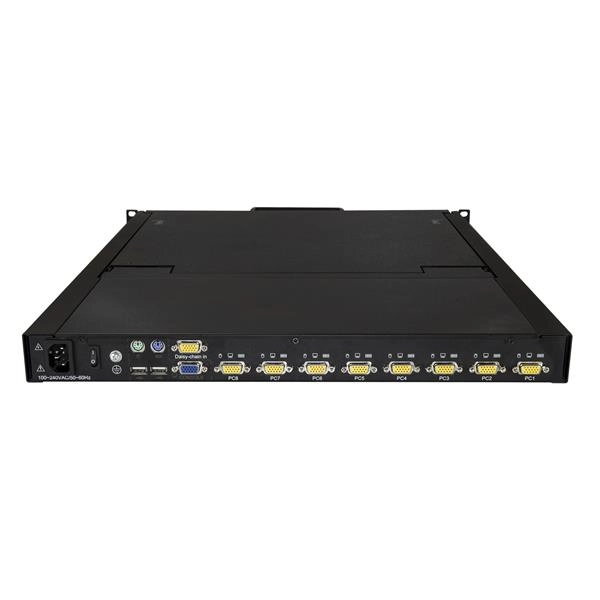

The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

The RKCONS1908K is backed by a StarTech. com 2-year warranty and free lifetime technical support.

The StarTech. com Advantage

- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8" [60.5 cm] to 35" [89 cm] (incl. mounting hardware)

Specification

Product
Product id	605441
Brand	StarTech.com
Partnr	RKCONS1908K
EAN/UPC code	065030872508
Warranty (months)	2 Years
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	TFT LCD
Display number of colours	16.78 million colours
Display type	LCD
Pixel pitch	0.264 x 0.264 mm
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Colour depth	8 Bit
Technical details
Material	Steel
Number of computers controlled	8
Key lock	N
Daisy chain	N
Mean time between failures (MTBF)	50000 uur
Product colour	Black
Operating relative humidity (H-H)	10 - 80 procent
Sustainability certificates	CE, RoHS, UL ECOLOGO
Rack capacity	1U
IP control	N
Audio support	N
Ports & interfaces
VGA (D-Sub) ports quantity	9
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2
Keyboard
Built-in touchpad	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	21 W
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Weight & dimensions
Width	483 mm
Height	43 mm
Depth	643 mm
Weight	13400 g
Mounting depth (min)	605 mm
Mounting depth (max)	890 mm
Packaging data
Package width	615 mm
Package depth	765 mm
Package height	190 mm
Package volume	19000 cm³

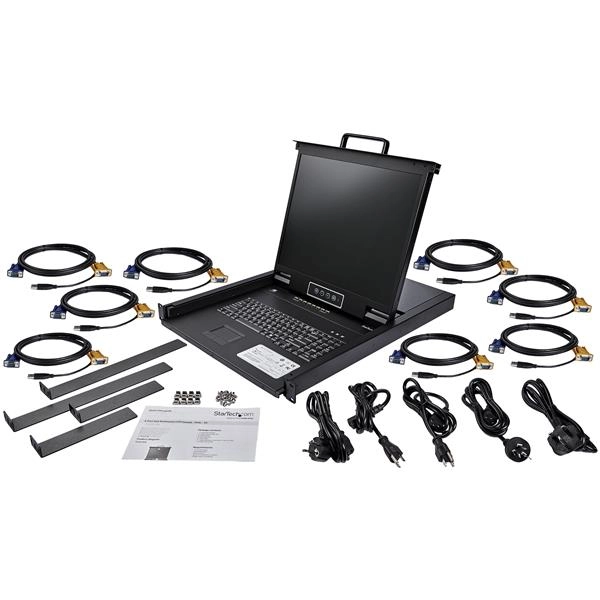

Packaging content
Cables included	KVM
Screws included	Y
Number of screws	8
Mounting brackets included	Y
Number of cage nuts	8
Cage nuts included	Y
Included power plug types	ANZ, EU, JP, NA, UK
Quick installation guide	Y
Logistics data
Master (outer) case width	615 mm
Master (outer) case length	765 mm
Master (outer) case height	190 mm
Quantity per master (outer) case	1 stuk(s)
