1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

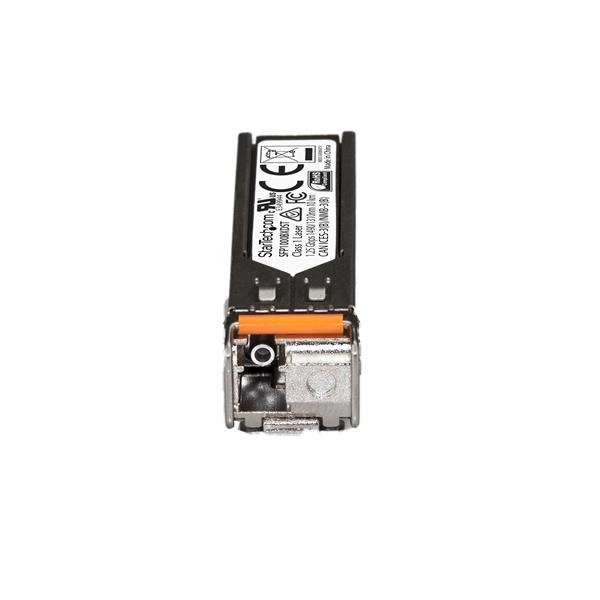

The SFP1000BXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech. com's SFP1000BXUST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1490nmTx/1310nmRx

Maximum Data Transfer Rate: 1.25 Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

Power Consumption: Less than 1 Watt

DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- MSA UNCODED SFP TRANSCEIVER: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
- TECHNICAL SPECS: 1000BASE-BX

Specification

Product
Product id	579903
Brand	StarTech.com
Partnr	SFP1000BXDST
EAN/UPC code	065030873505
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	92 mm
Package depth	116 mm
Package height	34 mm
Package weight	48 g
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Y
Fiber optic connector	LC
SFP transceiver standard	BX
Maximum transfer distance	10000 m
Tx power (min)	1490 dBmW
Rx power (min)	1310 dBmW
Networking standards	IEEE 802.3z
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Y
Wavelength-division multiplexing (WDM)	Y
Features
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Y
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	14 mm
Depth	57 mm
Height	13 mm
Weight	19 g
Logistics data
Master (outer) case width	198 mm
Master (outer) case length	304 mm
Master (outer) case height	164 mm
Quantity per master (outer) case	20 stuk(s)
