1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

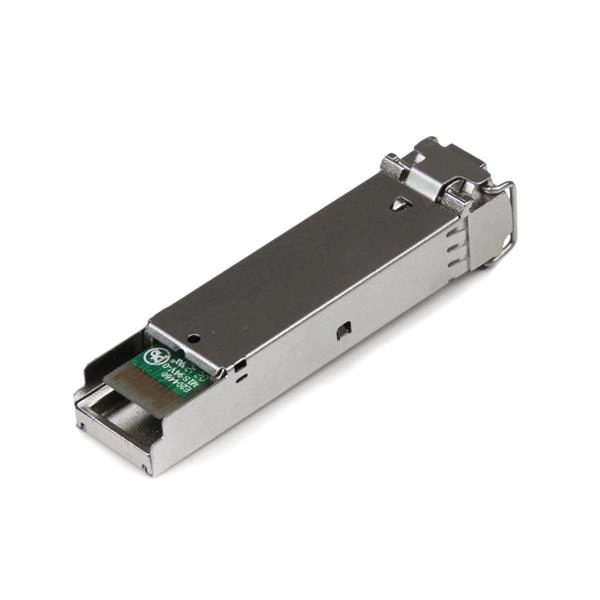

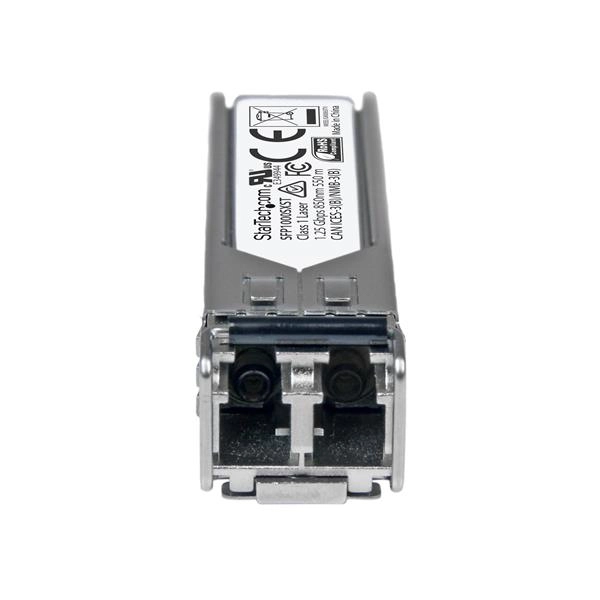

The SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 850nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 550 m (1804 ft)

Power Consumption: Less than 1 Watt

DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-SX
- 1Gbps

Specification

Product
Product id	579908
Brand	StarTech.com
Partnr	SFP1000SXST
EAN/UPC code	065030873352
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	120 mm
Package height	30 mm
Package weight	53 g
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	LC
SFP transceiver standard	SX
Maximum transfer distance	550 m
Wavelength	850 nm
Networking standards	IEEE 802.3z
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Y
Wavelength-division multiplexing (WDM)	N
Features
Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Y
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 procent
Weight & dimensions
Width	13.9 mm
Depth	58.4 mm
Height	12.6 mm
Weight	23 g
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	300 mm
Master (outer) case height	200 mm
Quantity per master (outer) case	36 stuk(s)
