10 Gbps | Single Mode Fiber | LC | 60 km (37.3 mi) | Lifetime Warranty

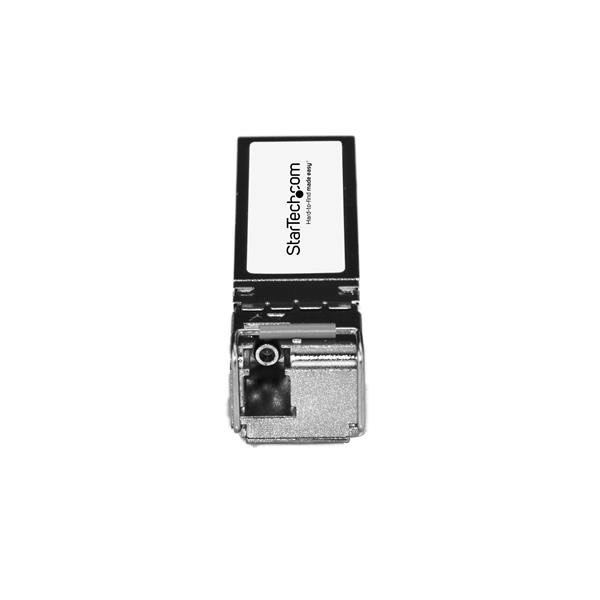

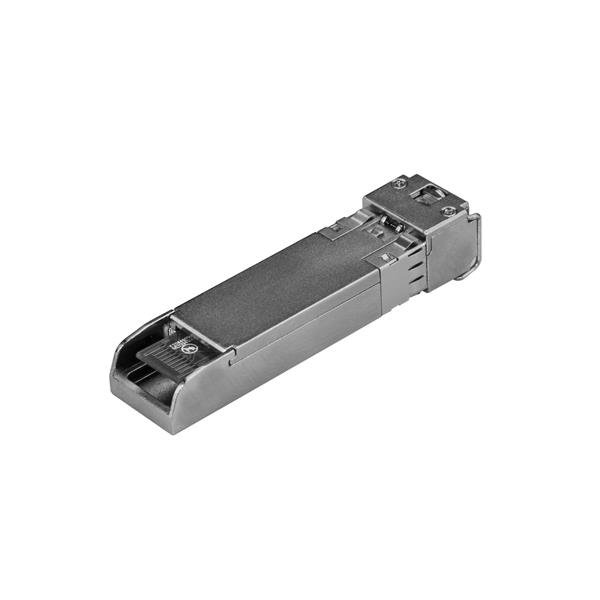

The SFP-10G-BX-D-60-ST is a Cisco SFP-10G-BX-D-60 compatible downstream fiber SFP+ transceiver which pairs with StarTech. com's SFP-10G-BX-U-60-ST. They are designed, programmed and tested to work with 10GBase-BX compatible Cisco switches and routers. The SFP+ transceiver module supports a maximum distance of up to 60 km (37.3 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1330nmTx/1270nmRx

Maximum Data Transfer Rate: 10Gbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 60 km (37.3 mi)

Power Consumption: Low power consumption

DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% CISCO SFP-10G-BX-D-60 COMPATIBLE SFP+: 10 GbE BiDi transceiver works with Cisco switches and routers like C9400, C9500, N700, C4900, NCS5500, N9300, N3000, N9500, ASR9000, ASR1000 and others.
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
- TECH SPECS: 10GBASE-BX

Specification

Product
Product id	666212
Brand	StarTech.com
Partnr	SFP-10G-BX-D-60-ST
EAN/UPC code	065030886512
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	90 mm
Package depth	115 mm
Package height	31 mm
Package weight	50 g
Performance
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Y
Multi-mode fiber (MMF) supported	N
Fiber optic connector	LC
SFP transceiver standard	BX-D
Maximum transfer distance	60000 m
Tx wavelength (max)	1330 nm
Rx wavelength (max)	1270 nm
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-Plug support	Y
Hot-swap	Y
Brand compatibility	Cisco
Compatible products	C9400, C9500, N700, C4900, NCS5500, N9300, N3000, N9500, ASR9000, ASR1000
Certification	CE, FCC, REACH
Power
Power consumption (typical)	1 W
Weight & dimensions
Width	58.4 mm
Depth	14 mm
Height	12.6 mm
Weight	24 g
Logistics data
Master (outer) case width	90 mm
Master (outer) case length	115 mm
Master (outer) case height	31 mm
Quantity per master (outer) case	1 stuk(s)
