1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

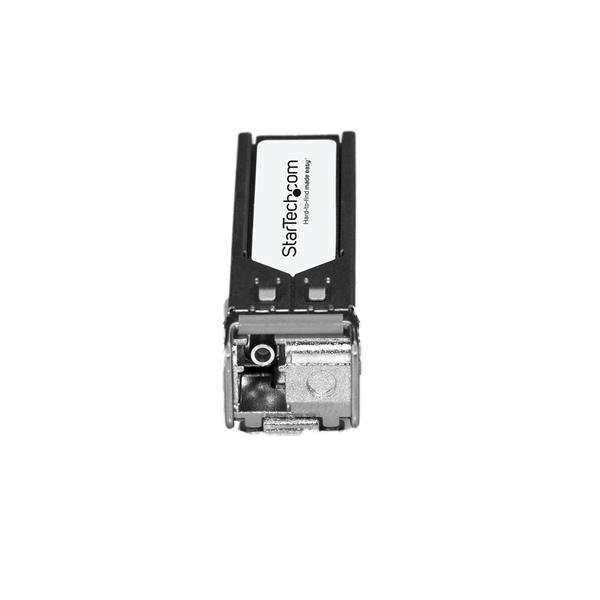

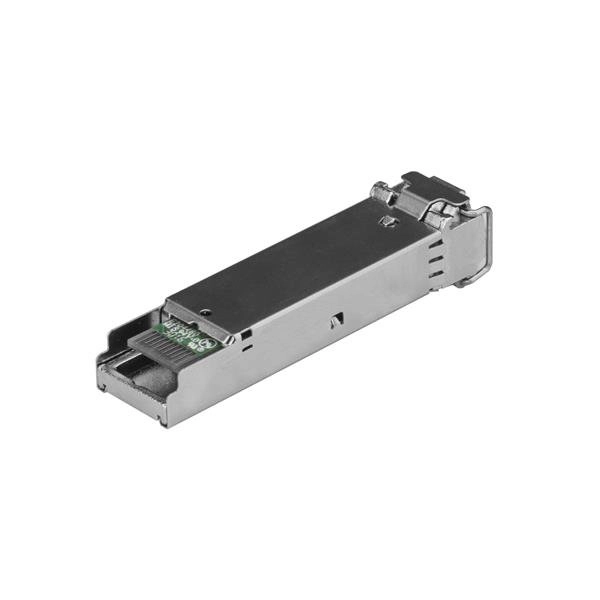

The SFPGE40KT5R3 is a Juniper SX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-BX40-D compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

Wavelength: 1310nmTx/1550nmRx

Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 40 km (24.8 mi)

MTBF: 3, 713, 222 hours

Power Consumption: < 1.6W

Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech. com SFPs

All StarTech. com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech. com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech. com Advantage

- 100% JUNIPER SFP-GE40KT15R13 COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Juniper switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-D

Specification

Product
Product id	666225
Brand	StarTech.com
Partnr	SFPGE40KT5R3
EAN/UPC code	065030883931
Warranty (months)	Lifetime
Network
SFP transceiver type	Fiber optic
Technical details
Sustainability certificates	RoHS
Packaging data
Number of products included	1 stuk(s)
Package width	207 mm
Package depth	230 mm
Package height	15 mm
Package weight	80 g
Performance
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Y
Multi-mode fiber (MMF) supported	N
Fiber optic connector	LC
Maximum transfer distance	40000 m
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1550 nm
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Silver
Hot-swap	Y
Mean time between failures (MTBF)	3713222 uur
Brand compatibility	Juniper
Compatible products	SFP-GE40KT15R13
Certification	CE, FCC, UR, REACH
Power
Power consumption (typical)	1.6 W
Weight & dimensions
Width	14 mm
Depth	65 mm
Height	12 mm
Weight	72 g
Logistics data
Master (outer) case width	344 mm
Master (outer) case length	295 mm
Master (outer) case height	255 mm
Quantity per master (outer) case	1 stuk(s)
