DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

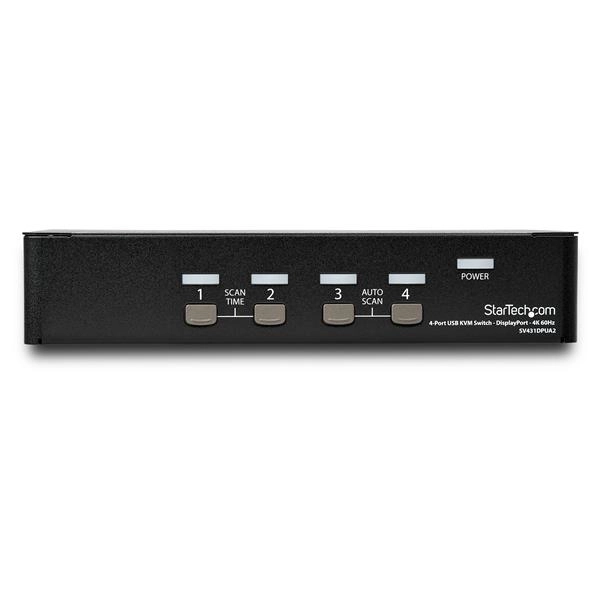

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech. com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.

The StarTech. com Advantage

- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays

Specification

Product
Product id	600660
Brand	StarTech.com
Partnr	SV431DPUA2
EAN/UPC code	065030826372
Warranty (months)	3 Years
Technical details
Plug and Play	Y
Sustainability certificates	RoHS
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	5
USB 2.0 Type-B ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity	4
Audio connections	Y
Headphone outputs	5
Number of microphone inputs	5
DC-in jack	Y
Network
Ethernet LAN	N
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 Pixels
Data transfer rate (max)	0.48 Gbit/s
Scan interval	3, 8, 15, 30 s
Daisy chain	N
Number of users	1 gebruiker(s)
Design
Rack capacity	1U
Rack mounting	Y
Product colour	Black
Housing material	Steel
LED indicators	Y
Hot keys	Y
Mean time between failures (MTBF)	138327 uur
Certification	CE, FCC, TAA, REACH
Display
On Screen Display (OSD)	Y
Power
AC input voltage	100 - 240 V
Input current	0.6 A
Output voltage	12 V
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	AU, EU, JP, UK, US
External power adapter	Y
Power consumption (typical)	18 W
Packaging data
Package width	212 mm
Package depth	409 mm
Package height	87 mm
Package weight	1600 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 40 procent
Weight & dimensions
Width	131 mm
Depth	220 mm
Height	45 mm
Weight	1000 g

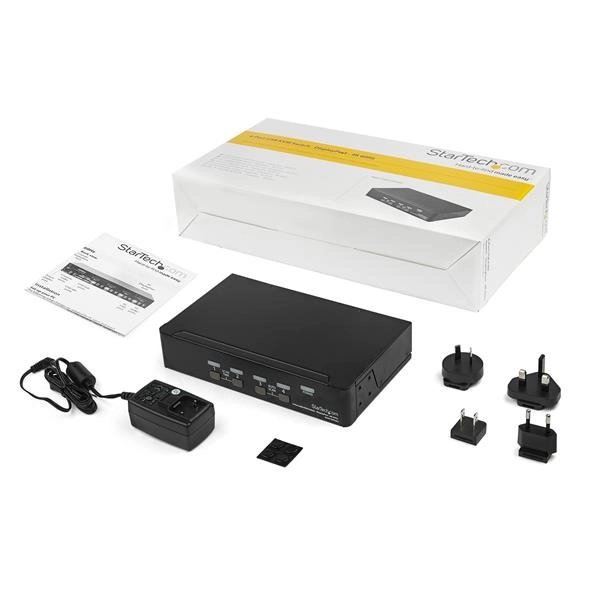

Packaging content
Quick installation guide	Y
AC adapter included	Y
Rubber feet	Y
Logistics data
Master (outer) case width	433 mm
Master (outer) case length	545 mm
Master (outer) case height	258 mm
Quantity per master (outer) case	6 stuk(s)
Other features
Audio support	Y
IP control	N
