60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps

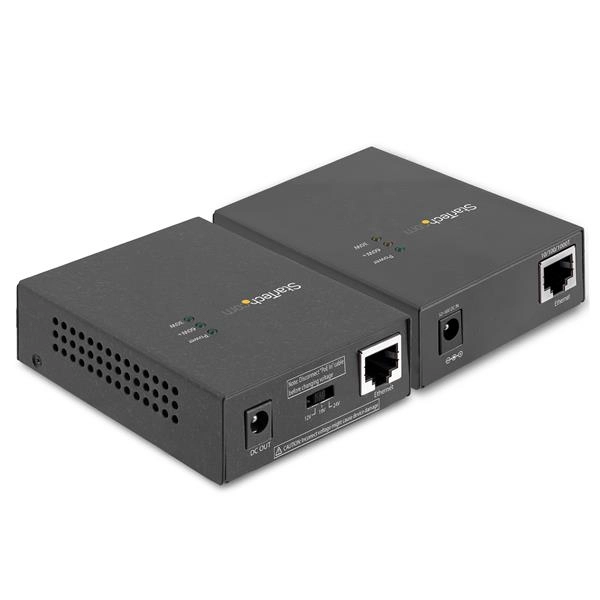

This 60W PoE Injector + PoE Splitter Kit comes with a 60W Power over Ethernet injector, adding PoE via PoE.

60 Watt Ultra Power Over Ethernet

Compliant with IEEE 802.3bt and supporting up to 60 watts of PoE, you can do more than just power your IP phone or wireless router. 60W PoE can support your higher-powered devices such as thin clients, POS systems, laptops or digital signage, from up to 100 meters away.

Easy to Deploy

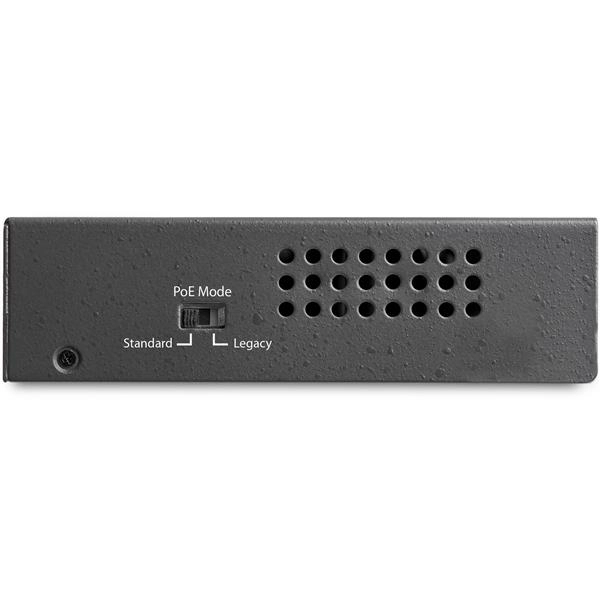

The PoE injector and PoE splitter are both simple to set up. Supporting plug-and-play installation, they also feature a compact, all-in-one design, and a durable, wall-mountable metal housing. The PoE splitter’s 12V/19V/24V DIP switch on the front panel offers either 24V DC power to industrial equipment or 12V/19V DC output to common network devices, increasing the number of product applications.

StarTech. com Networking IO

StarTech. com offers networking products that extend your networks to remote locations at extreme distances, for maximum network scalability. This Port 60W PoE Injector + PoE Splitter Kit is backed by a 2-year warranty and free lifetime North American based multilingual technical support.

The StarTech. com Advantage

- Splitter separates the PoE power from the data over RJ45 Ethernet cable into 12V/19V/24V DC output
- Injector delivers Ethernet digital data with 54V DC power over twisted-pair cables
- Supports 10/100/1000Mbps speeds over a distance of up to 100 meters

Specification

Product
Product id	630095
Brand	StarTech.com
Partnr	UPOESPLT1G
EAN/UPC code	065030867542
Warranty (months)	2 Years
Performance
Type	Network transmitter & receiver
Maximum transfer distance	100 m
Data transfer rate	1000 Mbit/s
Jumbo frames support	N
Auto MDIX IEEE	N
Flow control support	N
Plug and Play	Y
Mean time between failures (MTBF)	50000 uur
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Ports & interfaces
Ethernet LAN (RJ-45) ports	5
DC-in jack	Y
Design
Product colour	Black, Brown
Housing material	Metal
LED indicators	PoE, System
Certification	CE, FCC, PSE, UL
Power
AC input voltage	100 - 240 V
Input current	2 A
Power consumption (typical)	71.82 W
Output current	1.33 A
Power over Ethernet (PoE)	Y
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) voltage range	12 - 24 V
Included power plug types	AU, EU, JP, NA, UK
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	233 mm
Depth	390 mm
Height	85 mm
Weight	300 g
Technical details
Sustainability certificates	RoHS
Packaging content
Cables included	LAN (RJ-45)
Manual	Y
Packaging data
Package width	334 mm
Package depth	284 mm
Package height	70 mm
Package weight	1860 g
