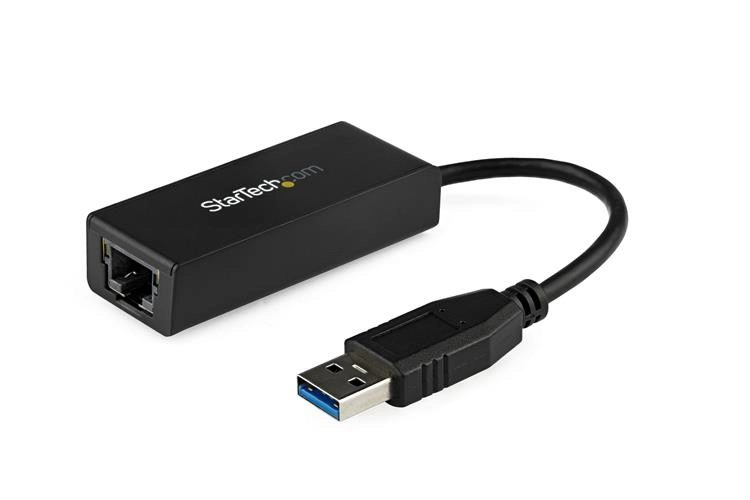

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port

The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1. x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.

The USB31000S USB 3.0 Gigabit adapter is backed by a StarTech. com 2-year warranty and free lifetime technical support.

The StarTech. com Advantage

- Compatible with Gigabit Ethernet networks and powered via USB for versatility and portability as an add-on or replacement
- Uses built-in Checksum and Large Send Offload support and Jumbo Frames, the Gigabit USB adapter helps conserve system resources
- Backed by a StarTech. com 2-year warranty and free lifetime technical support

Specification

Product
Product id	404221
Brand	StarTech.com
Partnr	USB31000S
EAN/UPC code	065030848404
Warranty (months)	2 Years
Technical details
Sustainability certificates	RoHS
Ports & interfaces
Connectivity technology	Wired
Host interface	USB
Interface	Ethernet
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Network
Maximum data transfer rate	5000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Auto MDIX IEEE	Y
Full duplex	Y
Jumbo frames support	Y
VLAN tagging	Y
Maximum operating distance	100 m
Design
Internal	N
Chipset	ASIX - AX88179
LED indicators	Activity, Link
Certification	CE, FCC, TAA, REACH
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent

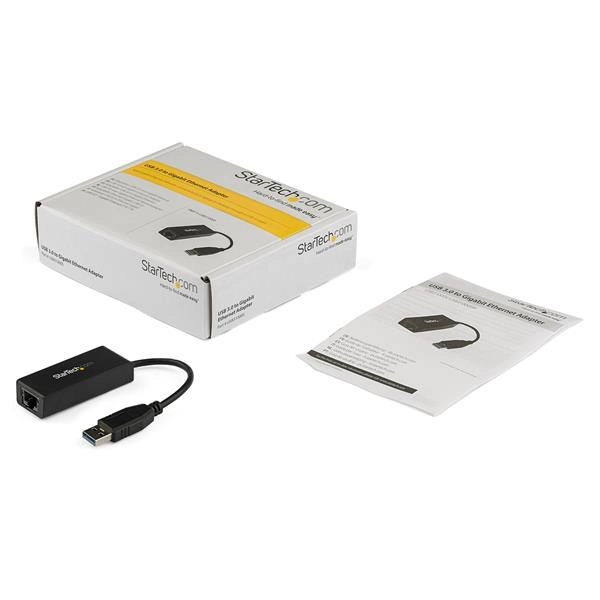

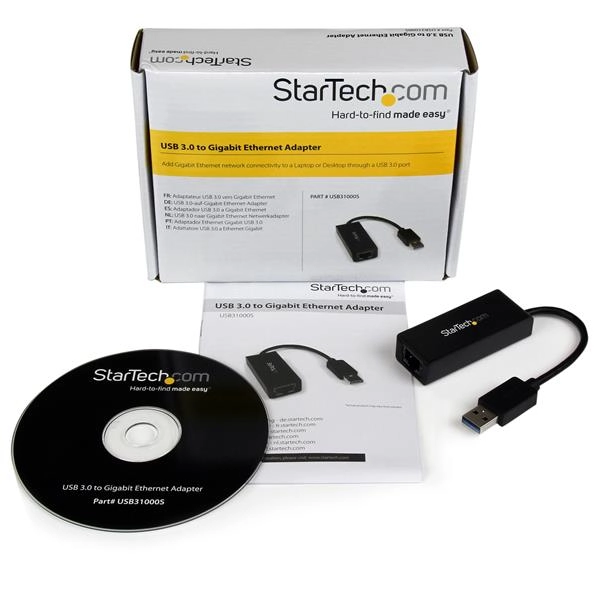

Packaging content
Manual	Y
Packaging data
Drivers included	Y
Package width	130 mm
Package depth	165 mm
Package height	40 mm
Package weight	138 g
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	26 mm
Depth	67 mm
Height	16 mm
Weight	28 g
Other features
Housing material	Plastic
Jumbo frames	4000
Cable length	0.135 m
