Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps

Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.

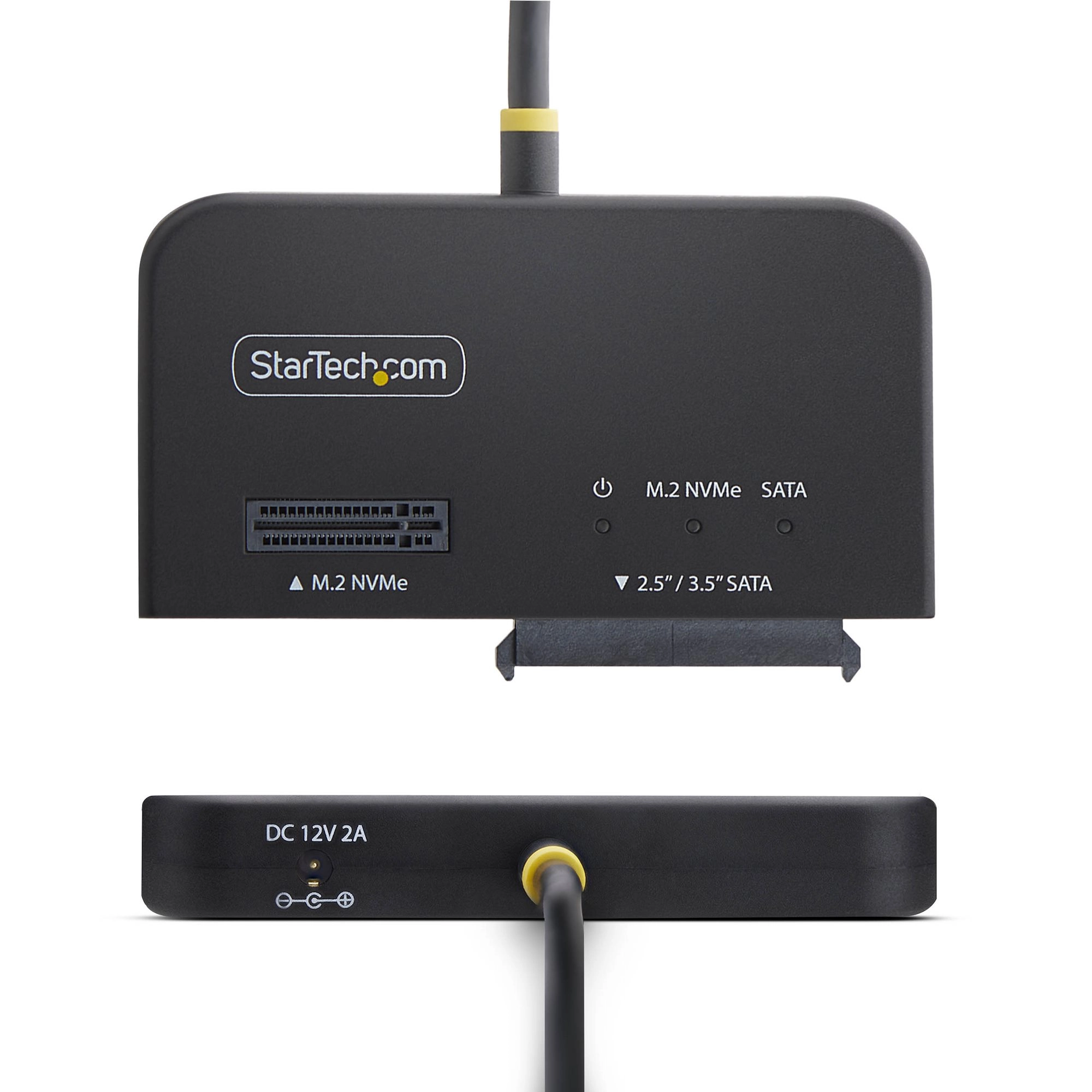

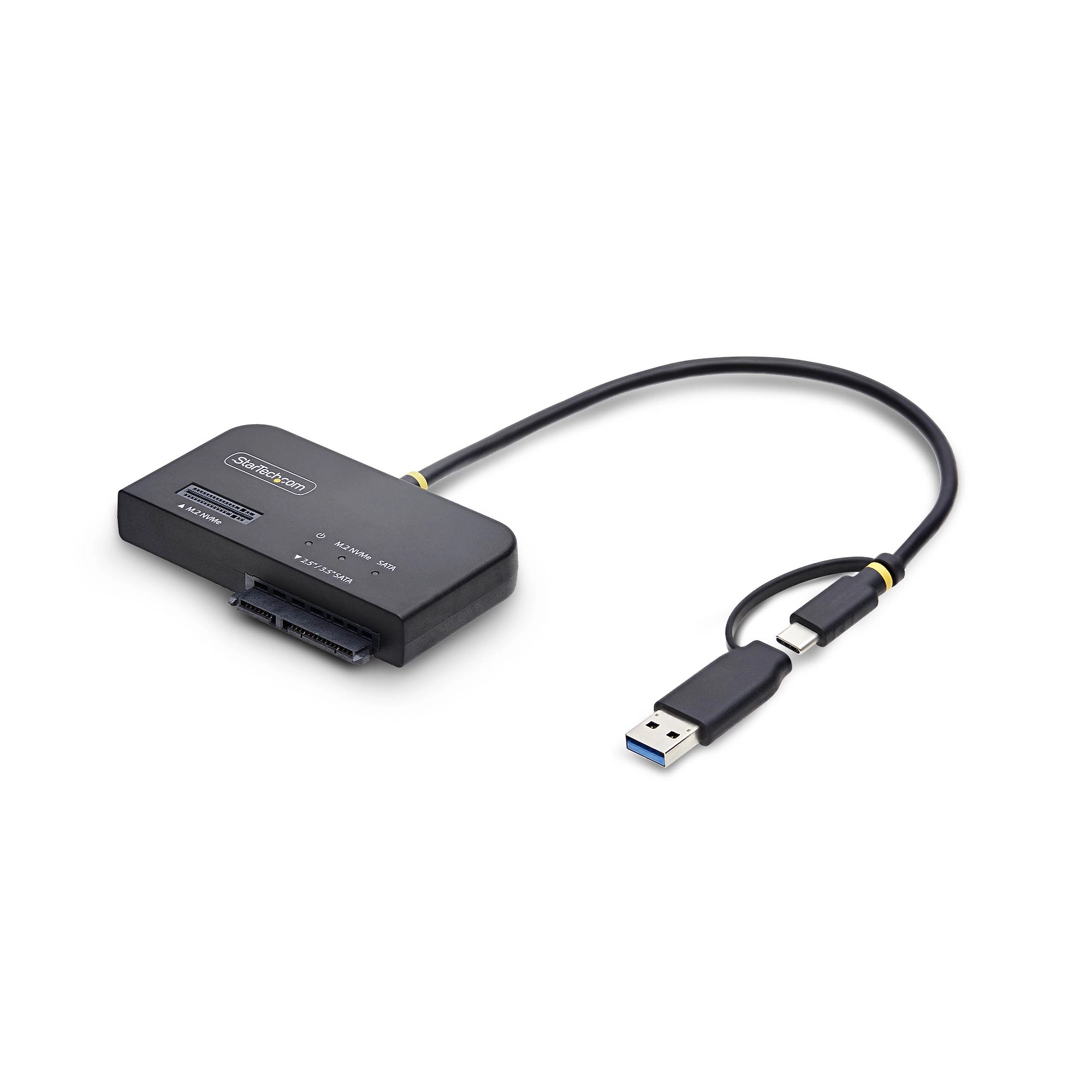

External Drive Access over USB-C and USB-A

Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.

Compact Form Factor

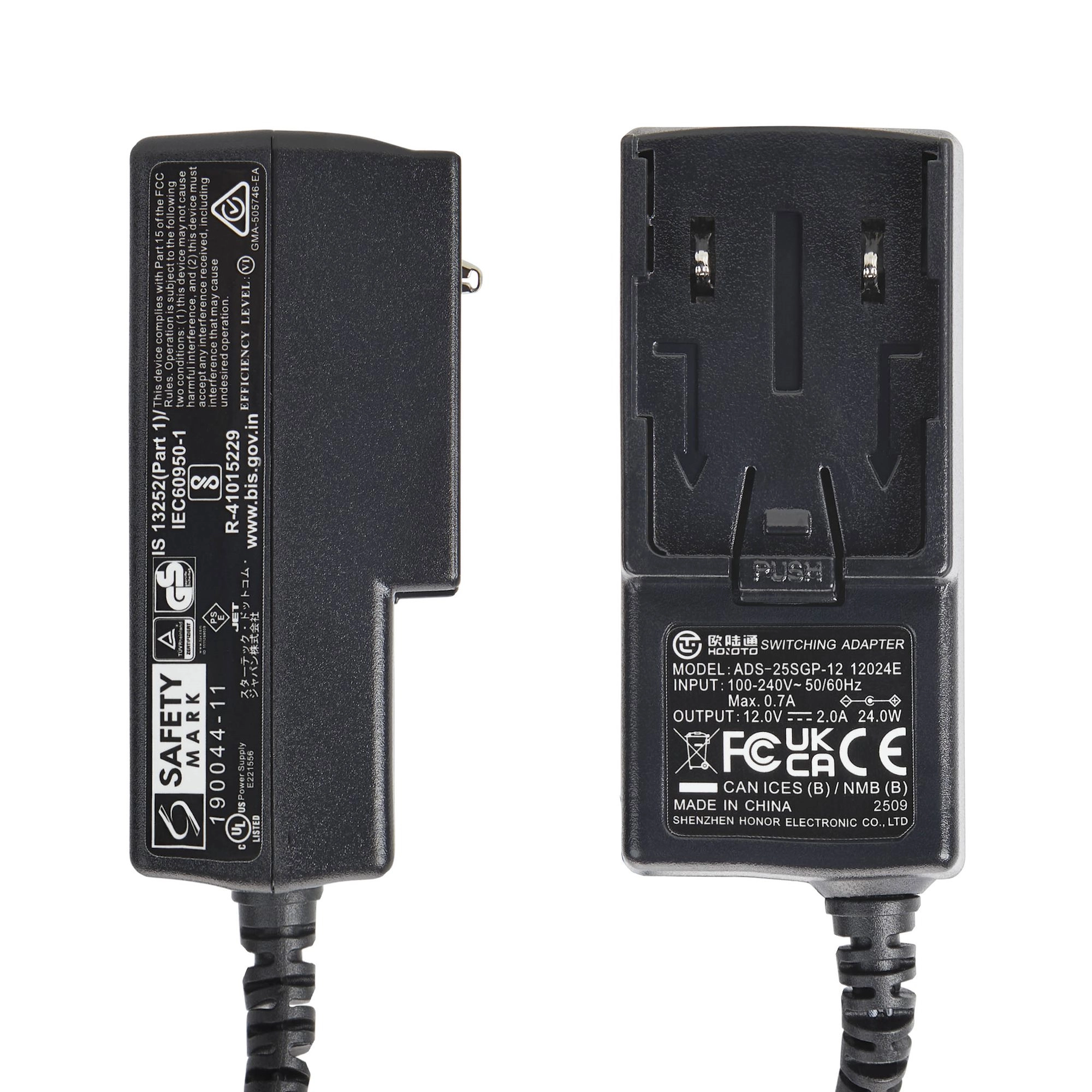

Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.

Specification

Product
Product id	1012671
Brand	StarTech.com
Partnr	USB31CSAT3M2E
EAN/UPC code	065030920575
Warranty (months)	2 Years
Hard drive
Storage media type	HDD, SSD
Storage drive interface	M.2, Serial ATA III
Storage drive sizes supported	2.5, 3.5 "
Number of storage drives supported	2
Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Features
Maximum data transfer rate	10 Gbit/s
Product colour	Black
Material	Acrylonitrile Butadiene Styrene (ABS)
Hot-swap	Y
TRIM support	Y
UASP support	Y
LED indicators	Y
Chipset	JMS581DC
Power
AC input voltage	12 V
Input current	2 A
Output voltage	12 V
Output current	2 A
Power plug type	Type H
Weight & dimensions
Width	88.4 mm
Depth	360.6 mm
Height	14.1 mm
Weight	50 g
Other features
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90 procent
Packaging content
AC adapter included	Y
Included power plug types	ANZ, EU, JP, NA, UK
Quick installation guide	Y
Interface adapters included	USB Type-A male - USB Type-C female
Packaging data
Package width	190 mm
Package depth	123 mm
Package height	54 mm
Package weight	330 g
Logistics data
Master (outer) case width	400 mm
Master (outer) case length	290 mm
Master (outer) case height	275 mm
Quantity per master (outer) case	20 stuk(s)
