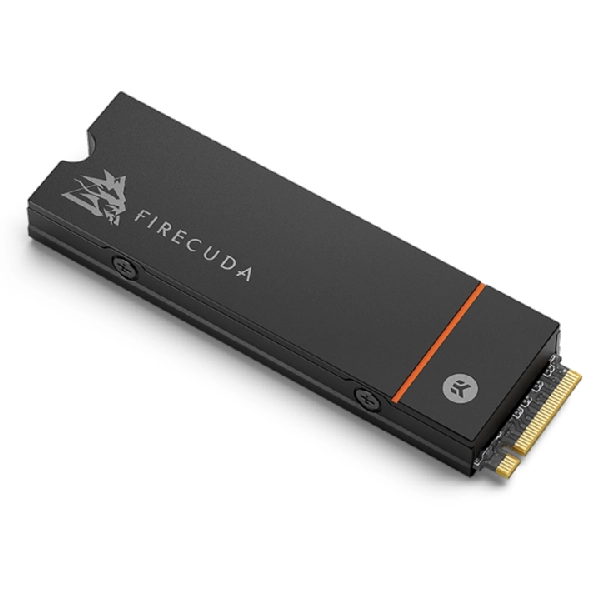

FireCuda 530 with heatsink offers a minimalist design, anodized aluminium body, and finely textured micropore surface to improve heat transfer and lower SSD temps — making it super-efficient at maximum cooling to maintain peak performance for longer periods of time.

Speed Reigns — The Fastest FireCuda Ever
FireCuda 530 dominates the SSD lineup, delivering:

- Blistering transfer speeds of up to 7, 300 MB/s.
- Absolute power to make content creations apps run faster and smoother.
- Lightning-fast video rendering and exporting.
- Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeat.

Absolute Performance
Up to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed.

Cool Speed Ahead
NVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.

Form and Function
Low-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.

Endurance Unleashed
Designed to perform under heavy use and tough enough to go the distance with:

- 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years.
- 1.8 Million Hours Mean Time Between Failures for trusted reliability.
- Up to 5, 100 TB Total Terabytes Written — durability delivered.

Latest Tech
Push your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.

Specification

Product
Product id	788743
Brand	Seagate Technology
Partnr	ZP500GM3A023
EAN/UPC code	8719706426022
Warranty (months)	60 months
Features
SSD form factor	M.2
SSD capacity	500 GB
Interface	PCI Express 4.0
Memory type	3D TLC
NVMe	Y
NVMe version	1.4
Component for	PC
Read speed	7000 MB/s
Write speed	3000 MB/s
Random read (4KB)	400000 IOPS
Random write (4KB)	700000 IOPS
PCI Express interface data lanes	x4
TRIM support	Y
S. M. A. R. T. support	Y
Mean time between failures (MTBF)	1800000 uur
Windows operating systems supported	Windows 10
Linux operating systems supported	Y
TBW rating	640
Power
Power consumption (average)	5.8 W
Power consumption (idle)	0.014 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	40 - 85 °C
Non-operating shock	1500 G
Technical details
Sustainability certificates	RoHS
Doesn't contain	Halogen
Weight & dimensions
Width	24.2 mm
Depth	80.15 mm
Height	9.84 mm
Weight	47 g
