- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 2 external antennas provide stable omnidirectional signal and superior wireless coverage
- USB port - share a printer locally and files & media with networked devices or remotely via FTP server

802.11ac - The Next Generation of Wi-Fi
TP-LINK’s Archer C20 comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.

733Mbps Dual Band Connections for Lag-Free Work
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

Stable Omnidirectional Signal and Superior Coverage
With 2 fixed external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

Easy USB Storage and Sharing
With the USB port, you can share a printer locally and files & media with networked devices or remotely via FTP server.

Specification

Product
Product id	494841
Brand	TP-Link
Partnr	ARCHER C20
EAN/UPC code	6935364080730
Certificates
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
WAN connection
Ethernet WAN	Y
DSL WAN	N
SIM card slot	N
3G/4G USB modem compatibility	N
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	433 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	433 Mbit/s
Network
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10, 100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Dynamic DNS (DDNS)	Y
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
VPN Passthrough	Y
VPN support	PPTP, L2TP, IPSec

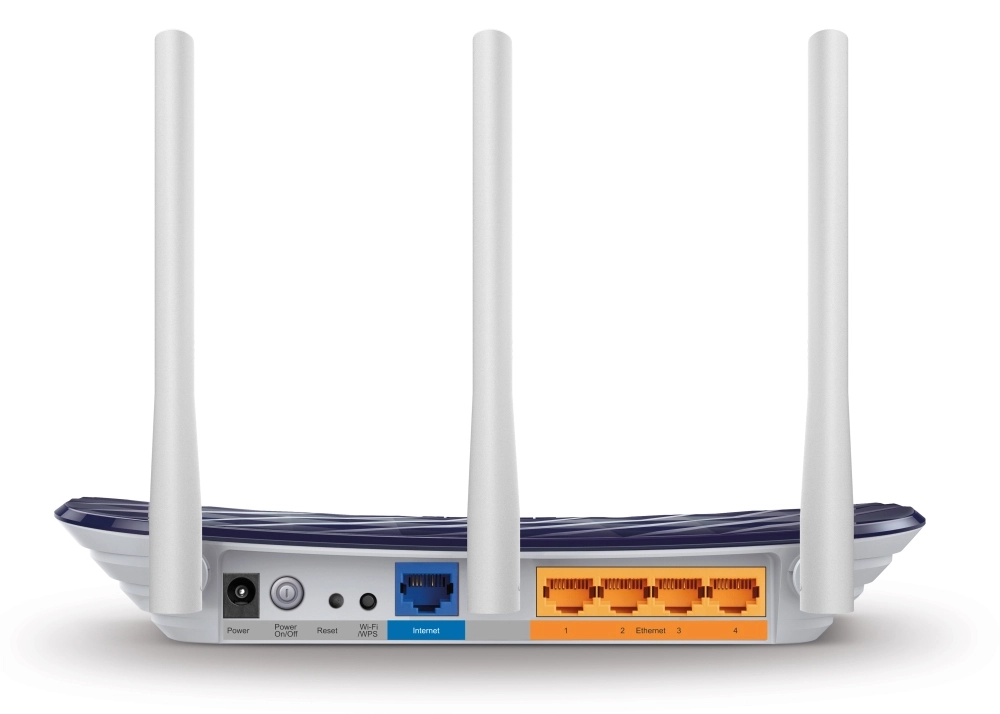

Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port	N
DC-in jack	Y
Management features
Web-based management	Y
Quality of Service (QoS) support	Y
Reset button	Y
WPS push button	Y
Security
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Firewall	Y
Guest access	Y
Firewall security	SPI
Port-based Network Access Control (PNAC)	Y
Stateful Packet Inspection (SPI)	Y
DoS attack prevention	Y
Filtering	Y
MAC address filtering	Y
IP address filtering	Y
DMZ support	Y
Protocols
Universal Plug and Play (UPnP)	Y
Supported network protocols	IPv4, IPv6
Design
Product type	Tabletop router
Product colour	Black, White
LED indicators	Y
On/off switch	Y
Sustainability
Sustainability compliance	Y
Antenna
Antenna design	External
Antennas quantity	3
Transmit power	23 dBmW
Features
Built-in processor	Y
Processor cores	1
Power
Power source type	DC
Output voltage	9 V
Output current	0.6 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
System requirements
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Y
Mac operating systems supported	Y
Weight & dimensions
Width	230 mm
Depth	144 mm
Height	35 mm
Package width	357 mm
Package depth	223 mm
Package height	68 mm
Package weight	670 g
Packaging data
Cables included	LAN (RJ-45)
AC adapter included	Y
Quick installation guide	Y
Number of products included	1 stuk(s)
Other features
WLAN data transfer rates supported	300, 433 Mbit/s
