Gateway



TP-Link
Not in stock
€ 117,13
€ 141,73 incl 21% VAT

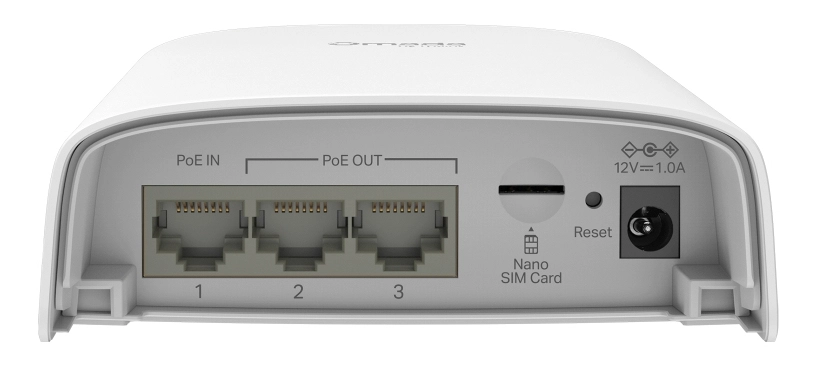

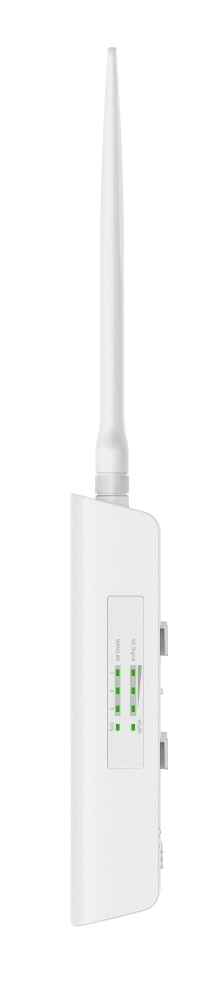

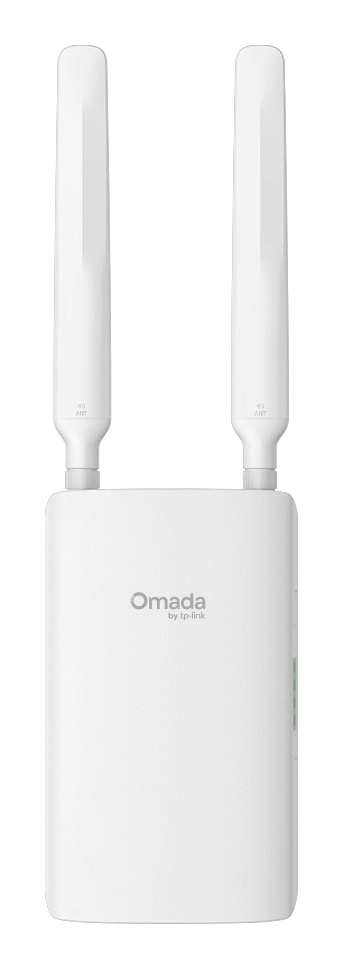

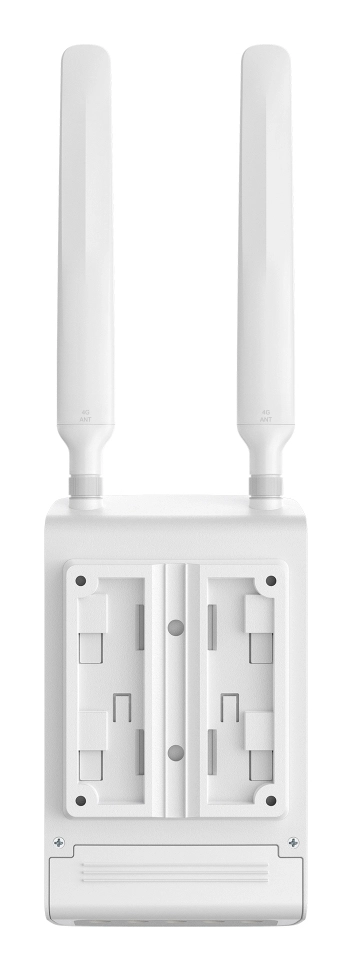

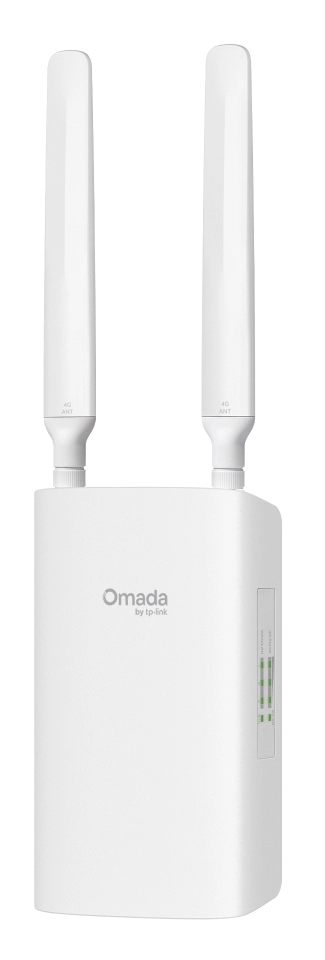

TP-Link Omada Gateway. Product colour: White, Mounting type: Wall mounting, LED indicators: Status. Antenna type: External. Internal memory: 256 MB, Internal memory type: DDR3, Flash memory: 128 MB. Ethernet LAN data rates: 10, 100, 1000 Mbit/s, Forwarding rate: 1419519 Mpps, Networking standards: IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af. SIM card type: NanoSIM

Specification

Product
Product id 1013435
Brand TP-Link
Partnr ER603WP-4G-OUTDOOR
EAN/UPC code 1210002620147
Protocols
DHCP server Y
Network
Ethernet LAN data rates 10, 100, 1000 Mbit/s
Forwarding rate 1419519 Mpps
Networking standards IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af
Wi-Fi Y
Frequency band 2.4 GHz
Mobile network generation 4G
Data network LTE
Downlink/uplink speed 150/50 Mbit/s
Management features
Web-based management Y
Reset button Y
Ports & interfaces
SIM card type NanoSIM
SIM card slot Y
Weight & dimensions
Width 100.4 mm
Depth 38.7 mm
Height 174.8 mm
Power
Power consumption (max) 10 W
Power over Ethernet (PoE) type supported Passive PoE
Power over Ethernet (PoE) Y
Operational conditions
Operating temperature (T-T) -30 - 60 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95 procent
Storage relative humidity (H-H) 5 - 90 procent
Indication
LED indicators Status
Features
Short Message Service (SMS) Y
Display
Control display unit N
Design
Product colour White
Mounting type Wall mounting
Antenna
Antenna type External
Antennas quantity 2
Memory
Internal memory 256 MB
Flash memory 128 MB
Internal memory type DDR3
Certificates
Certification CE, RoHS
