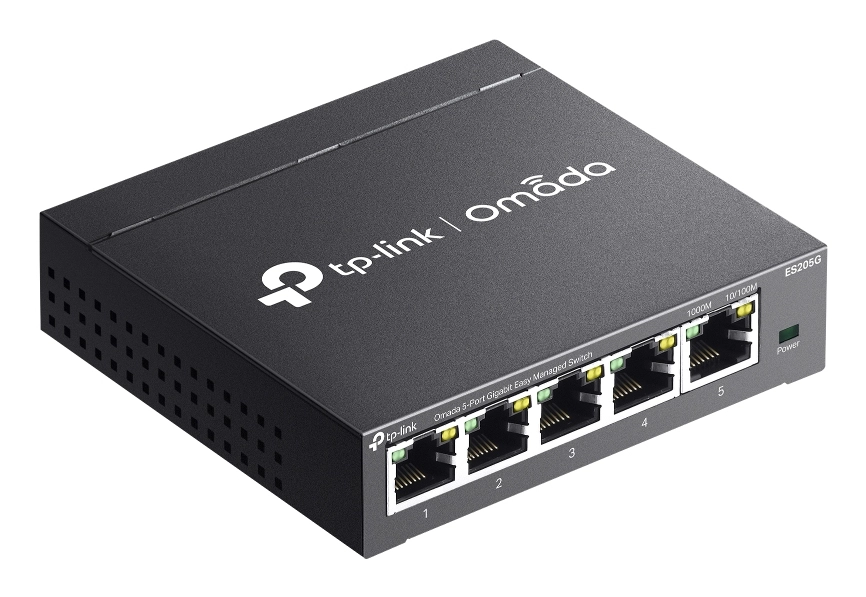

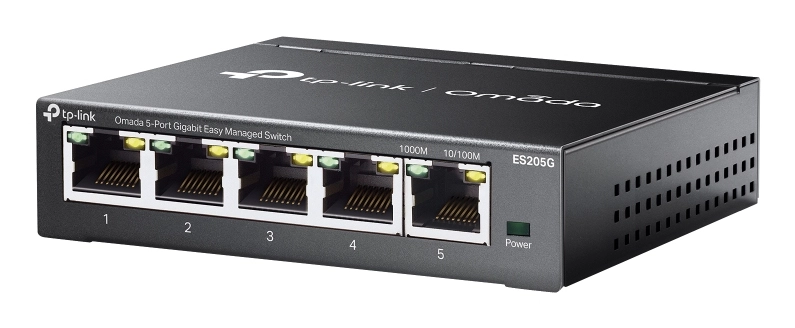

Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specification

Product
Product id	972839
Brand	TP-Link
Partnr	ES205G
EAN/UPC code	8885020620917
Warranty (months)	3 year limited warranty for normal product and 5 year warranty for managed switch
Data transmission
MAC address table	8000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15
Packet buffer memory	4 MB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
10G support	N
Port mirroring	Y
Flow control support	Y
Auto-negotiation	Y
Auto MDI/MDI-X	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Management features
Switch type	Managed
Quality of Service (QoS) support	Y
Cloud-managed	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Security
DHCP features	DHCP client
IGMP snooping	Y
Loop protection	Y
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging data
Package type	Box
User guide	Y
Power
Power source	AC/DC
Power supply included	Y
DC input voltage	5 V
Design
Product colour	Black

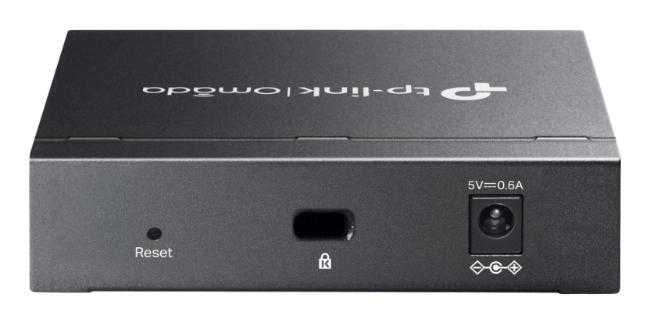

Reset button	Y
LED indicators	Y
Wall mountable	Y
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Performance
Fanless	Y
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
