Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Multiple Application Scenarios

- Surveillance
Works with IP Cameras

- Wi-Fi Coverage
Works with Access Points

- Wired Connections
Works with Non-PoE Devices such as PCs and Printers

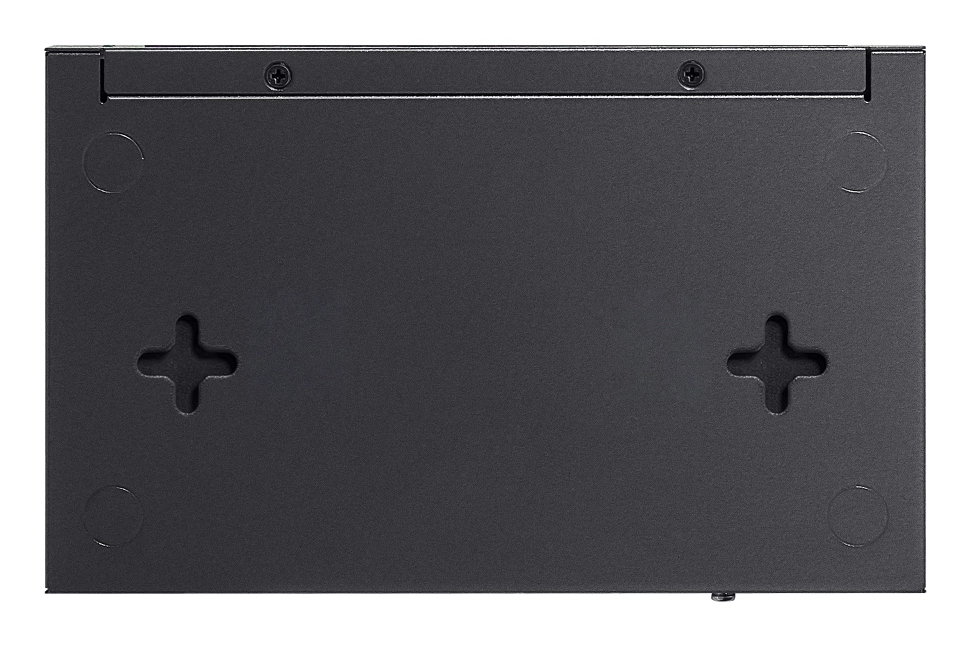

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specification

Product
Product id	983035
Brand	TP-Link
Partnr	ES206GP
EAN/UPC code	1210002600644
Warranty (months)	3 year limited warranty for normal product and 5 year warranty for managed switch
Data transmission
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	15
Packet buffer memory	4 MB
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support	N
Port mirroring	Y
Flow control support	Y
Auto-negotiation	Y
Auto MDI/MDI-X	Y
Link aggregation	Y
VLAN support	Y
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Management features
Switch type	Managed
Quality of Service (QoS) support	Y
Cloud-managed	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Security
DHCP features	DHCP client
IGMP snooping	Y
Loop protection	Y
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging data
Package type	Box
User guide	Y
Power
Power source	AC/DC
Power supply included	Y
DC input voltage	53.5 V
Optical fiber
Transmission distance (max)	0.25 km
Design
Product colour	Black
Reset button	Y
LED indicators	Y
Wall mountable	Y
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Performance
Fanless	Y
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	65 W
