Omada 14-Slot Rackmount Chassis



TP-Link
Not in stock
€ 133,90
€ 162,01 incl 21% VAT

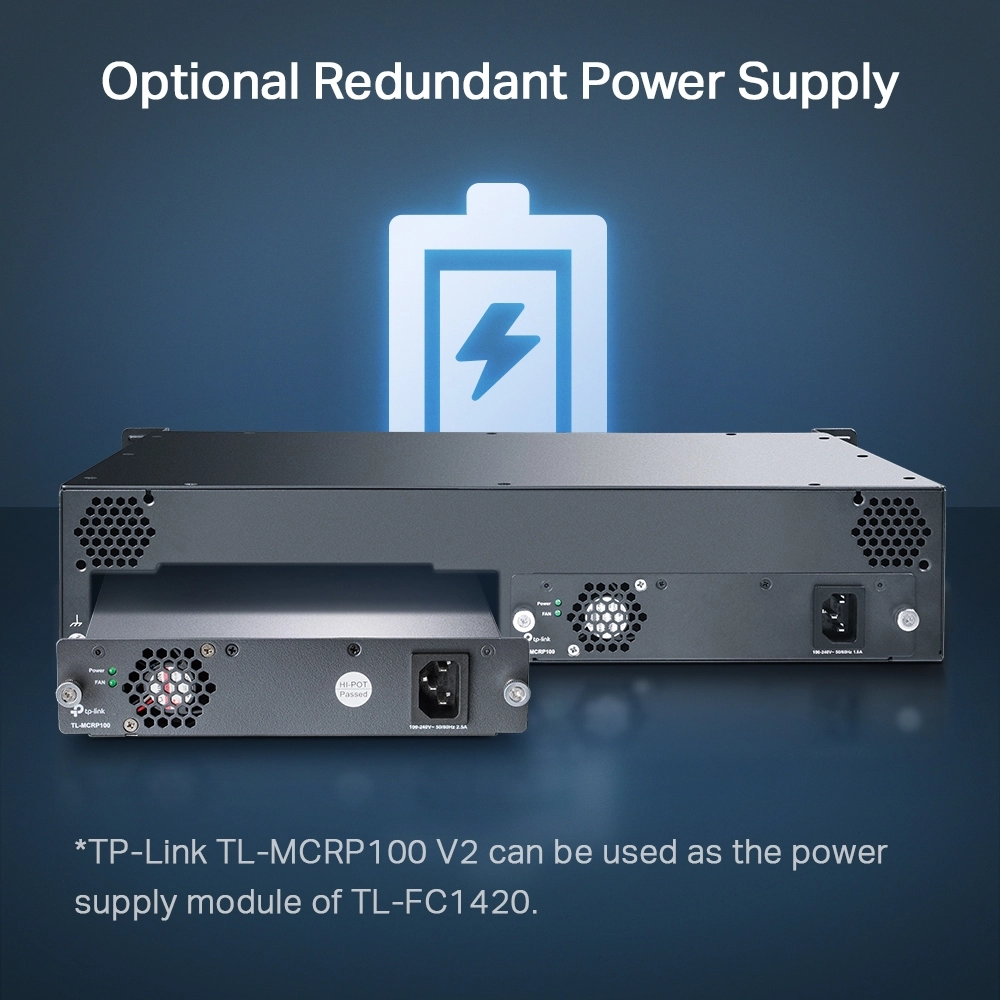

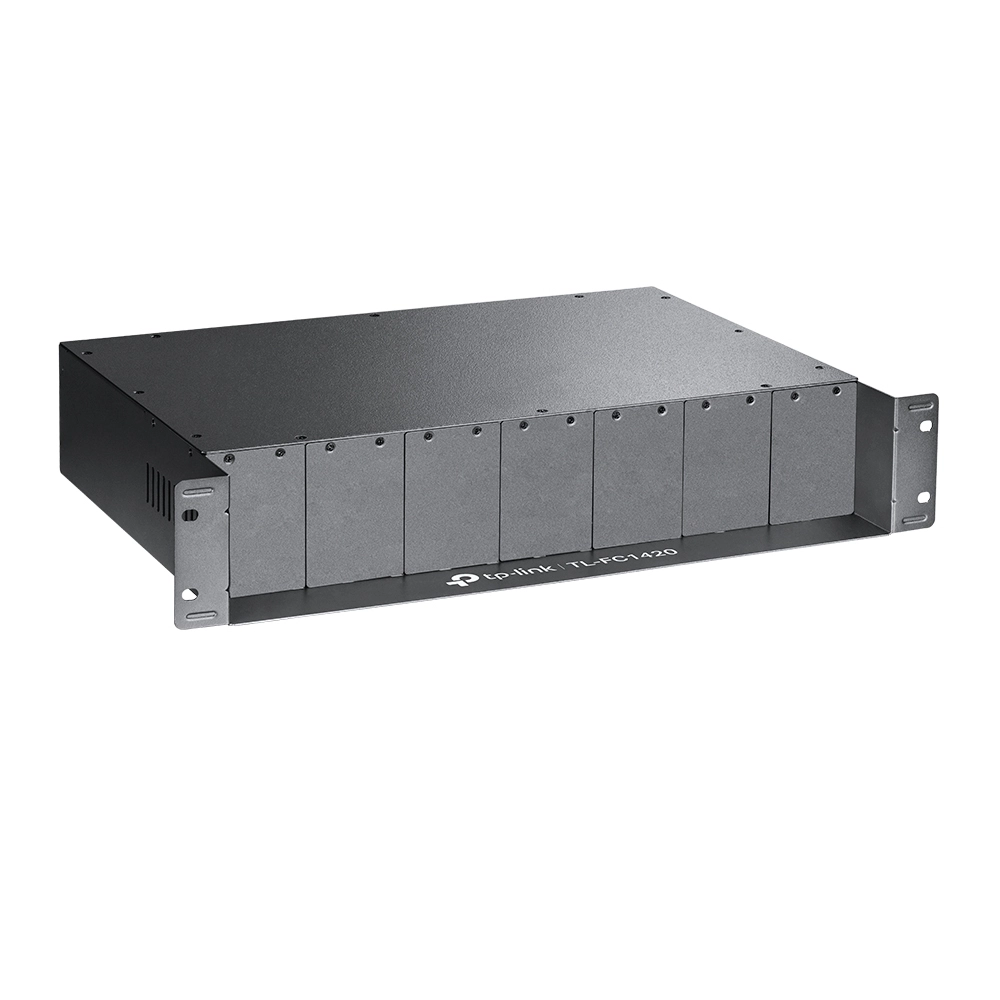

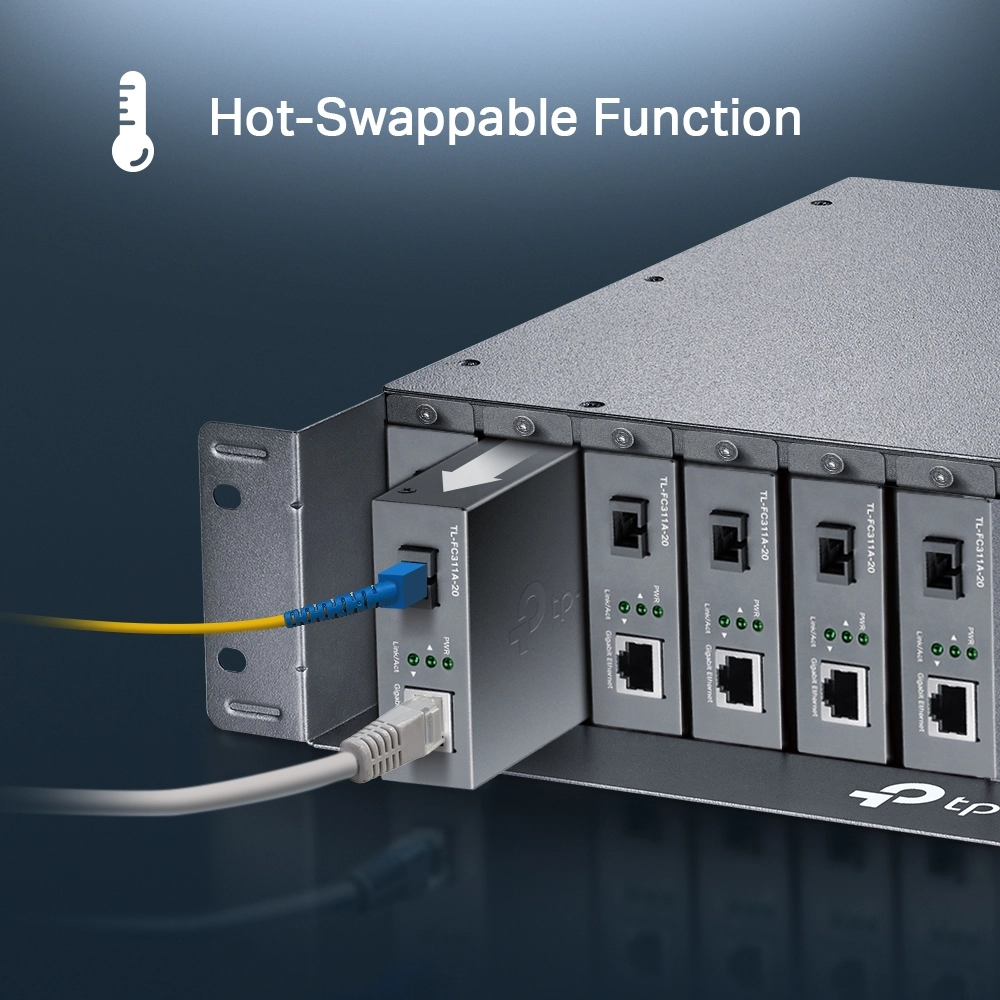

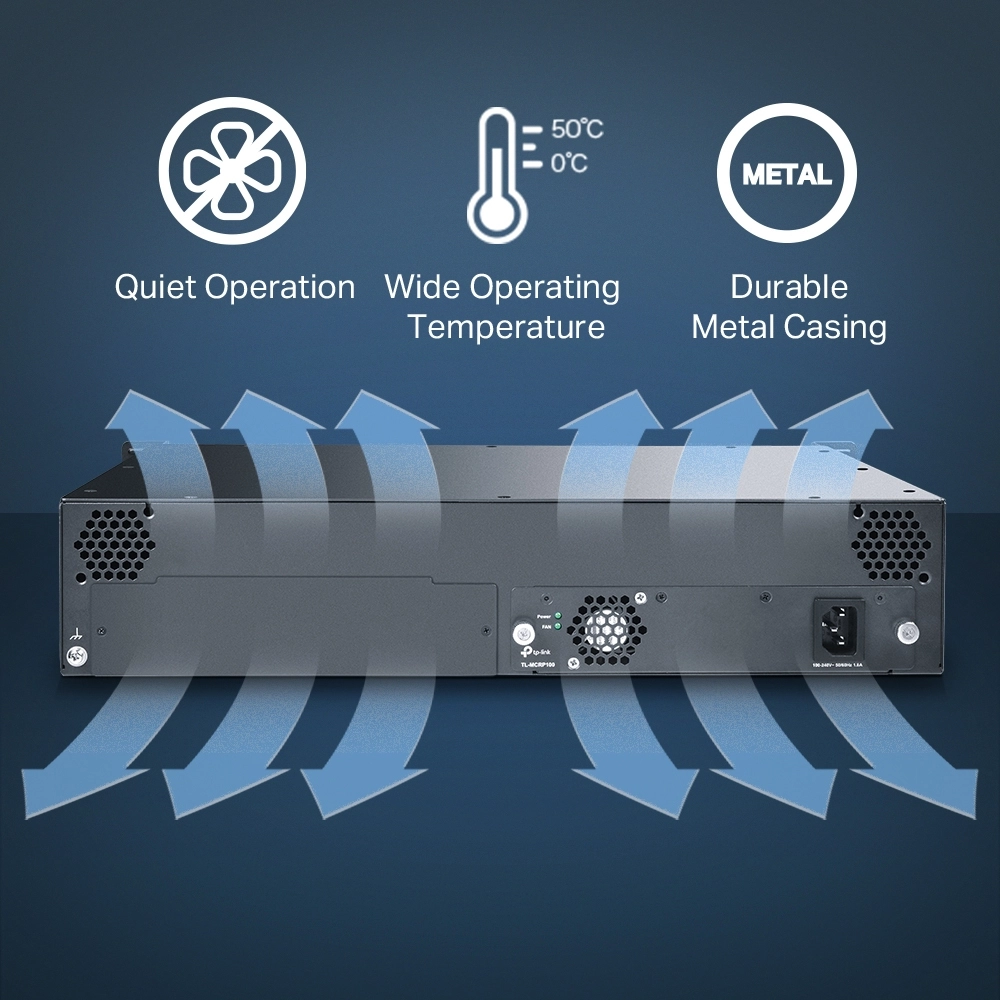

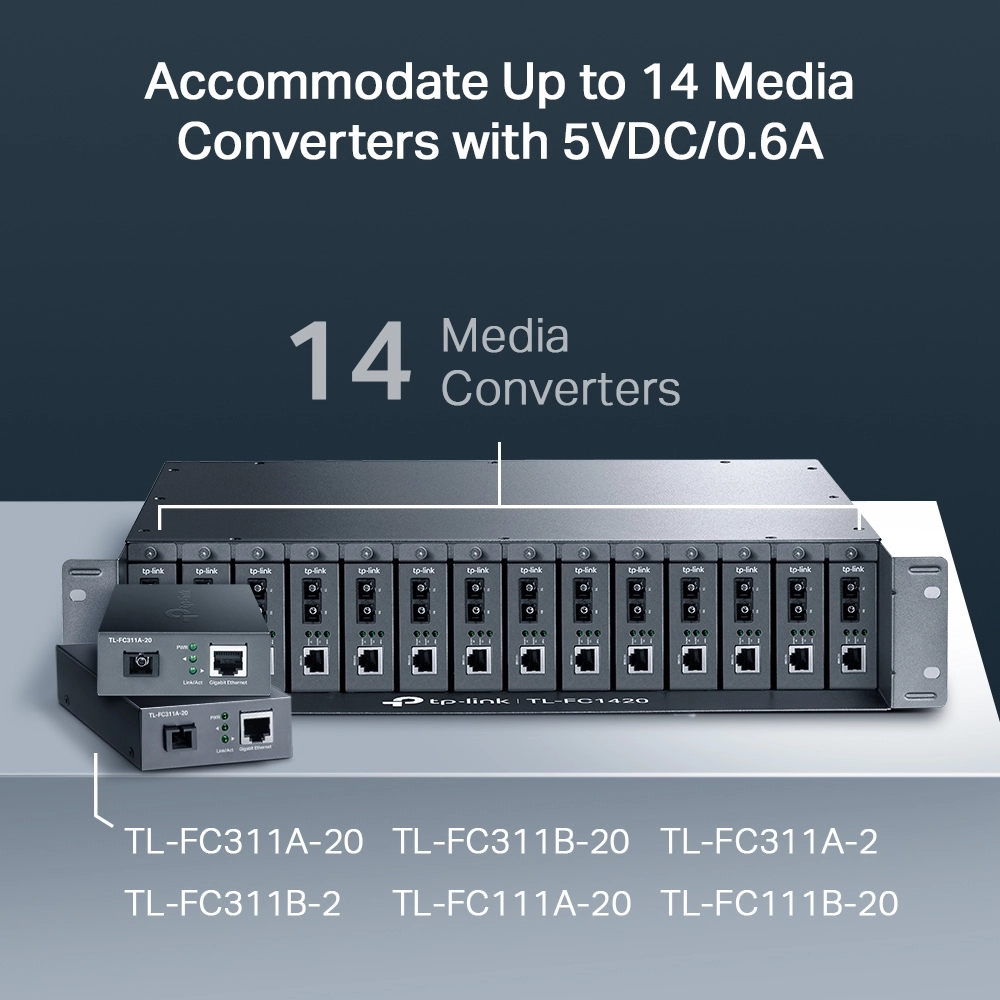

The TL-FC1420 14-Slot Rackmount Chassis is specially designed to accommodate 14 TP-Link's Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with FC series Gigabit / Fast Ethernet media converters, TL-FC1420 is the ideal solution for your media conversion network.

Specification

Product
Product id 951230
Brand TP-Link
Partnr FC1420
EAN/UPC code 6935364010454
Warranty (months) 2 year
Technical details
Rack mounting Y
Rack capacity 2U
Dimensions (WxDxH) 482 x 309 x 86 mm
Size (imperial) 19 "
Product colour Black
Number of fans 2 ventilator(en)
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90 procent
Storage relative humidity (H-H) 5 - 90 procent
Power
Output voltage 5 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Output current 0.6 A
Weight & dimensions
Width 482 mm
Depth 309 mm
Height 86 mm
Packaging data
Package weight 5580 g
