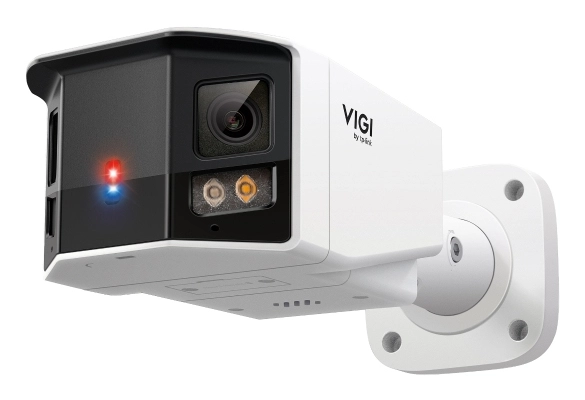

See the big picture, capture every detail. This 4K (8MP) dual‑lens stitched panoramic camera combines ultra‑low‑light ColorPro night vision, advanced analytics, and active audio‑visual deterrence to deliver broader coverage, clearer evidence, and smarter alerts for critical broader indoor and outdoor areas, like parking lots, public squares, and industrial perimeters.

Panoramic Coverage, Richer Details

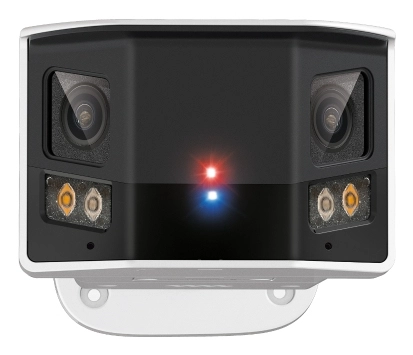

Dual‑lens stitched panoramic imaging seamlessly fuses two lenses to expand the field of view, reduce blind spots, and cut the number of install points—lowering deployment costs.
4K (8MP) resolution paired with smart video enhancement boosts clarity and readability in backlight and low‑light scenes for more reliable evidence.

Color at Night for Stronger Evidence
Ultra‑low light ColorPro night vision delivers vivid color imaging in dark environments, preserving key identifiers like faces, apparel, and vehicle colors.

Smarter Detection, Precise Alerts
People & Vehicle Analytics and Human & Vehicle Classification distinguish targets to reduce false alarms; smart detection supports behaviors like intrusion, loitering, and line crossing to focus on real threats.
Red‑blue warning lights and sound alerts provide visible and audible deterrence for proactive prevention and faster on‑site intervention.

Easy Integration, Efficient Bandwidth
Audio and alarm interface enables linkage with external microphones, speakers, and sirens for a local response loop.
H.265+ compression maintains image quality while significantly reducing bandwidth and storage costs.

Built Tough for the Outdoors
IP67 weatherproofing and IK10 vandal-proof resistance ensure long‑term reliability in harsh environments with minimal maintenance.

Specification

Product
Product id	1009209
Brand	TP-Link
Partnr	INSIGHT S385DPS
EAN/UPC code	8885020627824
Warranty (months)	3 year limited warranty
Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Maximum operating distance	76 m
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Remote viewing	Y
Infrared (IR) cut-off filter	Y
Dynamic range	120 dB
Design
Form factor	Bullet (shape)
Mounting type	Wall
Product colour	White
Housing material	Metal
Protection features	Waterproof
International Protection (IP) code	IP67
IK code	IK10
Weatherproof	Y
Camera
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	51 °
Tilt angle range	0 - 90 °
Lens viewing angle, diagonal	180 °
Camera shutter speed	1/3 to 1/10000 s
Image sensor
Sensor type	CMOS
Optical sensor size	1/1.79 "
Progressive scan	Y
Panoramic camera
Sensor type (panoramic camera)	CMOS
Lens system
Detect distance	76 m
Observe distance	29 m
Recognize distance	14 m
Fixed focus	Y
Fixed focal length	5 mm
Night vision
Night vision	Y
LED type	IR/White
Video
Maximum resolution	5456 x 1520 Pixels
Total megapixels	8 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Video recording	Y
Digital Wide Dynamic Range (DWDR)	Y
Highlight Compensation (HLC)	Y
Back Light Compensation (BLC)	Y
Bit rate	Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Audio
Built-in speaker(s)	Y
Audio system	2-way
Audio input channels	1.0
Audio output channels	1.0 kanalen
Audio formats supported	G.711 A-law
Built-in microphone	Y
Sample rate	8 kHz
Number of microphones	1
Bit rate range	0 - 64 Kbit/s
Network
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Networking standards	IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
SIM card type	MicroSIM
Live view	Y
SIM card slot	Y
Storage
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Security
Built-in siren	Y
Password protection	Y
Video motion detection	Y
Motion sensor	Y
Mirror	Y
Human and vehicle targets classification	Y
Alert notification type	Push notification
Digest authentication	Y
IP address filtering	Y
HTTPS encryption	Y
Management features
Web-based management	Y
Web browser	Y
Cloud-managed	Y
Reset button	Y
Power
Power source type	DC, PoE
Power consumption (max)	18 W
Power consumption (Power over Ethernet (PoE))	21 W
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95 procent
Storage relative humidity (H-H)	0 - 95 procent
Weight & dimensions
Width	116 mm
Height	90 mm
Length	266 mm
Weight	1120 g
Packaging content
Number of cameras	1
Mounting kit	Y
Screws included	Y
Manual	Y
Drilling template included	Y
