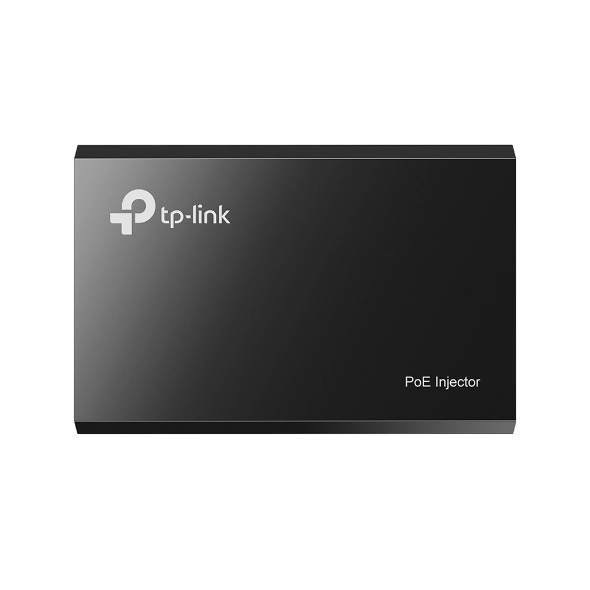

TP-LINK’s PoE Injector TL-POE150S fully complies with IEEE 802.3af standard. No need to buy a PoE switch, you can use the existing non-PoE switch or non-PoE router to connect PoE devices with the help of TL-POE150S.

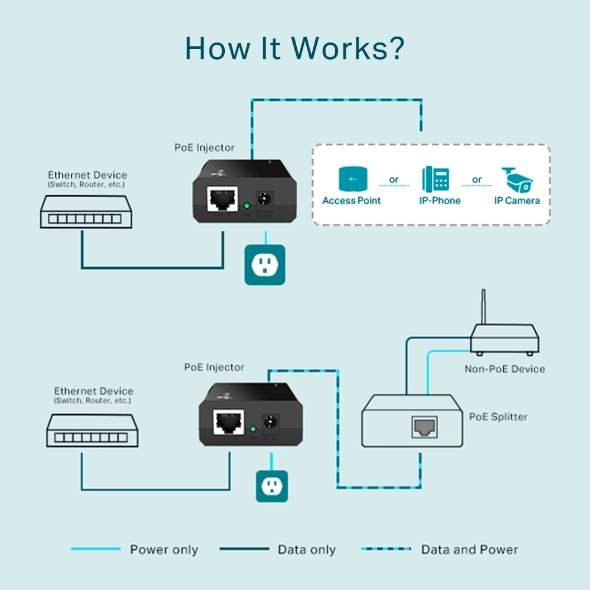

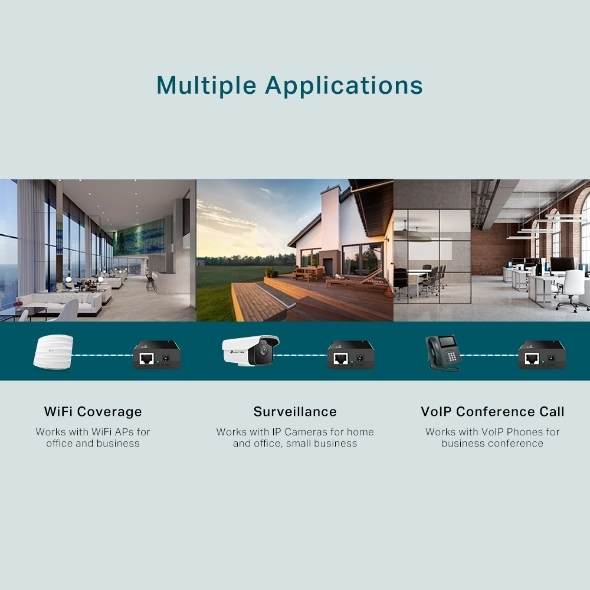

The PoE Injector TL-POE150S can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent products, to expand your network to where there are no power lines or outlets, where you wish to fix devices like Wireless Access Points, IP Cameras or IP Phones, etc.

Specification

Product
Product id	951299
Brand	TP-Link
Partnr	POE150S
EAN/UPC code	6935364030506
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Cabling technology	10/100/1000
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Plug and Play	Y
Maximum operating distance	100 m
Product colour	Black
LED indicators	Y
Certification	FCC, CE, RoHS
Auto-sensing	Y
Auto-negotiation	Y
Ports & interfaces

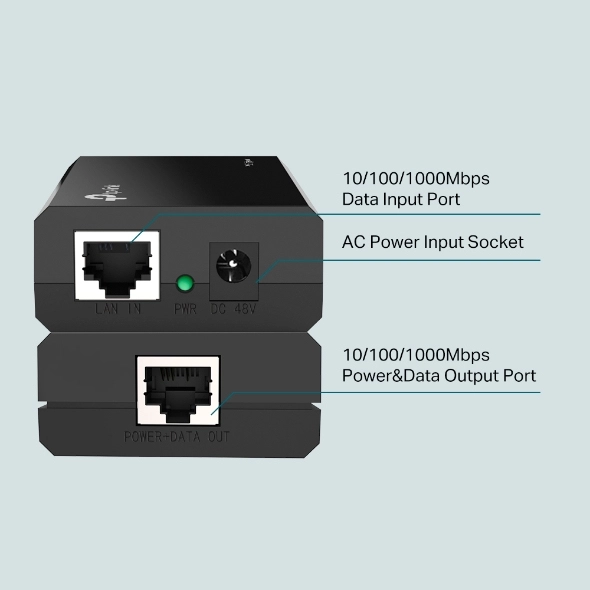

Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
DC-in jack	Y
Power

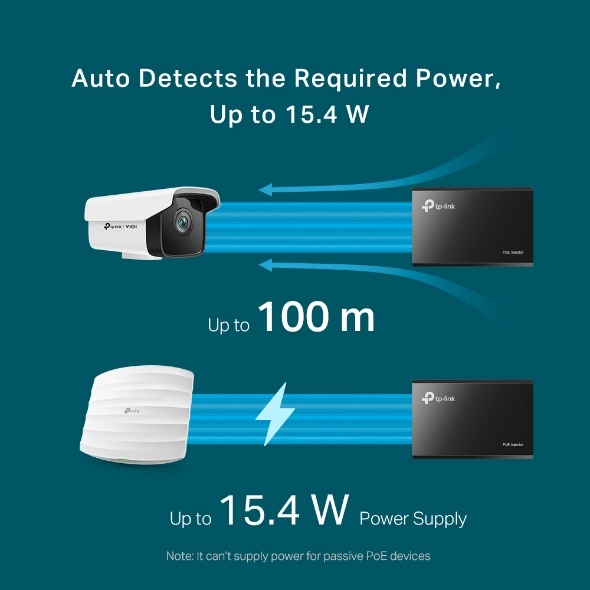

Output power	15.4 W
Input voltage	48 V
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	81 mm
Depth	52 mm
Height	24 mm
Packaging data
Package width	165 mm
Package depth	198 mm
Package height	65 mm
Package weight	350 g
Packaging content
Number of products included	1 stuk(s)
AC adapter included	Y
Quick installation guide	Y
