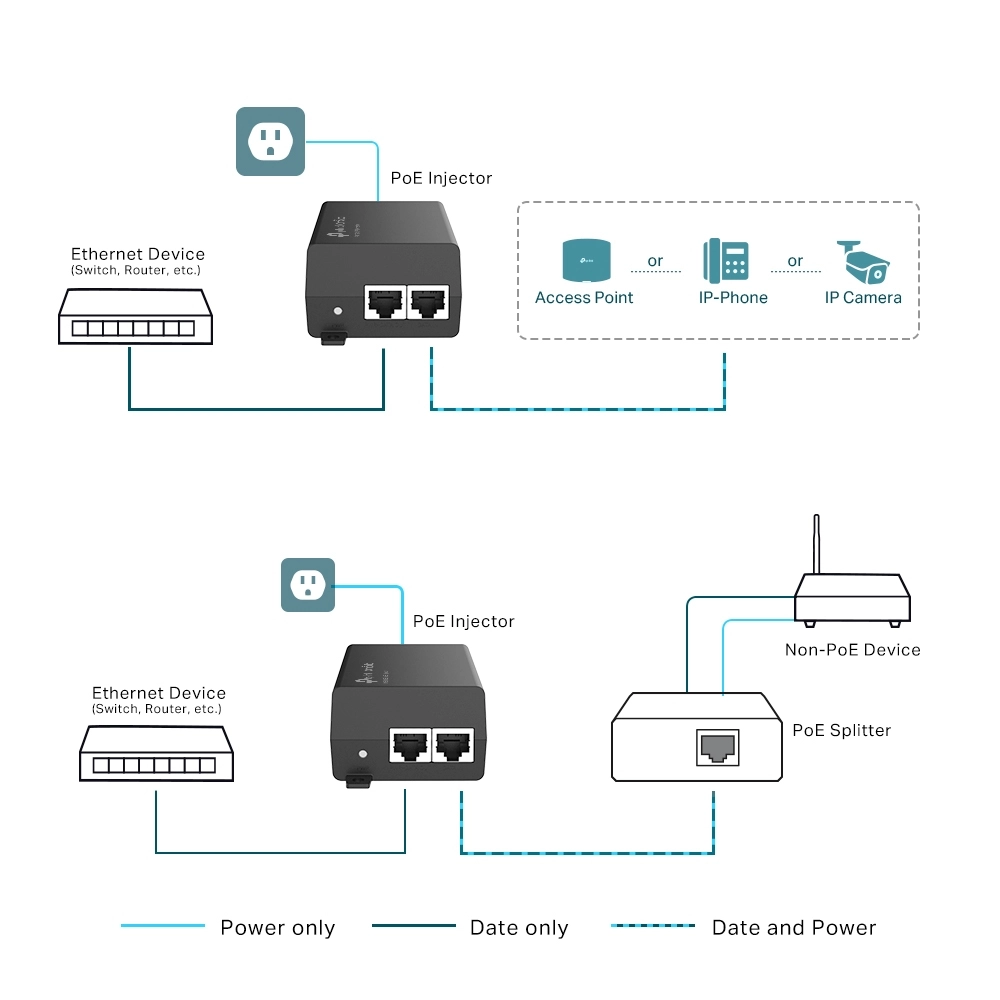

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specification

Product
Product id	949882
Brand	TP-Link
Partnr	POE160S
EAN/UPC code	6935364073084
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Y
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Cabling technology	10/100/1000
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Features
Wall mountable	Y
Plug and Play	Y
Maximum operating distance	100 m
Product colour	Black
LED indicators	Power
Ports & interfaces

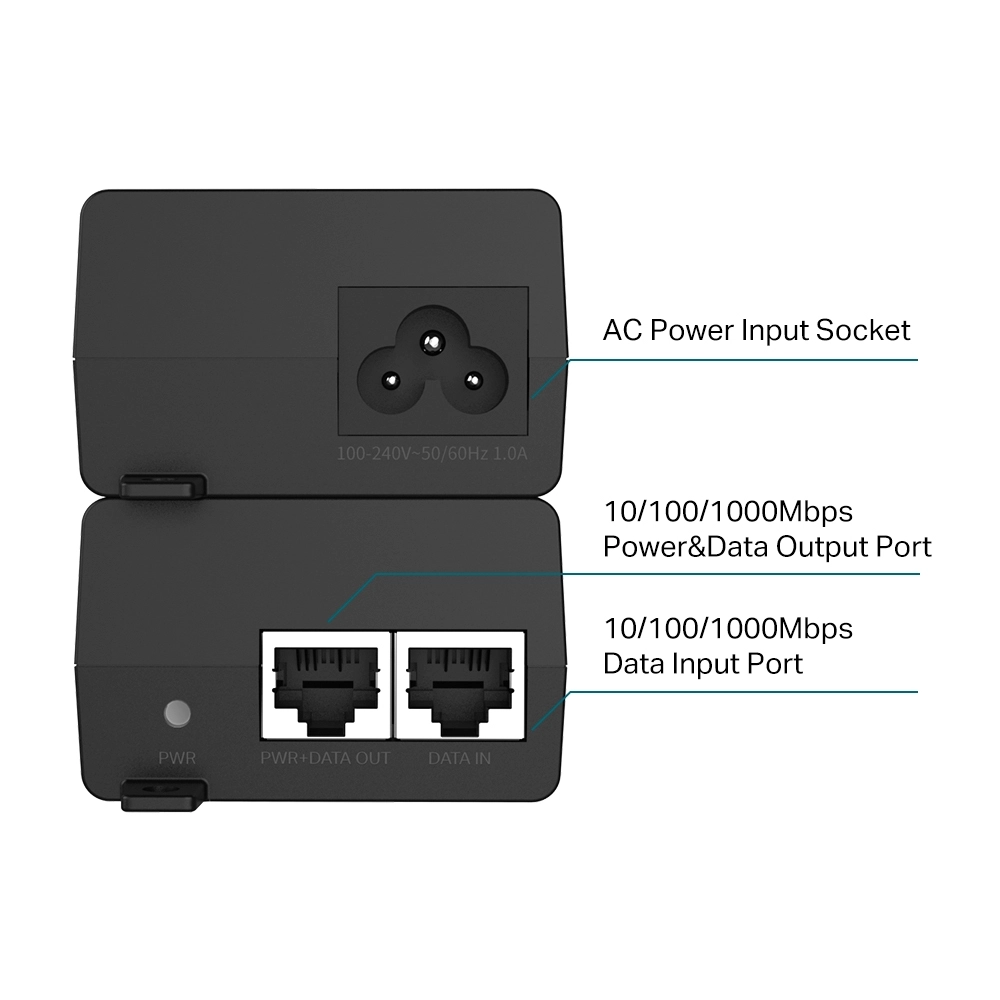

Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output power	30 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	125 mm
Depth	59.4 mm
Height	36.8 mm
Packaging data
Package type	Box
Packaging content
Number of products included	1 stuk(s)
Wall mounting kit	Y
Power cord included	Y
Quick installation guide	Y
