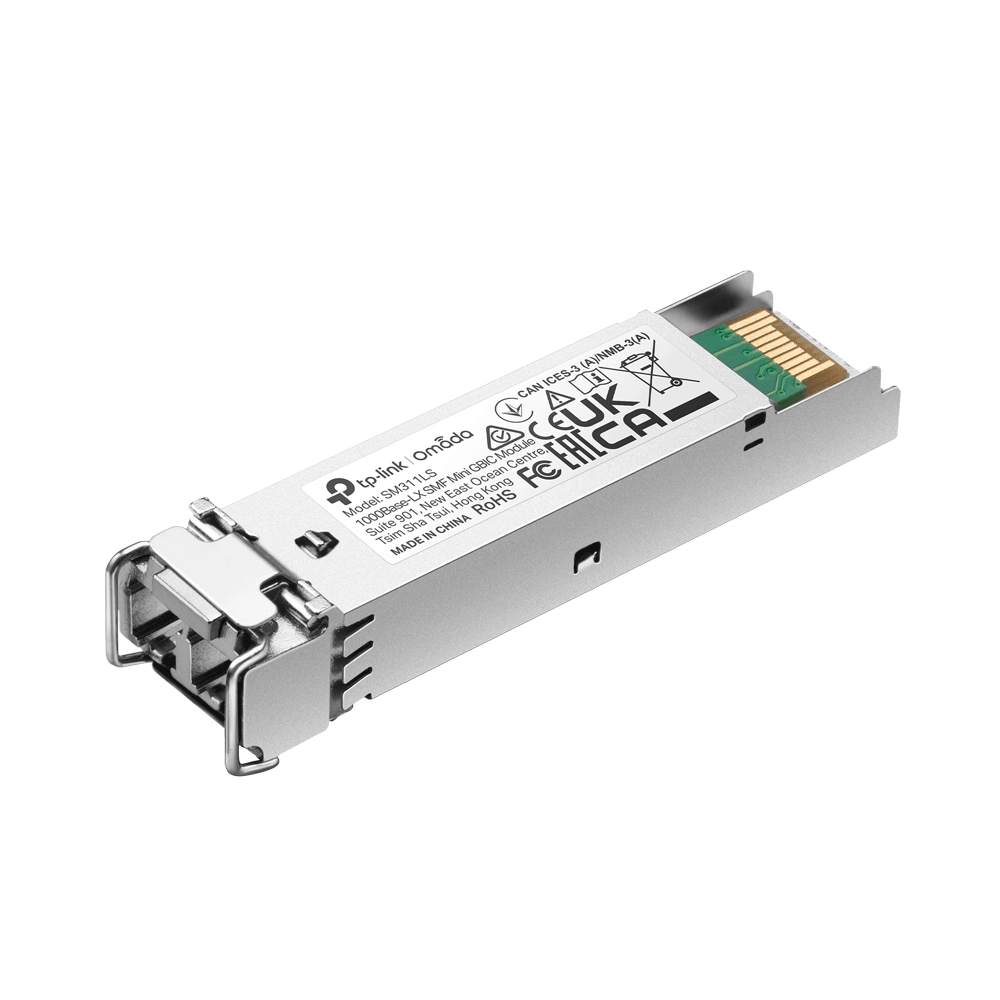

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Specification

Product
Product id	950638
Brand	TP-Link
Partnr	SM311LS
EAN/UPC code	6935364030216
Warranty (months)	2 year
Network
SFP transceiver type	Fiber optic
Technical details
Fiber cable diameters supported (core/cladding)	9/125 µm
Compliance certificates	RoHS
Packaging data
Manual	Y
Package width	38 mm
Package depth	207 mm
Package height	38 mm
Package weight	110 g
Performance
Maximum data transfer rate	1250 Mbit/s
Interface type	mini-GBIC/SFP
Single-mode fiber (SMF) supported	Y
Multi-mode fiber (MMF) supported	N
Fiber optic connector	LC (UPC)
SFP transceiver standard	LX
Maximum transfer distance	10000 m
Wavelength	1310 nm
Networking standards	IEEE 802.3z
Fiber ethernet cabling technology	1000BASE
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Y
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Hot-Plug support	Y
Hot-swap	Y
Brand compatibility	MSA Compliant
Power
Input voltage	3.3 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	55.4 mm
Depth	14.6 mm
Height	12.9 mm
Logistics data
Quantity per pack	1 stuk(s)
