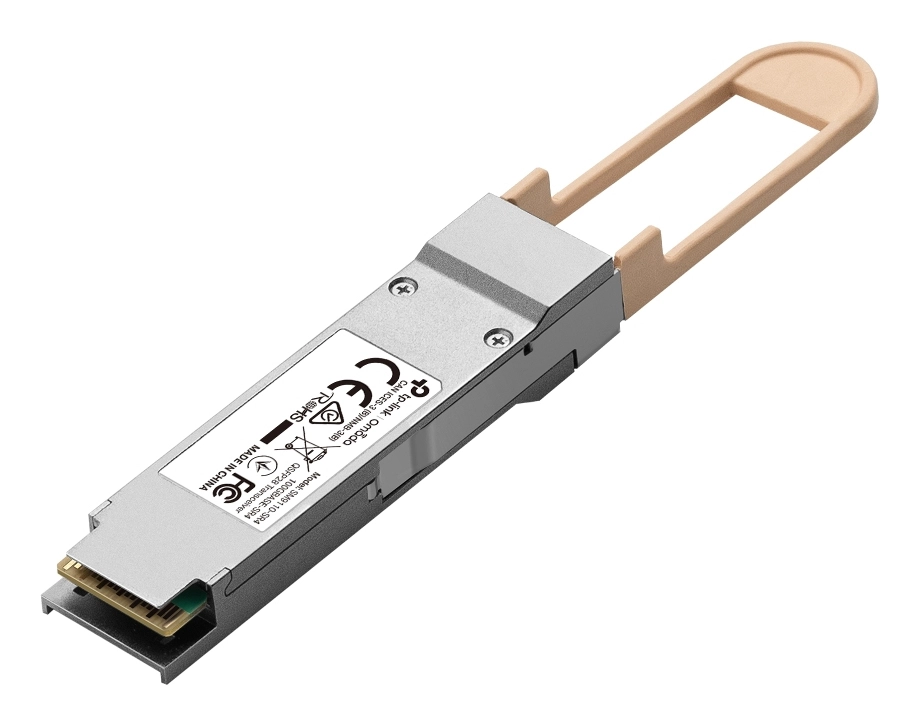

The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

Specification

Product
Product id	995243
Brand	TP-Link
Partnr	SM9110-SR4
EAN/UPC code	8885020625493
Network
SFP transceiver type	Fiber optic
Technical details
Fiber cable diameters supported (core/cladding)	50/125 µm
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Performance
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP28
Single-mode fiber (SMF) supported	N
Multi-mode fiber (MMF) supported	Y
Fiber optic connector	MPO-12, MTP
SFP transceiver standard	SR4
Maximum transfer distance	150 m
Wavelength	850 nm
Tx power (min)	-8.4 dBmW
Tx power (max)	2.4 dBmW
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Fiber ethernet cabling technology	40GBASE, 100GBASE
Digital Diagnostics Monitoring (DDM)	Y
Features
Product colour	Metallic
Form factor	QSFP28
Plug and Play	Y
Hot-swap	Y
Country of origin	China
Certification	QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Power
Input voltage	3.3 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Maximum operating temperature	70 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Packaging content
User guide	Y
Weight & dimensions
Width	124 mm
Depth	18.35 mm
Height	11.7 mm
Logistics data
Quantity per pack	1 stuk(s)
