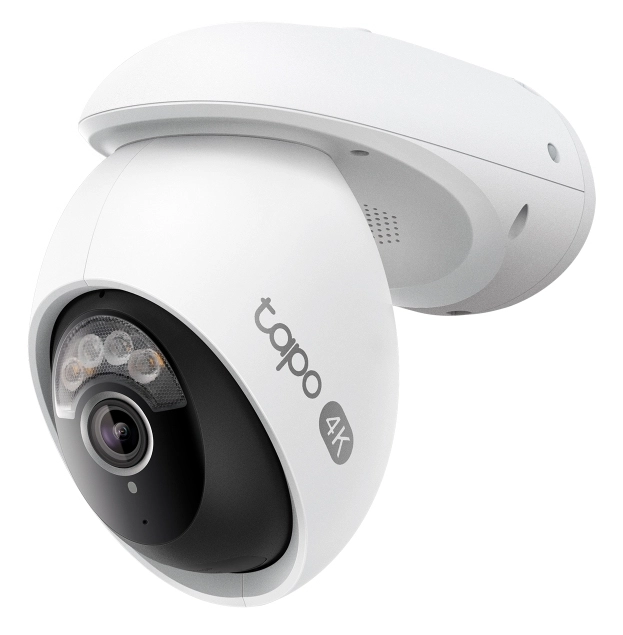

4K: Unmatched Clarity, Extended Range
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Zoom In, See More
Equipped with 18x digital zoom and an F1.6 aperture, TC46 captures sharper details and high-quality recordings to enable precise detection with the ability to magnify images for remarkable clarity.

Accurate Facial Recognition, Easy Identification, Local AI Processing
The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

Vibrant & Detailed Night Vision
Capture colorful details even in darkness with spotlights and a starlight sensor. TC46 also offers a stealthy IR black and white mode and a smart mode that automatically switches to color when a person is detected.

Wi-Fi 6 Dual-Band Connectivity: Faster & More Flexible
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios. The 5 GHz connection△ offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms
Ward off intruders with sound and light alarms you can personalize: record custom audio and set your preferred spotlight brightness.

Secure Local Storage
Up to 512BG of free local storage equals 388 hours of 4K video storage. Secure your microSD card† with a password through the Tapo app for enhanced privacy protection.

Tapo Care Cloud Service
Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care‡ cloud services.

Unified Video Management
With Tapo H500*, enjoy ample local storage up to 16TB.

Enhanced Security with User-Friendly Features
Engineered for Weather Resistance
The IP66-rated TC46 is always ready to protect, come rain, snow or shine.

Two-Way Talk
Engage in real-time conversations with the two-way audio feature, designed for exceptional sound clarity.

Pair with Smart Assistants
Use voice commands with Amazon Alexa and Google Assistant for hands-free control.

Easy Setup & Installation
Tapo App: Bluetooth Onboarding
Use Bluetooth to easily onboard the camera with the Tapo App. Wi-Fi onboarding is also available.

Mounting Installation
Use the included mounting bracket and screws to effortlessly install onto walls.

Specification

Product
Product id	1009191
Brand	TP-Link
Partnr	TC46
EAN/UPC code	1210002608848
Warranty (months)	3 year limited warranty
Performance
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Y
Virtual assistant	Amazon Alexa & Google Assistant
Day/night mode	Y
Built-in light	Y
Infrared (IR) cut-off filter	Y
Design
Form factor	Spherical
Mounting type	Ceiling/Wall/Pole
Product colour	Black, White
LED indicators	Y
Protection features	Dust resistant, Heat resistant, Rain proof, Snow resistant, Weather resistant
International Protection (IP) code	IP66
Weatherproof	Y
Camera
Camera pan control	Y
Camera tilt control	Y
Field of view (FOV) angle	105 °
Lens viewing angle, horizontal	88 °
Lens viewing angle, vertical	45 °
Tilt angle range	0 - 53 °
Lens viewing angle, diagonal	105 °
Pan range	0 - 326 °
Image sensor
Sensor type	CMOS
Optical sensor size	1/27 "
Progressive scan	Y
Lens system
Number of lenses	1
Zoom capability	Y
Digital zoom	18 x
Maximum aperture number	1.6
Fixed focal length	4 mm
Night vision
Night vision	Y
LED type	IR
Infra-red wavelength	850 nm
Video
Maximum resolution	3840 x 2160 Pixels
Total megapixels	8 MP
Video formats supported	H.264
Supported graphics resolutions	2880 x 1620
Supported video modes	1620p
Noise reduction	Y
Frame rate	25 fps
Image quality adjustment	DNR
Audio
Built-in speaker(s)	Y
Built-in microphone	Y
Network
Ethernet LAN	Y
Wi-Fi	Y
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Channel bandwidth	2400 MHz
Live view	Y
Works with the Google Assistant	Y
Works with Amazon Alexa	Y
Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Built-in siren	Y
Siren noise level	99 dB
Video motion detection	Y
Intelligent Video Surveillance (IVS) system features	Human detection, Line crossing detection, Moving object, Pet detection, Vehicle detection
Alert notification type	Push notification, Snapshot alert message
Active tampering alarm	Y
Security algorithms	128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Management features
Cloud-managed	Y
Reset button	Y
Power
Power source type	AC, DC
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (typical)	3.9 W
Power consumption (max)	7.41 W
DC output voltage	9
DC output current	0.85 A
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	0 - 90 procent
Weight & dimensions
Width	147.4 mm
Depth	74.7 mm
Height	165.4 mm
Package type	Box
Packaging content
Number of cameras	1
Mounting kit	Y
Mounting brackets included	Y
Screws included	Y
Manual	Y
Packaging content	TC46 Camera×1 DC Power Adapter×1 Mounting Template Sticker×1 Mounting Bracket×1 Mounting Anchors and Screws Bracket Screws×2 Waterproof Seal×1 Waterproof Cable Attachments×1 Quick Start Guide
