What This Product Does

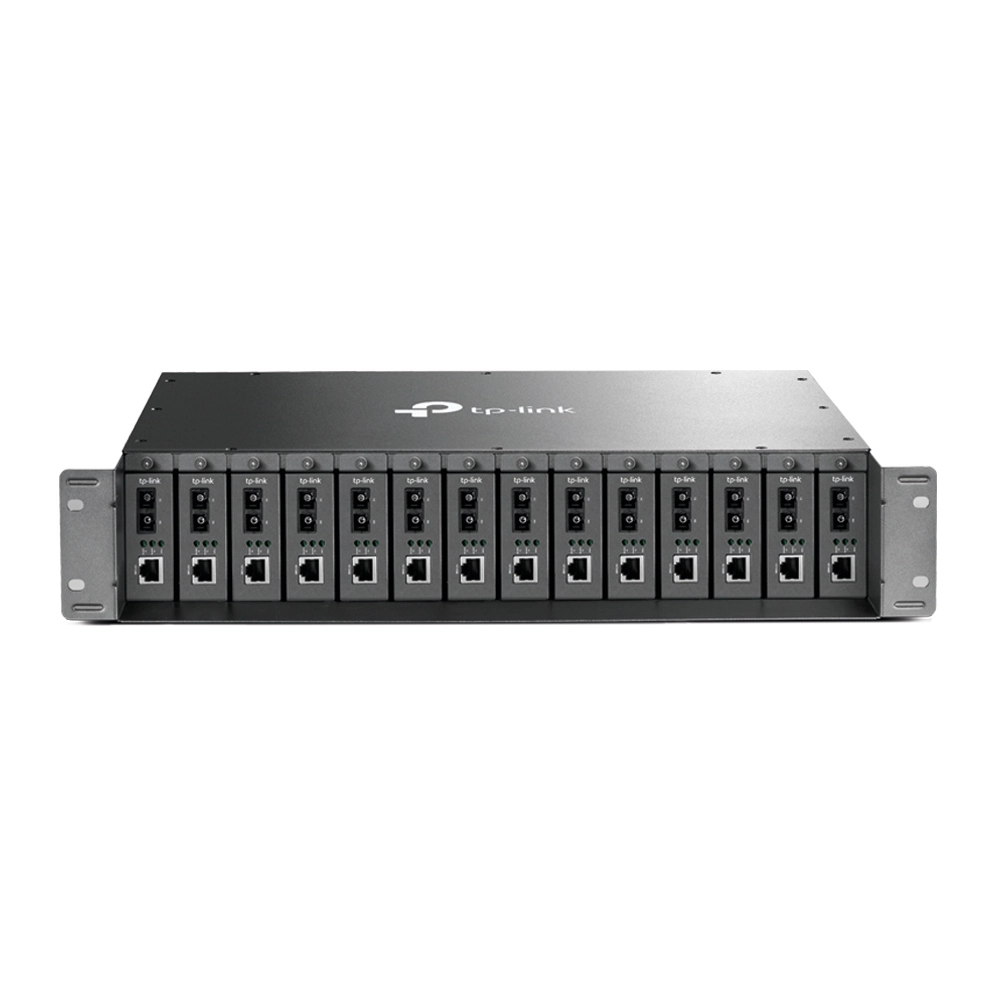

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.

Specification

Product
Product id	373674
Brand	TP-Link
Partnr	TL-MC1400
EAN/UPC code	6935364030384
Technical details
Rack mounting	Y
Rack capacity	2U
Cooling type	Active
Dimensions (WxDxH)	482 x 358 x 86 mm
Size (imperial)	19 "
Ports quantity	14
Number of slots	14
Product colour	Black
Number of fans	2 ventilator(en)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Power
Power requirements	100-240V
AC adapter output voltage	9.5 V
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Weight & dimensions
Width	482 mm
Depth	309 mm
Height	86 mm
Weight	8000 g
Packaging data
Package width	585 mm
Package depth	455 mm
Package height	170 mm
Package weight	6700 g
