What This Product Does

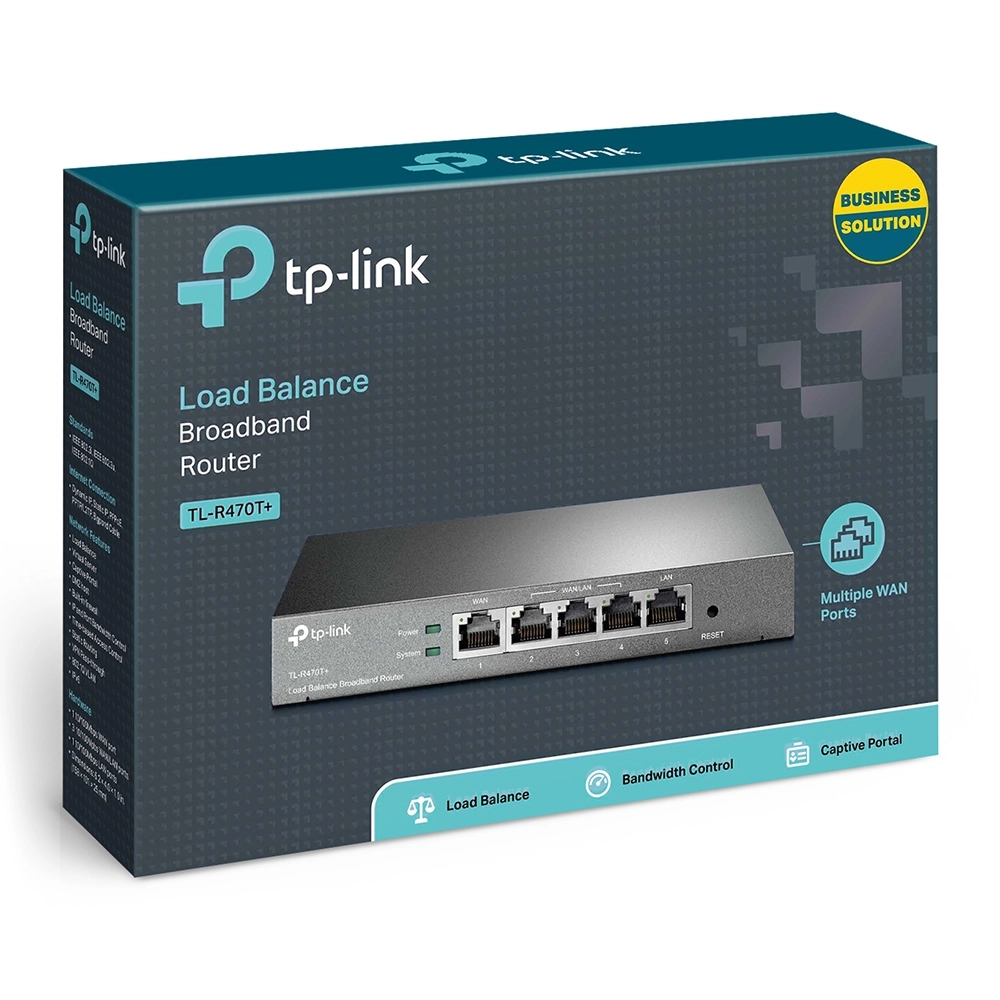

The TL-R470T+ load balance broadband router is a wise choice for small business. It brings you a high return on investment with low overhead. Featuring three changeable WAN/LAN ports, TL-R470T+ supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. TL-R470T+ integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R470T+ via a web browser, which makes building and managing your network more convenient.

Three Changeable WAN/LAN Ports
The TL-R470T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.

Abundant Security Features
For defense against external threats, TL-R470T+ can automatically detect and block Denial of services (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/WEB ­filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, H.323, SIP, IPsec, and PPTP which are not well compatible with NAT, TL-R470T+ offers administrators one-click enable of ALG choices corresponding to the above five applications.

Efficient Access Management
Web portal authentication inspects and allows all connecting sessions whether from wire or wireless. When the access control works together with IP-based bandwidth control, you can configure the dedicated bandwidth for certain account.

Safety Minded Enterprise Investments
Professional lightning protection technology2 is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature’s more violent elements.

Specification

Product
Product id	373686
Brand	TP-Link
Partnr	TL-R470T+
EAN/UPC code	6935364040413
Warranty (months)	Lifetime
Ethernet LAN features
Full duplex	N
Performance
Concurrent connections	10000
WAN connection
Ethernet WAN	Y
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Static route	Y
Traffic control	Y
Management features
Web-based management	Y
Quality of Service (QoS) support	Y
Universal Plug and Play (UPnP)	Y
Reset button	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Fiber ports quantity	1
Protocols
DHCP client	Y
DHCP server	Y
DMZ support	Y
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Security
MAC address filtering	Y
Security algorithms	HTTPS
Firewall	Y
IP-MAC-Port binding	Y
VPN support	PPTP/L2TP/IP Sec
Technical details
Rack mounting	N
Heat dissipation	1 BTU/h
Features
Flash memory	16 MB
Internal memory	128 MB
Windows operating systems supported	Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported	macOS
Mean time between failures (MTBF)	1 uur
Certification	CE, FCC, RoHS
Software
Linux operating systems supported	Y
Design
Product colour	Black
LED indicators	LAN, Power, System, WAN, WLAN
Power
Power consumption (typical)	1.56 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	5 - 90 procent
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Other features
Switch type	Unmanaged
