Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

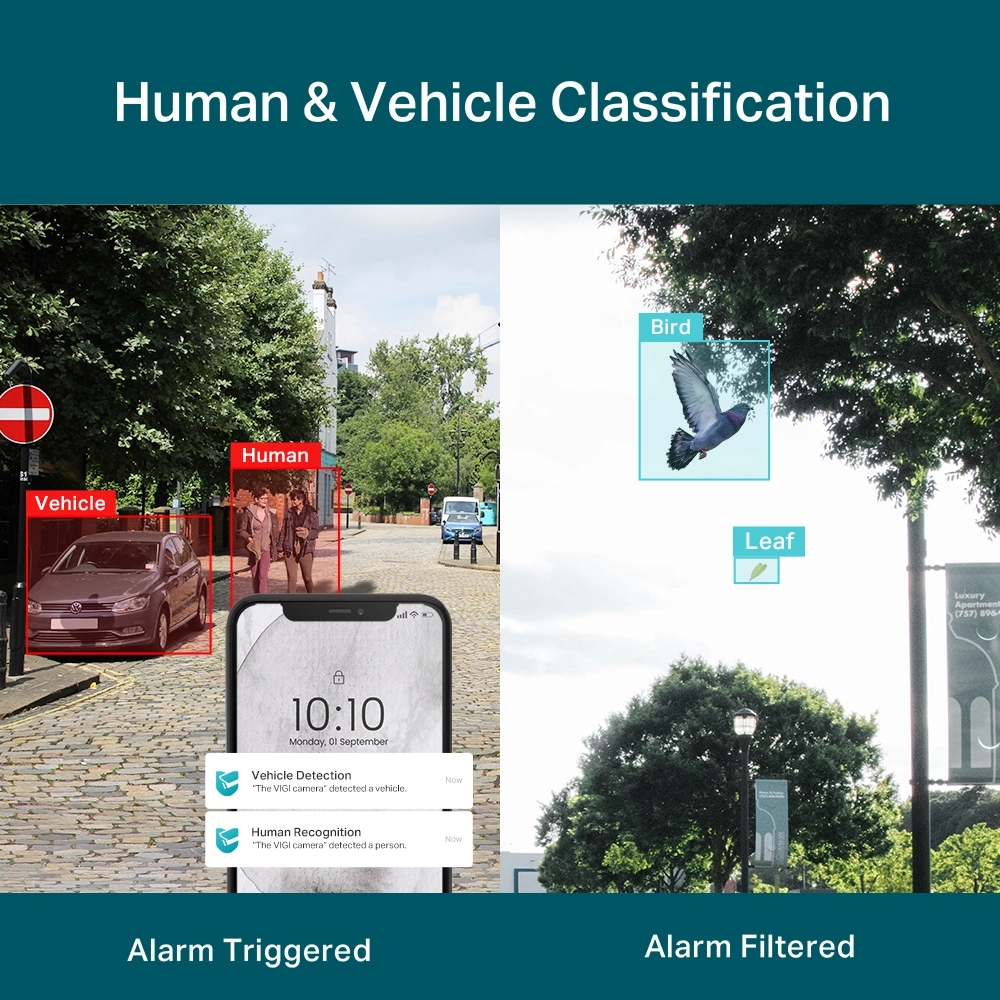

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.

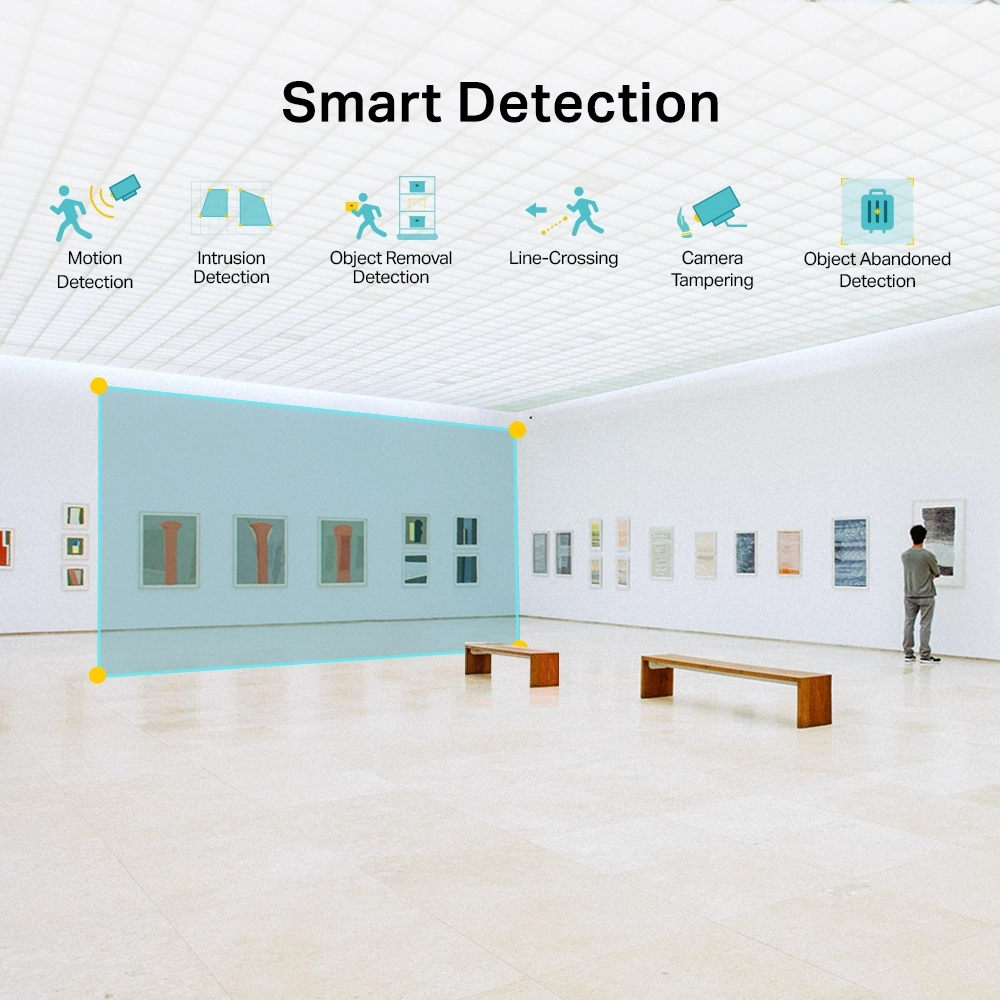

Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

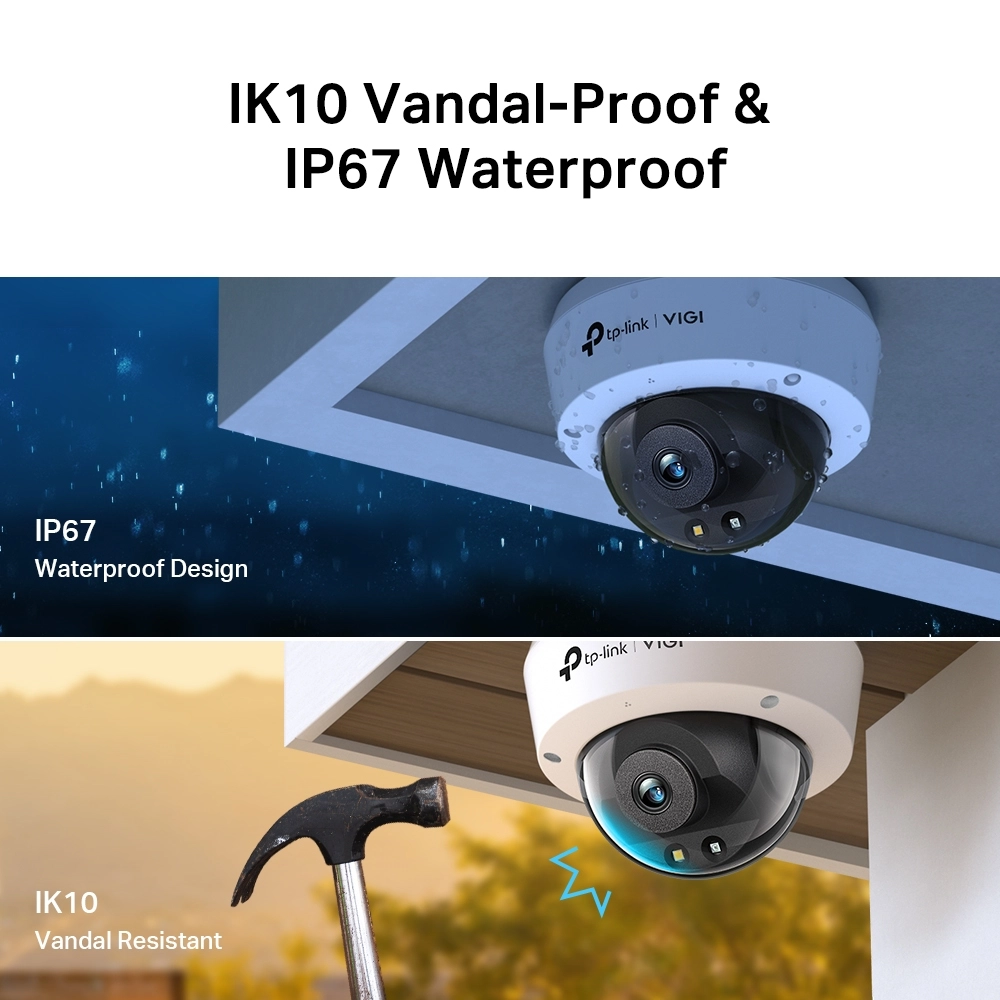

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

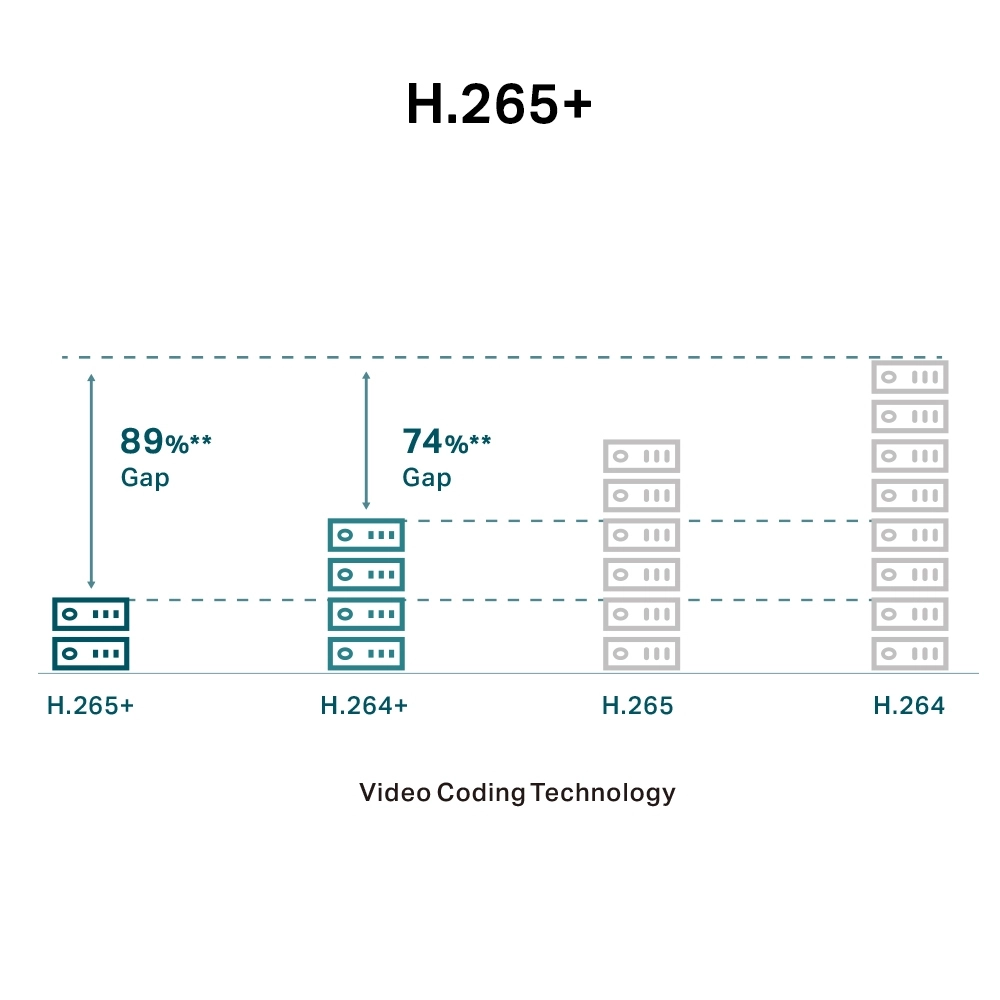

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specification

Product
Product id	953116
Brand	TP-Link
Partnr	VIGI C240(4MM)
EAN/UPC code	4895252501094
Warranty (months)	2 years
Performance
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Day/night mode	Y
Certification	CE, BSMI, VCCI, ONVIF
Design
Form factor	Dome
Mounting type	Ceiling/Wall
Product colour	Black, White
Housing material	Plastic
International Protection (IP) code	IP67
IK code	IK10
Camera
Camera pan control	Y
Camera tilt control	Y
Minimum illumination	0.005 Lux
Angle of rotation	360 °
Lens viewing angle, horizontal	79.7 °
Lens viewing angle, vertical	42.9 °
Tilt angle range	0 - 85 °
Lens viewing angle, diagonal	93.9 °
Pan range	0 - 360 °
Image sensor
Sensor type	CMOS
Optical sensor size	1/3 "
Lens system
Number of lenses	1
Lens diameter	4 mm
Night vision
Night vision	Y
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	1
Infra-red wavelength	850 nm
Video
Maximum resolution	2560 x 1440 Pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video streaming	Y
Noise reduction technology	3D noise reduction
Digital Wide Dynamic Range (DWDR)	Y
Highlight Compensation (HLC)	Y
Privacy masking	Y
Frame rate	30 fps
Back Light Compensation (BLC)	Y
Bit rate	64 Kbps - 4 Mbps
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Audio
Built-in microphone	Y
Network
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels	3 kanalen
Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Technical details
Sustainability certificates	CE
Security
Password protection	Y
Video motion detection	Y
Intelligent Video Surveillance (IVS) system features	Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Mirror	Y
Active tampering alarm	Y
Digest authentication	Y
IP address filtering	Y
HTTPS encryption	Y
Management features
Web-based management	Y
Reset button	Y
Management software	VIGI App, VIGI Security Manager, VIGI NVR
Power
Power source type	DC, PoE
Power consumption (max)	5.4 W
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Weight & dimensions
Width	115 mm
Depth	115 mm
Height	86 mm
Package width	153 mm
Package depth	193 mm
Package height	120 mm
Package weight	470 g
Features
Basic event	Motion Detection, Camera Tampering Detection, Exception
Packaging content
Number of cameras	1
Mounting kit	Y
