Security Never Shuts Down
4MP Outdoor IR Bullet Network Camera

Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C340I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

IP67 for Better Protection
Capable of withstanding temperatures from -30–60 °C (-22–140 °F), VIGI performs well even in harsh
environments with rain and dust.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

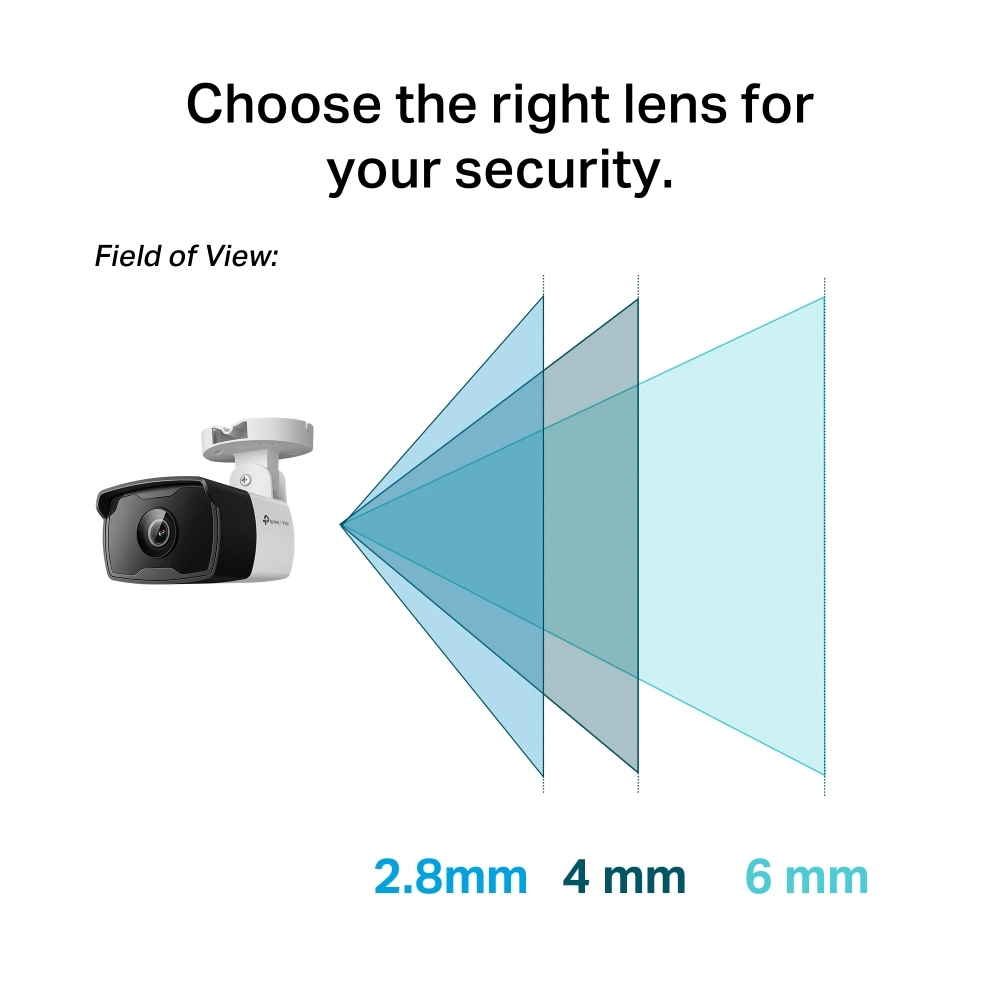

Choose the right lens for your security.
2.8/4/6 mm lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C340I comes with three different lens versions to better suit your security needs.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specification

Product
Product id	953120
Brand	TP-Link
Partnr	VIGI C340I(2.8MM)
EAN/UPC code	4897098688991
Warranty (months)	3 year limited warranty
Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Design
Form factor	Bullet
Mounting type	Ceiling/Wall/Pole
Product colour	Black, White
Housing material	Plastic
International Protection (IP) code	IP67
Camera
Minimum illumination	0.01 Lux
Lens viewing angle, horizontal	88.8 °
Lens viewing angle, vertical	48.9 °
Tilt angle range	-90 - 90 °
Lens viewing angle, diagonal	106.5 °
Pan range	-90 - 90 °
Camera shutter speed	1/3 - 1/10000 s
Number of Privacy masking areas	4
Image sensor
Sensor type	CMOS
Optical sensor size	1/3 "
Progressive scan	Y
Lens system
Number of lenses	1
Detect distance	60 m
Observe distance	25 m
Recognize distance	12 m
Maximum aperture number	2.2
Identify distance	6 m
Fixed focal length	2.8 mm
Night vision
Night vision	Y
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm
Video
Maximum resolution	2560 x 1440 Pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes	240p, 480p, 720p, 1080p, 1280p, 1440p
Video streaming	Y
Digital Wide Dynamic Range (DWDR)	Y
Highlight Compensation (HLC)	Y
Privacy masking	Y
Region of Interest (ROI) encoding	Y
Smart IR	Y
Frame rate	30 fps
Back Light Compensation (BLC)	Y
Bit rate	256 Kbps - 4 Mbps
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
3D positioning	Y
Audio
Signal-to-Noise Ratio (SNR)	52 dB
Network
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
Networking standards	IEEE 802.3af, IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels	3 kanalen
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Technical details
Sustainability compliance	Y
Sustainability certificates	BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA
Security
Password protection	Y
Video motion detection	Y
Intelligent Video Surveillance (IVS) system features	Crossing line, Region entrance detection, Region exiting detection, Vehicle detection
Mirror	Y
Password reset via email	Y
Human and vehicle targets classification	Y
Digest authentication	Y
IP address filtering	Y
HTTPS encryption	Y
Network access storage (NAS)	Y
Management features
Web browser	Y
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection
Power
Power source type	DC, PoE
Power consumption (typical)	1.32 W
Power consumption (max)	5 W
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95 procent
Storage relative humidity (H-H)	0 - 95 procent
Weight & dimensions
Width	73 mm
Height	71 mm
Length	174 mm
Weight	200 g
Package width	128 mm
Package depth	218 mm
Package height	103 mm
Package weight	360 g
Package type	Box

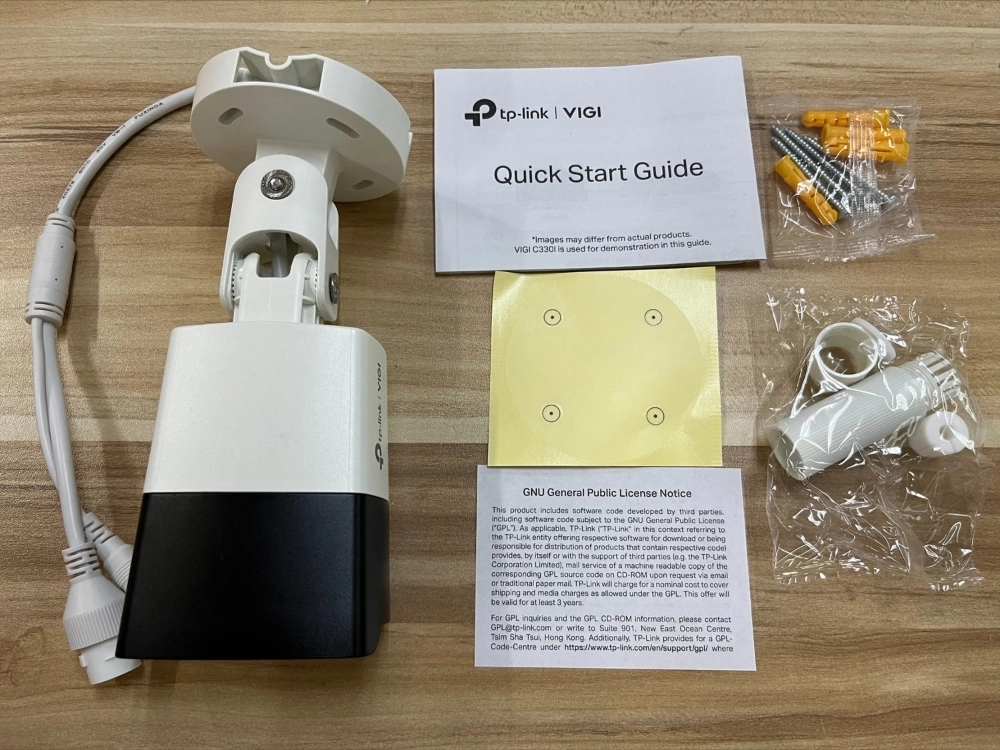

Packaging content
Number of cameras	1
Mounting kit	Y
Manual	Y
