Security Never Shuts Down

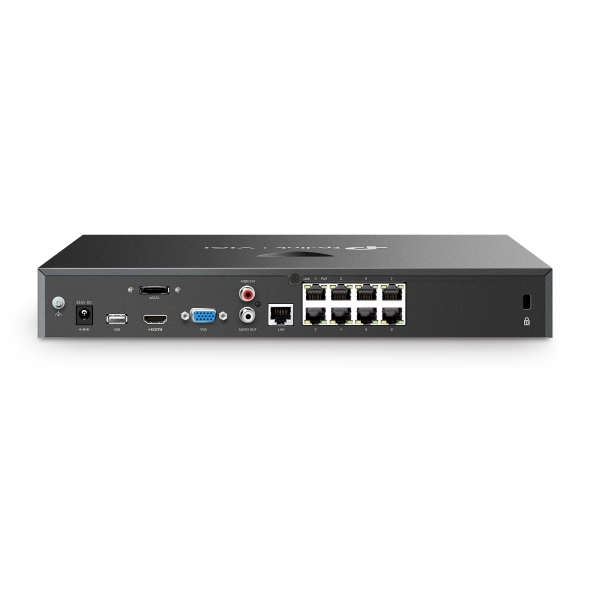

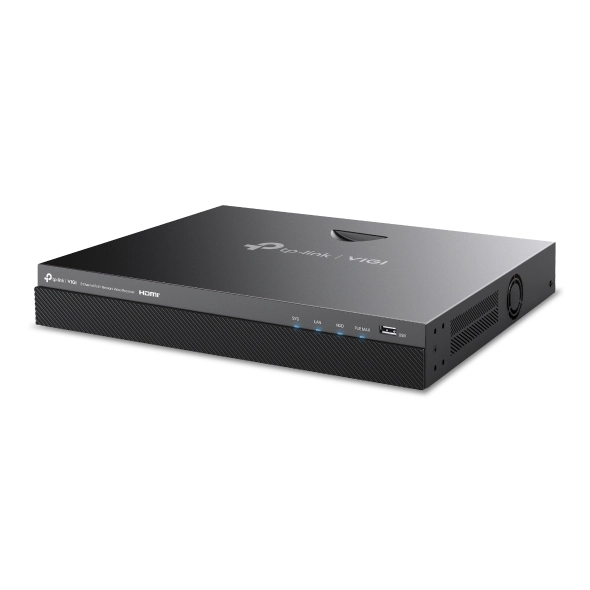

VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder

- 8-Channel Live View
- 4K HDMI Video Output
- 93W PoE Budget
- 8-Channel Live View
- Smart Video Coding
- Comprehensive Compatibility
- Auto Initialize
- 2× SATA Interfaces (1 Up to 16 TB)

Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.

Specification

Product
Product id	967859
Brand	TP-Link
Partnr	VIGI NVR2008H-8MP
EAN/UPC code	8885020622027
Warranty (months)	3 Years
Features
Product colour	Black
Weight & dimensions
Weight	2100 g
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Technical details
Width	330 mm
Package weight	4100 g
Height	45 mm
Depth	285 mm
Storage temperature (T-T)	-40 - 70 °C
Power consumption (typical)	35 W
HDD interface	SATA
Output voltage	53.5 V
LED indicators	Y
Audio formats supported	G.711, G.711u, G.726
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	9
DC-in jack	Y
Wi-Fi	N
Output current	2.43 A
eSATA	Y
HDMI ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Maximum storage capacity	16 TB
Video motion detection	Y
Video formats supported	H.264, H.264+, H.265, H.265+
Supported resolutions	3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720
VGA (D-Sub) output ports	1
Video loss detection	Y
Total Power over Ethernet (PoE) budget	93 W
Audio RCA inputs	1
Audio RCA outputs	1
Video input channels	8 kanalen
Power over Ethernet (PoE) power per port	30 W
Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
