LED touch monitor TD2223 22IN Full HD 250 nits. resp 5ms. incl 2x2W speakers infra-rood touch



Viewsonic
Not in stock
€ 200,51
€ 242,61 incl 21% VAT

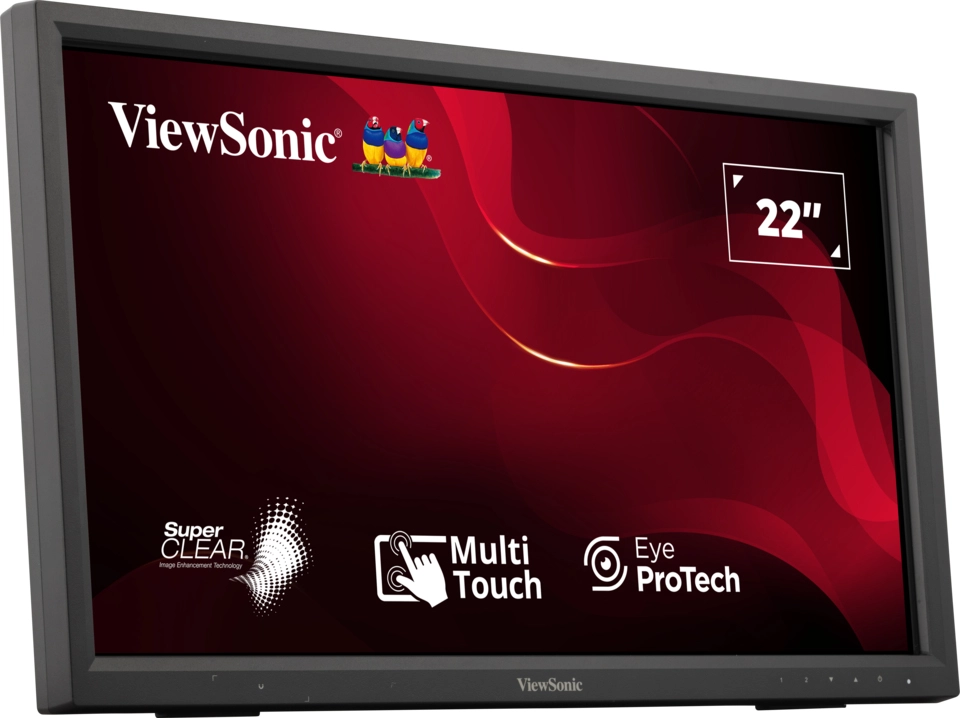

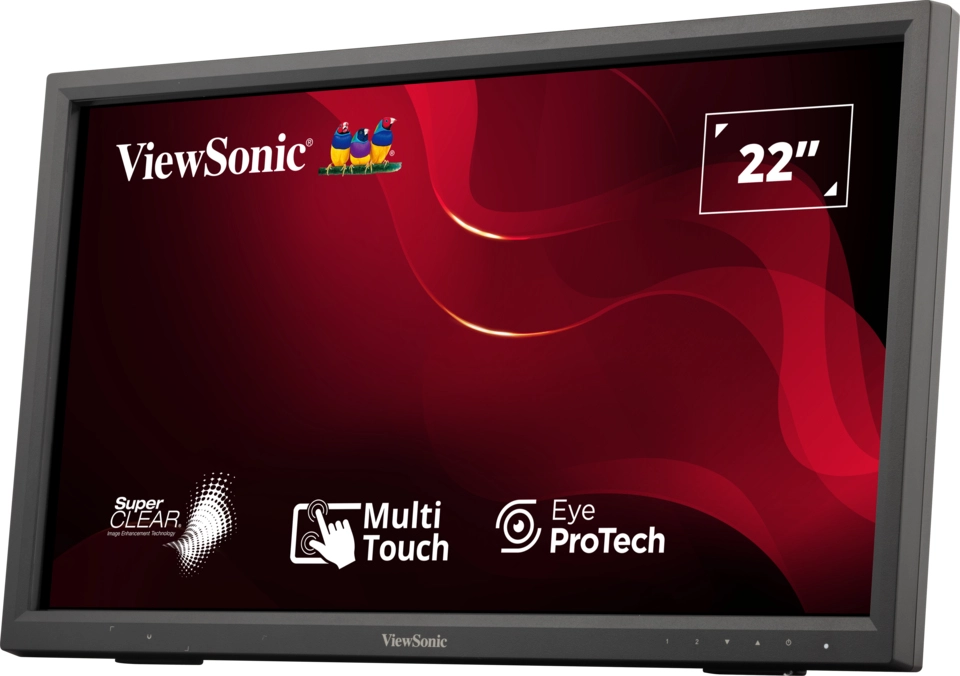

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

Adjustable Tilt

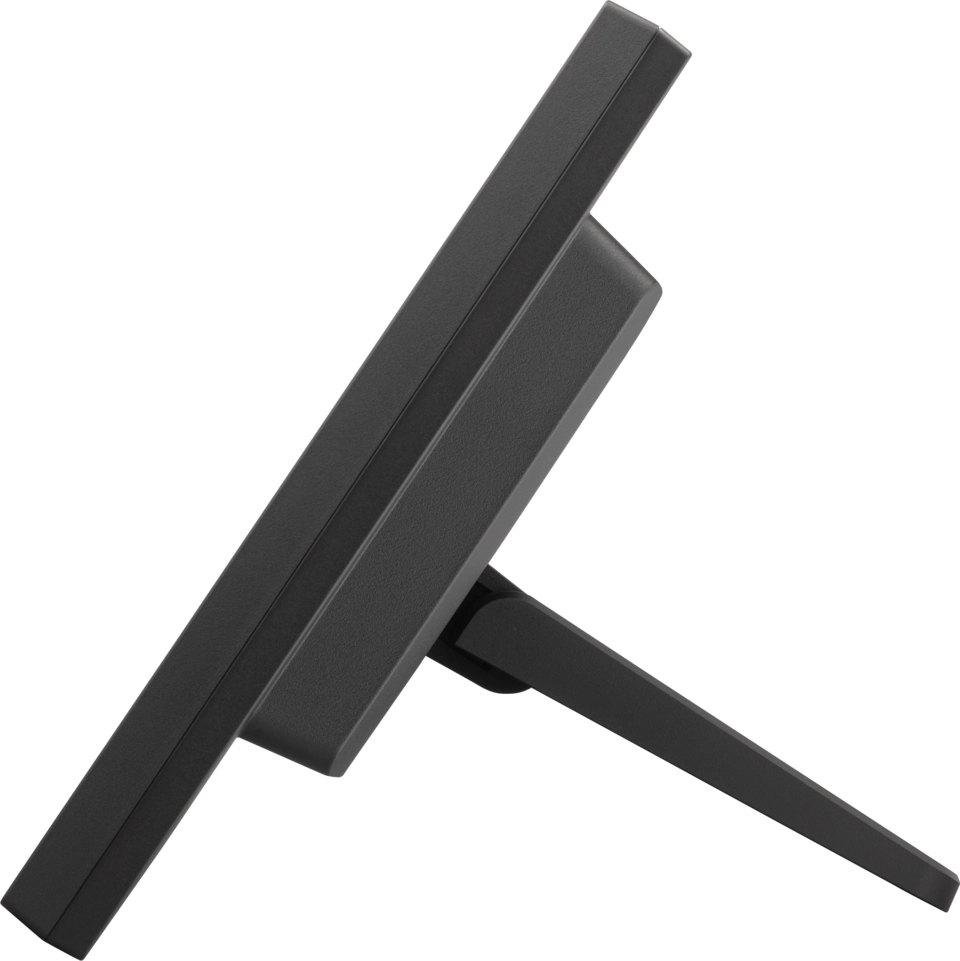

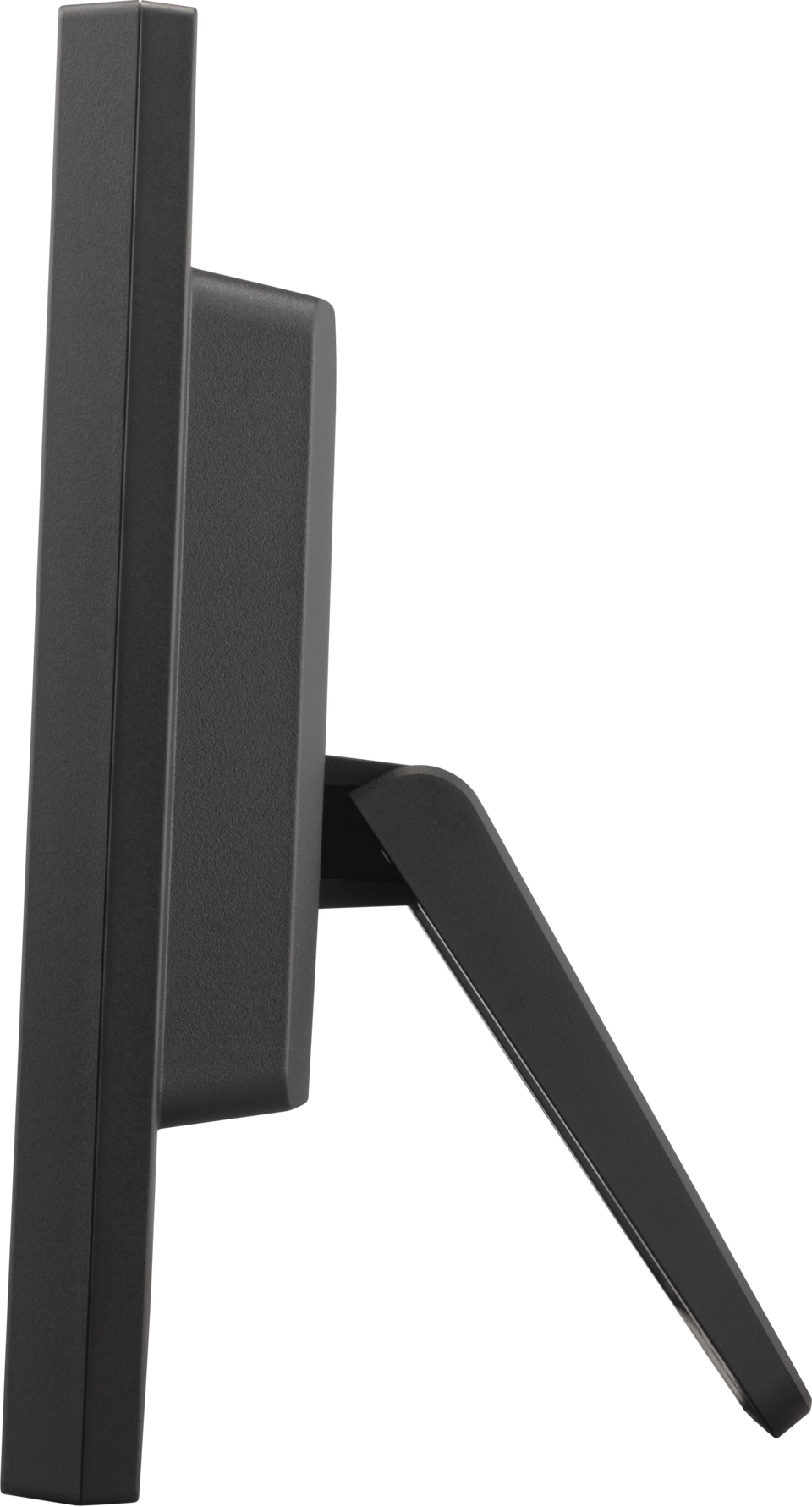

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

Dimension & I/O Ports

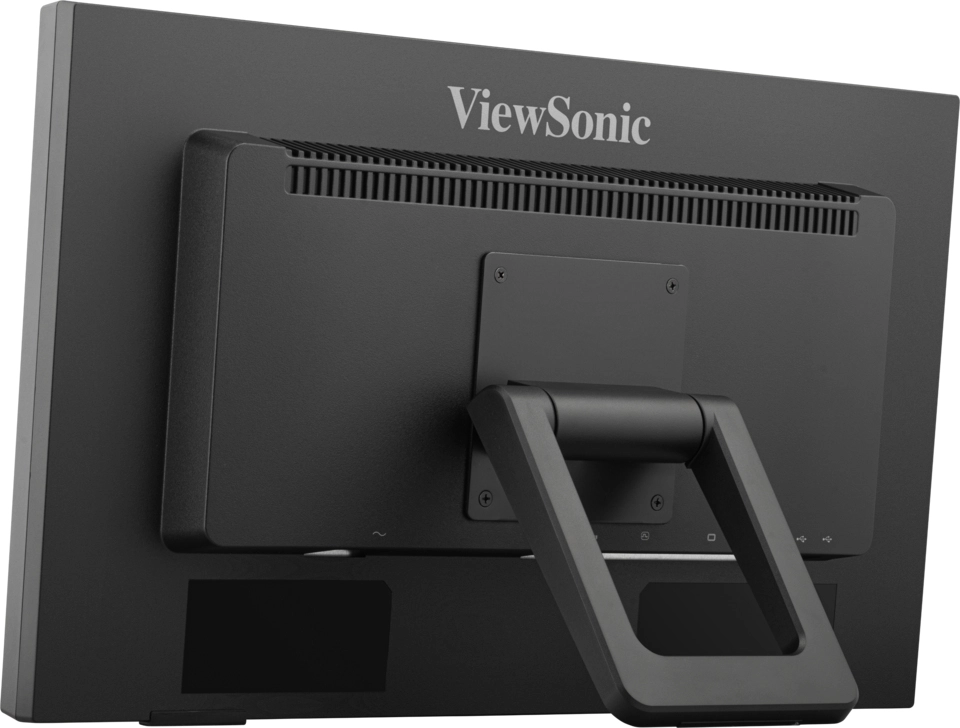

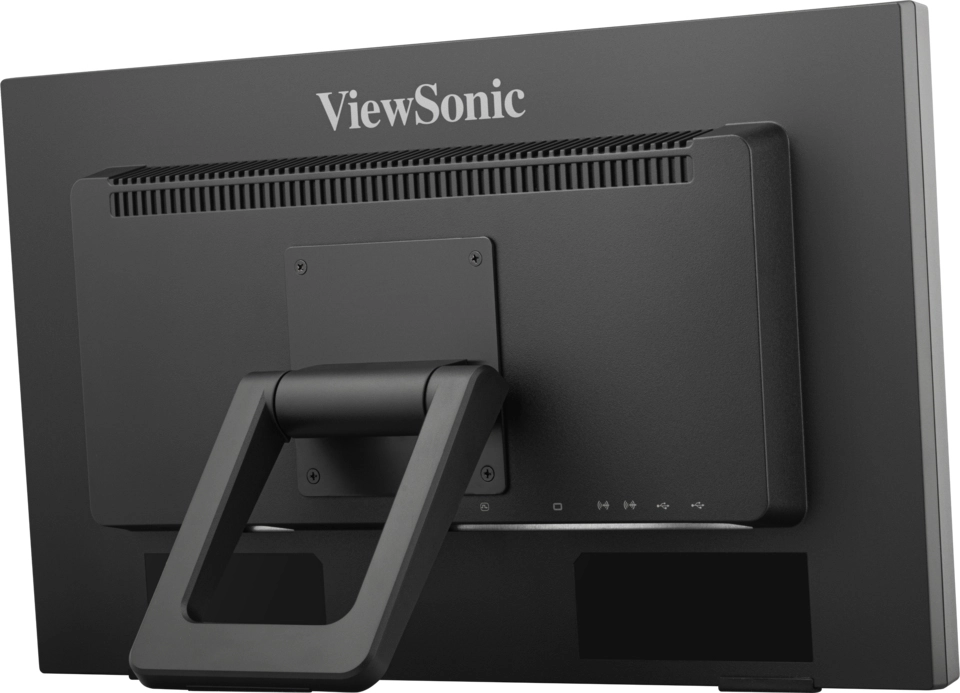

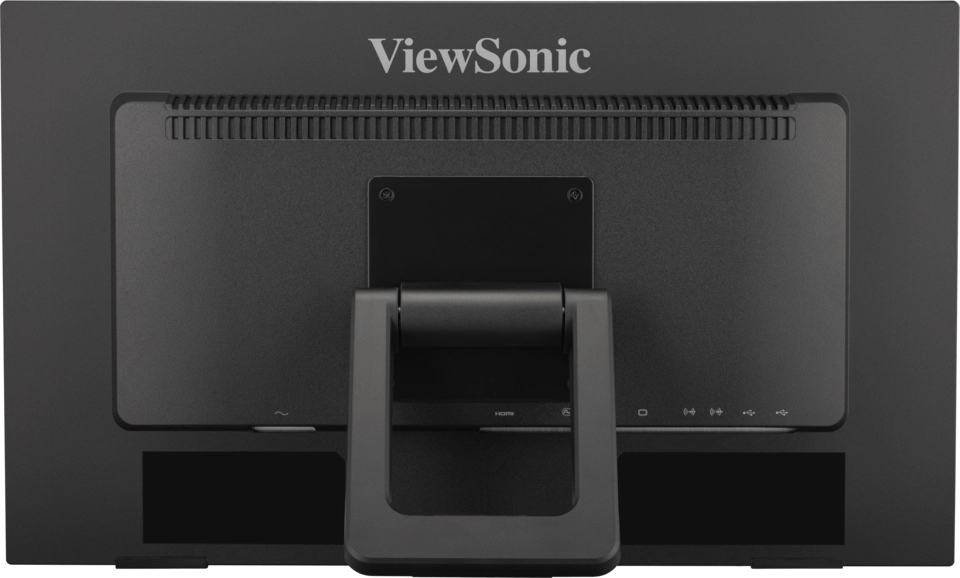

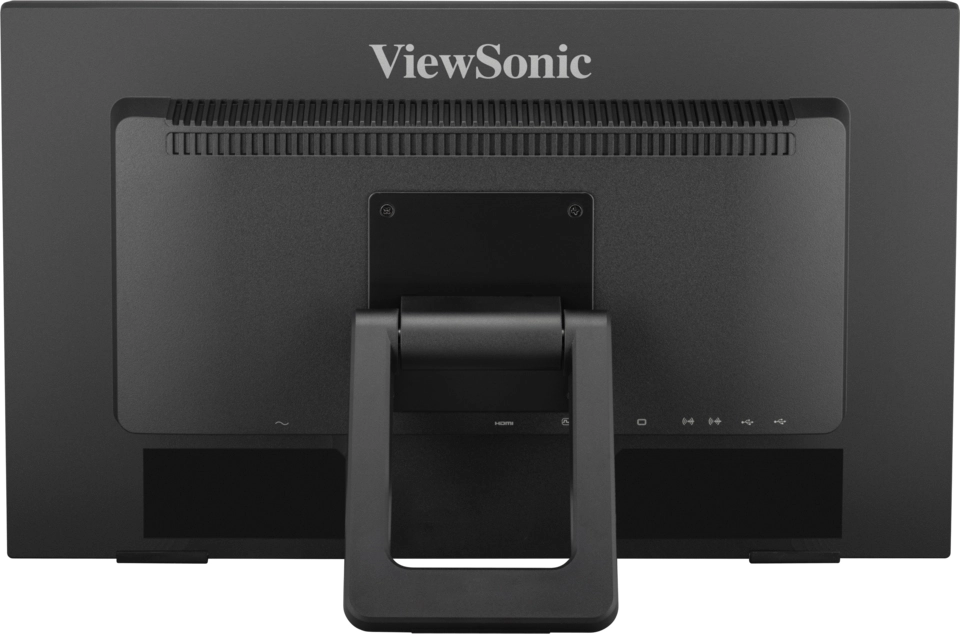

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

Specification

Product
Product id 967975
Brand Viewsonic
Partnr TD2223-2
EAN/UPC code 766907008647
Warranty (months) 36 months
Display
Display diagonal 22 inch
Display resolution 1920 x 1080 Pixels
Native aspect ratio 16:9
Panel type VA
Touchscreen technology Infrared
Display brightness (typical) 250 cd/m²
Response time 6.5 ms
Touch technology Multi-touch
HD type Full HD
Display technology LCD
LED backlight Y
Display surface Gloss
Screen shape Flat screen
Contrast ratio (typical) 3000:1
Contrast ratio (dynamic) 20000000:1
Maximum refresh rate 75 Hz
Viewing angle, horizontal 178 °
Viewing angle, vertical 178 °
Display number of colours 16.7 million colours
Display diagonal (metric) 55.9 cm
Pixel pitch 0.249 x 0.241 mm
Colour depth 8 Bit
sRGB coverage (typical) 104 procent
NTSC coverage (typical) 72 procent
Performance
NVIDIA G-SYNC N
AMD FreeSync N
Flicker-free technology Y
Low Blue Light technology Y
Multimedia
Built-in speaker(s) Y
Built-in camera N
Number of speakers 2
RMS rated power 4 W
Design
Market positioning Office
Product colour Black
Glass thickness 2 mm
Feet colour Black
Certification cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
Ports & interfaces
Built-in USB hub Y
USB hub version 2.0
Number of USB Type-B upstream ports quantity 1
USB Type-A downstream ports quantity 2
VGA (D-Sub) ports quantity 1
DVI port Y
DVI-D ports quantity 1
HDMI Y
HDMI ports quantity 1
HDMI version 1.4
Headphone out Y
Headphone outputs 1
Headphone connectivity 3.5 mm
AC (power) in Y
Ergonomics
VESA mounting Y
Panel mounting interface 100 x 100 mm
Cable lock slot Y
Cable lock slot type Kensington
Height adjustment N
Wall mountable Y
Tilt angle range 20 - 40 °
Tilt adjustment Y
On Screen Display (OSD) Y
Packaging data
Stand included Y
Cables included AC, Audio, HDMI, USB Type-A to USB Type-B
Quick start guide Y
Package width 580 mm
Package depth 162 mm
Package height 405 mm
Package weight 5700 g
Power
Power consumption (typical) 18.5 W
Power consumption (standby) 0.5 W
Power consumption (max) 21.8 W
AC input voltage 100 - 240 V
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 20 - 90 procent
Weight & dimensions
Width (with stand) 519 mm
Depth (with stand) 101 mm
Height (with stand) 329 mm
Weight (with stand) 4200 g
Width (without stand) 519 mm
Depth (without stand) 61 mm
Height (without stand) 308 mm
Weight (without stand) 3700 g
Other features
Power supply type Internal
Touchscreen Y
Number of simultaneous touchpoints 10
