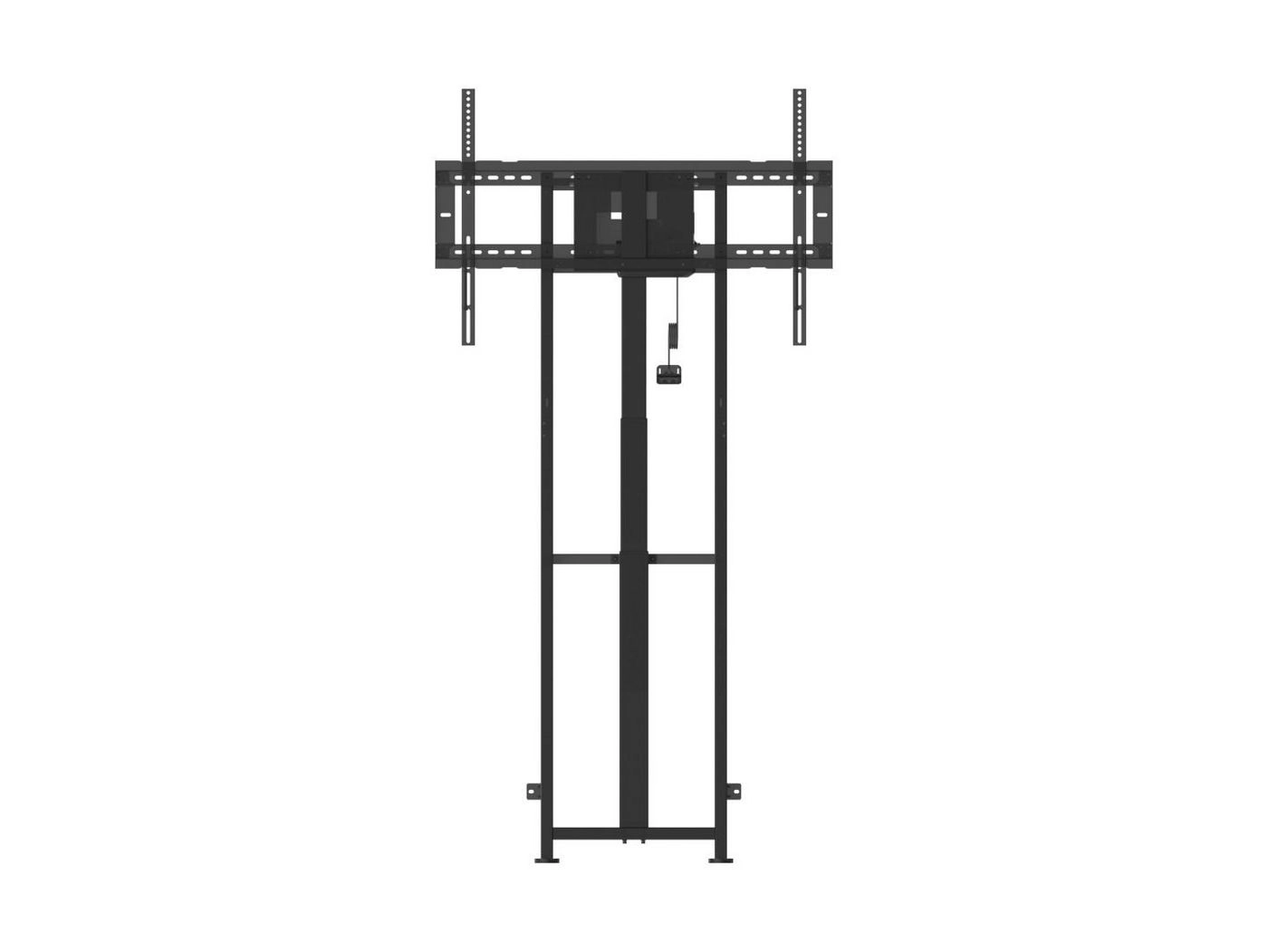

The ViewSonic® VB-STND-104 is a motorised wall mount stand that enables smooth and quiet height adjustment with up to 650mm of vertical travel. Designed to support ViewSonic 55”, 65”, 75”, and 86” ViewBoard® interactive flat panel displays—or any display up to 75 kg—it offers a simple and practical solution for fixed installations. A user-friendly control pad allows one-touch adjustment for improved accessibility and convenience.
*With the optional VE-MT-001 mobile kit, the VB-STND-104 can be converted into a mobile trolley for added flexibility.

Specification

Product
Product id	997804
Brand	Viewsonic
Partnr	VB-STND-104
EAN/UPC code	766907033496
Warranty (months)	24 months
Mounting
Maximum weight capacity	75 kg
Minimum screen size compatibility	55 "
Maximum weight capacity (per display)	75 kg
Mounting type	Wall
Maximum screen size	86
Maximum VESA mount	800 x 600 mm
Panel mounting interface	800 x 600 mm
Ergonomics
Height adjustment type	Electric
Lifting speed	22 mm/sec
Height adjustment	Y
Height adjustment	650 mm
Design
Product colour	Black
Housing material	SPCC
Power
Motorized	Y
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (typical)	150 W
Weight & dimensions
Width	960 mm
Depth	172 mm
Height	1667 mm
Weight	27300 g
Package width	1188 mm
Package depth	711 mm
Package height	172 mm
Packaging data
Package weight	31800 g
Packaging content
Manual	Y
Mounting kit	Y
Cables included	AC
Technical details
Number of displays supported	1
Compliance certificates	CB, CE, REACH, RoHS, WEEE
Features
Brand compatibility	Viewsonic
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 procent
