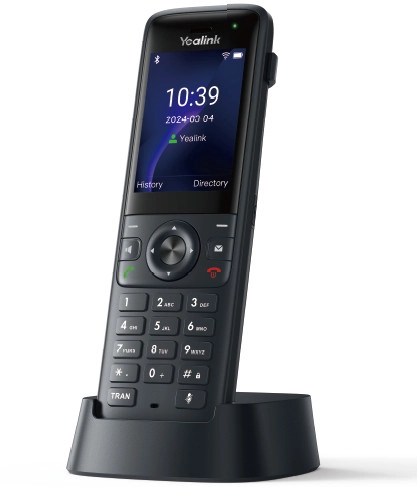

AX83H is an enterprise portable Wi-Fi IP color screen phone that meets wireless communication needs. The AX83H supports registering up to four SIP accounts and features a 2.4-inch color display. It integrates Yealink's Optima HD Audio and Smart Noise cancellation technology to deliver exceptional audio quality and clear voice communication. It is equipped with a built-in Bluetooth 5.0 module and a dual-band 2.4G/5G Wi-Fi 6 module, combined with advanced seamless roaming technology, allowing you to stay ahead in the ever-evolving wireless era. In addition, AX83H is equipped with a 2000mAh battery, with a talk time of 9 hours and a standby time of 200 hours. It is widely used in wireless scenarios such as SMEs, offices, warehouses, supermarkets, and hotels.

Specification

Product
Product id	978796
Brand	Yealink Network Technology
Partnr	1301013
EAN/UPC code	6938818320048
Technical details
Keypad number of keys	8
Headset connectivity	3.5 mm
Display
Display	TFT
Display resolution	240 x 320 Pixels
Display diagonal	2.4 inch
Touchscreen	N
Phone features
Caller ID	Y
Call forwarding	Y
Call hold	Y
Intercom	Y
Speed dialling	Y
Call waiting	Y
Call transfer	Y
Phonebook capacity	1000 entries
Message-waiting indicator (MWI)	Y
Call history	Y
Emergency call	Y
Vibrating alert	Y
Call park	Y
Call pick up	Y
Anonymous call	Y
Anonymous call rejection	Y
Full duplex	Y
Audio
Voice codecs	G.711a, G.722, G.723, G.726, G.729, G.729A, G.729B, G.729ab
Network
Bluetooth	Y
Ethernet LAN	N
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Y
Quality of Service (QoS) support	Y
Bluetooth version	5.0
Ports & interfaces
USB Type-C ports quantity	1
Power
AC adapter input voltage	100 - 240 V
Design
Product type	IP phone
Backlight keypad	Y
Wall mountable	Y
Weight & dimensions
Weight	126 g
Handset dimensions (WxDxH)	49.5 x 21 x 151 mm
Management features
Integrated voicemail	Y
Colour
Product colour	Black
Sensors
Proximity sensor	Y
Microphone
Microphone mute	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 procent
Storage temperature (T-T)	-30 - 70 °C
Packaging content
Charger	Y
Number of handles included	1 stuk(s)
Handset	Y
