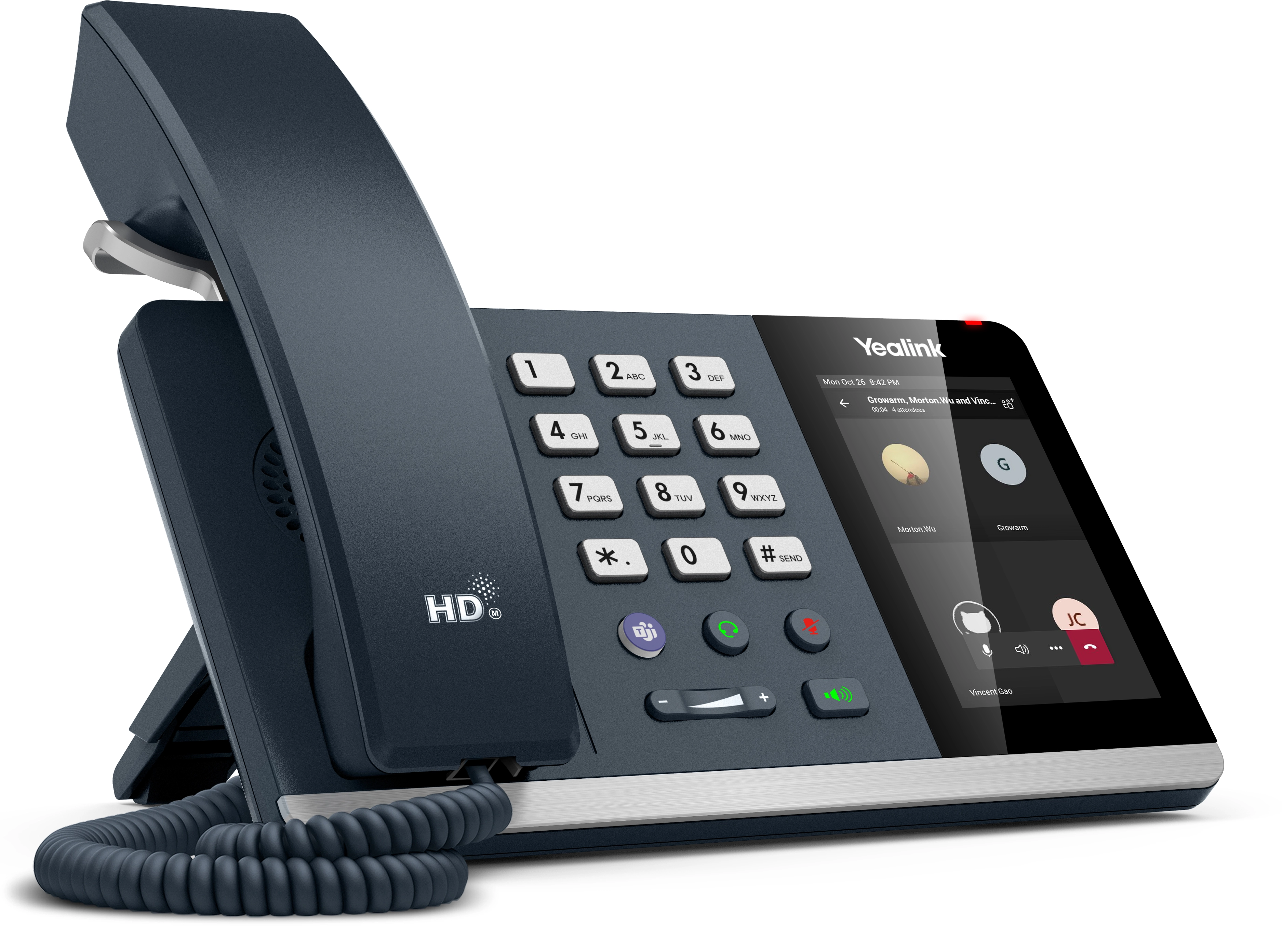

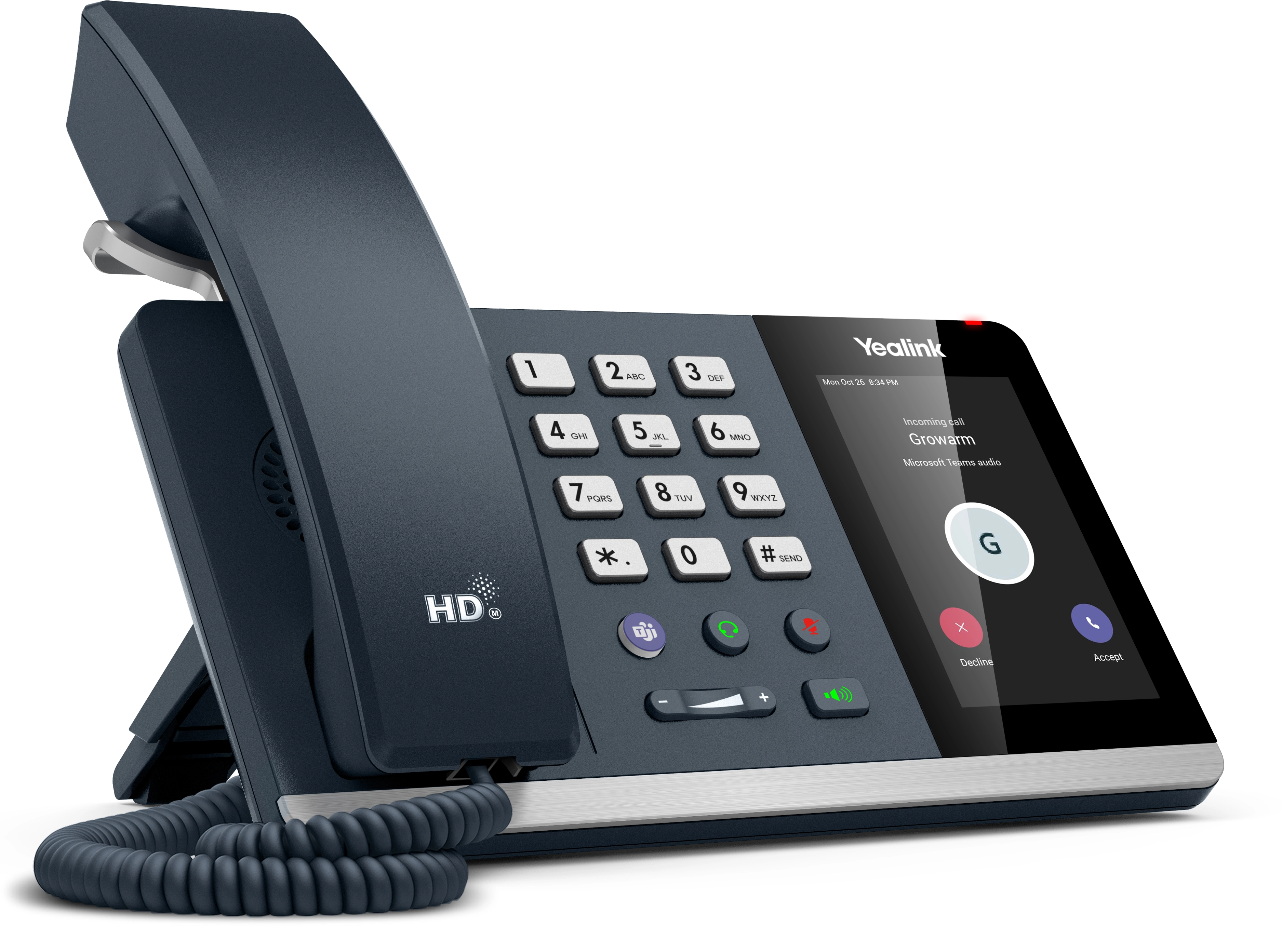

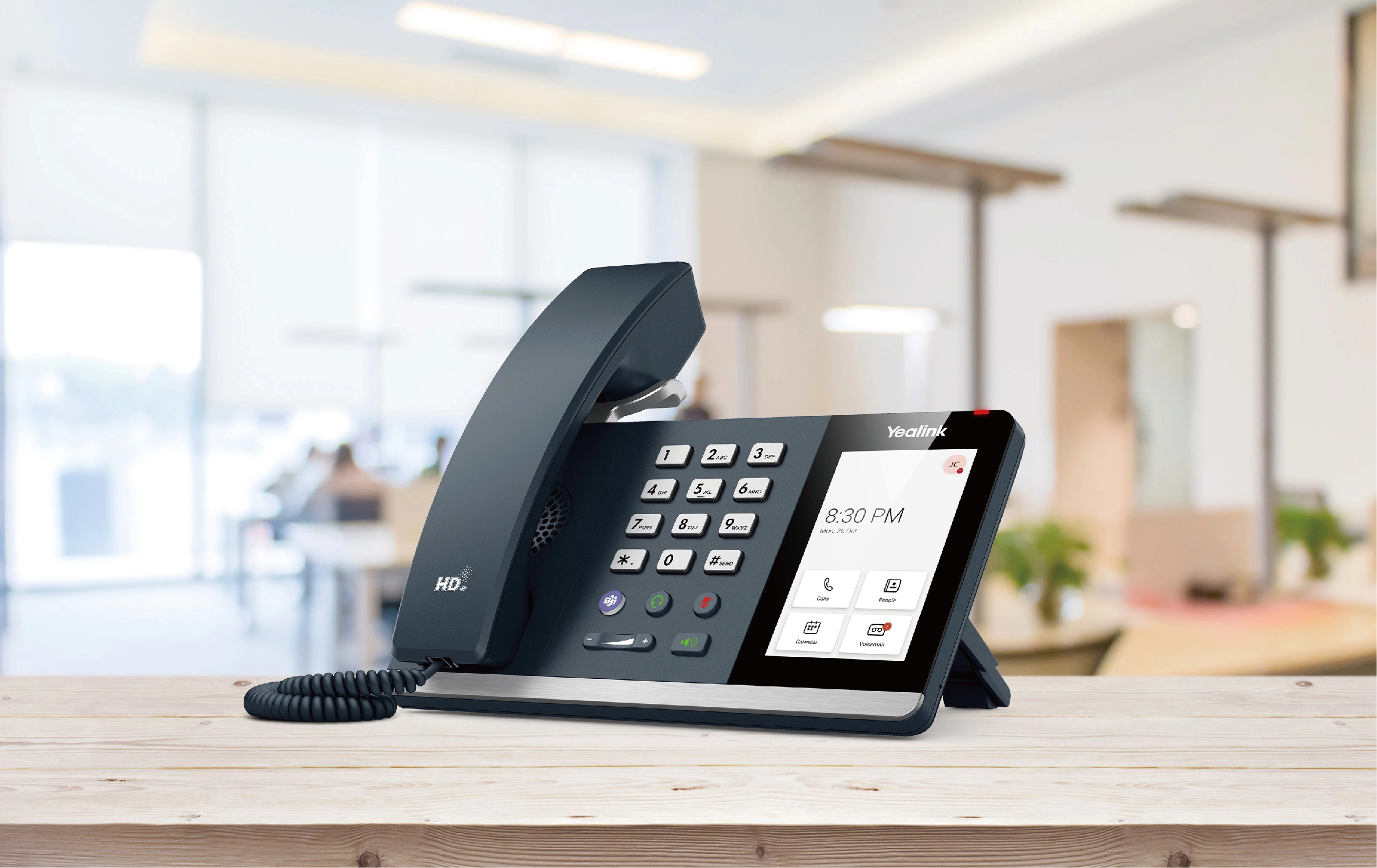

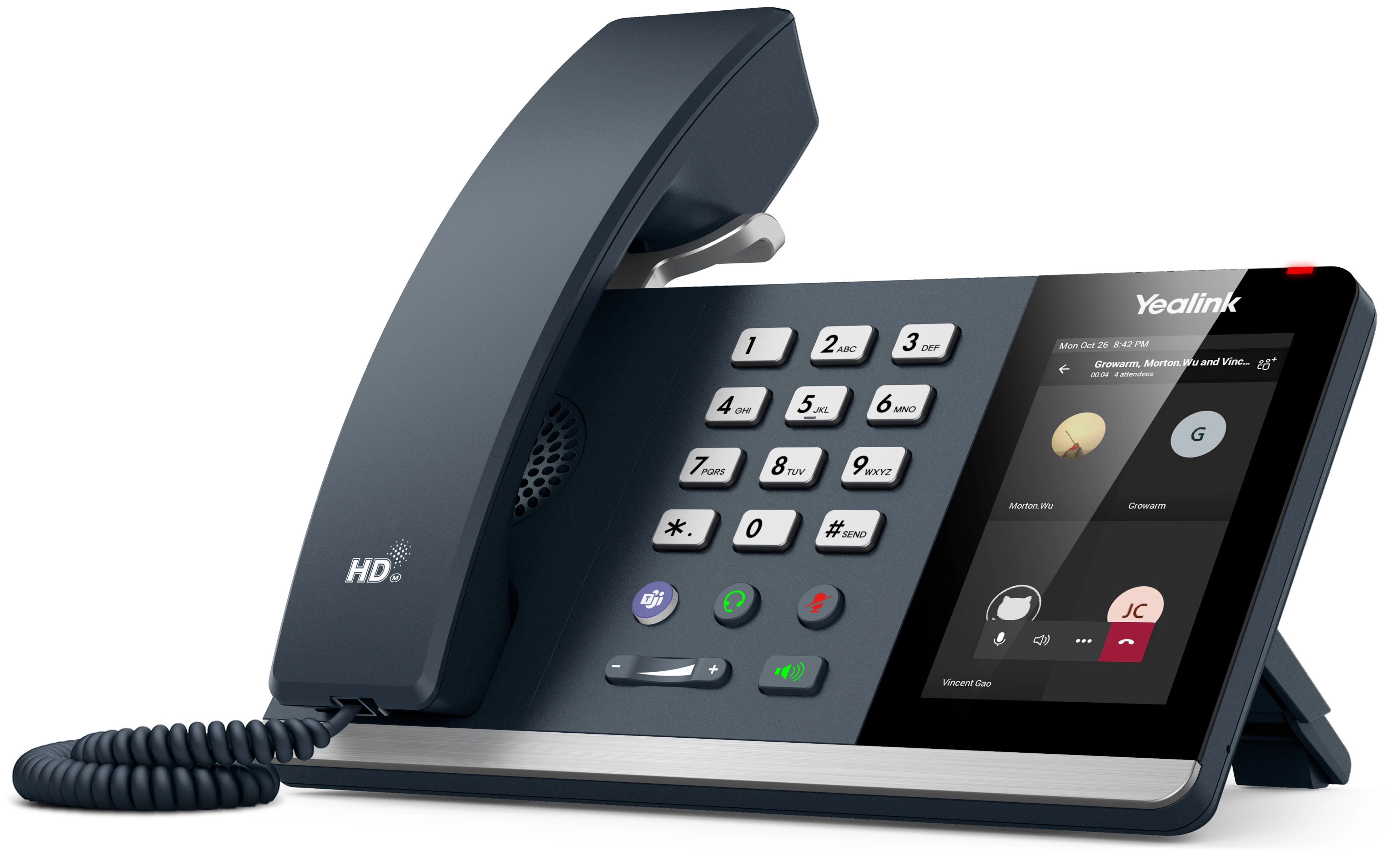

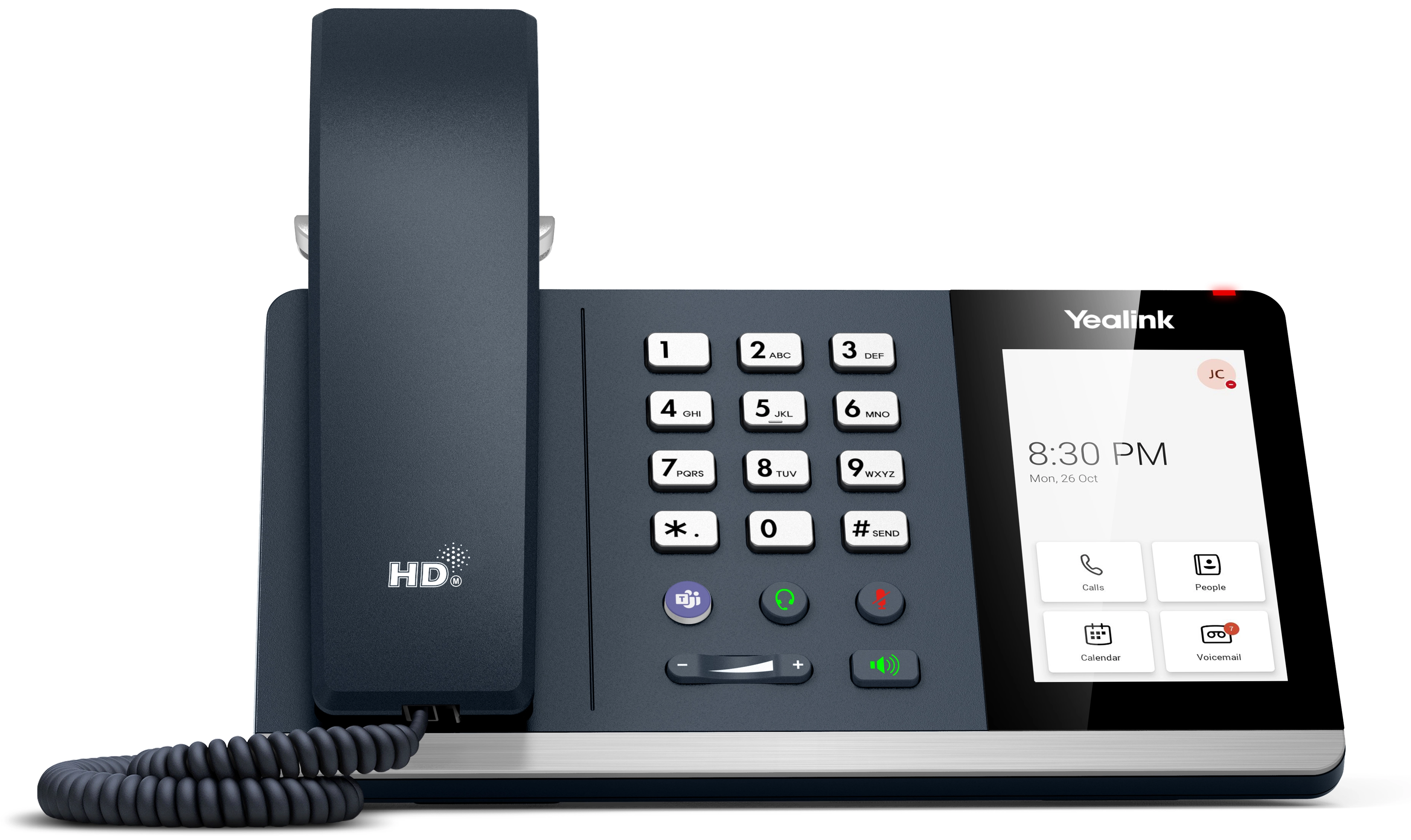

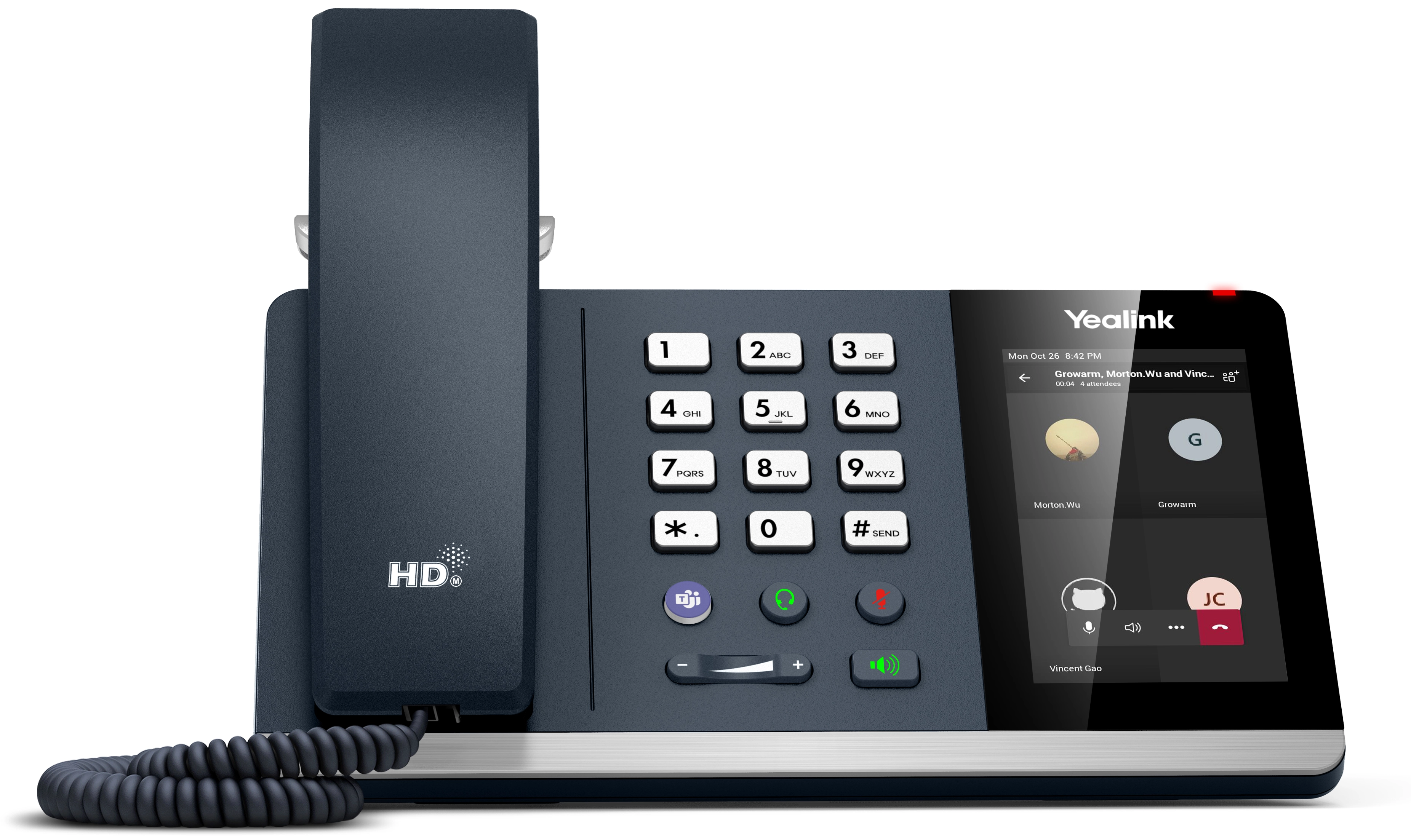

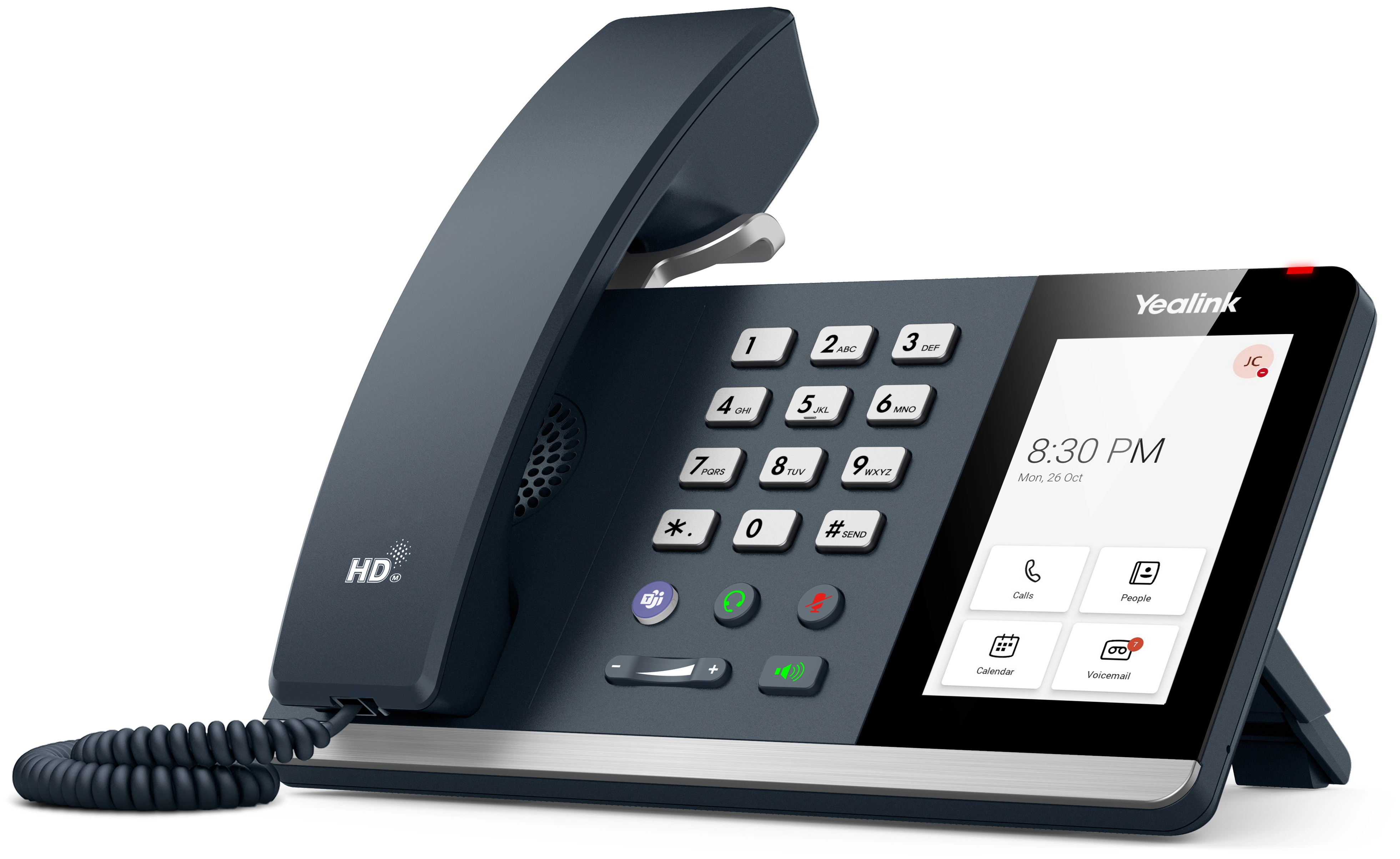

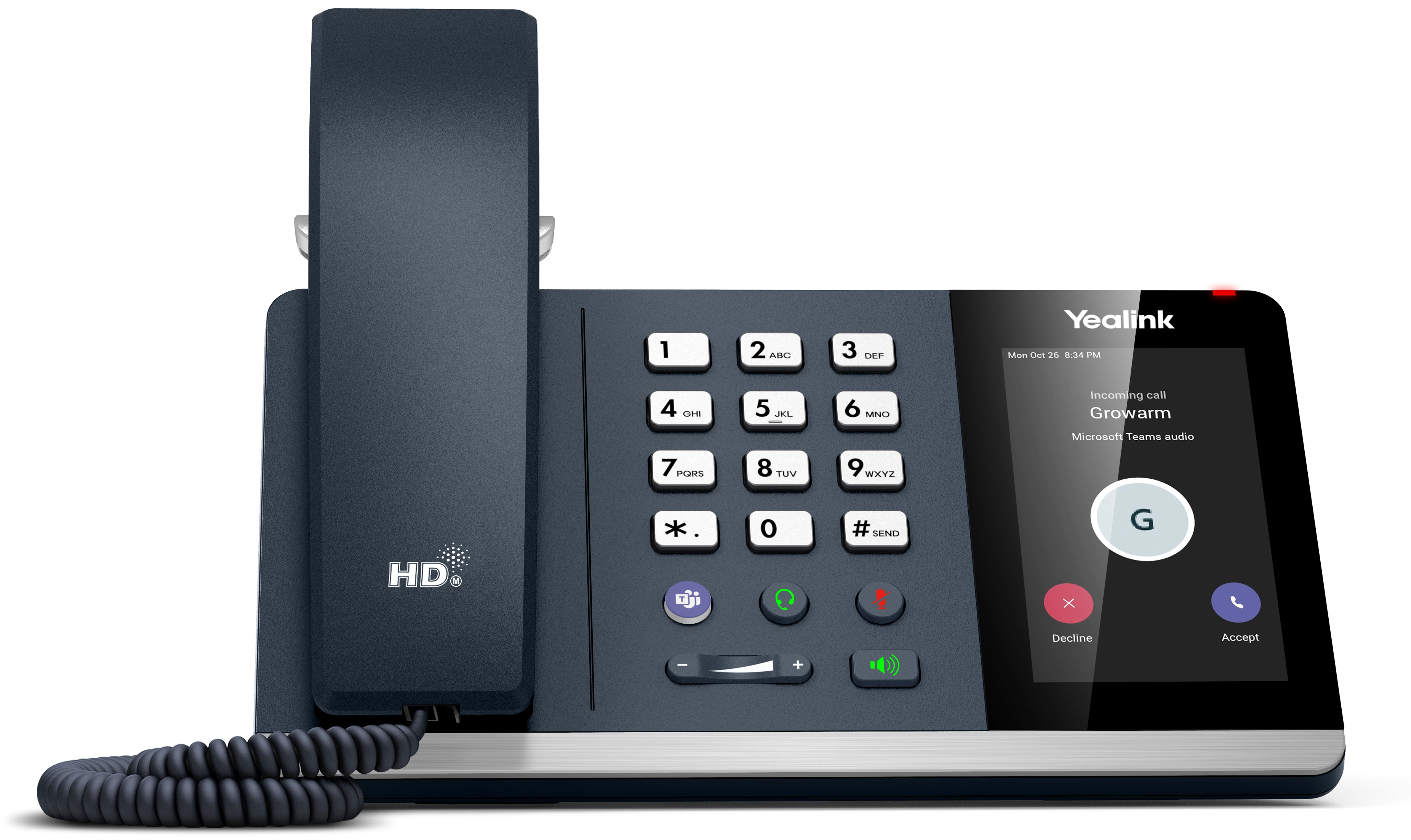

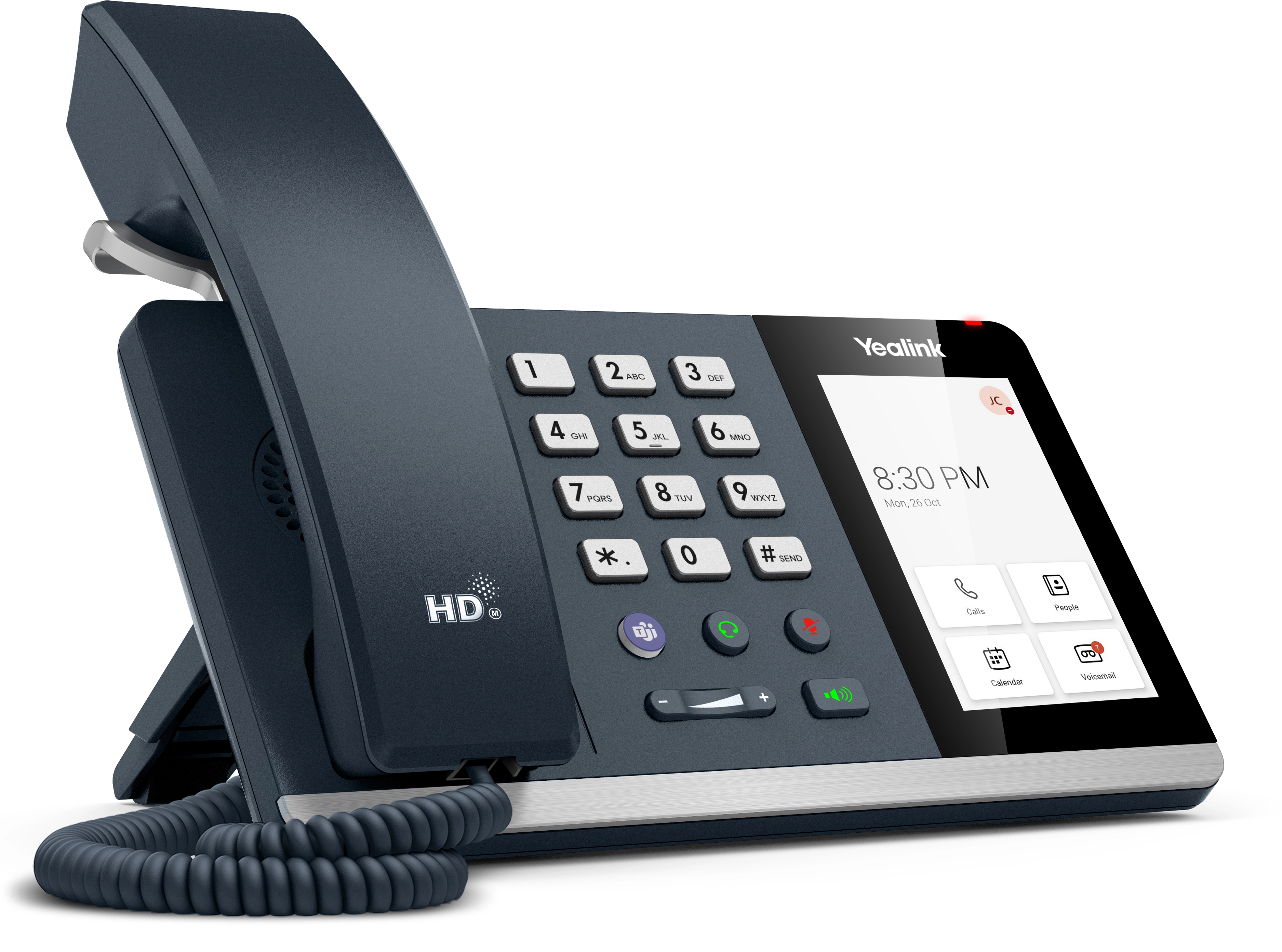

Microsoft Phone MP54

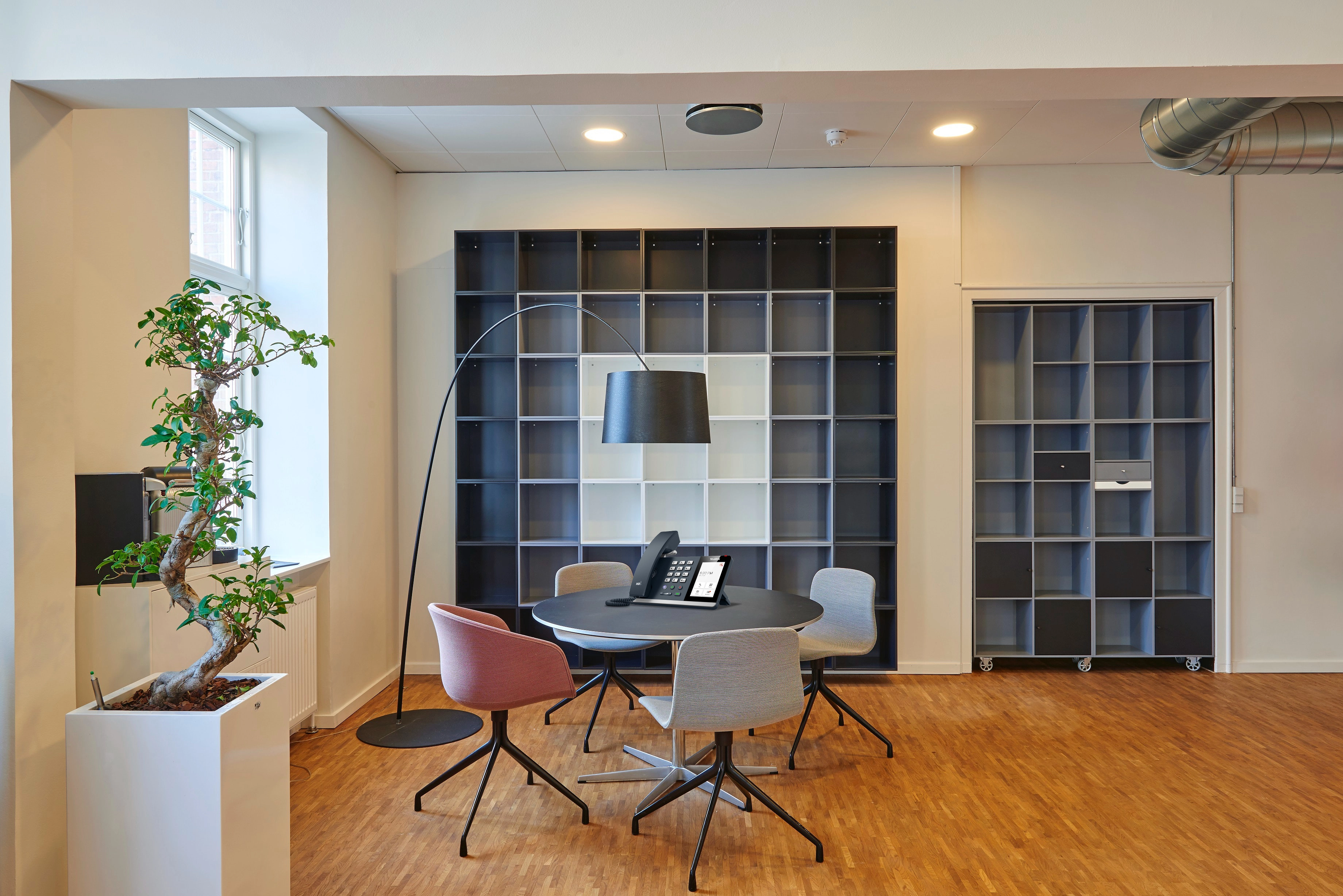

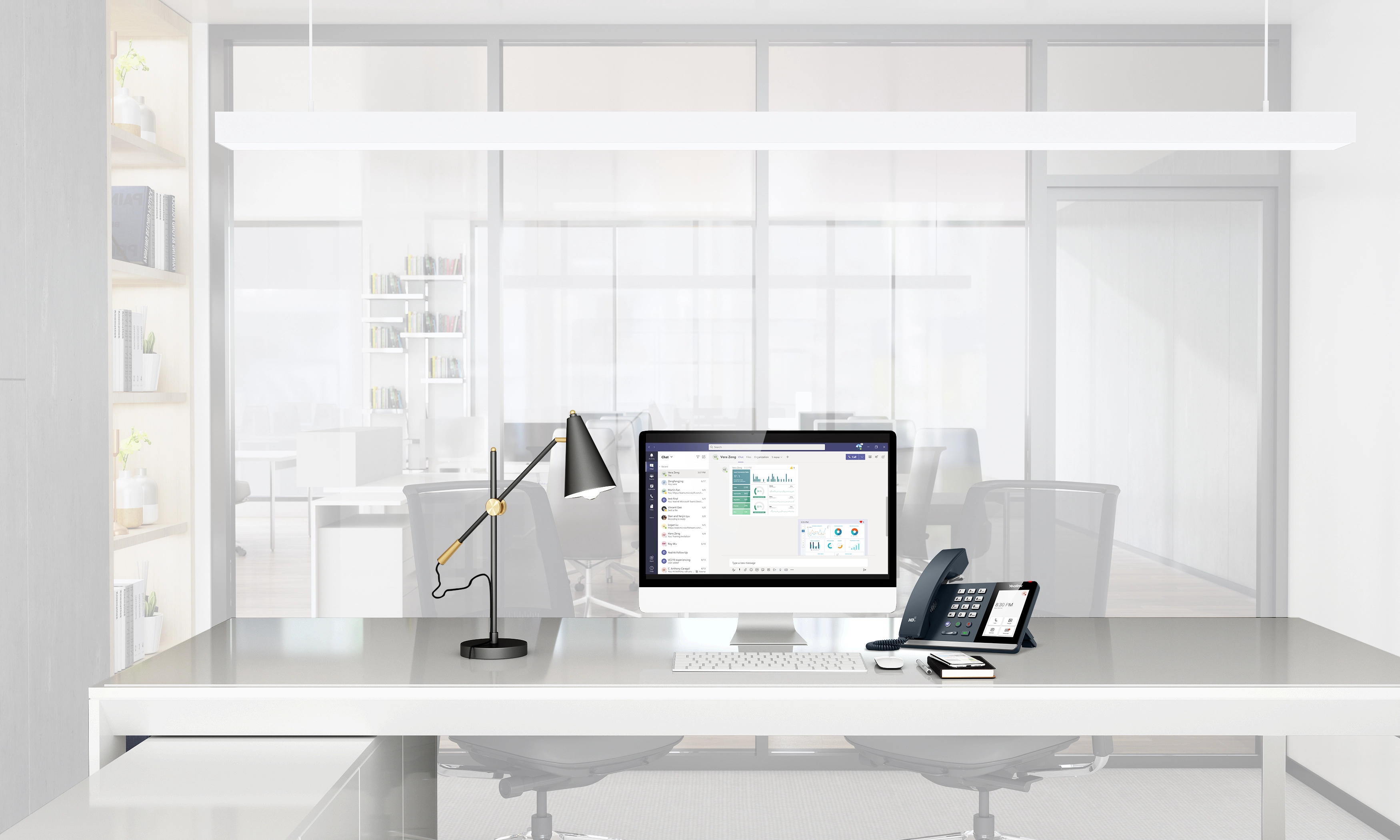

Yealink MP54 Android 9-based phone owns a faster response speed and dedicated Teams button, is ideal for office workers, front desks and common areas. Presenting a standalone voice solution and an unparalleled audio clarity, the MP54 is armed with Yealink’s Optima HD Voice and Yealink Noise Proof Technology. Moreover, MP54 makes the collaboration easier than ever thanks to its support for SIP&Teams Hybid mode, and its USB port for a Wi-Fi, Bluetooth and a USB headset.

Excellent Calling Experience
The MP54 combines professional hardware and software technology to deliver crystal-clear voice communications. Thanks to Yealink Optima HD voice and Noise Proof Technology as well as a full-duplex hands-free speakerphone with AEC and a HAC handset, the MP54 provides an excellent audio experience for more efficient and productive calls.

Ease of Use
To extend workflows seamlessly to the desktop device, the MP54 offers a 4.0-inch capacitive touch screen and fully compatible with Microsoft 365 for a consistent calling and meeting user interface. The device owns one USB 2.0 port for USB headsets and Bluetooth dongle. It allows the user to leave the desk and continue talking while paring with a Bluetooth headset or USB headset.

Simplify Deploy and Manage
The MP54 offers deployment flexibility with multiple choices of deployment tools from Microsoft, Yealink and Unify square as well as auto-provision, making it simple to deploy, administer, upgrade and maintain.

Specification

Product
Product id	731540
Brand	Yealink Network Technology
Partnr	MP54-TEAMS
EAN/UPC code	6938818307797
Technical details
Speakerphone	Y
Display
Display	LCD
Touchscreen type	Capacitive
Display resolution	800 x 480 Pixels
Number of simultaneous touchpoints	5
Display diagonal	4 inch
Touchscreen	Y
Graphical user interface (GUI) language	Multi
Phone features
Common area phone (CAP)	Y
Hot desking	Y
Call forwarding	Y
Call hold	Y
Call transfer	Y
Message-waiting indicator (MWI)	Y
Emergency call	Y
Full duplex	Y
Audio
Voice codecs	AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, OPUS, PLC, SILK, VAD, iLBC
Echo cancellation	Y
Comfort noise generation (CNG)	Y
Packet loss concealment (PLC)	Y
Network
Bluetooth	N
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	IPv4/IPv6, SNTP
Wi-Fi	N
DHCP client	Y
Syslog	Y
Networking standards	IEEE 802.1x, IEEE 802.3af
Security
Security algorithms	802.1x RADIUS, HTTPS, MD5, TLS
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
RJ-9 ports quantity	2
DC-in jack	Y
Cable lock slot	Y
Power
AC adapter input voltage	100 - 240 V
Power over Ethernet (PoE)	Y
Power consumption (typical)	5.3 W
AC adapter output voltage	5 V
AC adapter output current	2 A
USB output current	0.5 A
Power consumption (Power over Ethernet (PoE))	6.8 W
Energy saving mode	Y
Design
Product type	IP phone
Handset type	Wired handset
Device lock	Y
Mounting	Desk
Weight & dimensions
Width	223 mm
Depth	159 mm
Height	127 mm
Package width	188 mm
Package depth	529 mm
Package height	261 mm
Performance
Operating system installed	Android
Operating system version	9.0
Hearing aid compatibility	Y
Compatible products	Microsoft Teams
Management features
Integrated voicemail	Y
Firmware upgradeable	Y
Colour
Product colour	Grey
Microphone
Microphone mute	Y
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 procent
Certificates
Certification	CE, FCC, RoHS, ISO 9001, CCC, REACH
Packaging content
Base station	Y
Cables included	LAN (RJ-45)
Number of handles included	1 stuk(s)
Stand included	Y
Logistics data
Quantity per master (outer) case	5 stuk(s)
Master (outer) case weight	5300 g
Master (outer) case length	261 mm
Master (outer) case width	188 mm
Master (outer) case height	529 mm
Master (outer) case net weight	4800 g
Harmonized System (HS) code	85171800
