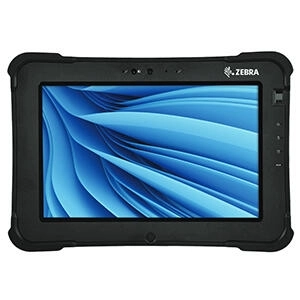

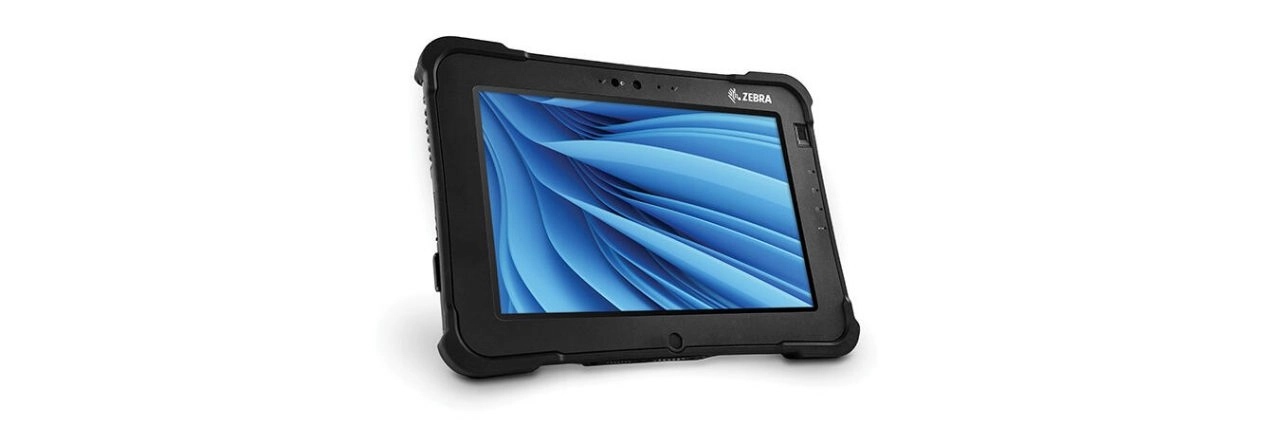

A VERSATILE TABLET PLATFORM RUGGED TO THE CORE

The Zebra L10 rugged platform offers a variety of tablet configurations and a shared accessory ecosystem that sets a standard in office, vehicle and field-based computing.

Whether your mobile workers prefer a traditional tablet form factor (XSlate L10), a tablet with a rigid-handle and built-in barcode reader (XPad L10), or a 2-in-1 laptop alternative with a detachable keyboard and KickStrap accessories with the XSlate (XBook L10), the flexibility of the Zebra L10 tablets ensures that your workers have the right computing tool for their job. Choose the right operating system for your business, whether that be Windows or Android. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.

GET THROUGH TASKS FASTER

With more advanced CPU options, the performance-driven L10 rugged tablet platform is the right fit for your organisation, whatever your operating system. Both operating systems offer superior power for the blazing-fast application performance you need out in the field or in your facility. The L10axe Windows is equipped with the latest 11th generation Intel processors, while the L10 Android features the Qualcomm SD660 processors. The L10 is also available with a range of RAM and storage options for every business and agency application.

EXPAND YOUR USAGE CAPABILITIES

The L10 combines latest-generation NFC, Bluetooth, Wi-Fi, GPS and cellular technologies to provide uninterrupted connectivity. Keep your workforce connected wherever they are with the advanced wireless connectivity of the L10axe Windows with support for Wi-Fi 6E and optional 5G/4G and the L10 Android with 802.11ac Wi-Fi and optional 4G. Each L10 rugged tablet can be equipped with workflow-specific tools needed for nearly any application. This includes an optional true serial port, UHF RFID reader (AEI), a built-in barcode reader (XPad only) and more. Front-facing and 13 MP rear-facing high-resolution cameras enable capture of proof-of-condition/delivery, incident documentation, evidence and more.

USE IT VIRTUALLY ANYWHERE

The L10 platform defines the standard of rugged tablets. It is rated for a 6 ft. drop and the L10axe Windows is tested to the latest MIL-STD-810H, while the L10 Android is tested to MIL-STD-810G. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With sunlight viewable reinforced glass displays and an active digitiser option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas mean it's ideal for mounting in vehicles of all types.

LIGHTWEIGHT FOR EASY TRANSPORT

Whether you opt for Windows or Android, your XSlate L10 will deliver more than enough computing power. It is the smallest and lightest of the L10 family for workers who need the ultimate rugged traditional tablet. Roam far and wide connected to the information and people you need with advanced wireless connectivity. A hot swappable battery is standard, but this tablet will stay powered for over 24 hours with the extended-life, accessory battery.

Specification

Product
Product id	685524
Brand	Zebra
Partnr	210004
EAN/UPC code
Warranty (months)	3 years
Display
Display diagonal	10.1 inch
Display resolution	1920 x 1200 Pixels
Display glass type	Gorilla Glass
HD type	WUXGA
Anti-glare screen	Y
Touchscreen type	Capacitive
Native aspect ratio	16:10
Processor
Processor manufacturer	Intel
Processor family	Intel Pentium
Processor model	N4200
Processor frequency	1.1 GHz
Processor boost frequency	2.5 GHz
Processor cores	4
Conflict-Free processor	Y
Memory
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Storage
Internal storage capacity	64 GB
Card reader integrated	Y
Compatible memory cards	MicroSDXC
Storage media	SSD
SSD interface	Serial ATA
Graphics
Graphics adapter family	Intel
Graphics adapter	HD Graphics 505
Audio
Number of built-in speakers	1
Number of microphones	2
Audio system	High Definition (HD)
Camera
Rear camera type	Single camera
Rear camera resolution (numeric)	13 MP
Auto focus	Y
Front camera	Y
Front camera resolution (numeric)	2 MP
Front camera flash	Y
Network
Mobile network connection	Y
Mobile network generation	4G
4G standard	LTE
Bluetooth	Y
Bluetooth Low Energy (BLE)	Y
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN	Y
Near Field Communication (NFC)	Y
WWAN	Installed
SIM card type	NanoSIM
Dual SIM support	Y
Ports & interfaces
USB 2.0 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
Headphone out	Y
Headphone connectivity	3.5 mm
Combo headphone/mic port	Y
SmartCard slot	Y
Design
Form factor	Slate
Product colour	Black
Device type	Tablet PC
International Protection (IP) code	IP65
Protection features	Cold resistant, Dust resistant, Explosion proof, Heat resistant, Rain proof, Snow resistant, Temperature proof, Vibration proof, Waterproof
Rugged design	Y
Performance
Position location	Y
BeiDou	Y
Assisted GPS (A-GPS)	Y
GLONASS	Y
GPS (satellite)	Y
Galileo	Y
Night mode	Y
Trusted Platform Module (TPM)	Y
Security
Fingerprint reader	Y
Cable lock slot	Y
Cable lock slot type	Kensington
Software
Platform	Windows
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Processor special features
Intel Small Business Advantage (SBA) version	0.00
Intel Secure Key Technology version	1.00
Intel Secure Boot Technology version	1.00
Intel Secure Boot	Y
Intel Rapid Storage Technology	N
Intel Identity Protection Technology version	1.00
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel VT-x with Extended Page Tables (EPT)	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel Virtualization Technology (VT-x)	Y
Intel Trusted Execution Technology	N
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Stable Image Platform Program (SIPP)	N
Intel Enhanced Halt State	Y
Intel Smart Connect Technology	N
Enhanced Intel SpeedStep Technology	Y
Intel 64	Y
Idle States	Y
Execute Disable Bit	Y
Embedded options available	N
Intel Clear Video Technology	Y
Battery
Battery voltage	20 V
Battery recharge time	2.75 uur
Battery life (max)	9.5 uur
Power
AC adapter input voltage	19 V
Sustainability
Sustainability compliance	Y
Weight & dimensions
Width	195.2 mm
Depth	22 mm
Height	280.8 mm
Weight	1300 g
Certificates
Compliance certificates	RoHS, WEEE
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	3 - 95 procent
Storage relative humidity (H-H)	3 - 95 procent
Operating altitude	0 - 15240 m
Drop proof	183 cm
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver
Other features
Harmonized System (HS) code	84713000
