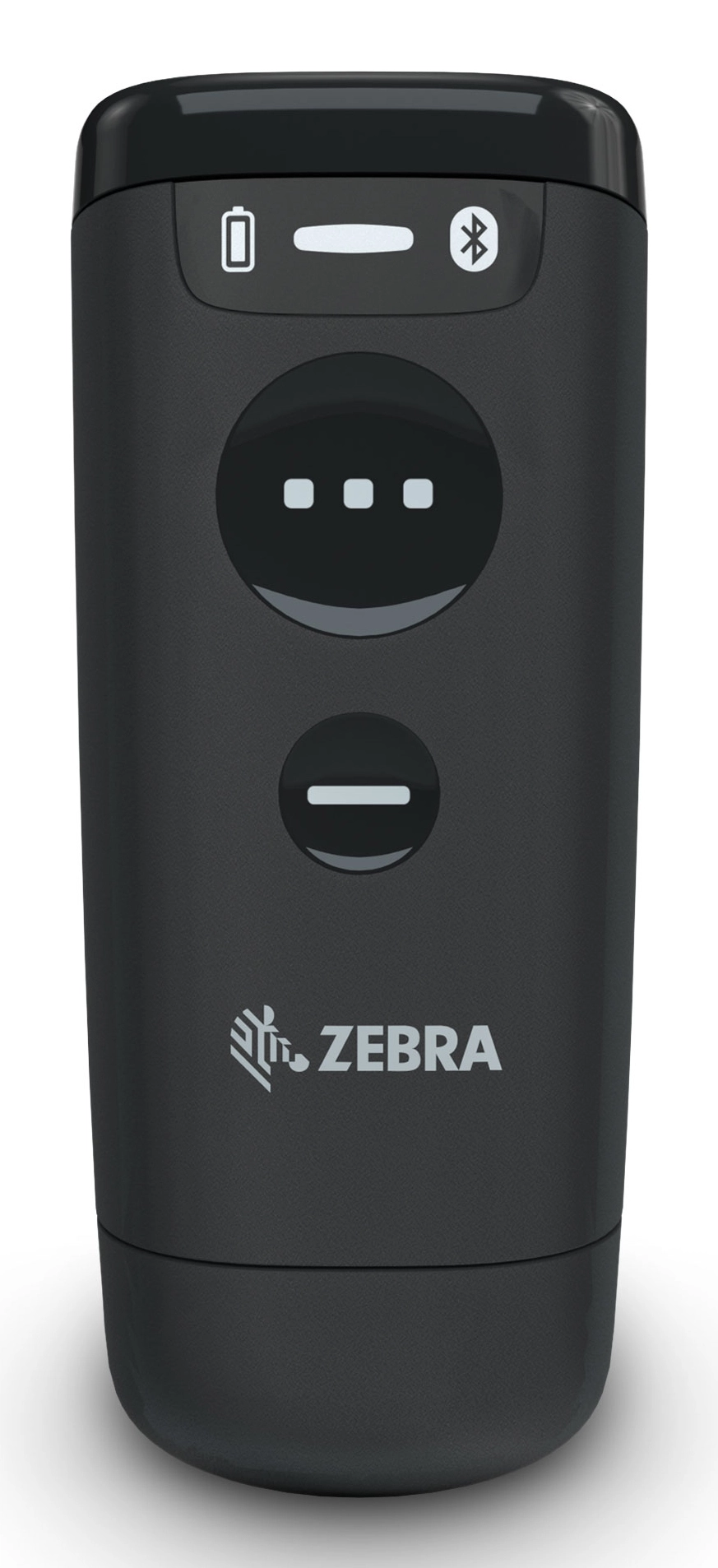

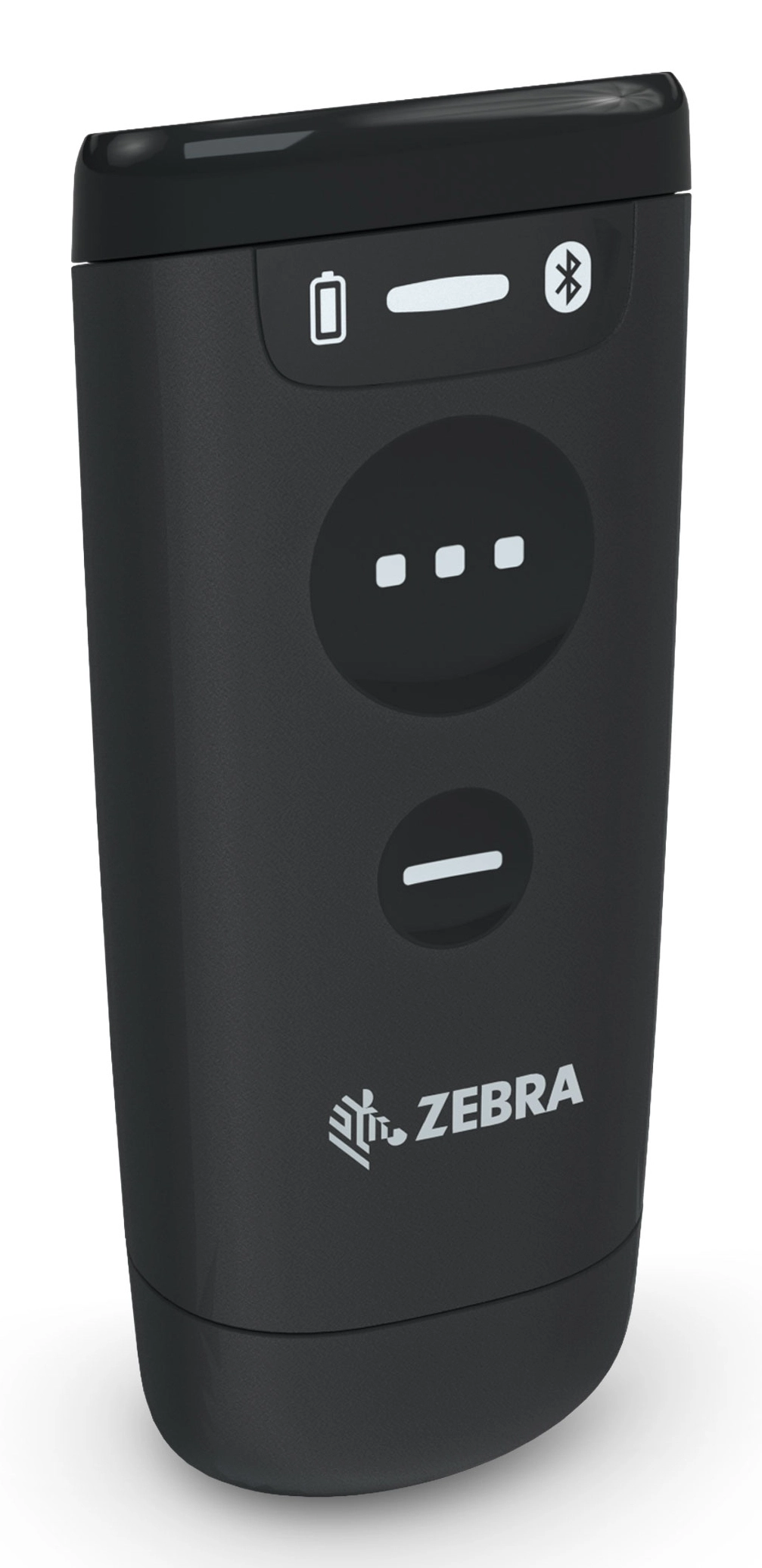

The ultra-versatile CS60 Companion scanner adapts to any workflow. As a cordless scanner, it is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, it provides compact scanning for the checkout counter, self-service kiosk and more.

Specification

Product
Product id	910075
Brand	Zebra
Partnr	CS6080-SR400004QVW
EAN/UPC code
Warranty (months)	3 years
Scanning
Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	LED
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U. P. C. , UPC-A, UPC-E, UPC-E0, UPC-E1
Optical sensor resolution (W x H)	1280 x 960 Pixels
Horizontal field of view	45 °
Light levels (direct sunlight)	0 - 108000 Lux
Vertical field of view	34 °
Tilt reading angle	0 - 360 °
Pitch reading angle	-60 - 60 °
Yaw reading angle	-60 - 60 °
Ports & interfaces
Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	100 m
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Y
Performance
Product colour	Black
International Protection (IP) code	IP65
LED indicators	Y
Buzzer	Y
Ambient lighting	Y
Vibration function	Y
Power
Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	745 mAh
Number of reads per charge	13000
Charging time	3 uur
Battery life	18 uur
Weight & dimensions
Width	18 mm
Depth	43 mm
Height	9 mm
Weight	83 g
Technical details
Warranty period	3 jaar
Compliance certificates	Mfi, REACH, RoHS, Trade Agreements Act (TAA)
Packaging data
Charging base	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 procent
Storage relative humidity (H-H)	5 - 95 procent
Drop resistance	1.8 m
