A VERSATILE RUGGED TABLET PLATFORM RUGGED TO THE CORE
The Zebra L10 rugged platform, formerly manufactured by Xplore Technologies, offers a variety of tablet configurations and a shared accessory ecosystem that sets a new standard in office, vehicle and field-based computing.

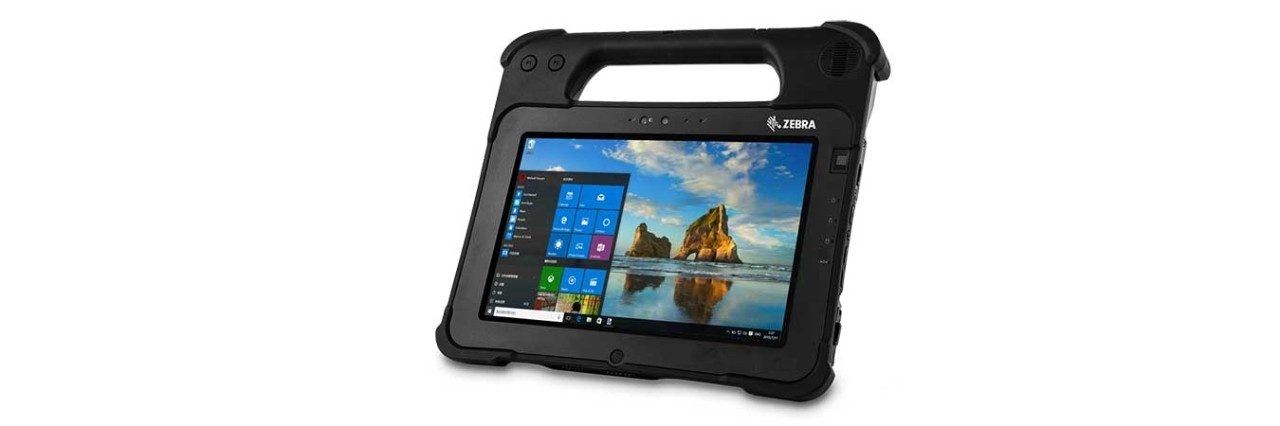

Whether your mobile workers prefer a slate tablet (XSLATE L10), a tablet with a rigid-handle and built-in barcode reader option (XPAD L10), or a 2-in-1 laptop/tablet with a full-featured keyboard (XBOOK L10), the functional flexibility of the Zebra L10 ensures that your workers have the right computing tool for their job. Only Zebra offers this many performance, security, connectivity and accessory options in one rugged mobile computer platform.

GET THROUGH TASKS FASTER
With more CPU options than ever, you’re guaranteed that the performance-driven L10 rugged tablet platform will be the right fit for your organization and budget, whatever your operating system. For Windows, choose between three different 8th Generation Intel Core-Series processors or an Intel Pentium-series processor. Add a PCIe solid state drive (SSD) for an extra speed boost. For Android, the Qualcomm Snapdragon 660 gives you power and performance to spare. The L10 is available with a range of RAM and storage options for every business and agency application.

EXPAND YOUR USAGE CAPABILITIES
The L10 combines latest-generation NFC, Bluetooth, 802.11ac Wi-Fi, GPS and 4G LTE mobile broadband technologies to provide uninterrupted connectivity. And each L10 rugged tablet can be equipped with workflow specific tools needed for nearly any application. This includes an optional true serial or HDMI-in port, UHF RFID reader (AEI), and built-in bar code reader (XPad only). RJ-45 jacks and multiple USB ports are standard on all models. Front facing and 13 MP rear facing cameras capture images and video, while built-in microphones support VoIP collaboration.

USE IT VIRTUALLY ANYWHERE
The L10 platform defines a new standard of rugged tablets. It is rated for a 6 ft. drop and is subjected to a raft of MIL-STD-810G tests. It maintains its IP65 rating even with the port doors open. It can be used in cold storage, blowing dust, or driving rain. With daylight or sunlight viewable reinforced glass displays and an active digitizer option, your screen will be easy to read wherever you use it. Plus, the optional 5 pass-through antennas means it's ideal for mounting in vehicles of all types.

Specification

Product
Product id	793049
Brand	Zebra
Partnr	RTL10B1-H4AS0X3000A6
EAN/UPC code	682017476094
Display
Display diagonal	10.1 inch
Display resolution	1920 x 1200 Pixels
Display brightness	1000 cd/m²
Display glass type	Gorilla Glass
HD type	WUXGA
Touchscreen type	Capacitive
Native aspect ratio	16:10
Processor
Processor manufacturer	Qualcomm
Processor family	Snapdragon
Processor model	660
Processor frequency	2.2 GHz
Processor cores	8
Memory
Internal memory	8 GB
Internal memory type	LPDDR4-SDRAM
Storage
Internal storage capacity	128 GB
Card reader integrated	Y
Compatible memory cards	MicroSDXC
Storage media	eMMC
Graphics
Graphics adapter family	Adreno
Graphics adapter	Adreno 512
Camera
Rear camera type	Single camera
Rear camera resolution (numeric)	13 MP
Auto focus	Y
Rear camera flash	Y
Front camera	Y
Front camera resolution (numeric)	5 MP
Network
Mobile network connection	Y
Mobile network generation	4G
4G standard	LTE
Bluetooth	Y
Bluetooth Low Energy (BLE)	Y
Bluetooth version	5.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Y
Near Field Communication (NFC)	Y
Ports & interfaces
USB 2.0 ports quantity	2
USB 2.0 Type-C ports quantity	1
Combo headphone/mic port	Y
Design
Form factor	Slate
Product colour	Black
Device type	Mobile tablet
International Protection (IP) code	IP65
Performance
Position location	Y
BeiDou	Y
Assisted GPS (A-GPS)	Y
GLONASS	Y
Galileo	Y
Accelerometer	Y
Ambient light sensor	Y
Gyroscope	Y
Electronic compass	Y
Software
Platform	Android
Operating system installed	Android 8.1
Power
AC adapter output voltage	19 V
Weight & dimensions
Width	255.9 mm
Depth	22 mm
Height	280.8 mm
Weight	1400 g
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	3 - 95 procent
Operating altitude	0 - 15240 m
Drop proof	183 cm
Technical details
Sustainability certificates	ENERGY STAR
Other features
Harmonized System (HS) code	84713000
