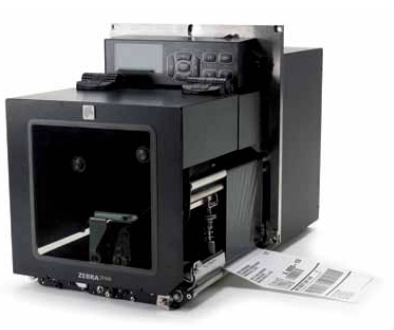

ZE500 Print Engines
The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

Used For:
- Cross Docking;
- Receiving/Shipping;
- Compliance Labeling;
- Order Labeling.

The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.

Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.

The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.

Specification

Product
Product id	601893
Brand	Zebra
Partnr	ZE50063-R090000Z
EAN/UPC code
Printing
Print technology	Direct thermal / thermal transfer
Colour	N
Maximum resolution	300 x 300 pixels
Print speed	254 mm/sec
Maximum printing width	168 mm
Paper handling
Ribbon length	3810 m
Ribbon width	180 mm
Core diameter	25.4 mm
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Y
Wi-Fi	N
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	1
Performance
Internal memory	16 MB
Flash memory	64 MB
Built-in processor	Y
Built-in RFID module	Y
Certification	IEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
Design
Product colour	Black
Display	LCD
Built-in display	Y
Power
AC input voltage	90 - 264 V
AC input frequency	47 - 63 Hz
Technical details
Sustainability certificates	ENERGY STAR
Operational conditions
Operating relative humidity (H-H)	20 - 85 procent
Storage relative humidity (H-H)	5 - 95 procent
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 71 °C
Weight & dimensions
Width	245 mm
Depth	438 mm
Height	300 mm
Weight	17300 g
