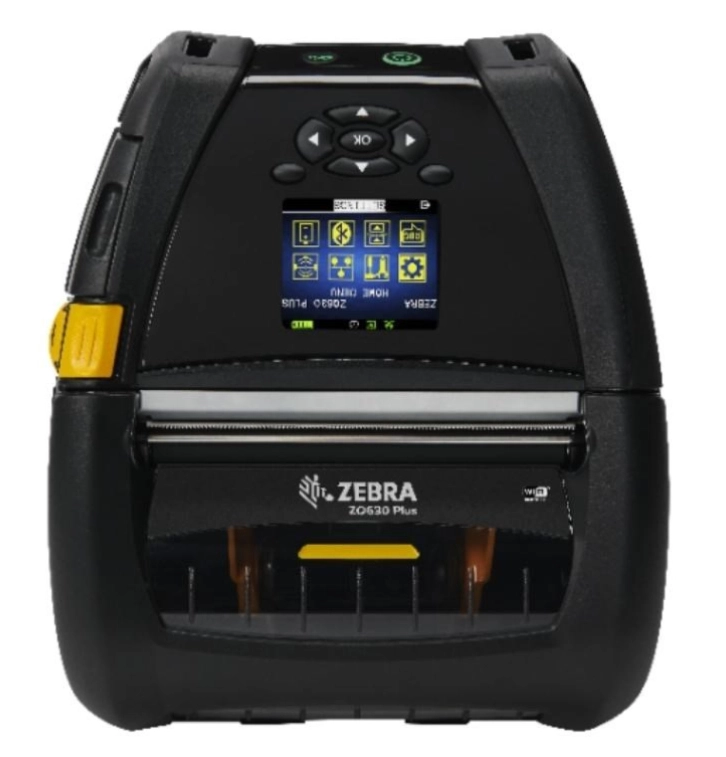

The ZQ630 Plus premium mobile printer offers the fastest, most dependable wireless connections inside the four walls - with support for 802.11ax Wi-Fi 6 and Bluetooth 5.

While the ZQ630 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design.

Specification

Product
Product id	905471
Brand	Zebra
Partnr	ZQ63-AUXAE14-00
EAN/UPC code
Printing
Print technology	Direct thermal
Colour	N
Maximum resolution	203 x 203 pixels
Print speed	115 mm/sec
Maximum printing width	104 mm
Minimum print length	12.7 mm
Vertical printing	Y
Paper handling
Maximum label width	104 mm
Media thickness	2.3, 5.5, 6.5 mm
Maximum roll diameter	66 mm
Ports & interfaces
Connectivity technology	Wired & Wireless
Wi-Fi	Y
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Y
Bluetooth version	5.3
USB port	Y
Performance
Page description languages	CPCL-native, EPL, ZBI, ZPL
Internal memory	256 MB
Flash memory	512 MB
Built-in barcodes	2D, AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC39, UPC-A, UPC-E
Built-in processor	Y
Number of fonts	26
Security algorithms	802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA, WPA2
Certification	FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad
Design
Product colour	Black
Display	LCD
Built-in display	Y
Display resolution	288 x 240 Pixels
Colour display	Y
Power
Battery type	Built-in battery
Number of batteries supported	1
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	6600 mAh
Operational conditions
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	10 - 90 procent
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 65 °C
Weight & dimensions
Width	165.1 mm
Depth	186.7 mm
Height	82.5 mm
Weight	1100 g
